Vertical Roll Lifter with Tilt Assist

+ Add to Quote Request

The Vertical Roll Lifter with Tilt Assist safely and easily manipulates heavy items. As a cost-effective solution to lift, turn and transport rolls and reels weighing up to 500 kg.

These lifters feature a unique suspension that allows for vertical to horizontal handling. The unique functionality allows the operator to tilt a roll from vertical to horizontal without manually exerting themselves. The Vertical Roll Lifter is ergonomically designed and aids a worker during the lifting task. They eliminate potential hazards, risks or operator injuries to maximise productivity and efficiency in the workplace.

Available in two models – either VRL-500-TA or VRL-1000-TA – our roll lifters are user-friendly, safe, easy to use and ensure turning rolls is effortless.

Clear

Additional Information

The Vertical Roll Lifter and Tilter is available in two models!

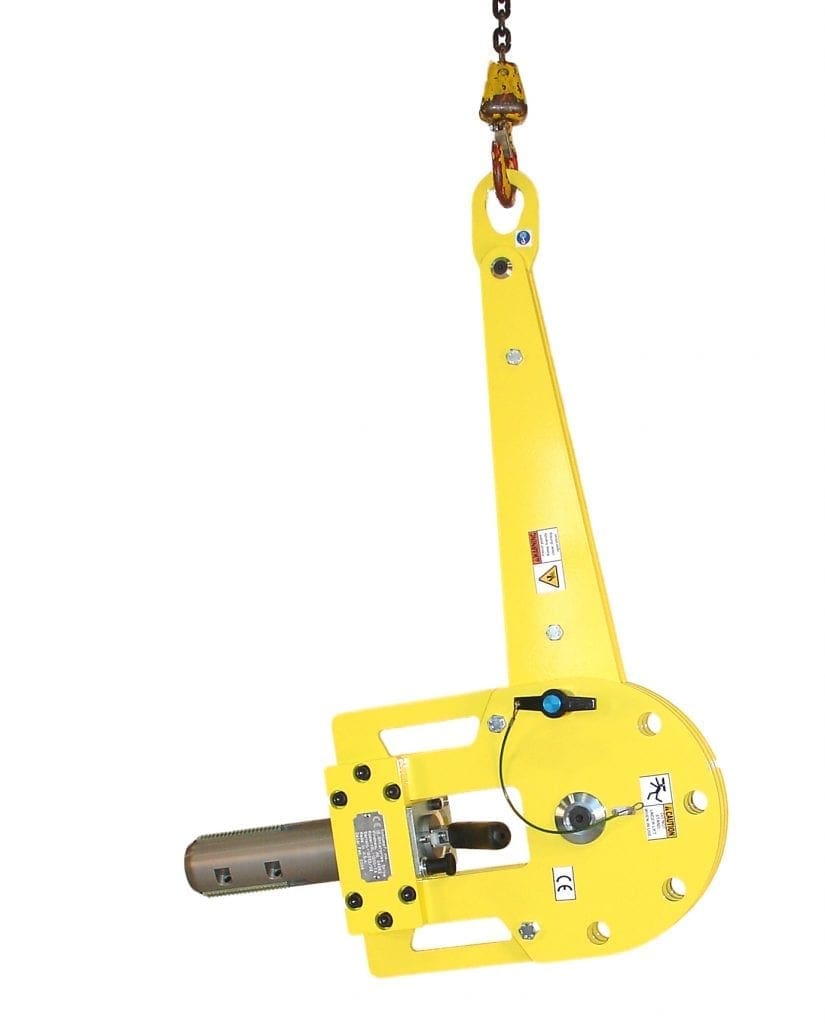

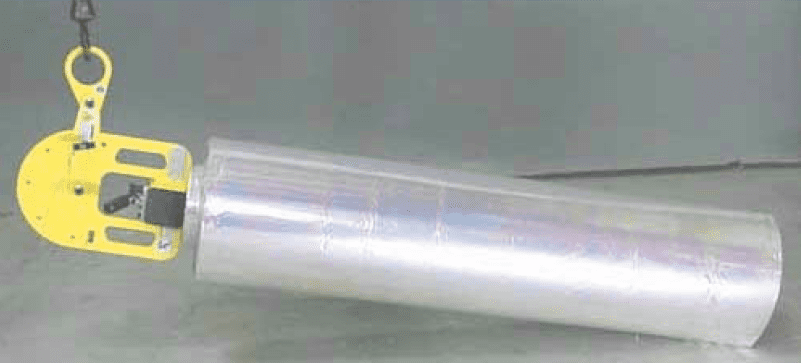

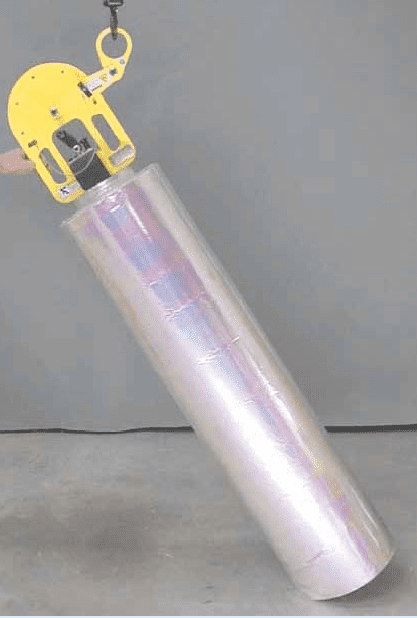

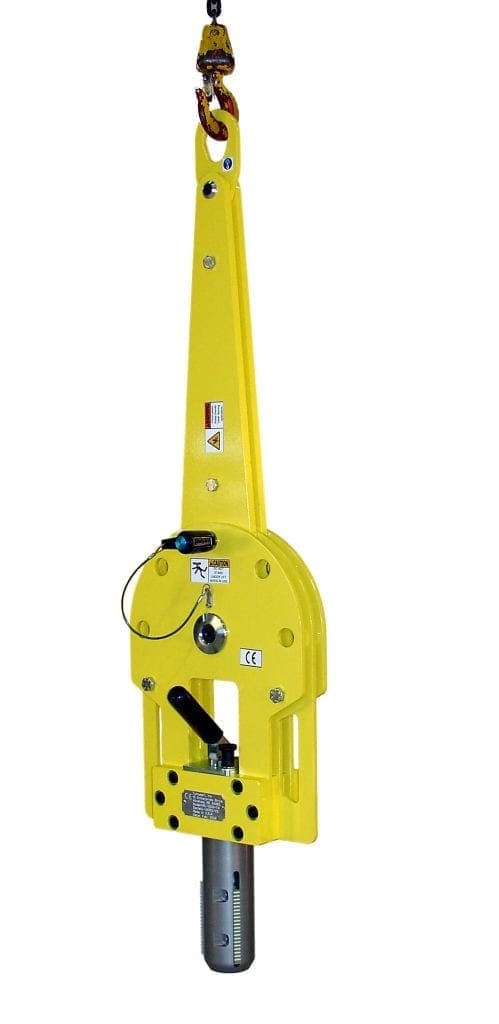

Both the VRL-500-TA and the VRL-1000-TA have been constructed as a hoist based mechanical lifting and positioning device. Either model can be used to tip rolls up or lay them down (in a horizontal or vertical position). With the innovative pivoting arm, an operator is able to move a roll onto its side whilst maintaining complete control during the lifting process. This functionality removes the need for a worker to manually push a roll over and prevents possible strain or injury. It also ensures rolls and materials are not damaged.

VRL-500-TA Specifications:

  • Best used lifting and turning rolls with a variety of core sizes
  • Tilt Assisted
  • Maximum Load Capacity – 250 kg
  • Machine Weight – 9.1 kg
  • User friendly, low-maintenance and ergonomic design
  • Fast and easy to use for operators of all skill levels
  • Rugged steel construction with powder coated finish
  • Change mandrel sizes in seconds without tools

VRL-1000-TA Specifications:

  • Greater capacity than VRL-500-TA
  • Best used lifting and turning rolls with a variety of core sizes
  • Tilt Assisted
  • Maximum Load Capacity – 500 kg
  • Machine Weight – 34 kg
  • User friendly, low-maintenance and ergonomic design
  • Fast and easy to use for operators of all skill levels
  • Rugged steel construction with powder coated finish
  • Change mandrel sizes in seconds without tools

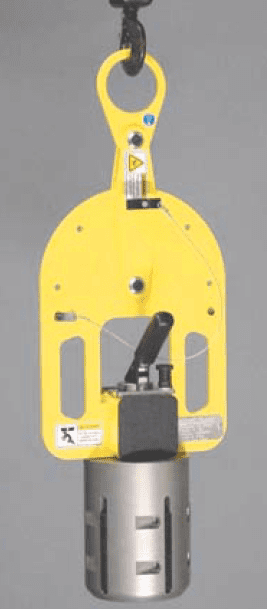

Both are models are ideally used with the Toggle Handle Mandrel. The serrated gripper design holds the roll securely at all times and can only be released by an operator. An ergonomic handle is also provided to assist in positioning the roll.  Additional information regarding mandrel sizes is available.

View other lifting and handling solutions!

We have a range of Vertical Roll Lifting Devices on offer, so browse some of our alternative solutions.

Product Variations

Image Description Product Code Price (excl. GST)

Vertical Roll Lifter with Tilt Assist
Unique suspension allows vertical to horizontal handling
Mandrel sold separately
250kg capacity

VRL-500-TA

Vertical Roll Lifter with Tilt Assist
Unique suspension allows vertical to horizontal handling
Mandrel sold separately
500kg capacity

VRL-1000-TA

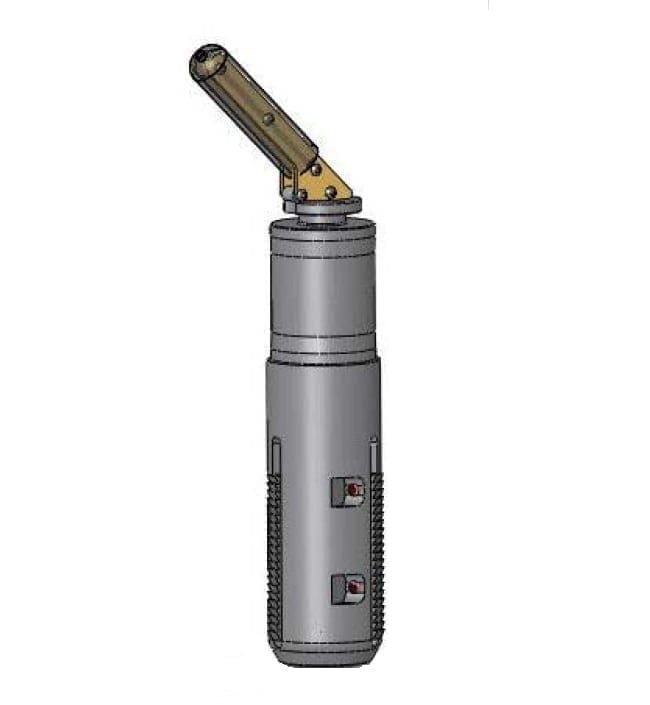

3″ mandrel with expanding grippers

3-MNDL-TG

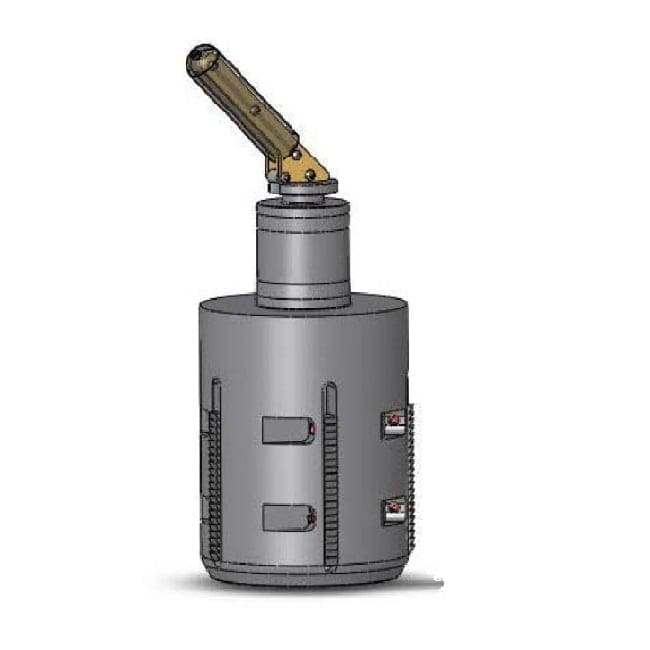

6″ mandrel with expanding grippers

6-MNDL-TG
