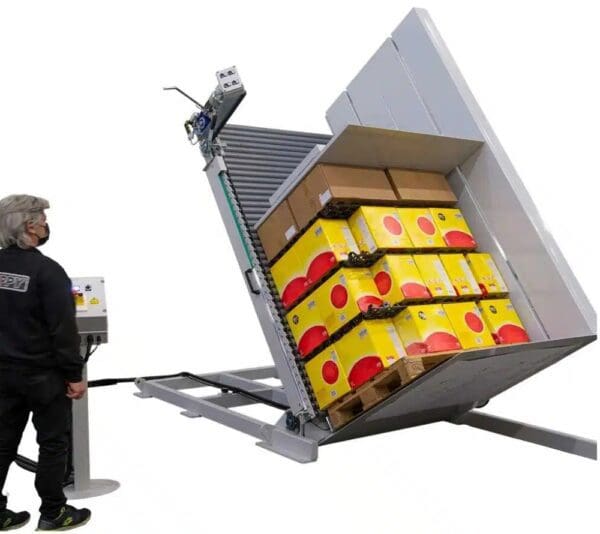

Pallet Inverter Freezer Spacer Splitter

+ Add to Quote Request

This innovative freezer spacer removal system revolutionizes the process of inserting and removing freezer spacers.

Designed with simplicity and ease of use in mind, this system streamlines your operations and ensures a hassle-free experience.

This solution is part of the pallet inverter family and starts the operation by tilting the load at 90° or 100°. Firstly, the operator trasports the loads with a pallet-jack on the lower platform.

Additional Information

  • Insertion & removal of freezer spacers
  • Maximum capacity of 1500 kg
  • Loading and unloading at floor level with pallet trucks

Efficient Freezer Spacer Removal & insertion

The operator manages the machine with a control panel and actives the upper platform. The upper platform blocks safely the product and overturns the entire load on sideway.

Toppy’s freezer spacer removal system widens the compactor in order to separate the product from freezer spacers and the pallet. Subsequently, the operator remove all the freezer spacers and inserts the new pallet.  Our cold storage freezer spacer removal system closes the compactor, and returns in its initial position.

At this point, the product is placed on the new pallet without plastic dividers. You can easily split or separate the load for inserting and removal of plastic layers because Toppy provides this pallet tipper  with a motorized roller table for moving   the load forwards or backwards.

 Versatile Stationary Pallet Inverter with Optionals

 It is also available without the motorized roller floor Pallet Tilter L-Shape Silver.

It is a stationary pallet inverter available in various configurations depending on the product that need to be handled. This version of cold storage freezer spacer removal system has the same features as the standard model (L-Shape Silver).

The only difference is that Toppy provides the laterally platform  with a movable rollers that can be unlockable and lockable.

Division and Pallet Enhanced Product Handling

We designed this solution in order to facilitate the division of products for the insertion and removal of freezer spacers and to facilitate the removal or insertion of pallets.

“L-Shape Silver Splitter” deals with countless products and has a maximum capacity of 1.500 kg, with  a maximum height of up to 2.100 mm.

Effortless Pallet Handling with Pallet Transfer Systems

If you need an automatic pallet inverter with conveyors and pallet stackers, check out our pallet transfer systems. In particulary, “L-Shape Silver Splitter” is also available in the fully automatic version.
