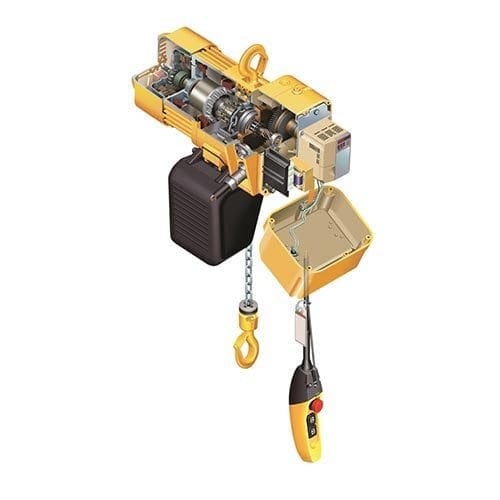

Electric Chain Hoists and Motorised Trolleys ER2

Additional Information

Electric Chain Hoists are energy-efficient and compact devices!

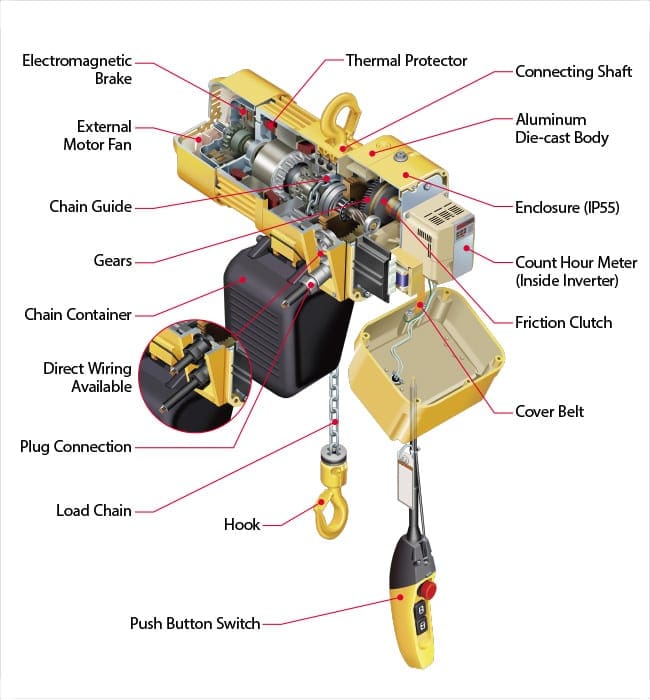

The ER2 Kito range ensures powerful hoisting, lifting and handling. Complying to relevant Australian Standards, the device can handle up to 20 tonnes in load capacity and can lift a variety of differing types of containers. It’s equipped with a number of safety benefits including thermal protection, adjustment-free brakes, nickel-plated load chains and a patented friction clutch for reliable overload protection and safety. Up to five meters of the power cable is supplied as standard with an optional length of lift, pendant cable and power standard cable. Alternative larger capacity models (up to 50 tonnes) can be customised upon request.

Technical Specifications:

• Rated Capacity – 250 kg to 20 tonnes (single-speed); 250 kg to 10 tonnes plus (dual-speed)
• Voltage – 415 V 50 Hz
• Control Voltage – 24 V
• Duty Rating – 60% ED, 60 min (single-speed); 40/20% ED, 30/10 min (dual-speed)
• Operating Temperature – –20 to 40℃
• Operating Humidity – 85%RH or less
• Classification – M4, M5, M6 (ISO); 1 Am, 2m, 3m (FEM); H4 (ASME)
• Motor Insulation – Class F for 380-415-50
• Enclosure – Hoist Body (IP55); Push-button control (IP65)
• Suspension Varieties – Hook, manual trolley, motorised trolley

The containers, which can be mounted via various connection methods, are customised to the model of the hoist and its lifting height. In some instances, containers can be suspended from an additional trolley. These types of containers include plastic, canvas, steel (arm) and steel (hook).

Single-Speed Kito Electric Chain Hoists:

Model	Capacity	Lift Speed – (m/min)	Motor Rating Output KW	Load Chain dia (mm) x fall	Hook Suspended Headroom (mm)	Hook Suspended Weight (kg)	Load Chain Dia x Pitch (mm)
ER2-003S	250 kg	9.1	0.56	4.3 x 1	350	27	4.3 x 12.0
ER2-005L	500 kg	3.8	0.56	6.0 x 1	370	33	6.0 x 16.7
ER2-005S	500 kg	7.3	0.9	6.0 x 1	370	37	6.0 x 16.7
ER2-010L	1 tonne	3.5	0.9	7.7 x 1	430	47	7.7 x 21.4
ER2-010S	1 tonne	7.1	1.8	7.7 x 1	430	54	7.7 x 21.4
ER2-015S	1.5 tonne	4.5	1.8	10.2 x 1	510	72	10.2 x 28.4
ER2-020L	2 tonne	3.7	1.8	10.2 x 1	575	73	10.2 x 28.4
ER2-020S	2 tonne	7.0	3.5	10.2 x 1	590	91	10.2 x 28.4
ER2-025S	2.5 tonne	5.7	3.5	11.2 x 1	625	104	11.2 x 31.2
ER2-030S	3 tonne	4.4	3.5	10.2 x 2	785	107	10.2 x 28.4
ER2-050S	5 tonne	2.9	3.5	11.2 x 2	850	132	11.2 x 31.2

* Motor Rating (%ED) – 60; Greater than 5-tonne capacity is available on request. All hoists have optional lift heights available.

Dual-Speed Kito Electric Chain Hoists:

Model	Capacity	Lift Speed – (m/min)	Motor Rating Output KW	Load Chain dia (mm) x fall	Hook Suspended Headroom (mm)	Hook Suspended Weight (kg)	Load Chain Dia x Pitch (mm)
ER2-003IS	250 kg	10.8-1.8	0.56	4.3 x 1	350	27	4.3 x 12.0
ER2-005IL	500 kg	4.5-0.8	0.56	6.0 x 1	370	32	6.0 x 16.7
ER2-005IS	500 kg	8.4-1.4	0.9	6.0 x 1	370	36	6.0 x 16.7
ER2-010IL	1 tonne	4.2-0.7	0.9	7.7 x 1	430	45	7.7 x 21.4
ER2-010IS	1 tonne	8.2-1.4	1.8	7.7 x 1	430	52	7.7 x 21.4
ER2-015IS	1.5 tonne	5.3-0.9	1.8	10.2 x 1	510	72	10.2 x 28.4
ER2-020IL	2 tonne	4.3-0.7	1.8	10.2 x 1	575	43	10.2 x 28.4
ER2-020IS	2 tonne	8.2-1.4	3.5	10.2 x 1	590	89	10.2 x 28.4
ER2-025IS	2.5 tonne	6.6-1.1	3.5	11.2 x 1	625	100	11.2 x 31.2
ER2-030IS	3 tonne	5.2-0.9	3.5	10.2 x 2	785	105	10.2 x 28.4
ER2-050IS	5 tonne	3.3-0.6	3.5	11.2 x 2	850	128	11.2 x 31.2

* Motor Rating (%ED) – 40/20; All hoists have optional lift heights available

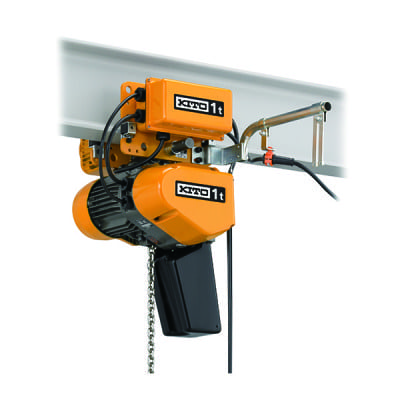

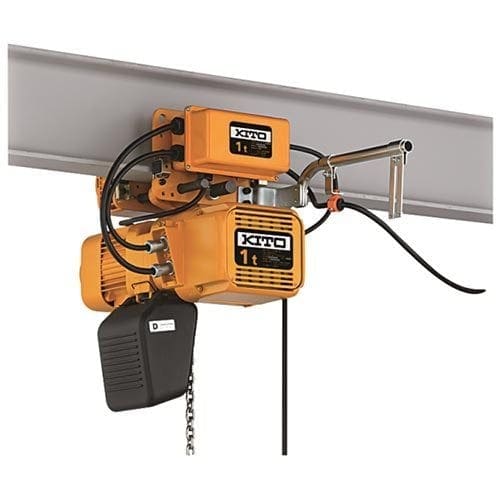

Get more out of your hoist with a Motorised Trolley.

Mounting an Electric Chain Hoist from a fixed point may prevent its ability to access and move around a workplace. The LEQ range can be partnered with an optional motorised powered trolley (MR2Q) or a manual push trolley. Both additions provide more flexibility to your lifting hoist.
