Ladderweld Mobile Access Platforms

+ Add to Quote Request

Ladderweld Mobile Access Platforms are a great solution for working at heights. They are super strong, reliable and made from heavy-duty aluminium. The fully welded construction features steel bracing underneath the bottom and side treads for additional protection against any impacts or external factors and it is available with an optional 680 x 402mm aluminium shelf.

The devices have an incredible ‘walk-thru’ design that allows operators special access to mezzanine floors – a great benefit when picking the stock, walking onto trailers or entering a work zone at a height. Two safety gates are fitted for a 2 in 1 product allowing for the walk-thru access. This also allows employees to work from three sides and the platform remains stable thanks to its manually operated brake.

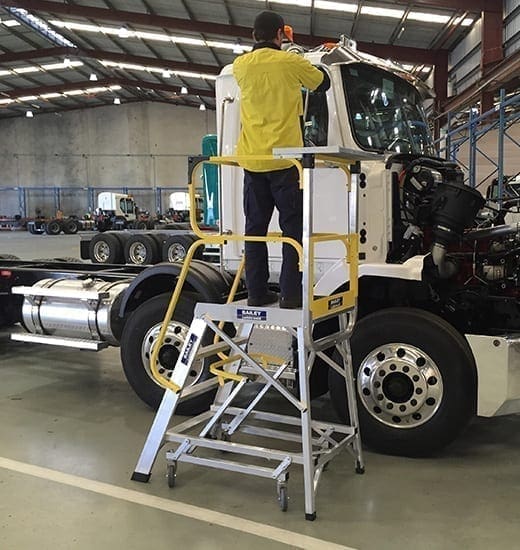

These platforms are perfect for frequent use and are commonly adopted for safe access and order picking in warehousing, vehicle maintenance, mining, and aviation workplaces. They are industrial duty rated and can support a load of up to 170 kg. Ladderweld Mobile Access Platforms comply with Work Cover requirements and meets relevant Australian standards.

Clear

Additional Information

Increase safety and functionality with our Mobile Access Platforms!

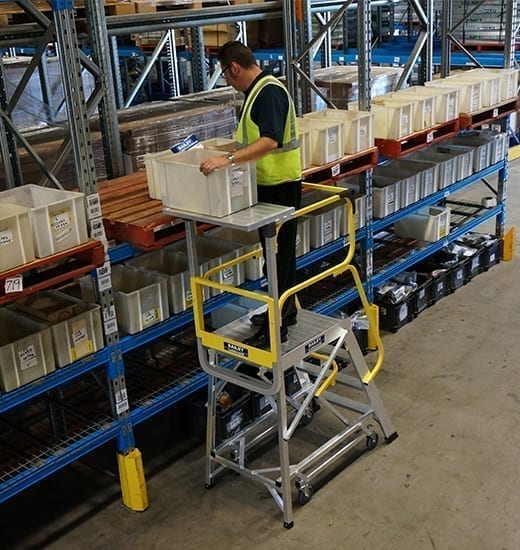

Perfect for frequent stock picking duties, these Mobile Access Platforms can be easily moved around a work site.  Their large wheels improve movement; allowing for an easy glide action. Each device is equipped with a manually operated break. Its activation arm is powder coated in a high visibility yellow to prevent unauthorised access. Two safety gates have also been fitted to allow ‘walk-thru’ access and a toe board ledge has been included on the platform, preventing tools or accessories from falling off. A working shelf is also included.

Mobile Access Platforms Specifications:

  • Nine sizes available with heights from 828 mm to 3866 mm
  • 170 kg load rating
  • Stable Work Platform – 590 mm x 800 mm
  • Large 125 mm wheels with improved portability
  • Two fitted safety gates
  • 100 mm deep treads to improve safety when climbing
  • Aluminium construction
  • 900 mm Handrails
  • Toe board on three sides

Temporary Work Platforms



Product Code Description Platform Height Work Height Fully Open Dimensions
(WxD mm)
Weight
SFS13591 Platform 3 step 828 mm 2.8 m 724 x 1168 38.1 kg
SFS13592 Platform 4 step 1104 mm 3.1 m 764 x 1309 40.6 kg
SFS13593 Platform 5 step 1381 mm 3.4 m 804 x 1451 43.0 kg
SFS13594 Platform 6 step 1656 mm 3.7 m 844 x 1592 46.0 kg
SFS13595 Platform 7 step 1933 mm 3.9 m 884 x 1733 48.5 kg
SFS13596 Platform 8 step 2209 mm 4.2 m 924 x 1875 51.0 kg
SFS13597 Platform 10 step 2761 mm 4.8 m 1003 x 2157 62.0 kg
SFS13598 Platform 12 step 3313 mm 5.3 m 1083 x 2440 69.0 kg
SFS13599 Platform 14 step 3866 mm 5.9 m 1164 x 2723 76.4 kg

This device can be configured to your requirements – in either a standard design, with walk-thru ability or with a shelf functionality. Improve your assembly with additional fasteners or learn how via our instructional video (below). The Temporary Work Platform is supplied as a flat-pack for easy transportation.

View another solution for maintenance activities!

Our Order Pickers are another great option if you require an economical work platform!

Product Variations

Image Description Product Code Price (excl. GST)

Access Platform 3 step 170kg

SFS13591

Access Platform 4 step 170kg

SFS13592

Access Platform 5 step 170kg

SFS13593

Access Platform 6 step 170kg

SFS13594

Access Platform 7 step 170kg

SFS13595

Access Platform 8 step 170kg

SFS13596

Access Platform 10 step 170kg

SFS13597

Access Platform 12 step 170kg

SFS13598

Access Platform 14 step 170kg

SFS13599
