Conveyor Track – Heavy Duty
+ Add to Quote Request
Our Heavy-Duty Roller Tracks are designed to move boxes, steel containers and boards.
They can be used as an internal transportation system, a storage area or a compact conveyor.
The track is for universal use and suitable for conveying heavy material.
It can be used in gravity conveyors, in push mode and also as a side guide.
It supports the 50mm diameter steel or plastic conveyor rollers fitted with precision bearings.
Additional Information
- Maximum load capacity: Up to 15,500 N (depending on model)
- Maximum conveyor speed: 2 m/s
- Temperature range: -28 °C or 0 °C to +40 °C (depending on model)
- Roller pitch: 52, 78, 104, 156 mm
- Shaft: 8 mm
- Length (min/max): 130 – 3900 mm

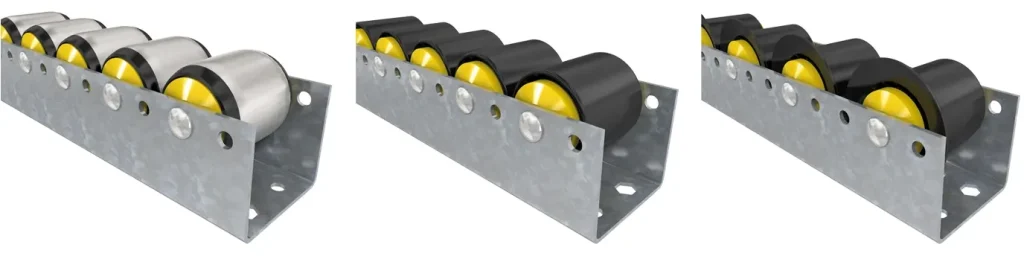

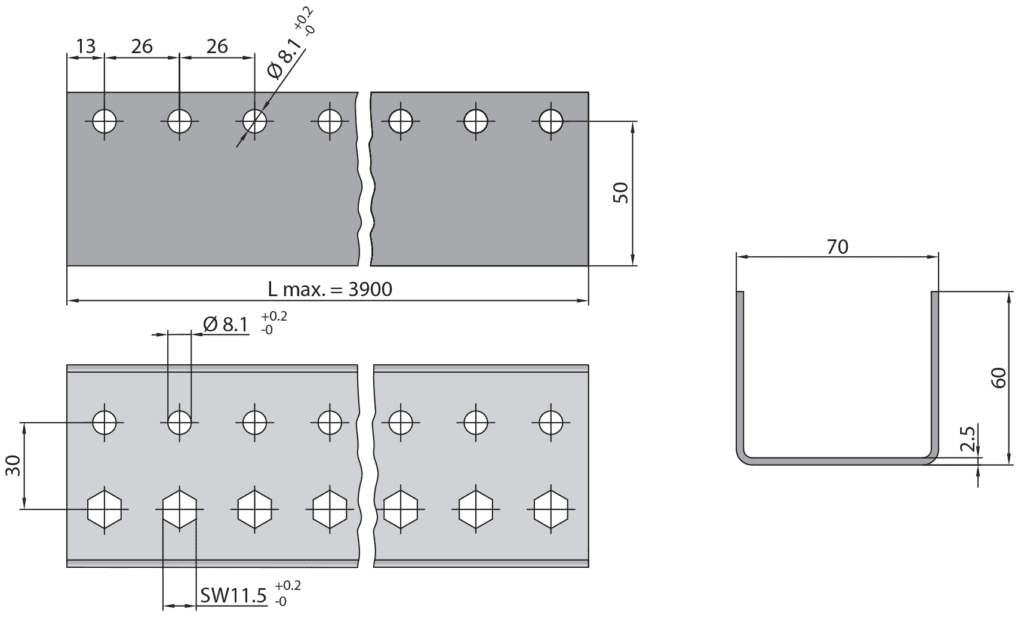

Track profile (without roller)

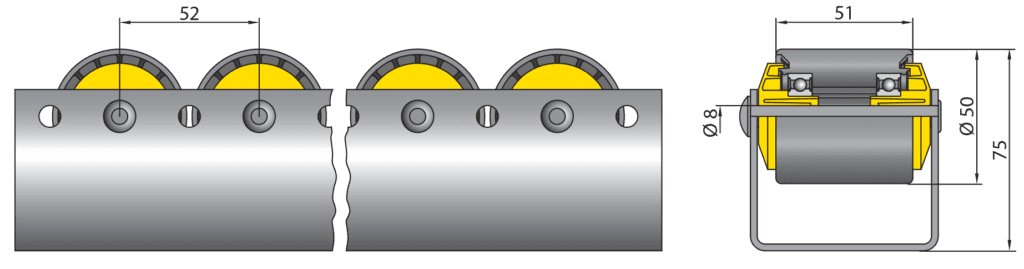

Track with polymer rollers

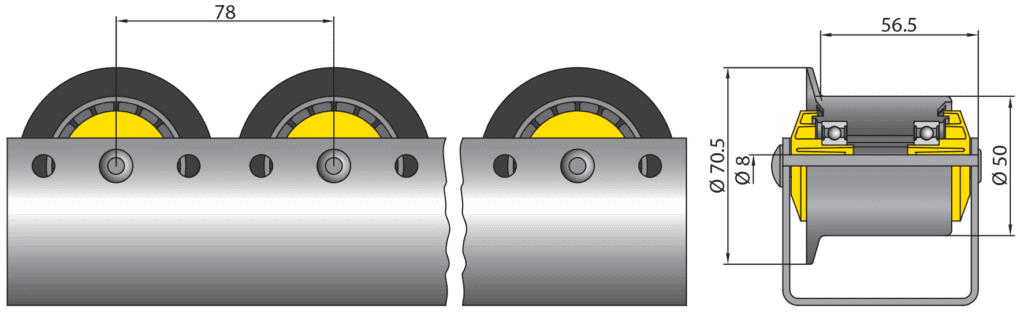

Track with polymer rollers with flange

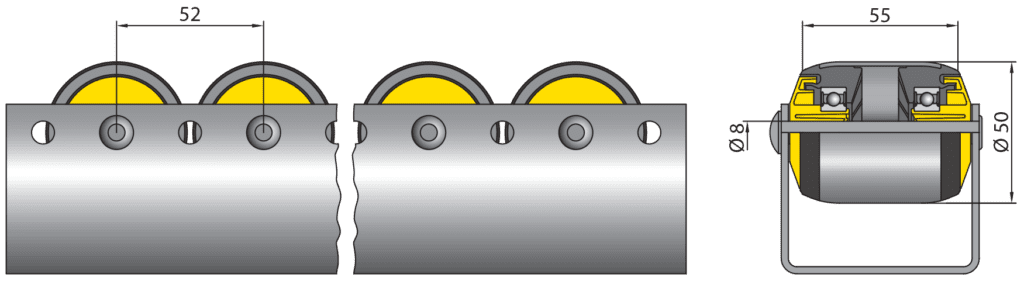

Track with steel rollers
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
 |

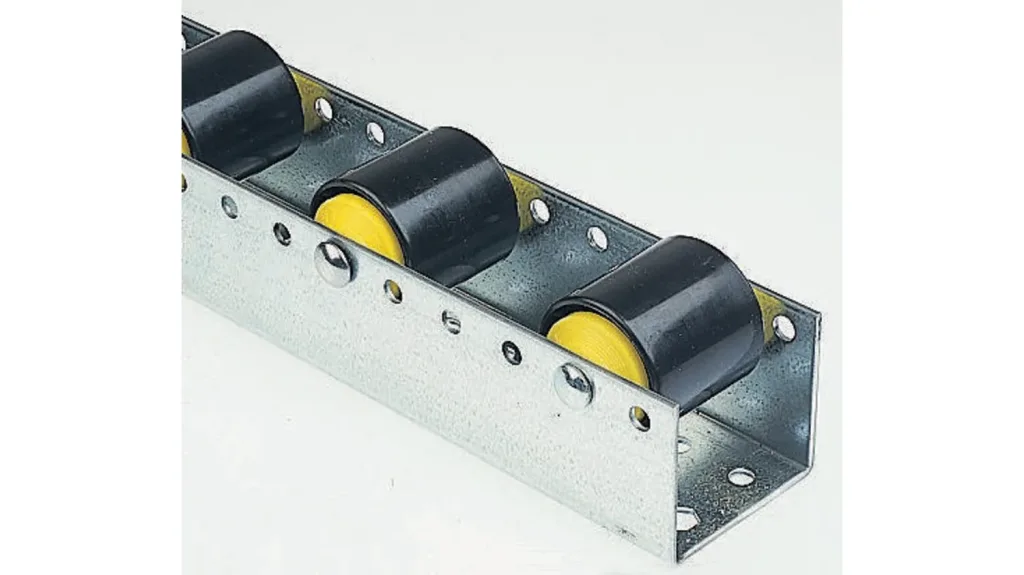

Plastic roller D50 with precision bearing |
C2901 | ||
 |

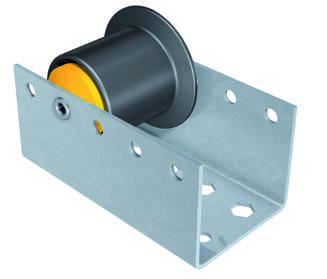

Flanged plastic roller with precision bearing |
C2911 | ||
 |
Steel roller D50 with precision bearing |
C2955 | ||
 |
Roller Track U profile 70 x 60mm |
CBU50 |
