Products / Conveyors / Gravity Conveyors / Conveyor Wheels

Conveyor Wheels

+ Add to Quote Request

Conveyor Wheels are supplied in steel, plastic & some with a rubber tyre. Some have flanges & there are 4 sizes with studs. They utilised for a variety of storage, conveying, materials handling and order picking applications.

Clear

Product Variations

Image Description Product Code Price (excl. GST)

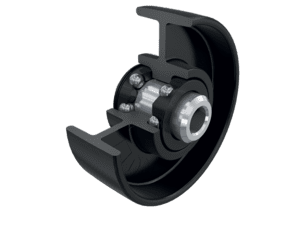

Material Plastic
Dia. mm 48
Bore mm 6.5
Bearing Steel
Capacity kg 20

C2130

Material Plastic
Dia. mm 52
Bore mm 6.5
Bearing Steel
Capacity kg 20
Special w/rubber tyre

C2132

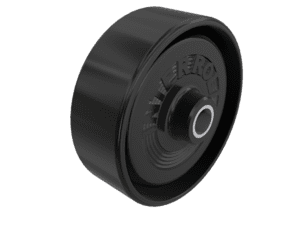

Material Plastic
Dia. mm 48
Bore mm 6.5
Bearing Steel
Capacity kg 7

C2160

Material Plastic
Dia. mm 48
Bore mm 6.5
Bearing Stainless Steel Balls
Capacity kg 7

C2161

Material Plastic
Dia. mm 48
Bore mm 8.2
Bearing Steel
Capacity kg 7

C2164

Material Plastic
Dia. mm 48
Bore mm 8.2
Bearing Stainless Steel Balls
Capacity kg 7

C2165

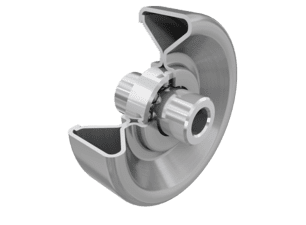

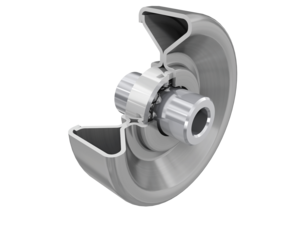

Material Steel Z.P.
Dia. mm 48
Bore mm 6.5
Bearing Semi-precision
Capacity kg 20
Special –

C2200A

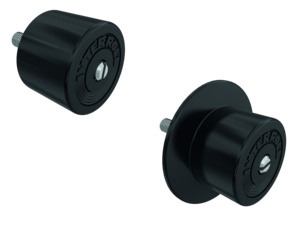

Material Polypropylene
Diameter 38mm Width 28mm
Stud 8mm
Bearing Stainless Steel Balls
Capacity kg 10
Flange 60mm diameter

C2372

Material Polypropylene
Diameter 38mm Width 28mm
Stud 8mm
Bearing Stainless Steel Balls
Capacity kg 10

C2373

Rubber Tyre Only

CH190
