Conveyor Track – Gravity Wheel

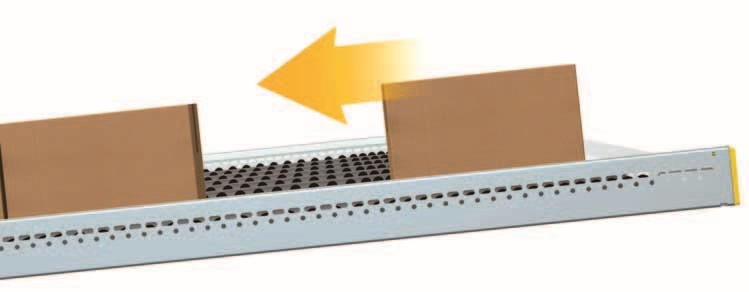

Our carton flow tracks are ideal for the transfer of lightweight materials and order picking scenarios like carton live storage. The roller wheels are suitable for transporting small crates, boxes, cartons and tote containers. They can be used as part of storage systems, in packing stations, assembly areas, for machine feeding etc. They are also ideal as side guides on some conveyor applications.

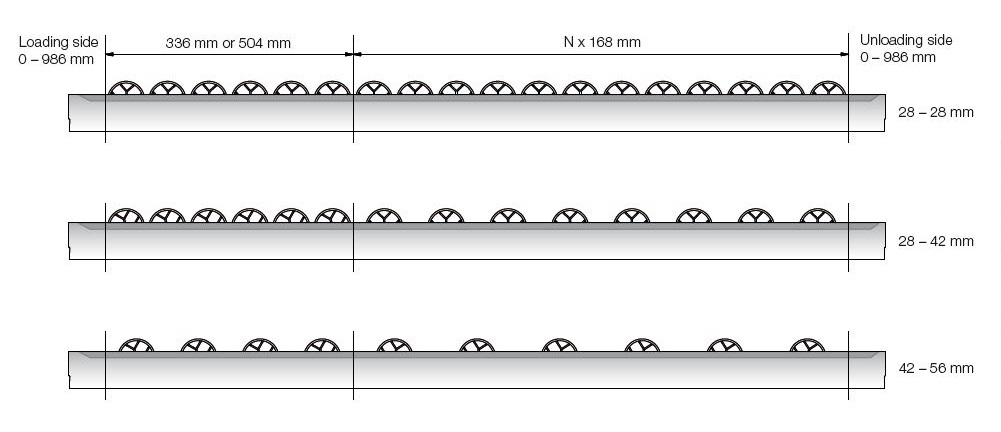

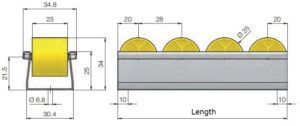

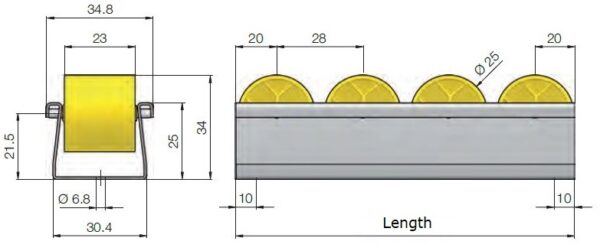

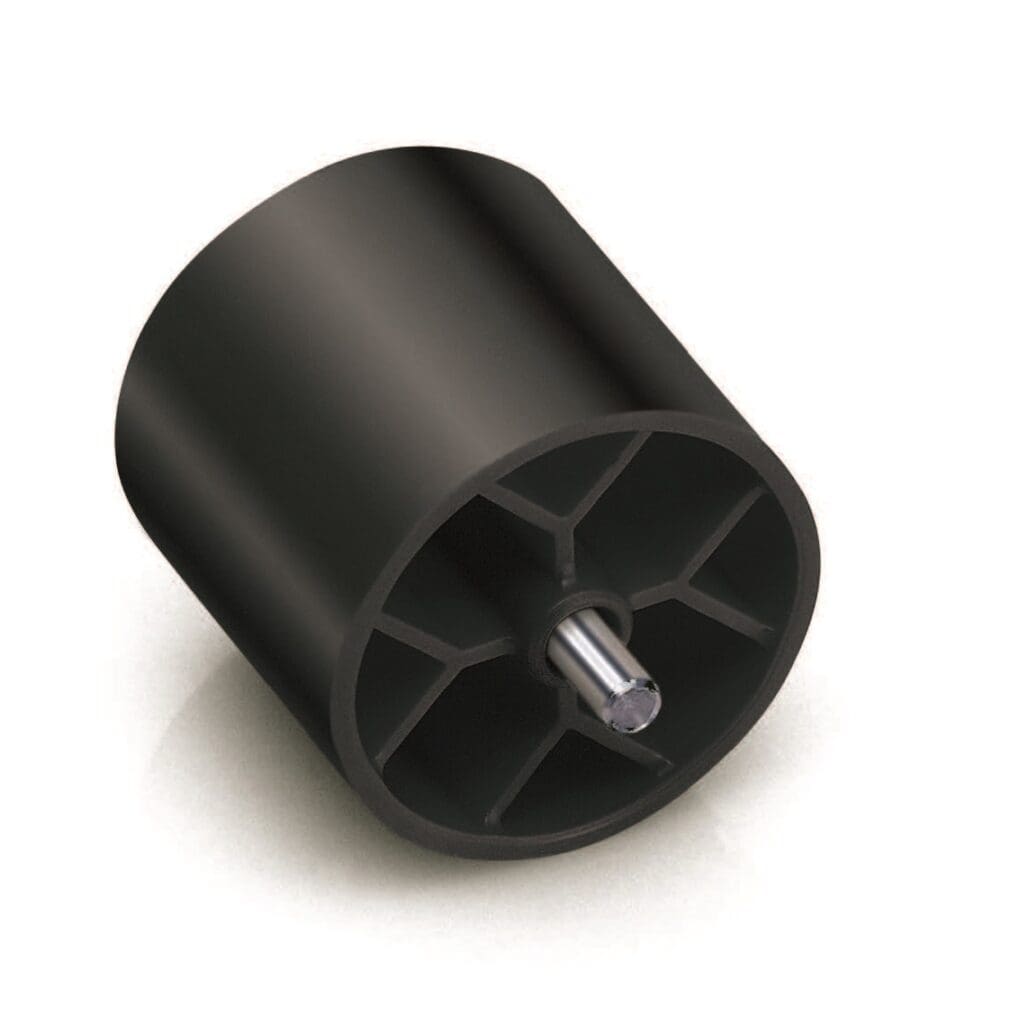

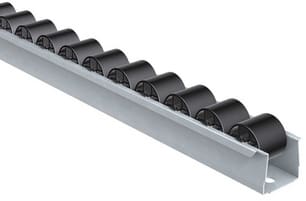

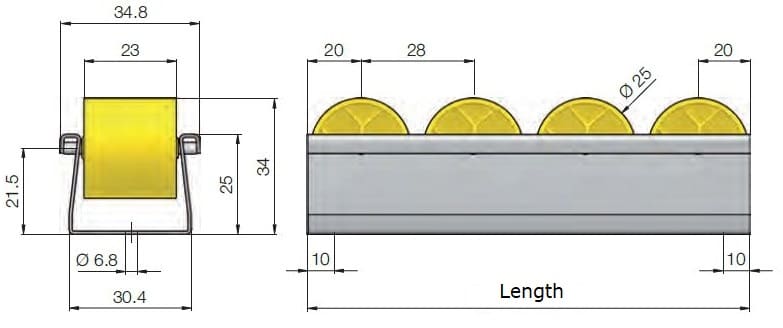

The steel track is a folded 0.8mm zinc-plated steel profile and will not distort under load. The rollers are pitched (distance between shaft centres) at 28 mm as standard. It is possible to change the pitch of the rollers at any stage along the track, for example – pitch centre 42 or 56mm. The rollers are 25 mm diameter, polyethylene with a 3mm steel axle with a low rolling coefficient of friction and very quiet operation.

Operating temperature: -30 to +40° C
Load per wheel (static/dynamic): 10 kg
