Free Standing Racks

+ Add to Quote Request

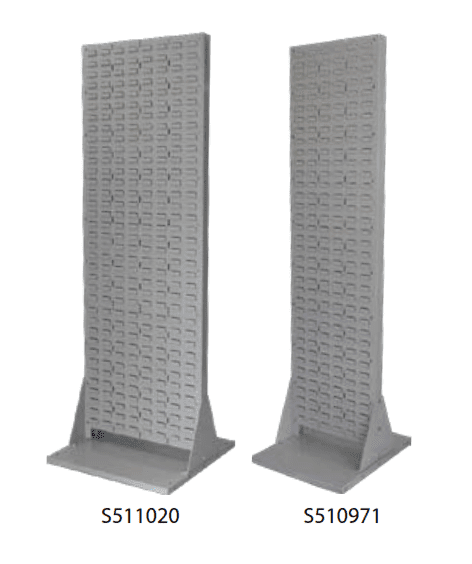

Standard models are infinitely flexible modular louvred panel racks with single or double sided louvred panels to enable them directly suspend our small parts storage containers. They solve variety of storage problems and can also accommodate, cable spikes & other tool holders available on the market. Size 1895h x 610d & in 2 widths, 515 & 670mm. There are also mobile versions available, called Line Feed Trolleys. Economy models are 1895mm high double sided racks with louvre panels on both sides and they stand on steel gussets but have no base like the standard units. The economy model is 1450h x 610d x 670w.
The three rack models, single sided, double sided or economy are available with or without a range of bins. When ordering bins please advise colours—Blue, Green, Red or Yellow.

The following partners may also interest you. Storage Containers Semi Open Front  – Line Feed TrolleysLouvre Panels







Clear

Product Variations

Image Description Product Code Price (excl. GST)

Standard 515mm wide panel one side
Containers 4 x S3Z 9 x S4 16 x S5 8 x S6

S510962

Standard 515mm wide panels both sides
Containers 8 x S3Z 18 x S4 32 x S5 16 x S6

S501972

Standard 670mm wide panel one side
Containers 6 x S3Z 16 x S4 18 x S5 12 x S6

S511001

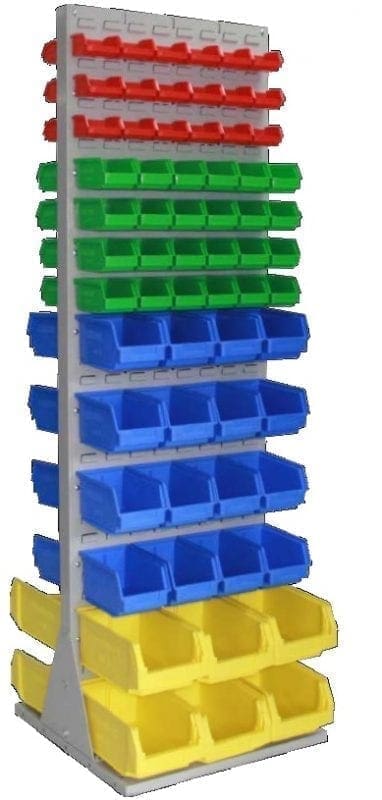

Standard 670mm wide panels both sides
Containers 12 x S3Z 32 x S4 36 x S5 24 x S6

S511009

ECONOMY 670mm wide panels both sides
Containers 6 x S3Z 16 x S4 36 x S5 24 x S6

S511032

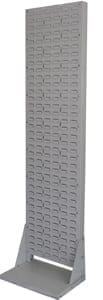

Standard 515mm wide panel one side
No Containers

S510961

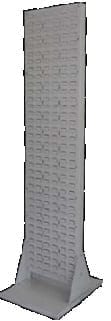

Standard 515mm wide panels both sides
No Containers

S510971

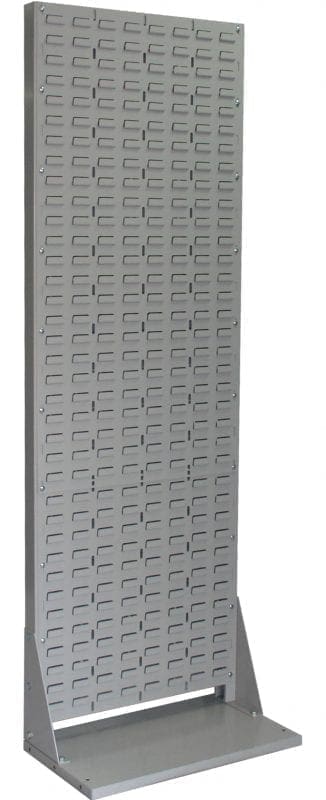

Standard 670mm wide panel one side
No Containers

S511000

Standard 670mm wide panel both sides
No Containers

S511020

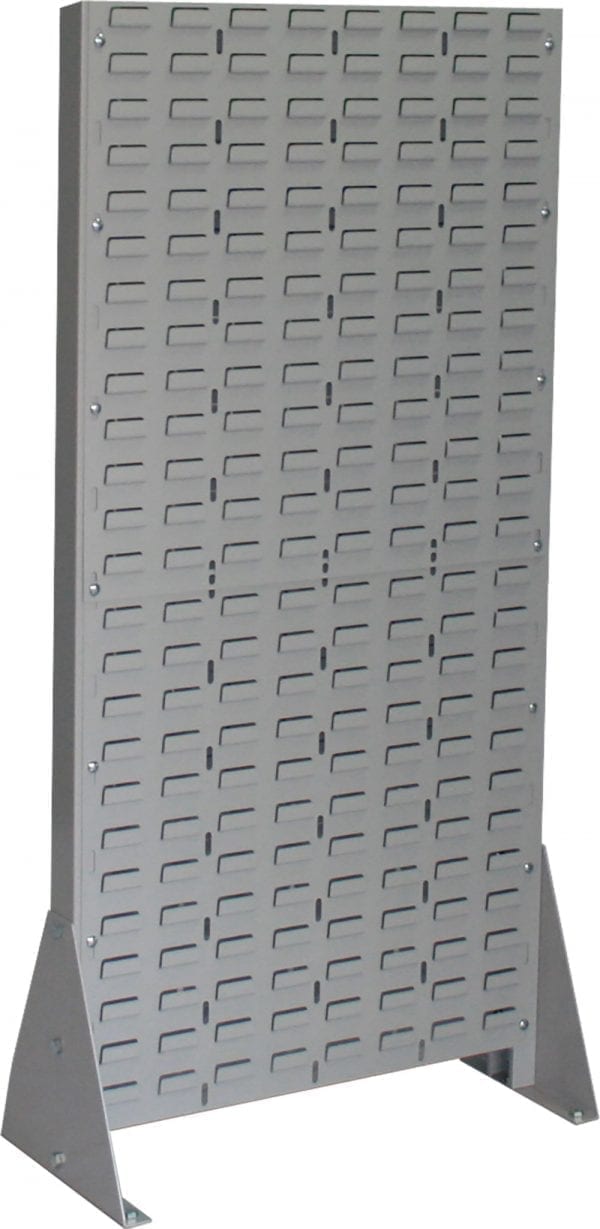

ECONOMY 670mm wide panels both sides
No Containers

S511031
