Concrete Collection Trays

+ Add to Quote Request

Limit environmental damage with a protective Concrete Collection Tray. Situated underneath a concrete pump, these trays collect spills, concrete waste and washout water in order to minimise potential hazards. They securely pool contents safely, all while removing risks around a worksite. They are a great tool for reducing unnecessary spills.

Featuring a low profile design and robust construction, the Concrete Collection Tray can be put to work wherever a concrete pump is being used. Two models are available depending on your requirements  – codes MCC110 and MCC215. The MCC215 can handle a Safe Working Load (SWL) up to 1500 kg. Both trays are finished with a bright enamel paint design.

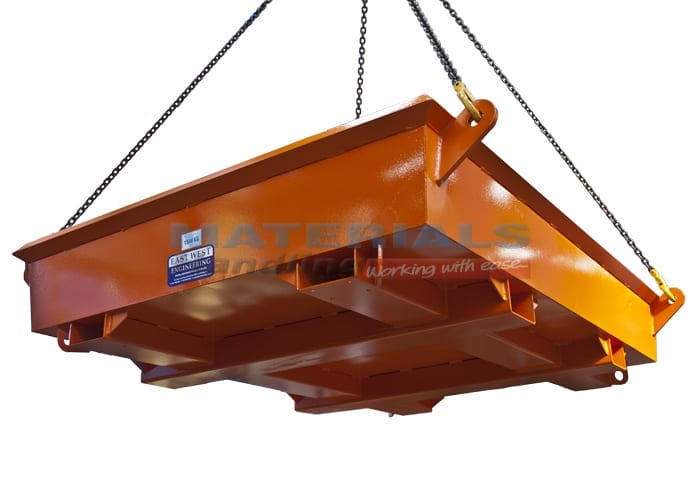

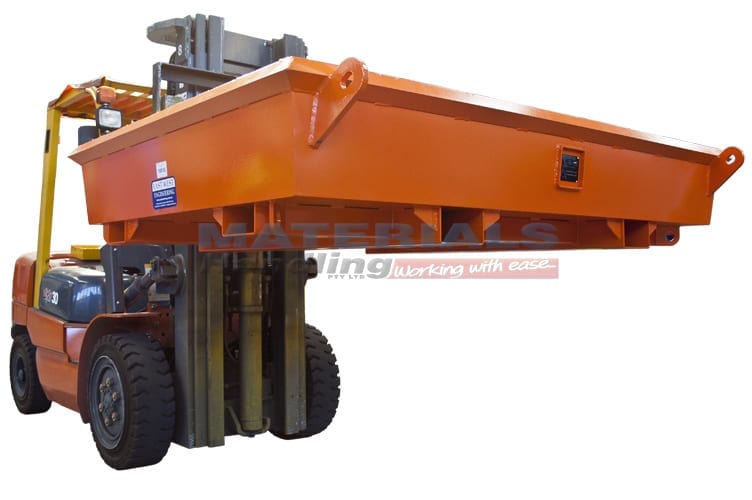

Fitted with fork pockets and crane lugs, the trays can be quickly moved around on site. They also feature tapered sides to assist in waste collection. Disposable bin liners (code: MCCDPL) are also available.


Additional Information

Protect your working environment with a Concrete Collection Tray!

With a reinforced base, this tray is your ultimate waste prevention tool when collecting spillages. It features fork pockets and crane lugs, so it can easily be moved around the site to keep up with demand. Alternatively, the tray can be fitted with an optional wheel kit. Two models are available – MCC110 and MCC215 – to facilitate varying workplace requirements.

MCC110 Specifications:

  • Dimensions: 1860 mm (L) x 1560 mm (W) x 360 mm (H)
  • Safe Working Load: 1000 kg
  • Unit Weight: 150 kg
  • Capacity: 0.50 m3
  • Enamel painted finish
  • Pocket Centres: 870 mm

MCC215 Specifications:

  • Dimensions: 2070 mm (L) x 1570 mm (W) x 400 mm (H)
  • Safe Working Load: 1500 kg
  • Unit Weight: 215 kg
  • Capacity: 0.85 m3
  • Enamel painted finish
  • Pocket Centres: 870 mm
  • HCG: 785 mm

Include an optional plastic liner

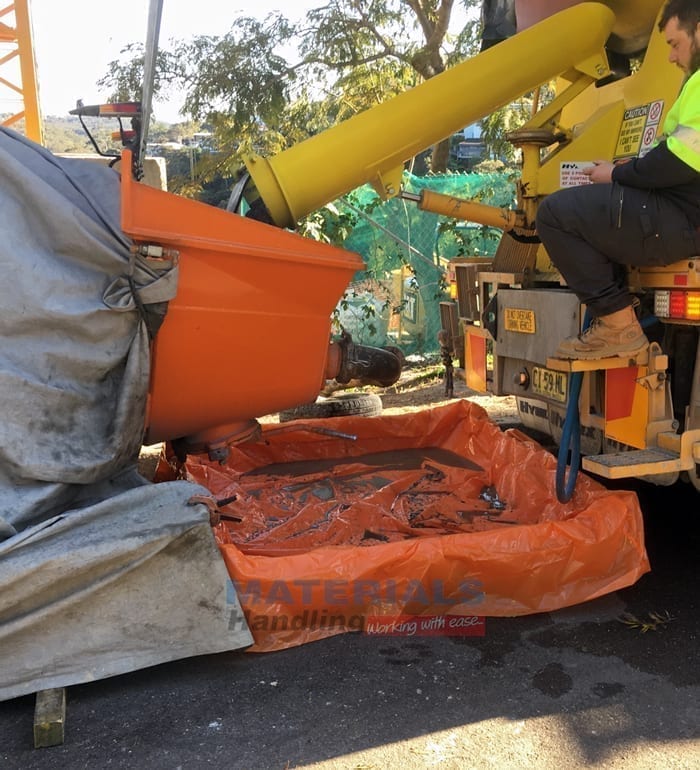

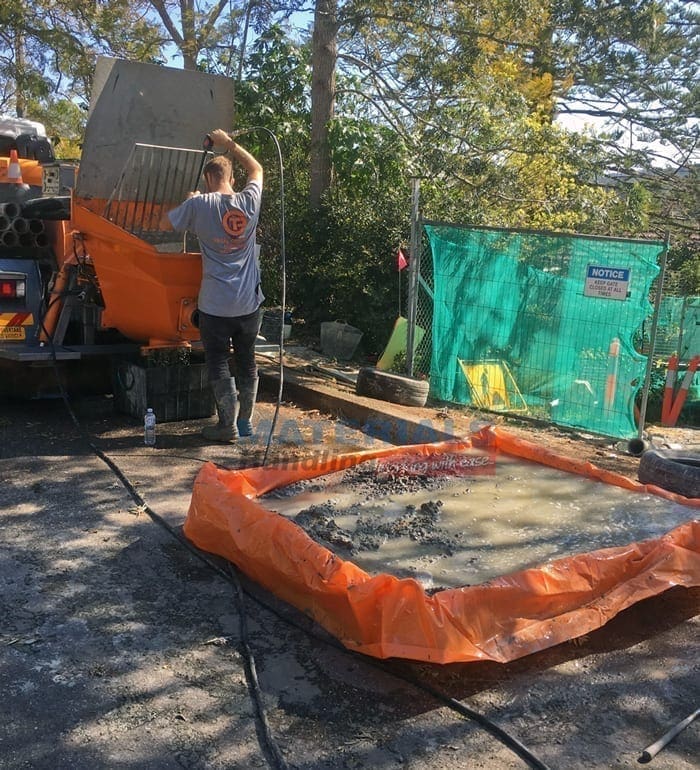

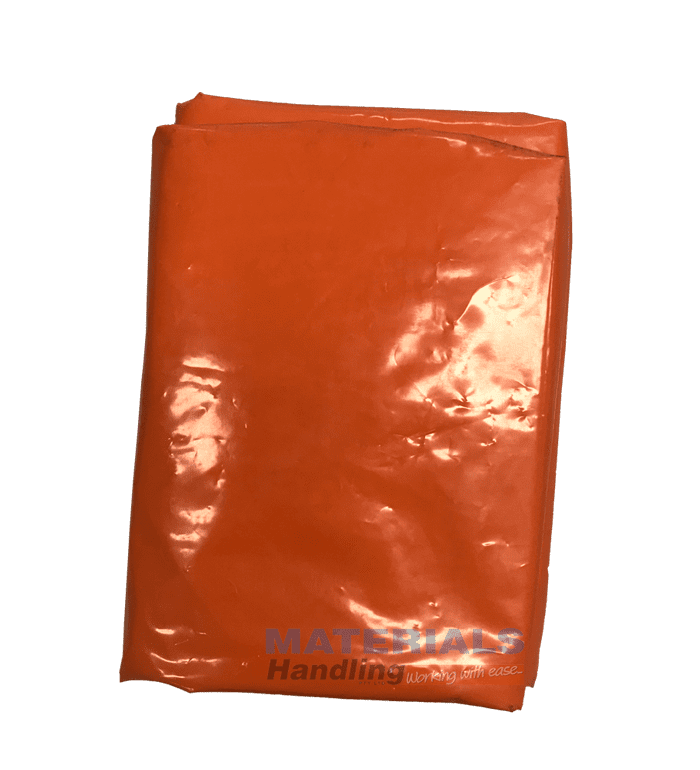

An optional disposable liner can be fitted to both bin models. It is designed to improve concrete collection and make waste management fast, easy and cost-effective. The liner is simple to install to either tray. It reduces leaks, increases the longevity of the tray and lowers the cost of washing out excess materials. The MCCDPL Plastic Liner meets EPA regulations and instils a quick method for dumping waste.

Need other Waste Management options?

View our wide range of Spill Containment items to ensure your workplace is maintaining safety and reducing risks or continue browsing our extensive range of Concrete Solutions

Product Variations

Image Description Product Code Price (excl. GST)

Concrete collection tray


Concrete collection tray


disposable plastic liner for trays
