Bulk Waste Crane Bins

+ Add to Quote Request

The MBWB range of Bulk Waste Crane Bins is designed to transport, remove and dispose of waste from building and mining sites. They feature the ability to carry large capacities up to 14 tonnes (Working Load Limit) and are extremely heavy-duty. Crane Bin Tippers are specifically built to handle bulk waste, like sand, gravel, excavation waste and scrap metal.

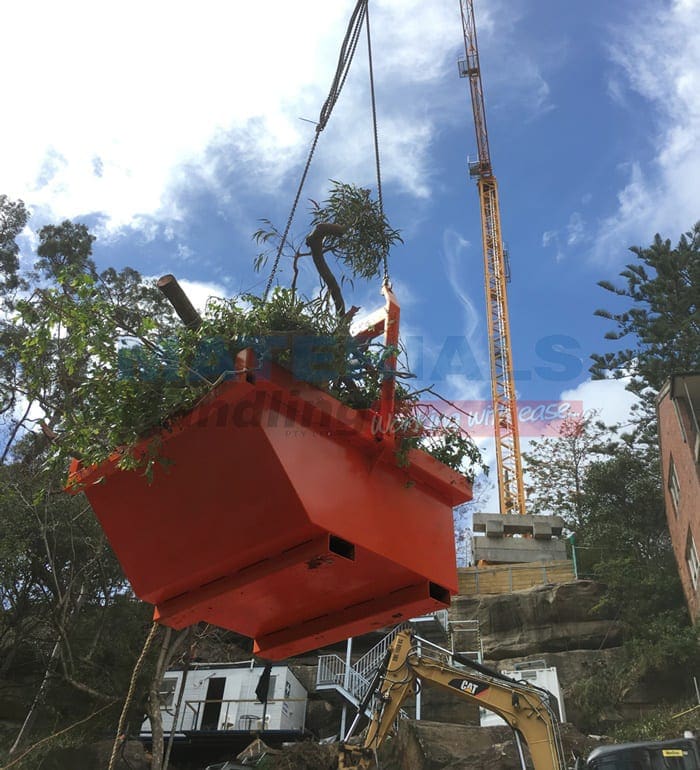

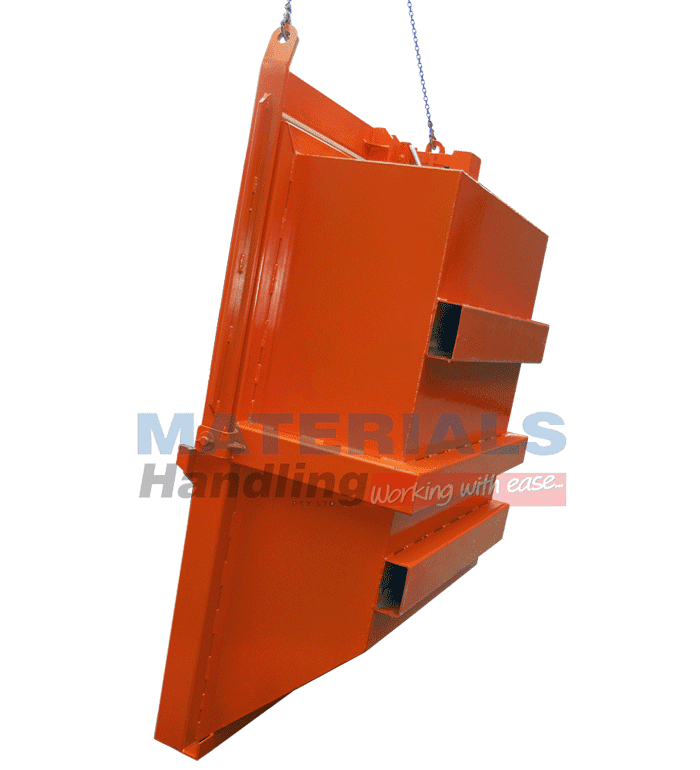

Known as a heavy load crane bin, these large containers are used with overhead cranes. When tipping to empty contents, the pivoting yoke locks flatly into place at the rear of the bin. When lifted, the bin hangs vertically and can empty its contents. To reset, lower the bin onto the ground and release the catch.

Our Bulk Waste Crane Bins are available in three different sizes with various maximum load capacities.

Clear

Additional Information

Bulk Waste Crane Bins are a great overhead lifting solution.

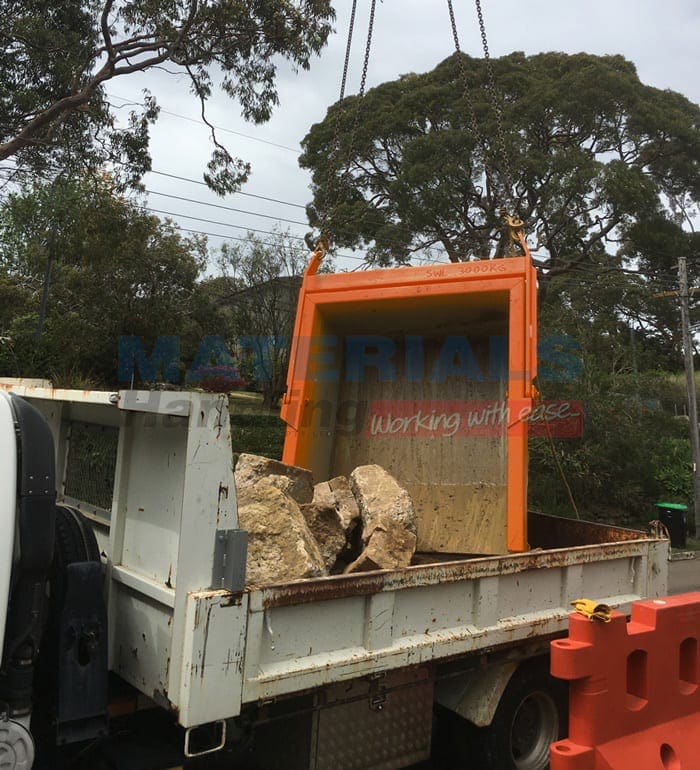

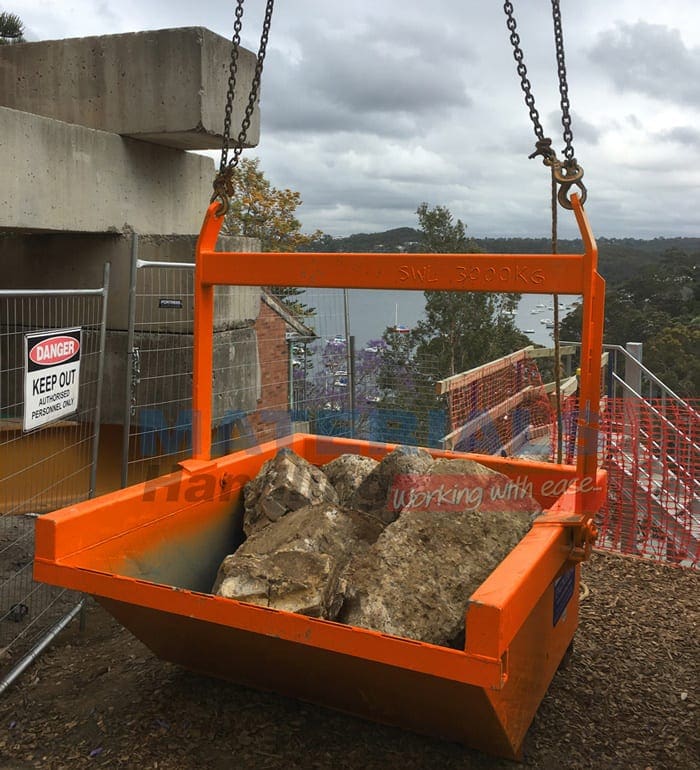

The type MBWB Bulk Waste Bins use overhead cranes to transport and dump waste. It suits applications across industries where large bulk capacities are required. The Crane Bins are extremely robust and durable. They’re also fitted with fork pockets for onsite transportation. Each bin is finished in enamel paint and is available in three sizes to suit either small or large scaled operations.

Features:

  • Heavy-duty construction.
  • Suits bulk waste transportation and removal, such as sand, gravel, excavation waste and scrap metal.
  • For use with an overhead crane.
  • Fitted with fork pockets for onsite transportation via forklift.
  • Tip action is operated by lowering and automatically locking the pivoting yoke at the rear of bin.
  • Finished with enamel paint.
  • Available in three sizes – MBWB20 (WLL: 3 tonnes), MBWB30 (WLL: 5 tonnes) and MBWB50 (WLL: 14 tonnes).
  • Lifting chains supplied with MBWB50 model.

Specifications:

MBWB20:

  • Volume Capacity – 1.5 m3
  • Working Load Limit (WLL) – 3 tonnes
  • Bin Dimensions (mm) – 2050 L x 1890 W x 855 H
  • Unit Weight – 510 kg
  • Pocket Size – 180 x 80 mm
  • Pocket Centres – 900 mm
  • Lifting Chains not supplied.
MBWB20 Drawing Image

MBWB20 Drawing Image

MBWB30:

  • Volume Capacity – 3.0 m3
  • Working Load Limit (WLL) – 5 tonnes
  • Bin Dimensions (mm) – 2415 L x 1880 W x 905 H
  • Unit Weight – 825 kg
  • Pocket Size – 180 x 80 mm
  • Pocket Centres – 950 mm
  • Lifting Chains not supplied.
MBWB30 Drawing Image

MBWB30 Drawing Image

MBWB50:

  • Volume Capacity – 5.0 m3
  • Working Load Limit (WLL) – 14 tonnes
  • Bin Dimensions (mm) – 3130 L x 2940 W x 960 H
  • Unit Weight – 2560 kg
  • Pocket Size – 180 x 80 mm
  • Pocket Centres – 950 mm
  • Lifting Chains supplied.

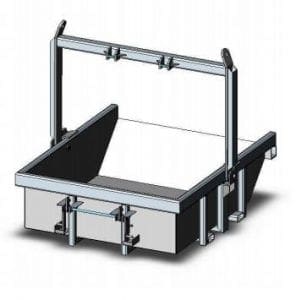

MBWB50 Drawing Image

MBWB50 Drawing Image

Require an alternative solution?

View our full range of Crane Bin Tippers.

Product Variations

Image Description Product Code Price (excl. GST)

Bulk Waste Bin
1.5 cubic metre capacity
3000kg WLL

MBWB20

Bulk Waste Bin
3 cubic metre capacity
5000 kg WLL

MBWB30

Bulk Waste Bin
5 cubic metre capacity
14000 kg WLL

MBWB50
