Safety Crane Cages

+ Add to Quote Request

Safety Personnel Crane Cages are designed strictly in accordance with AS1418.17, with versions suitable for up to a maximum of six people. Our Safety Personnel Crane Cages come complete with lifting chains, safety harness connection points and a load-test certificate, instructions for use, risk control measures & Workcover registration.  They have auto locking gates. Some are enamel finish & others are zinc plated. Please Note:  We recommend that this product be used with appropriate safety harnesses

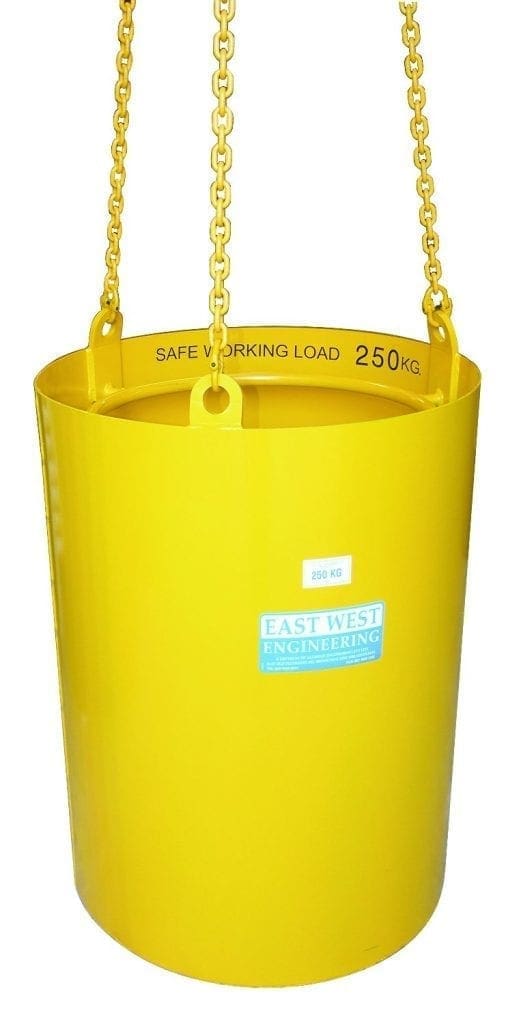

MWPC3 is a single person, circular cage.
⦁ Safe Working Load:  250kg
⦁  Unit Weight:  160kg
⦁  Dimensions:  750mm (diameter) x 1000mm (height)

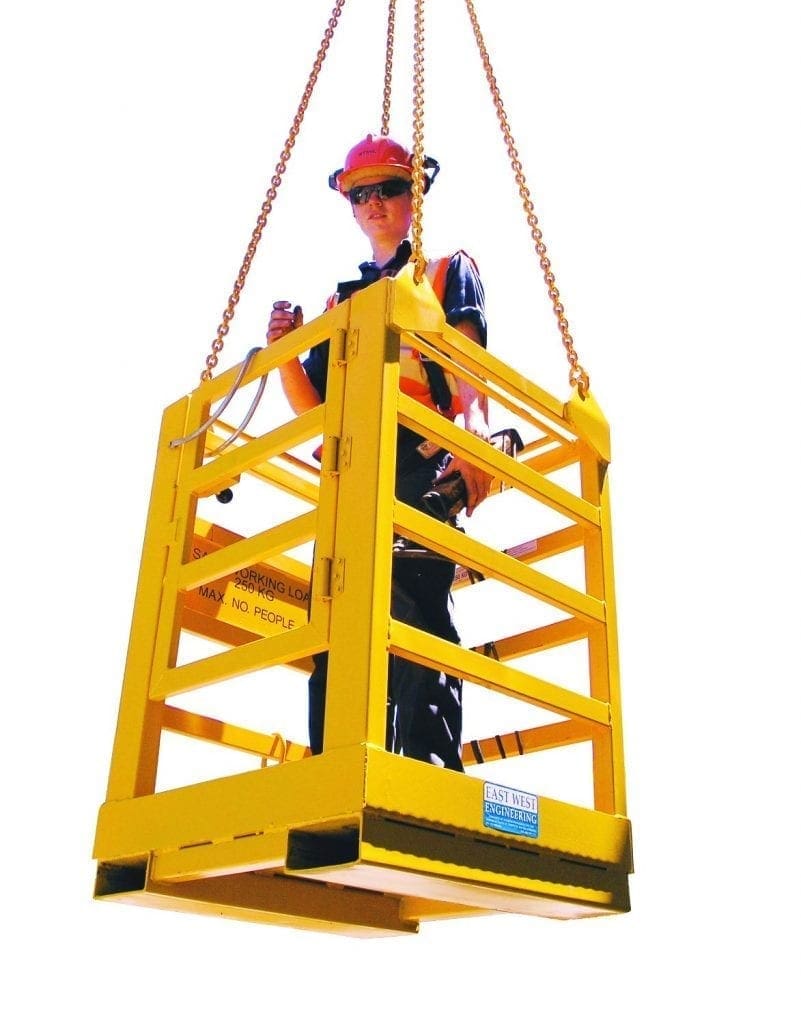

MWPC4 is a one person cage, without a roof.
⦁ Safe Working Load:  250kg
⦁ Unit Weight:  120kg
⦁ Fork Pocket Size:  165mm x 65mm
⦁ Fork Pocket Centres:  555mm
⦁  Dimensions:  750 x 750mm

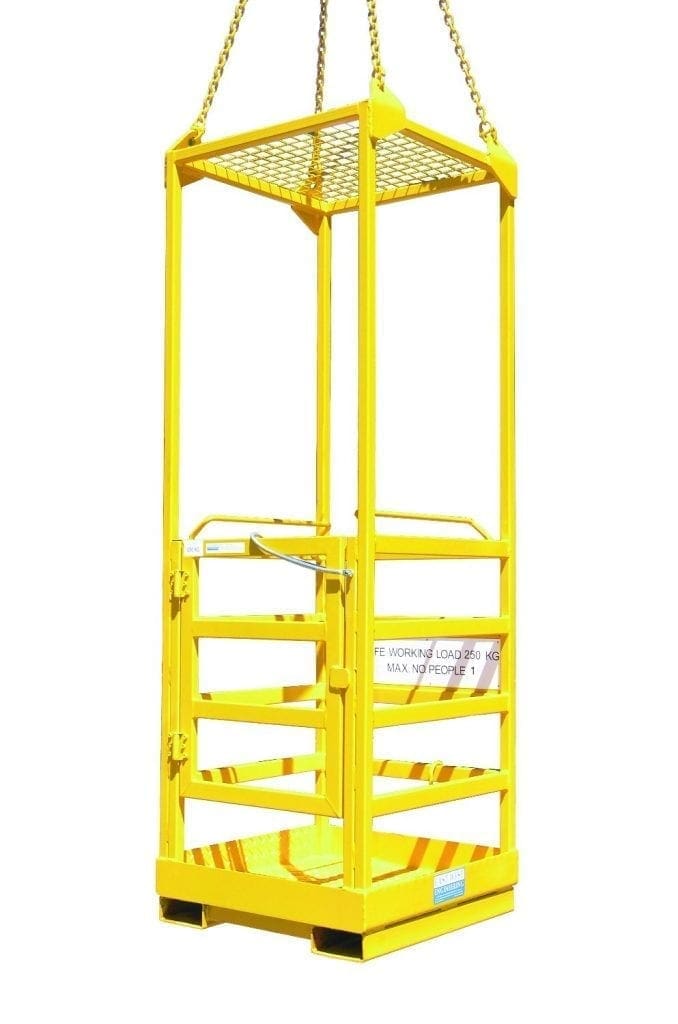

MWPC8 is a single person cage, fitted with a  roof.
⦁ Safe Working Load:  250 kg
⦁ Unit Weight:  150kg
⦁ Fork Pocket Size:  165mm x 65mm
⦁ Fork Pocket Centres:  555mm

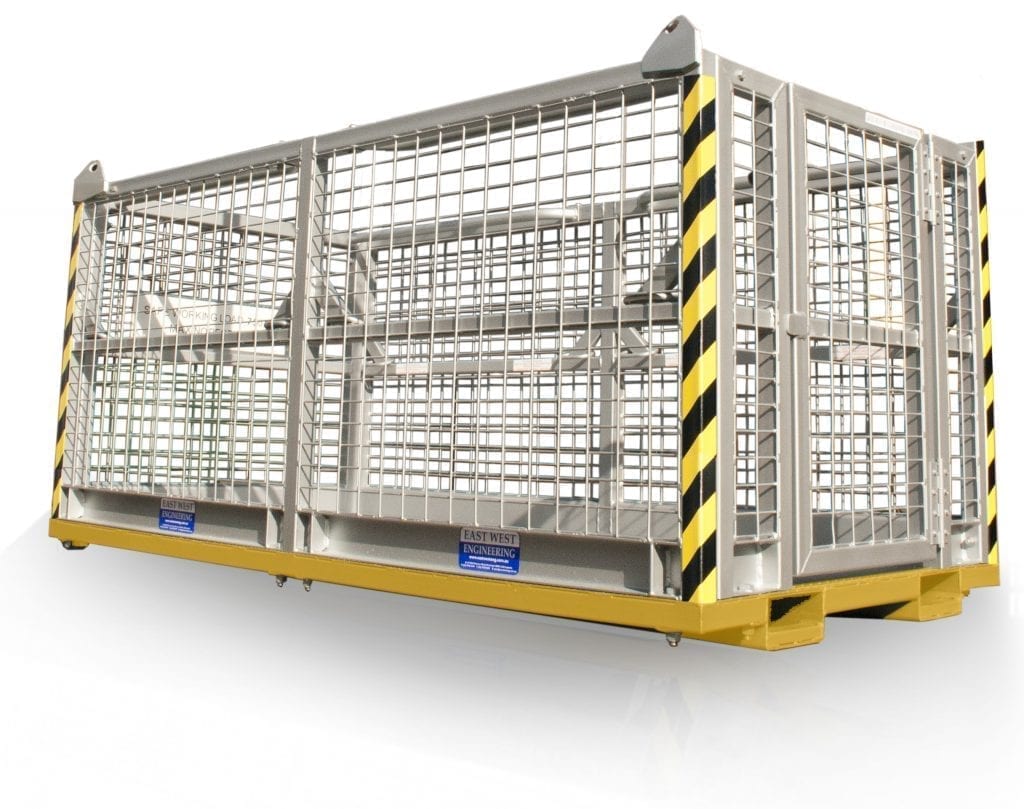

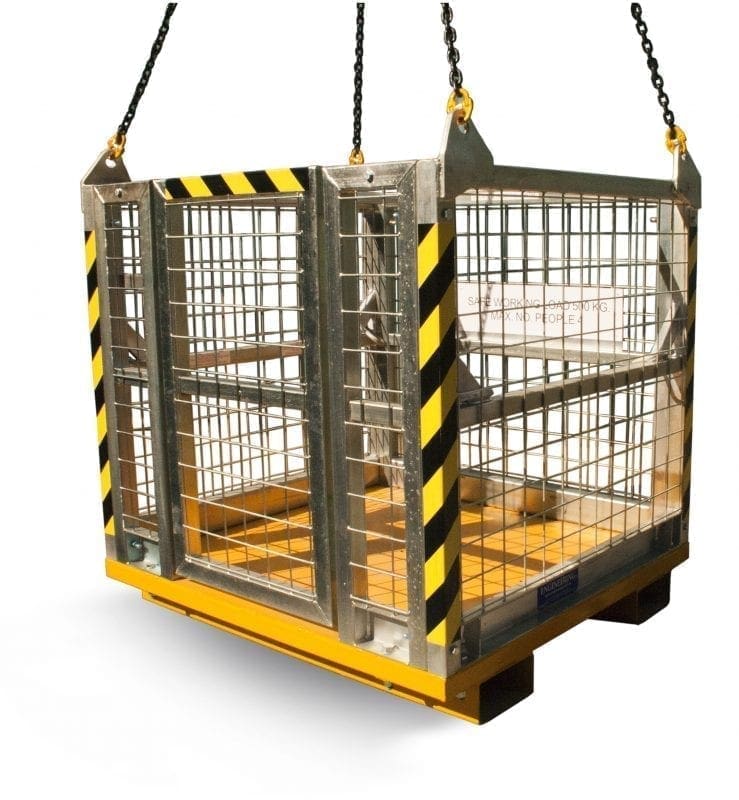

MWPNC is a 4 person cage without a roof
⦁ Safe Working Load: 500kg
⦁ Unit Weight: 270kg
⦁ Dimensions: 1200 x 1100mm

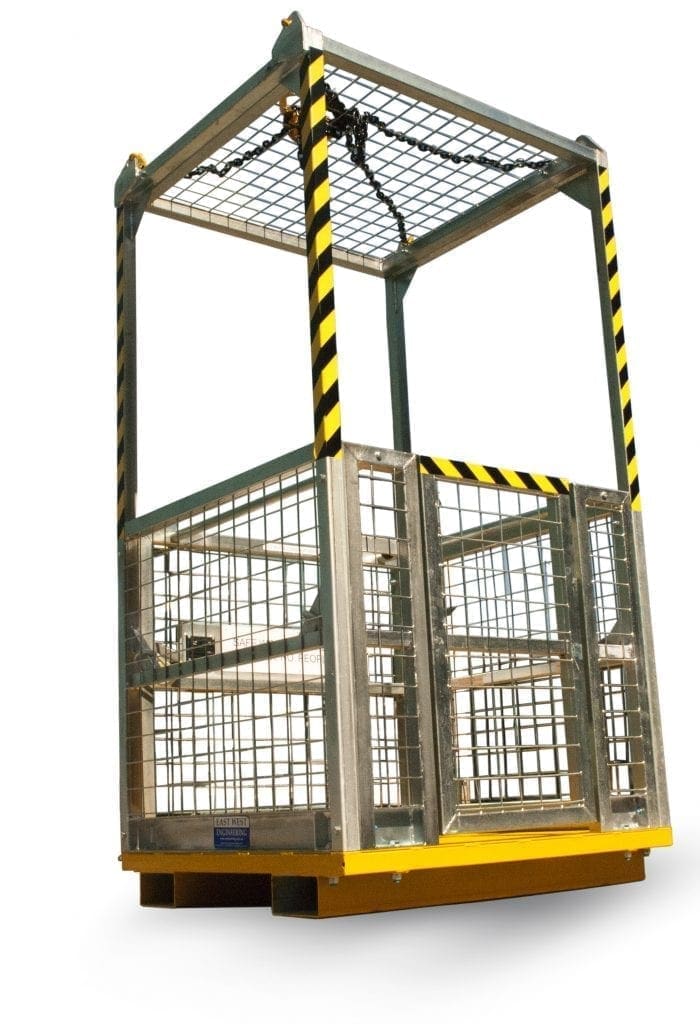

MWPNCR is a 4 person cage with roof
⦁ Safe Working Load: 500kg
⦁ Unit Weight: 310kg
⦁ Dimensions: 1100 x 1200 x 2400mm (D x W x H)

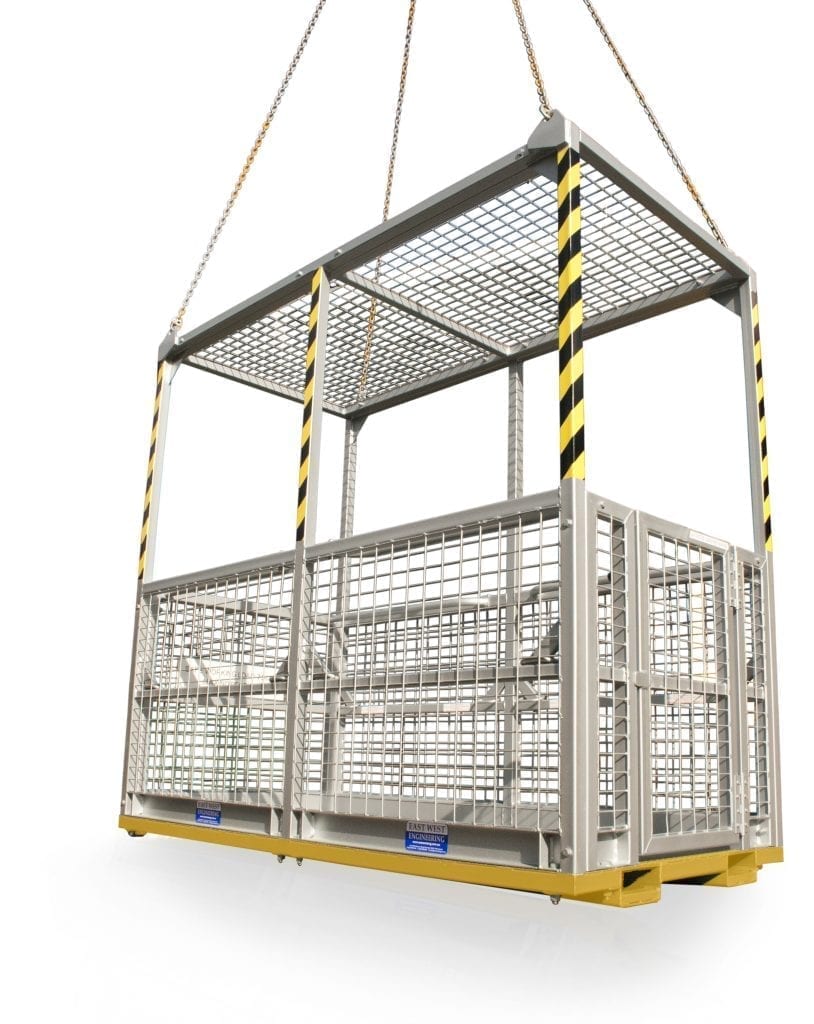

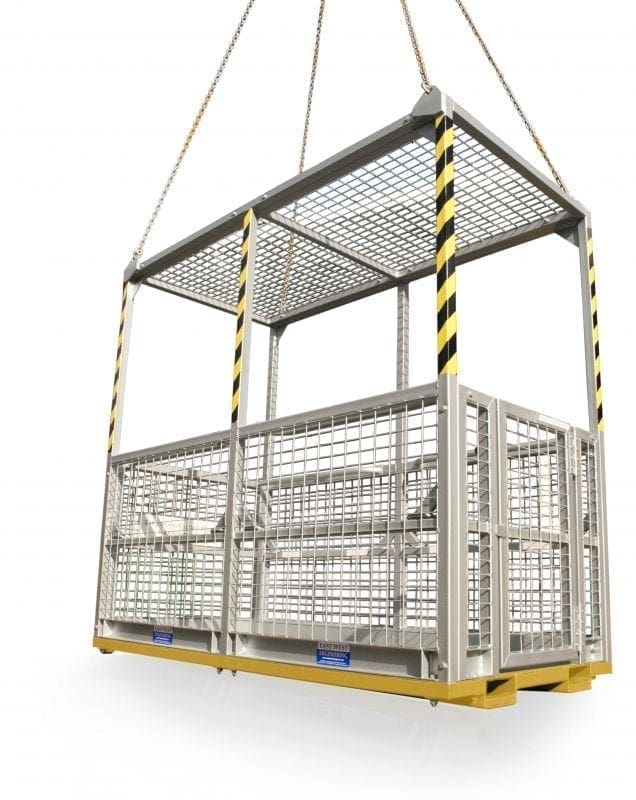

MWPNC2R-FA  is a 6 person cage with roof
⦁ Safe Working Load: 750kg
⦁ Unit Weight: 500kg
⦁ Dimensions: 120 x 2400 x 2350mm (D x W x H)

Clear

Product Variations

Image Description Product Code Price (excl. GST)

1 Person Crane Cage- 750mm diameter

MWPC3

1 Person Crane Cage- 750mm square

MWPC4

1 Person Crane Cage with Roof- 750mm square

MWPC8

4 Person Crane Cage

MWPNC

4 Person Crane Cage with Roof

MWPNCR

Crane Cage Platform 6 person + Roof + First Aid

MWPNC2R-FA
