Forklift Mounted Work Platforms

+ Add to Quote Request

Our Forklift Mounted Work Platforms provide a safe and efficient solution to assist employees in maintenance and stock-taking duties. They have been designed so a forklift can easily transport the cage on-site and support a Working Load Limit (WLL) of 250 kg.

Available in multiple models – from fully-welded to mesh sides or collapsible – the caged platforms have been built in accordance with relevant Australian Standards, like AS 2359.1. They’re ideal for occasional usage, tasks of short duration and each safety cage can easily fit and lift two people.

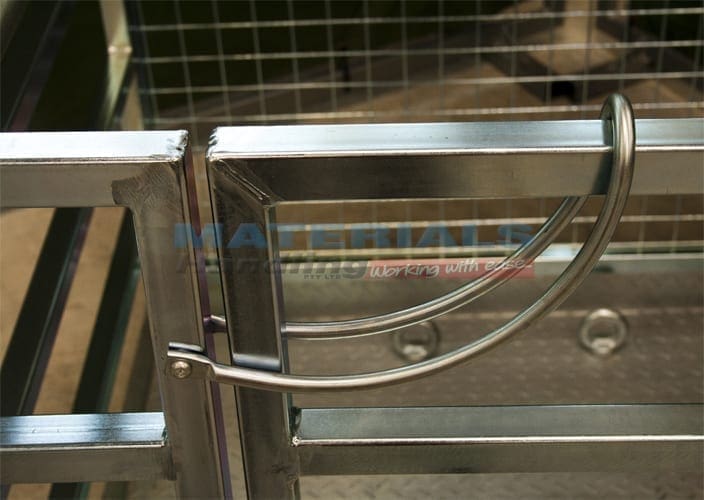

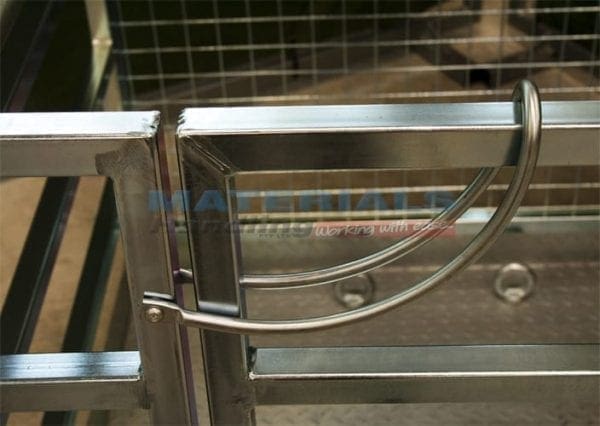

Forklift Mounted Work Platforms should be used with appropriate safety harnesses that are suited to working at heights activities. All units are supplied with fork locking pins to safely secure the platform to the forklift and feature self-closing gates that open inward with a bow latch.

Clear

Additional Information

An attachment improves workplace safety!

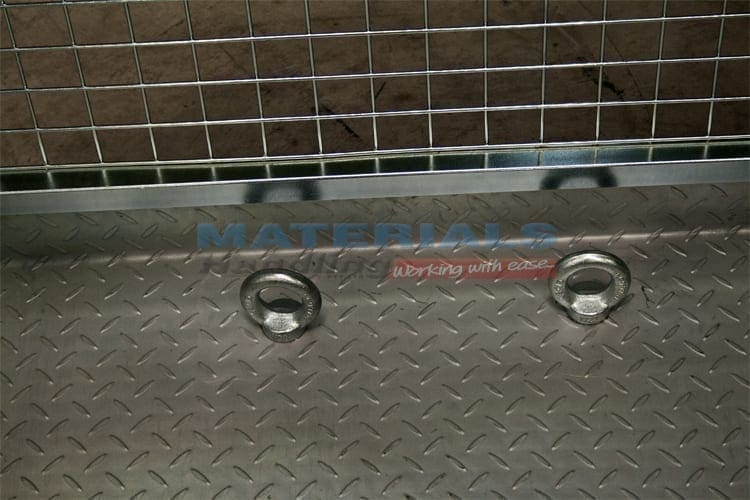

Safely carry out tasks and access higher levels with our innovative Forklift Mounted Work Platforms. All cages are supplied standard with two harness anchor points, which are certified strictly in accordance with relevant provisions. This allows operators to easily work at heights and further ensures they are safe and protected.

Please Note: The use of Forklift Mounted Work Platforms on a Forklift truck should not be considered if the capacity of that Forklift is less than 1825 kg for a Counterbalanced type or 1095 kg for a Reach type Forklift.

MFWP25 Specifications (Flatpack):

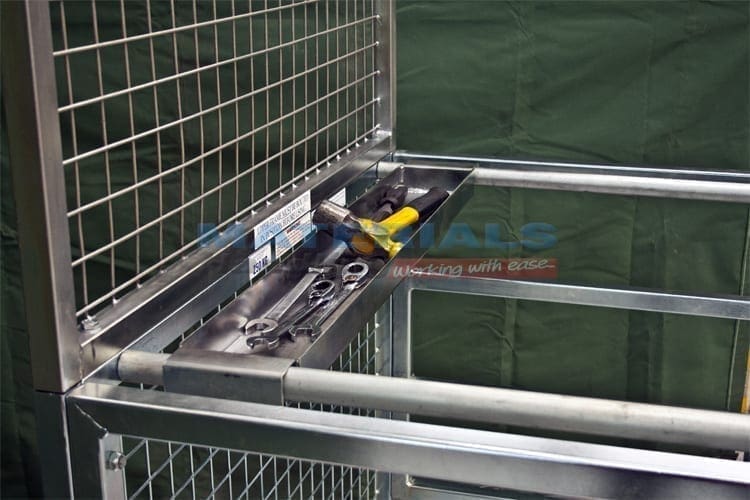

The MFWP25 is supplied as a standard flat-pack unit and can easily be assembled when required. It is fitted with innovative panel sides for extra strength and durability. A removable tool tray is also included for handy placement of equipment when working.  The MFWP25 also has a self-closing gate and forking locking pins to safely secure the cage. The unit is complete with a zinc finish.

  • Working Load Limit (WLL): 250 kg
  • Load Centre: 600 mm
  • Unit Weight: 110 kg
  • Fork Pocket Size (mm): 160 x 60
  • Fork Pocket Centres: 640 mm
  • Supplied with fork locking pins and with removable tray for tools
  • Zinc Finish
  • Flat-pack (mm) – 1230 x 1150 x 200 (or fully assembled upon request)

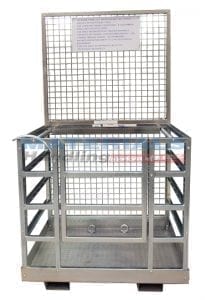

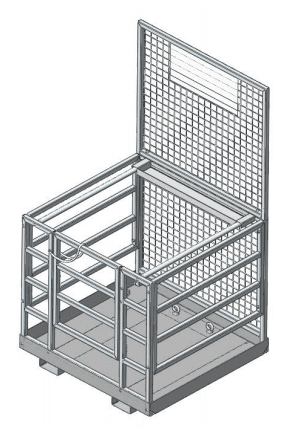

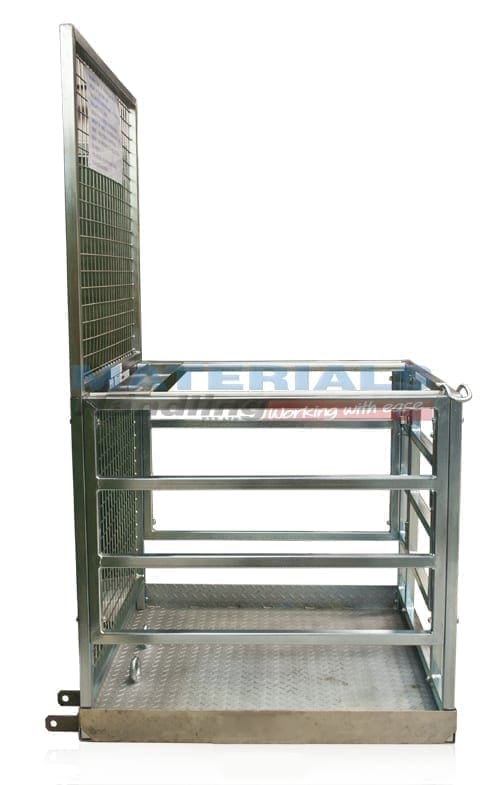

MFWP25 Forklift Mounted Work Platforms

MFWP25 Forklift Mounted Work Platforms

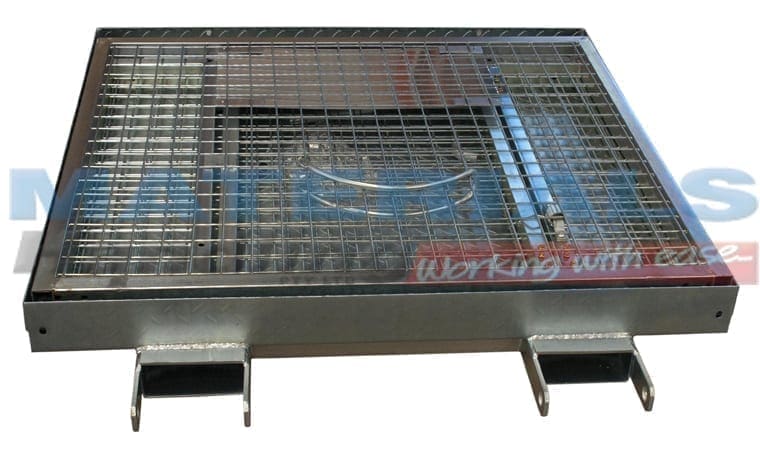

MWPMSF Specifications (Mesh Sides, Flatpack):

The MWPMSF is similar to our previous model. It can be supplied as a standard flat-pack unit or purchased as an assembled unit if required. It features full mesh panels that eliminate any chance of objects falling from the platform. These sides are enclosed all around the platform cage. A removable tool tray is also supplied to easily place down equipment when working. Like the previous model, the MWPMS also features a self-closing gate, forking locking pins to safely secure the cage and has a zinc finish.

  • Working Load Limit (WLL): 250 kg
  • Load Centre: 600 mm
  • Unit Weight: 122 kg
  • Fork Pocket Size (mm): 160 x 60
  • Fork Pocket Centres: 640 mm
  • Supplied with fork locking pins and with removable tray for tools
  • Zinc Finish
  • Flat-pack (mm) – 1230 x 1150 x 200 (or fully assembled upon request)

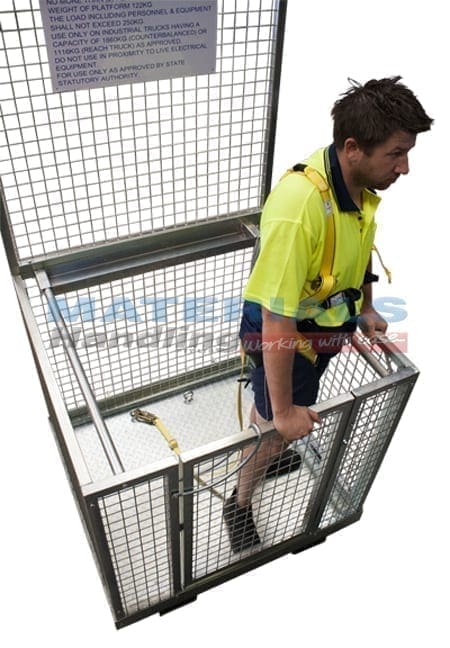

MWPMS Forklift Mounted Work Platforms

MWPMS Forklift Mounted Work Platform

MWPG Specifications (Fully Welded):

The MWPMS is a fully welded cage that is heavy duty in comparison with other models. It comes with a galvanised finish for long life qualities and to handle corrosive environments. The platform features a self-closing gate and is supplied with fork locking pins to safely secure the cage to a forklift.

  • Working Load Limit (WLL): 250 kg
  • Load Centre: 600 mm
  • Unit Weight: 115 kg
  • Fork Pocket Size (mm): 160 x 60
  • Fork Pocket Centres: 640 mm
  • Supplied with fork locking pins
  • Galvanised Finish
  • Supplied as a full-welded construction

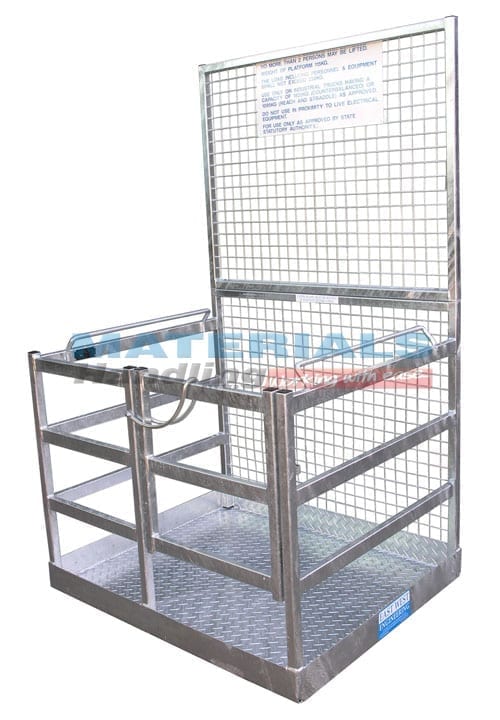

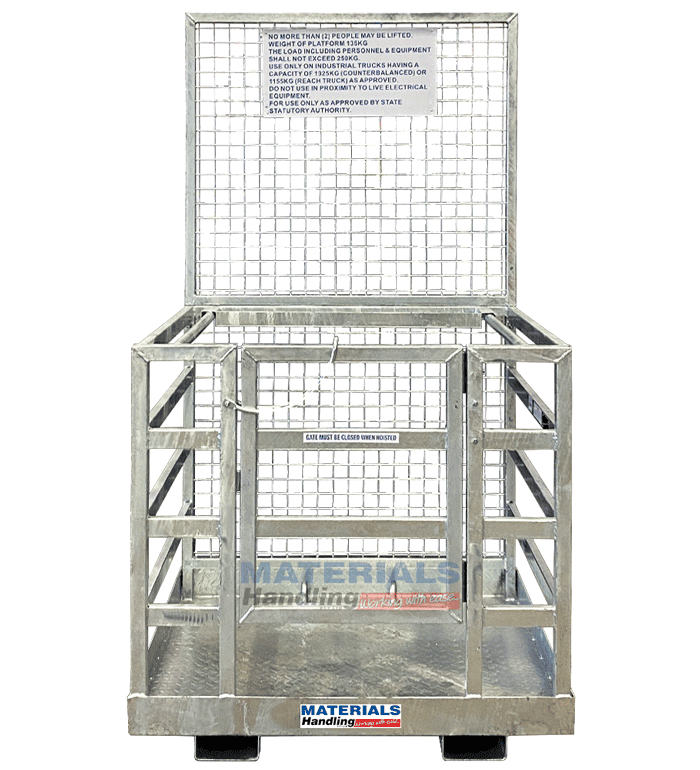

MWPG Forklift Mounted Work Platforms

MWPG Forklift Mounted Work Platforms (Galvanised)

MFWP25C Specifications (Collapsible):

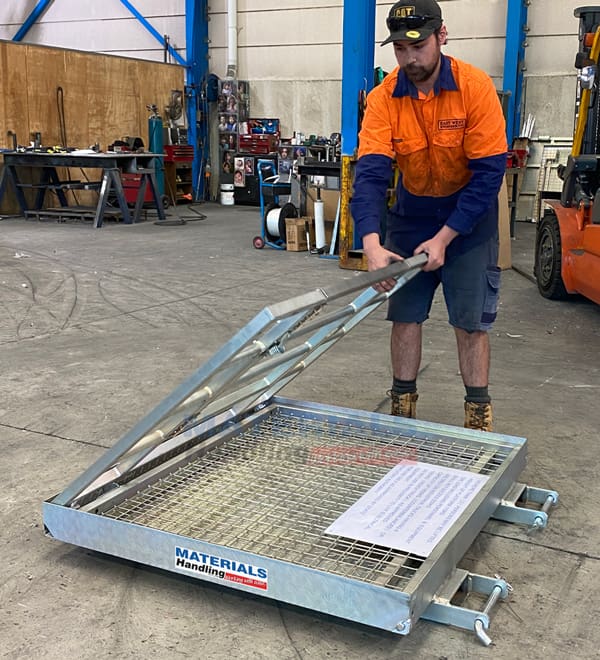

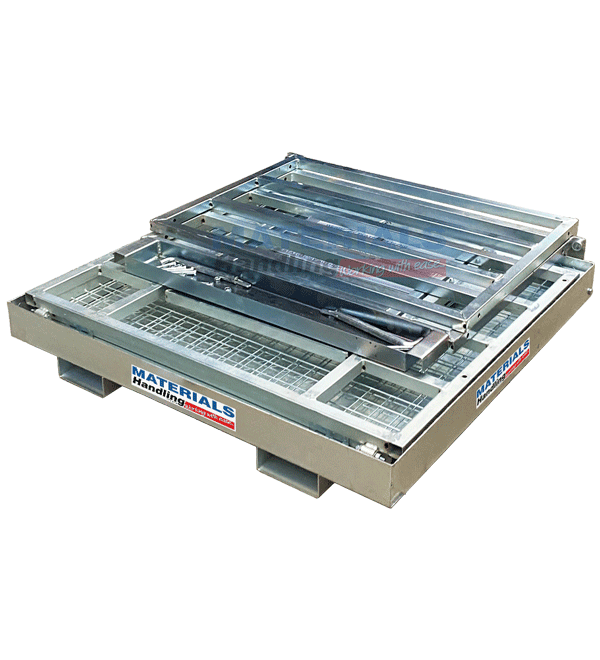

The MFWP25C Collapsible Forklift Work Platform is designed for forklift use to safely complete short-term and infrequent activities like maintenance. This foldable safety cage is suited for up to two persons. This model is easy to build by one person and disassemble when not in use thanks to its entirely collapsible design. It has a self-closing inward opening gate with bow latch and single panel sides for added robustness and simplicity of installation. Additional security is provided by two floor-mounted harness anchor points. It features a tool tray that can be removed for secure tool storage.

  • Working Load Limit (WLL): 250 kg
  • Load Centre: 600 mm
  • Unit Weight: 122 kg
  • Fork Pocket Size (mm): 160 x 60
  • Fork Pocket Centres: 640 mm
  • Supplied with fork locking pins
  • Zinc Finish
  • This is a collapsible model.

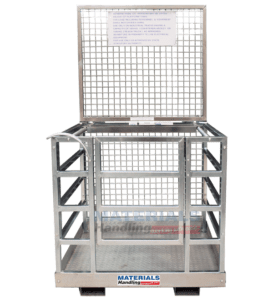

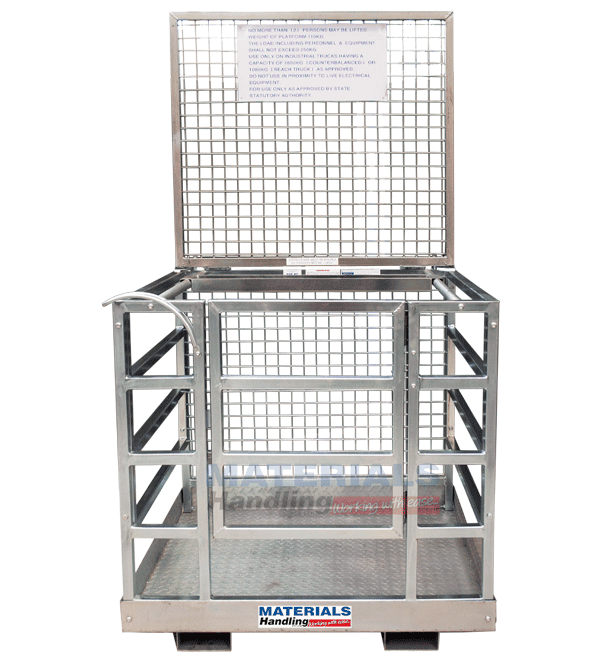

MFWP25C Collapsible Forklift Mounted Work Platforms hero

MFWP25C Collapsible Forklift Mounted Work Platforms

As mentioned previously, all Fork Mounted Work Platforms must be used in conjunction with appropriate safety harnesses.  We offer a high quality 100 kg harness with 2-metre lanyard (Code: MSP0262) for the ultimate work platform safety. Check out more of our body harness options.

Require another materials handling solution?

Browse our full range of Cages and Platforms to find the perfect product!

Product Variations

Image Description Product Code Price (excl. GST)

Forklift Work Platform- Mesh Sides Flatpack

MWPMSF

Forklift Work Platform Flatpacked

MFWP25

Forklift Work Platform- Fully Welded

MWPG

Collapsible Forklift Work Platform

MFWP25C
