Electrical Cable Retractable Reels

+ Add to Quote Request

Retracting Electrical Cable Reels are a smart solution to supply electrical power to moving equipment.

The power cable is automatically extracted or recovered as machinery moves or when hoists are lifted and lowered.

Mounted on a swivelling bracket with a lightweight enclosure and includes a spring-loaded, recoil action.

The ratcheting stopmechanism can be easily switched off if constant traction on the cable is required.

Manufactured in Italy from high quality materials with a range of cable lengths, sizes and choices available.

*IP65 version available on request

Product Variation

Clear

Additional Information

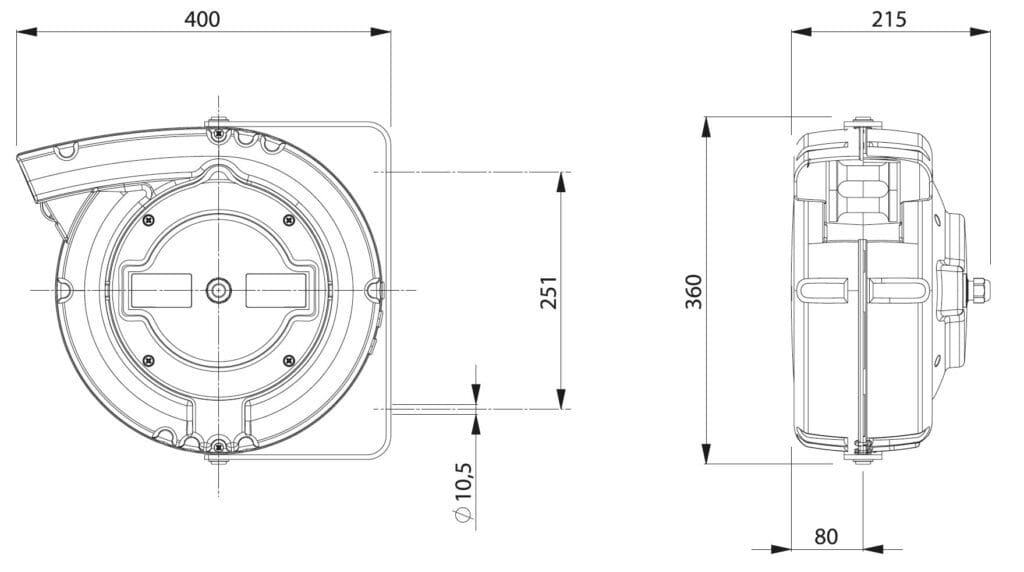

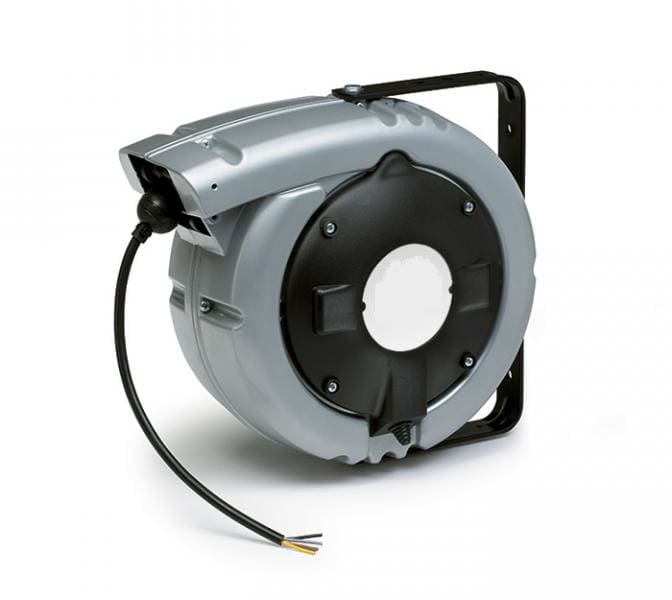

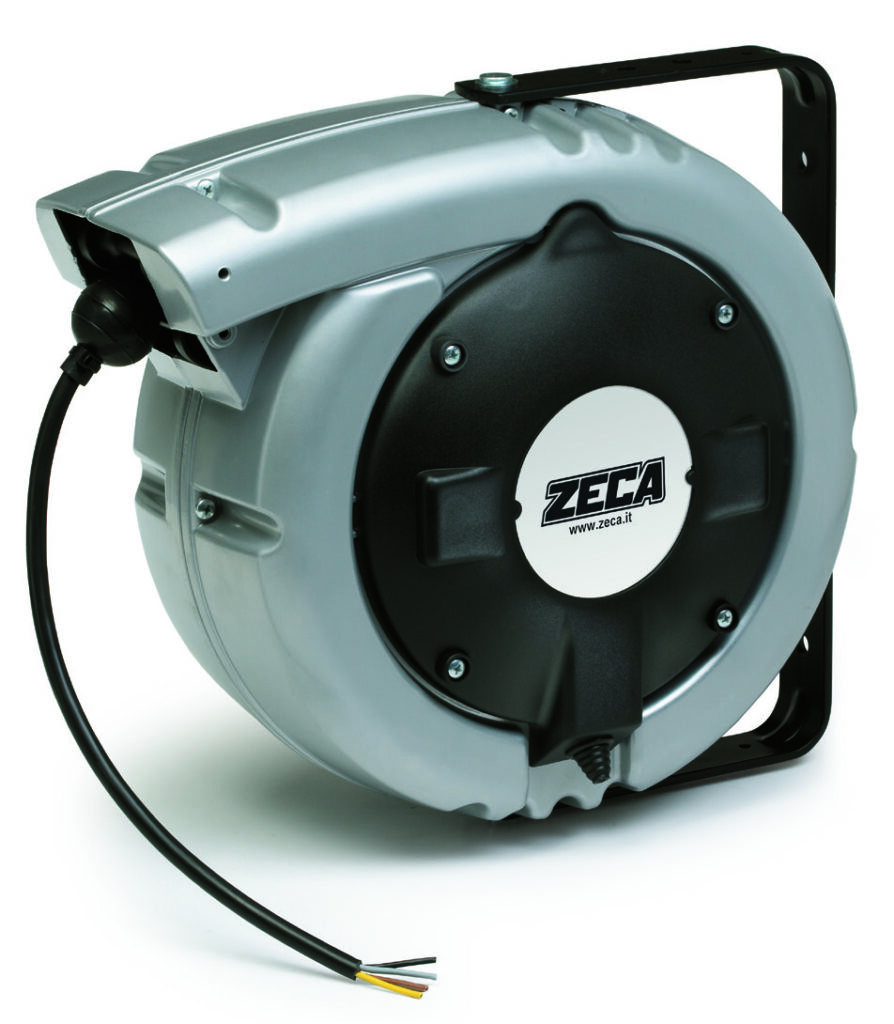

PRC SERIES

Die-cast aluminium case
Cable roller guide
Ratchet stop mechanism can be disengaged if constant traction is required
Double earth contact
Collector insulating power 2.5 kV
Brass-rings collector and special brushes with minimum impedance drop
Slip ring with brass rings and brushes
Protection degree IP42
Working temperature -5°C/+50°C

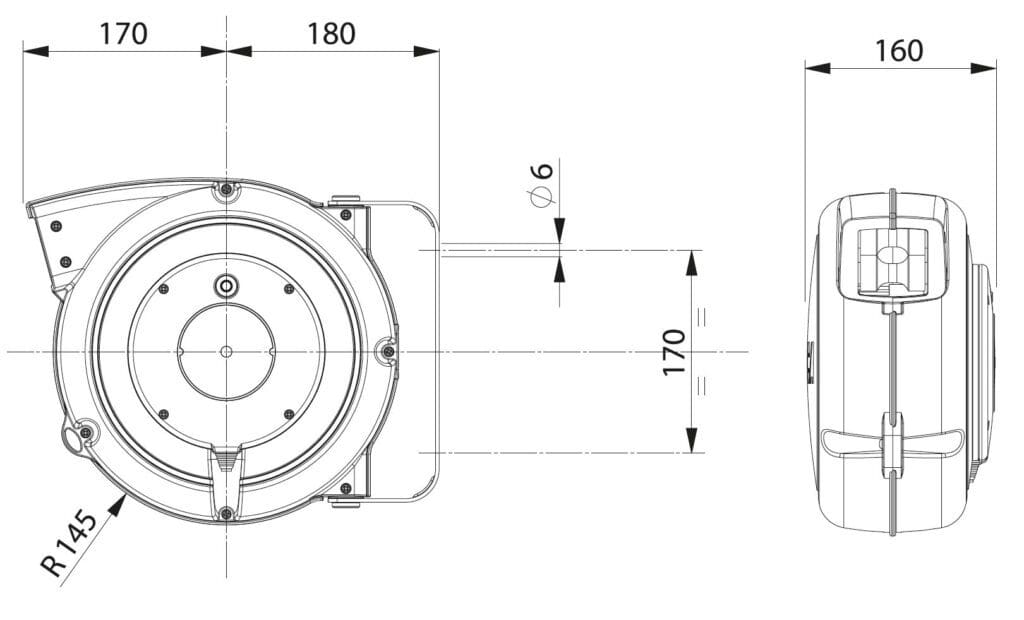

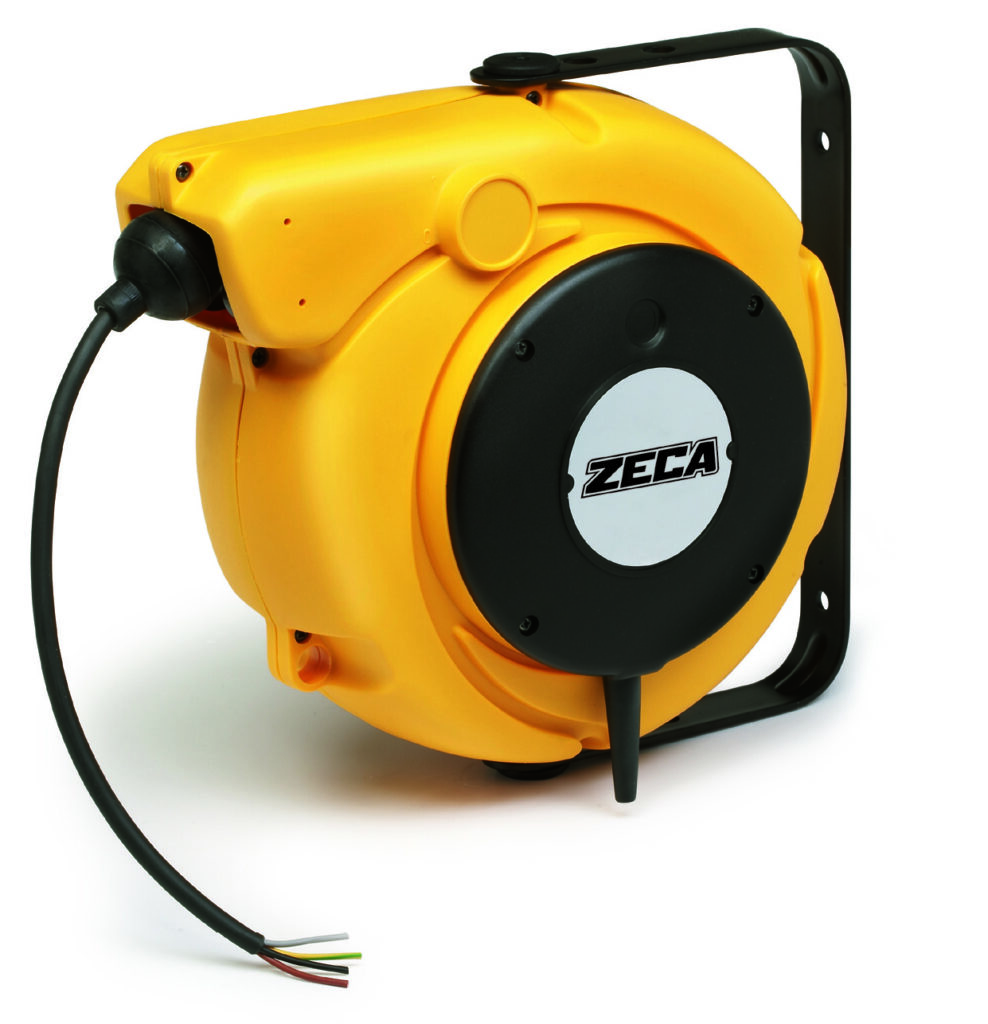

XF SERIES

Impact plastic external case
Cable roller guide
Ratchet stop mechanism can be disengaged if constant traction is required
Double earth contact
Collector insulating power 2.5 kV
Slip ring with brass rings and brushes
Protection degree IP42
Working temperature -5°C/+50°C
Delivered without cable at the feeding side

Product Variations

Description	Product Code	Price (excl. GST)
Retractable Cable Reel Plastic enclosure 5.5m metres 4 cores 2.5mm²	5821XF	$971.00	Add to Quote Request
Retractable Cable Reel Plastic enclosure 8 metres 4 cores 1.5mm²	5823XF	$980.00	Add to Quote Request
Retractable Cable Reel Plastic enclosure 10 metres 4 cores 1.0mm²	5824XF	$874.00	Add to Quote Request
Retractable Cable Reel Plastic enclosure 10 metres 3 cores 1.5mm²	5827XF	$838.00	Add to Quote Request
Retractable Cable Reel Plastic enclosure 14 metres 2 cores 1.0mm²	5831XF	$720.00	Add to Quote Request
Retractable Cable Reel Plastic enclosure 5.5 metres 8 cores 1.0mm²	5838XF	$1,335.00	Add to Quote Request
Retractable Cable Reel Plastic enclosure 5.5 metres 5 cores 1.5mm²	5843XF	$1,030.00	Add to Quote Request
Retractable Cable Reel Aluminium enclosure 15 metres 5 cores 1.5mm²	6067PRC	$2,168.00	Add to Quote Request
Retractable Cable Reel Aluminium enclosure 10 metres 5 cores 2.5mm²	6068PRC	$2,551.00	Add to Quote Request
Retractable Cable Reel Aluminium enclosure 8 metres 8 cores 1.5mm²	6070PRC	$2,412.00	Add to Quote Request
Retractable Cable Reel Aluminium enclosure 15 metres 4 cores 2.5mm²	6179PRC	$2,110.00	Add to Quote Request
Retractable Cable Reel Aluminium enclosure 21 metres 4 cores 1.5mm²	6181PRC	$2,260.00	Add to Quote Request
Retractable Cable Reel Aluminium enclosure 24 metres 3 cores 1.5mm²	6186PRC	$2,227.00	Add to Quote Request
Retractable Cable Reel Aluminium enclosure 15 metres 4 cores 2.5mm²	6521PRC	$2,375.00	Add to Quote Request

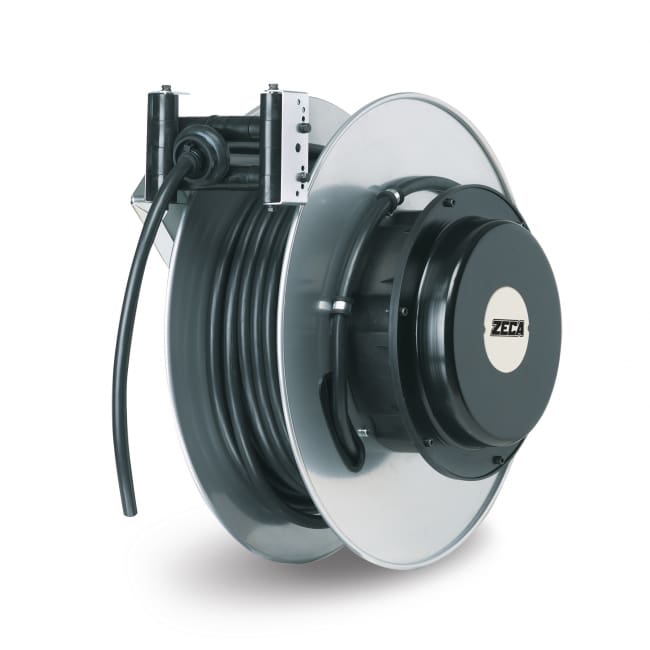

Retractable Cable Reel 30 metres 4 cores 2.5mm² Side flange mounted version	1722	$7,328.00	Add to Quote Request

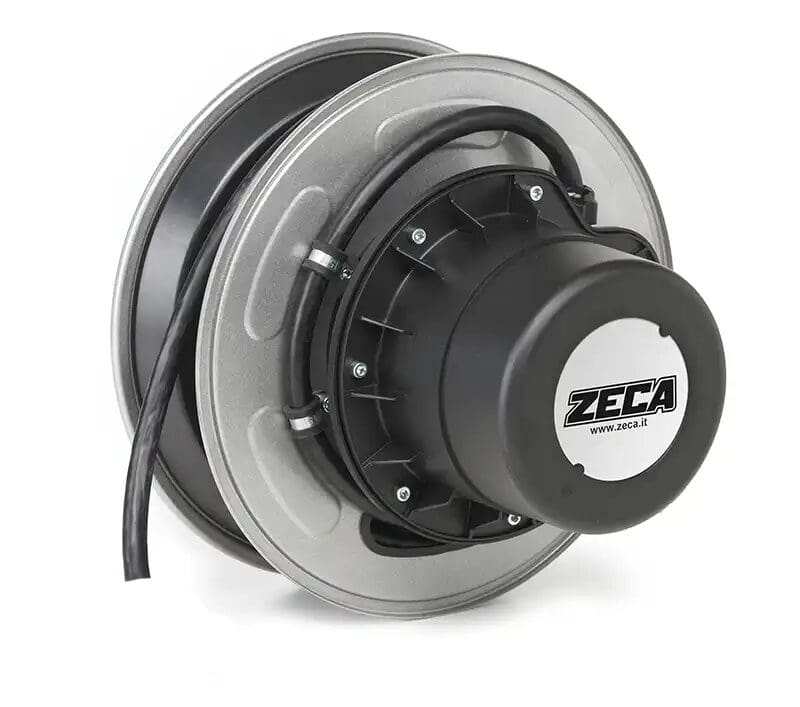

Retractable Cable Reel 18 metres 4 cores 2.5mm² Side flange mounted version	1434	$4,000.00	Add to Quote Request
