Quikstak Electric Stacker

Our Quikstak Electric Stacker range lets you lift and lower pallets with ease. It makes transferring, loading and unloading tasks quick and easy. Ergonomically designed, the Quikstak reaches a range of working heights and reduces manual handling strains (such as bending, lifting, over-reaching). The device features a self-drive powered system that allows it to be electronically controlled.

The Quikstak is an innovative tool for any warehouse application. So much so, there’s nothing like it on the market. One of its most unique capabilities is its optional magic-eye technology. Using an infrared sensor, this feature automatically adjusts the working height of a pallet.

Quikstak Electric Stackers are available with either a 1000 or 1500 kg load capacity. Lifting heights are available up to 5600 mm.

Product Variation	Clear

Additional Information

Introducing the Quikstak Stacker S-Series…

The Quikstak Electric Stacker is intuitive can work on its own!

Both the SP10 and SP15 Quikstak models feature the latest S-Series technology. With adjustable forks and straddle legs, they are fitted with a self-drive unit, brushless A/C electric motor and intelligent braking systems. They’re durable, long-lasting and can be used all day – thanks to their bank of lead-acid batteries. The tiller features variable drive controls, raise/lower buttons and a safety sounder, all of which is easily accessible. The SP10 range is built with a compact design, supporting up to 1000 kg. They have a small turning circle and width of 1132 mm. There’s nowhere this Quikstak Electric Stacker can’t get to! The SP15 range supports loads up to 1500 kg.

Overall Features of all Electric Stackers:

Standard lifting height 1600 mm; other optional height available (as high as 3000 mm on the SP10 models and 5600 mm on the SP15 models)
SP10 rated 1000 kg load rating; SP15 rated 1500 kg load rating
Certified to international quality assurance and safety standards
Built-in limit switch and overload protection

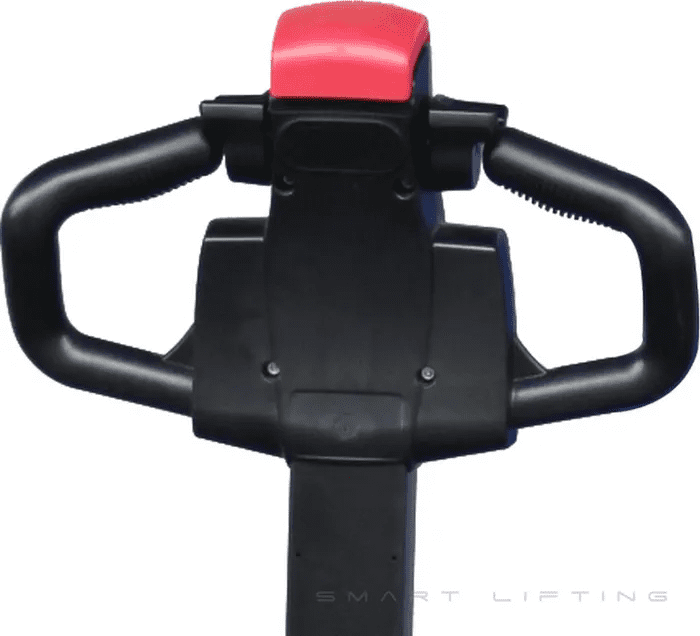

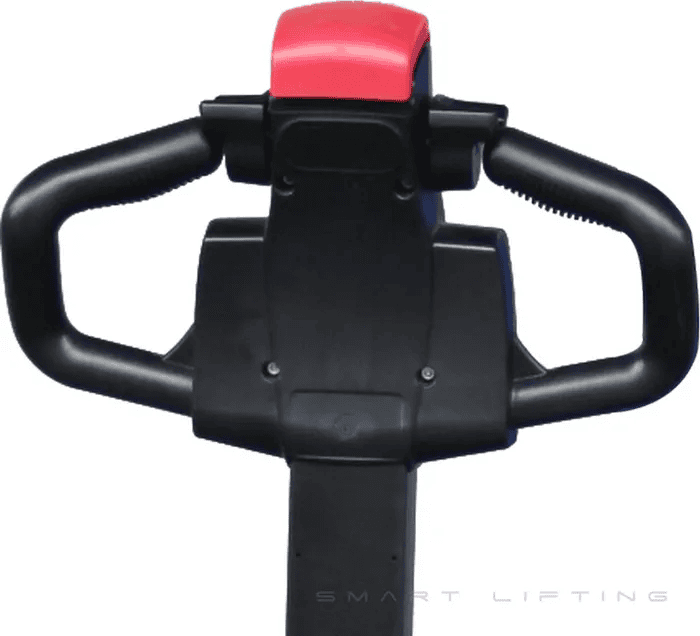

Ergonomic tiller with dual-hand controls – features forward, reverse, raise, lower, safety sounder and reversing safety device functions

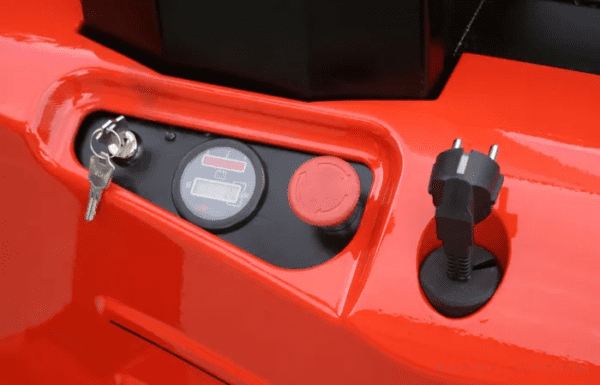

Robust plastic fascia with battery indicator, hour-meter, emergency stop and key switch
24 V / 100 Ah deep-cycle sealed gel batteries with built-in charger
Forged forks with adjustable width 200-800 mm
Straddle legs with adjustable width from 1332-1532 mm making it perfect for tight aisles
Brushless DC motor with an electronic control system
Auto deceleration with intelligent kinetic energy recovery system (KERS) to maximise battery life
Manoeuvrable design with vertical steered drive wheel
SP10 features an even smaller turning radius 1490 mm, whereas SP15 has a 1655 mm turning radius

Quikstak Electric Stackers SP10

Quikstak Electric Stacker SP15

Add a bit of magic to your Quikstak Electric Stacker!

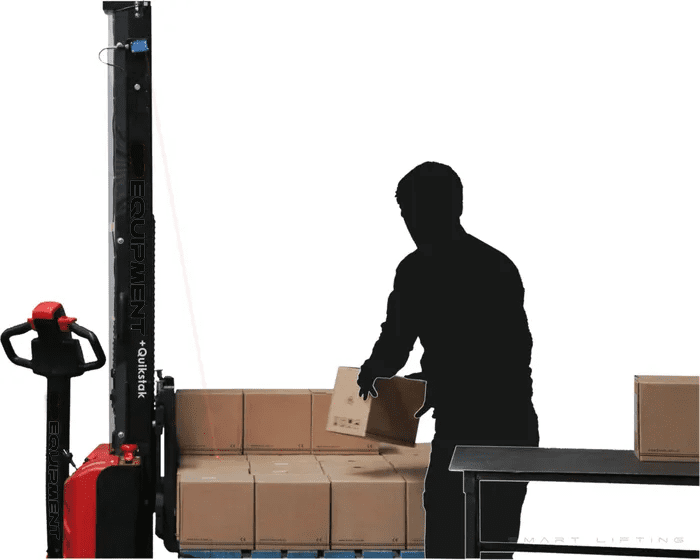

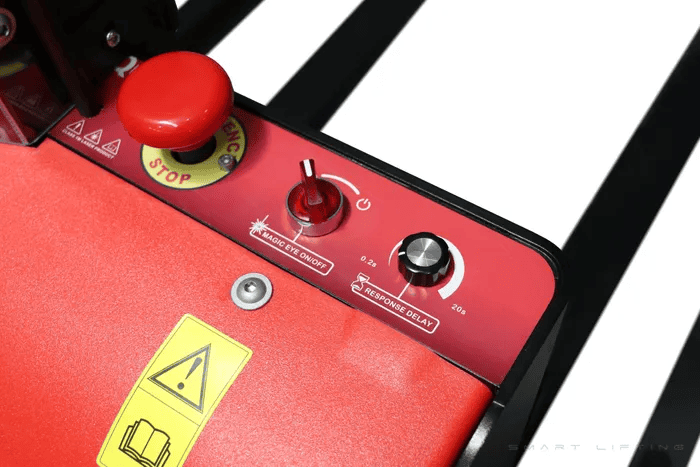

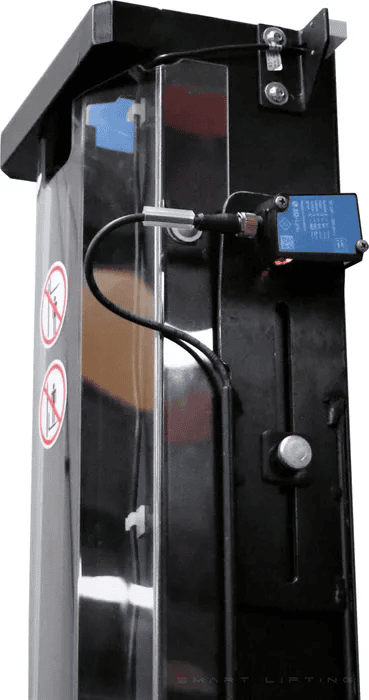

One of the best features of the Quikstak is its safety infra-red height sensor. A unique and patented addition, the Magic-Eye automatically moves a pallet to an ideal working height whilst an operator unloads/loads products. No operator input is required as it’s completely intuitive, making Quikstak use more comfortable for its users. The Magic-Eye Infrared Sensor reduces manual handling strains as it ensures an ergonomic height is maintained. When the infrared sensor is switched off, the Quikstak Electric Stacker reverts back to its standard mode.

Which Quikstak Electric Stacker suits your application?

Quikstak SP10 Series

Code	Magic-Eye	Lift Height	Load Capacity	Length	Width	Turning Radius
SP1016A	Yes	1600 mm	1000 kg	1500 mm	1132 – 1532 mm (adjustable)	1490 mm
SP1016B	No	1600 mm	1000 kg	1500 mm	1132 – 1532 mm (adjustable)	1490 mm
SP1025A	Yes	2500 mm	1000 kg	1500 mm	1132 – 1532 mm (adjustable)	1490 mm
SP1025B	No	2500 mm	1000 kg	1500 mm	1132 – 1532 mm (adjustable)	1490 mm
SP1030A	Yes	3000 mm	1000 kg	1500 mm	1132 – 1532 mm (adjustable)	1490 mm
SP1030B	No	3000 mm	1000 kg	1500 mm	1132 – 1532 mm (adjustable)	1490 mm

Quikstak SP15 Series

Code	Magic-Eye	Lift Height	Load Capacity	Length	Width	Turning Radius
SP1516A	Yes	1600 mm	1500 kg	2095 mm	1182 – 1582 mm (adjustable)	1655 mm
SP1516B	No	1600 mm	1500 kg	2095 mm	1182 – 1582 mm (adjustable)	1655 mm
SP1525A	Yes	2500 mm	1500 kg	2095 mm	1182 – 1582 mm (adjustable)	1655 mm
SP1525B	No	2500 mm	1500 kg	2095 mm	1182 – 1582 mm (adjustable)	1655 mm
SP1530A	Yes	3000 mm	1500 kg	2095 mm	1182 – 1582 mm (adjustable)	1655 mm
SP1530B	No	3000 mm	1500 kg	2095 mm	1182 – 1582 mm (adjustable)	1655 mm
SP1533A	Yes	3300 mm	1500 kg	1980 mm	1170 – 1560 mm (adjustable)	1610 mm
SP1533B	No	3300 mm	1500 kg	1980 mm	1170 – 1560 mm (adjustable)	1610 mm
SP1535A	Yes	3500 mm	1500 kg	1980 mm	1170 – 1560 mm (adjustable)	1610 mm
SP1535B	No	3500 mm	1500 kg	1980 mm	1170 – 1560 mm (adjustable)	1610 mm
SP1545A	Yes	4500 mm	1500 kg	1980 mm	1170 – 1560 mm (adjustable)	1610 mm
SP1545B	No	4500 mm	1500 kg	1980 mm	1170 – 1560 mm (adjustable)	1610 mm
SP1550A	Yes	5000 mm	1500 kg	1980 mm	1170 – 1560 mm (adjustable)	1610 mm
SP1550B	No	5000 mm	1500 kg	1980 mm	1170 – 1560 mm (adjustable)	1610 mm
SP1556A	Yes	5600 mm	1500 kg	1980 mm	1170 – 1560 mm (adjustable)	1610 mm
SP1556B	No	5600 mm	1500 kg	1980 mm	1170 – 1560 mm (adjustable)	1610 mm

For more Quikstak action, check out our Semi-Electric Stacker that is manually operated. Despite not including the power drive of the Quikstak Electric Stacker, it has similar functionalities and is an incredible alternative safety solution.

Click the PDF button to learn more.
