Lifting Frames – Pallet and IBC

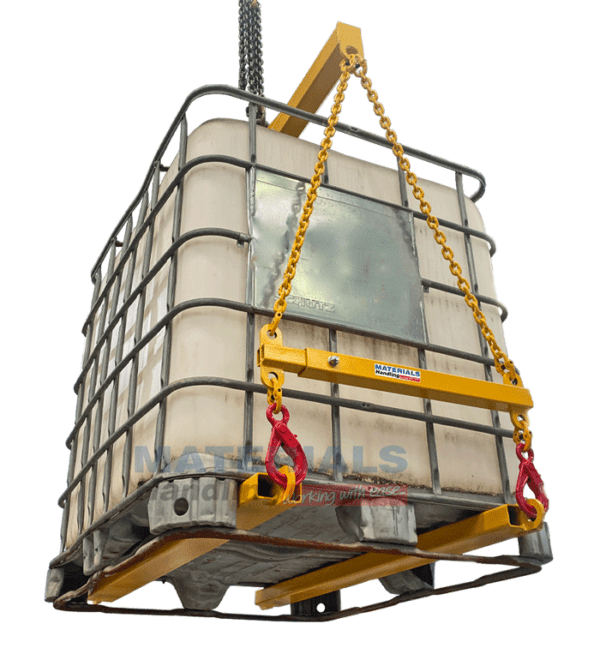

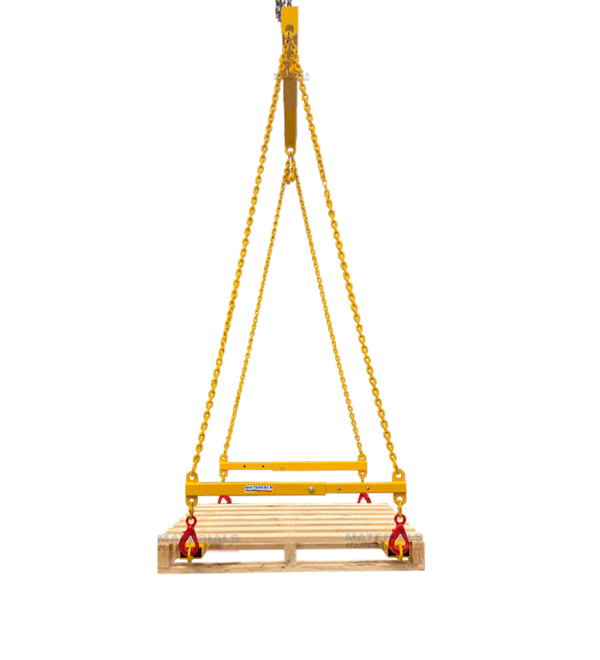

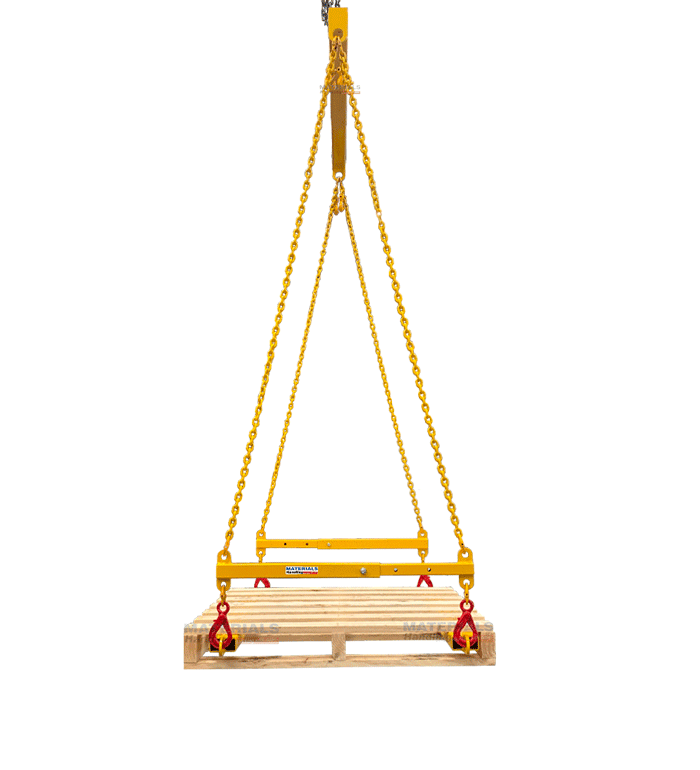

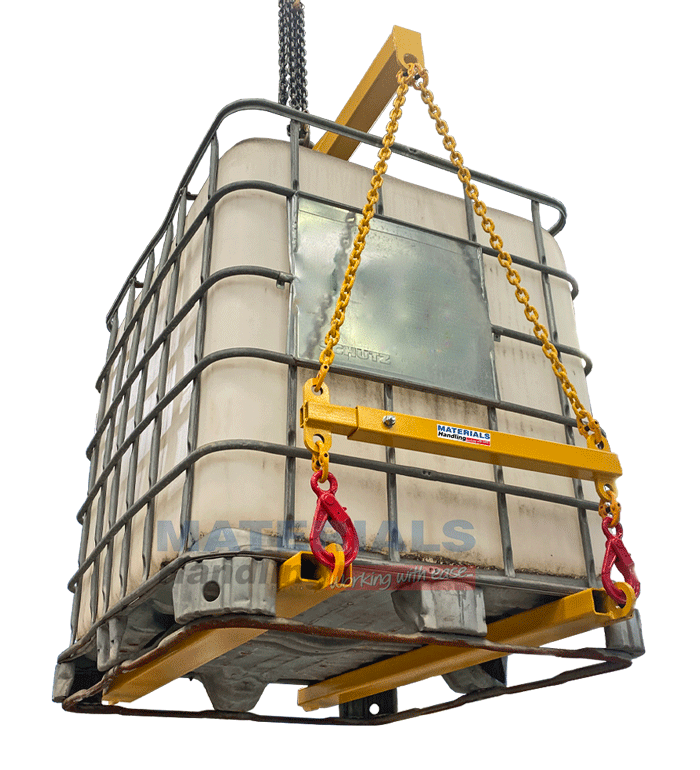

The MCBC200 and MCBC200X Container Lifters safely lift IBC containers or pallets using a crane. They feature a clever, simple and easy to use design. As an overhead crane attachment, these devices are a safer method when compared to using a fork pallet lifter. The MCBC200X has additional length chains (2 metres long) to handle higher pallets

The overall unit weighs a total of 55 kg, however, the lifter has a strong Working Load Limit of 2000 kg. It includes all chains, safety hooks and connectors and is finished with a highly visible ‘safety yellow’ enamel paint finish. Another bonus feature of these devices is that the tines can be stored in the top trays, when not in use.

The Pallet/IBC Container Lifter has been constructed with a four-point lift. The device has been built in accordance with relevant Australian Standards and they are certified against these.

Additional Information

Great and secure lifting with our Pallet/IBC Container Lifter!

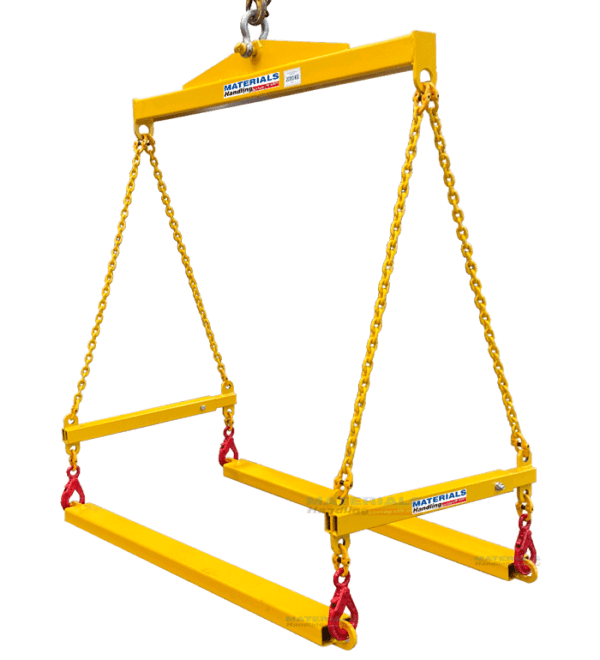

Also known as an IBC Crane Spreader Beam, this device complies with the strictest safety standards to deliver professional and safe results. It offers lifting reliability and improves processes effectively. The unit is supplied with four lifting chain assemblies, two lower spreader beams, four 2-Tonne Latch Lock Hooks and two Lifting Forks.

Specifications:

Working Load Limit (WLL) – 2000 kg
Unit Total Weight – 55 kg
Load Centre – 675 mm
Features an upper and lower spreader beam with a lifting fork
The lower spreader arm is adjustable to 3 positions to suit varying pallet sizes
4 point lift
Supplied with all chains
Enamel paint finish.

Please Note: Pallets/IBCs are not included.

Looking for other lifting options?

Check out our wide range of lifting attachments to find your ideal solution.

Click the PDF button to learn more.

Product Variations

Image	Description	Product Code	Price (excl. GST)
	IBC and Pallet Crane Lifting Frame 2000kg	MCBC200	$1,680.00	Add to Quote Request
	IBC and Pallet Crane Lifting Frame 2000kg 2 metre chains for higher pallets	MCBC200X	$2,170.00	Add to Quote Request
