EZ Wheel Battery Electric Drive Pack
+ Add to Quote Request

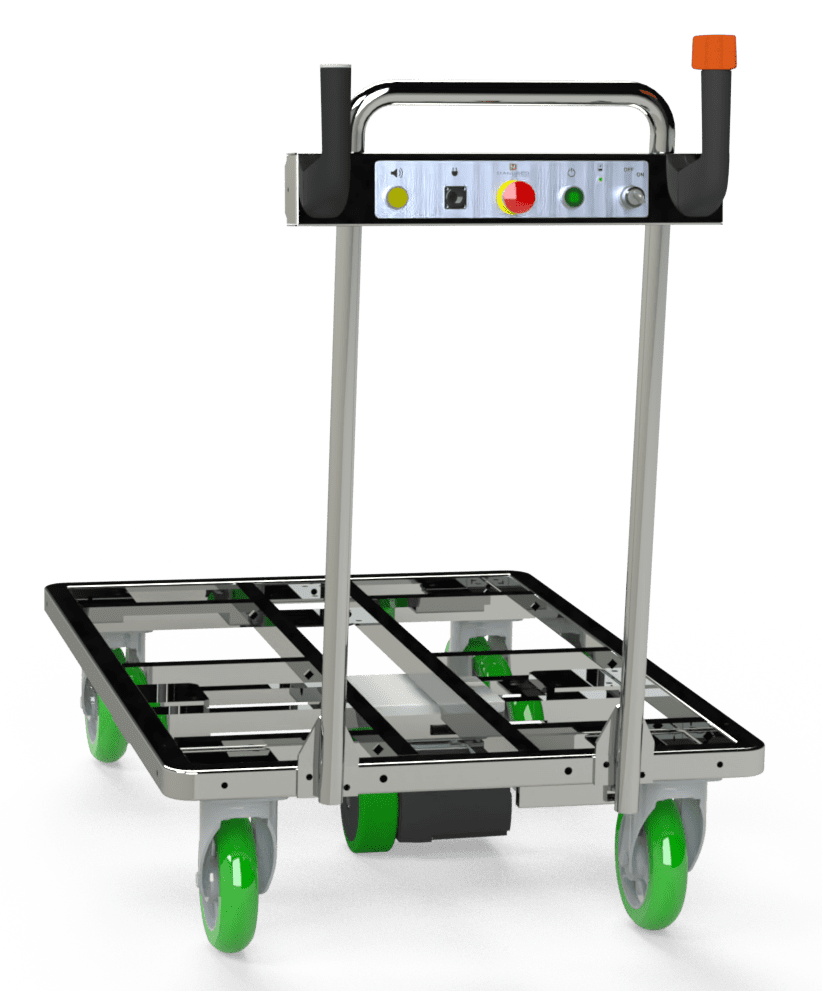

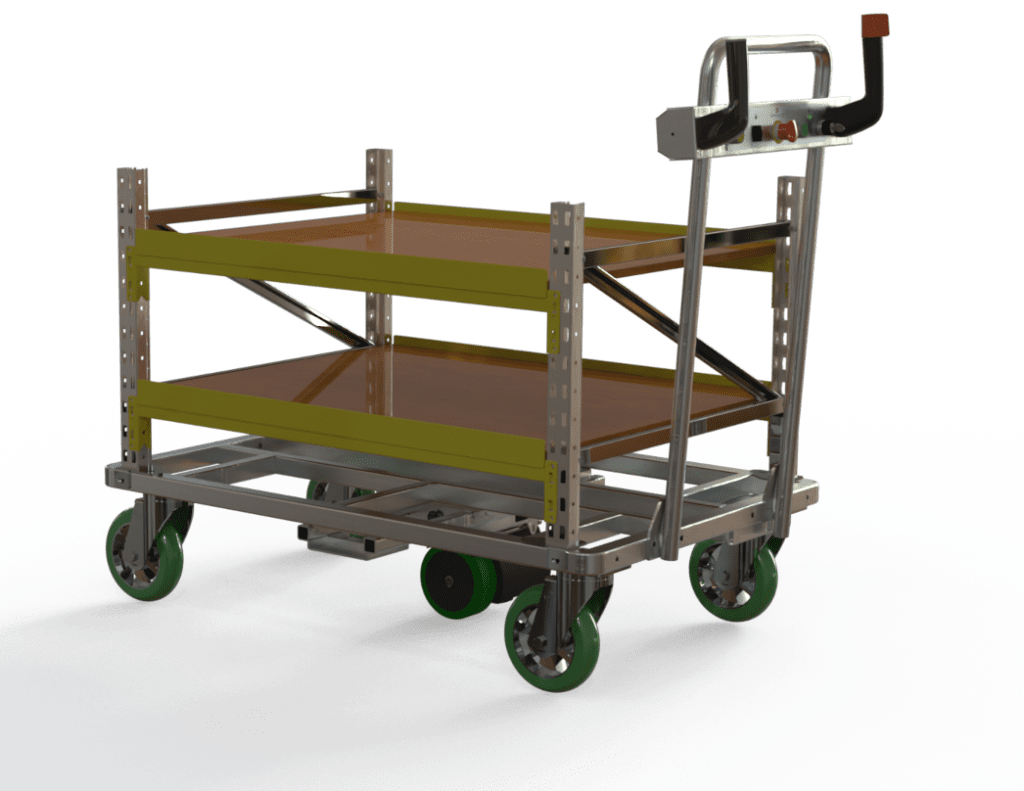

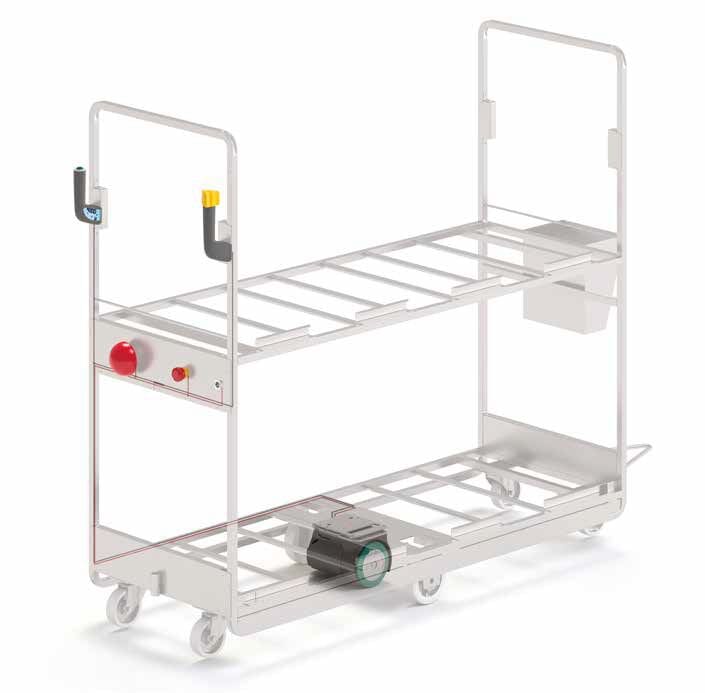

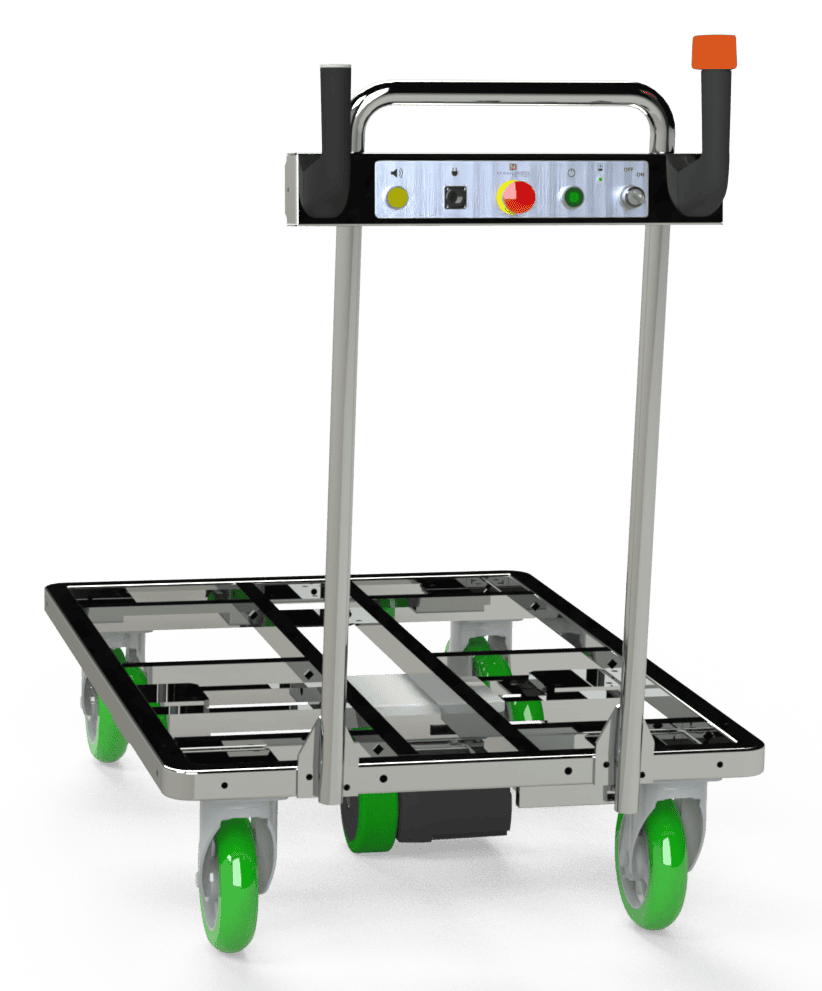

The EZ Wheel is self-powered by the built-in battery and driven by wired or wireless communication. The self-propelled EZ Wheel can be fitted immediately on any trolley, vehicle chassis or mobile equipment. EZ Wheel is available with wired connections or with external batteries to allow connection to auxiliary electrical components onboard the trolley. The motor can also be powered by an external battery (if already available onboard the trolley).

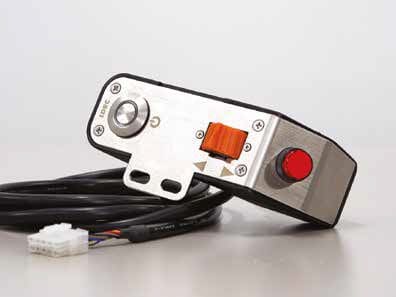

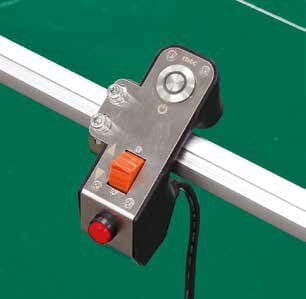

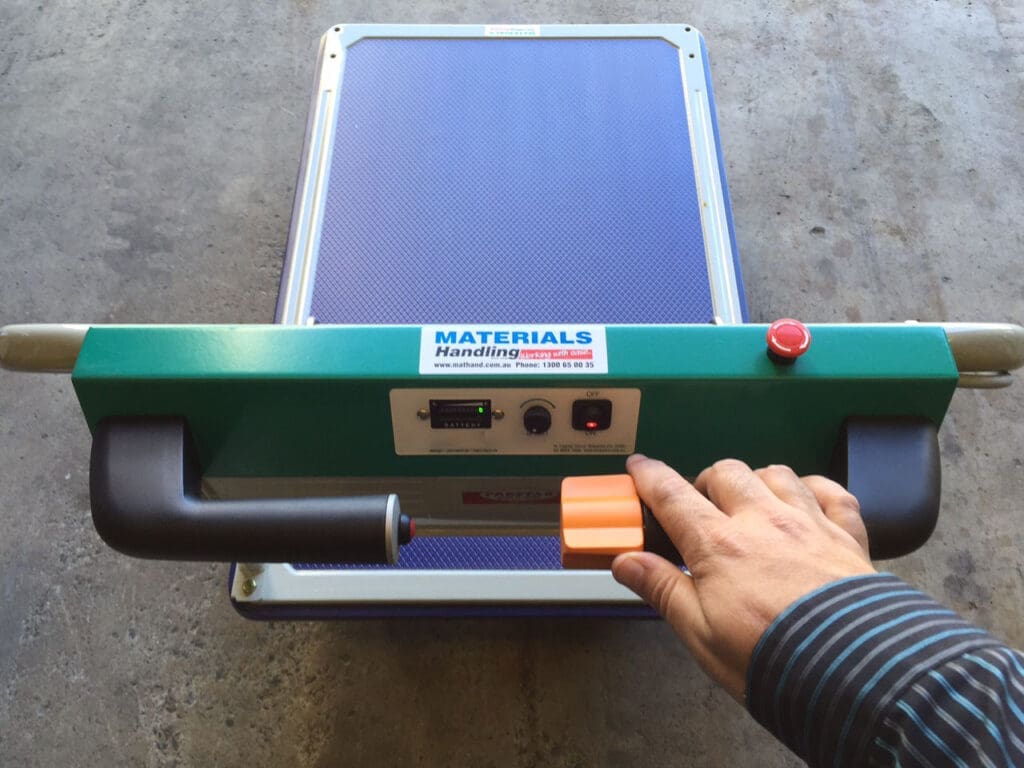

EZ Wheel Series 300 industrial provides electric drive assistance to any type of industrial rolling item for handling and transportation. The control console ensures proper handling thanks to the ergonomic shape and intuitive design. An optional wireless interface allows simple and quick integration into the trolley. For safety, the device includes an emergency stop button in case of a safety scenario.

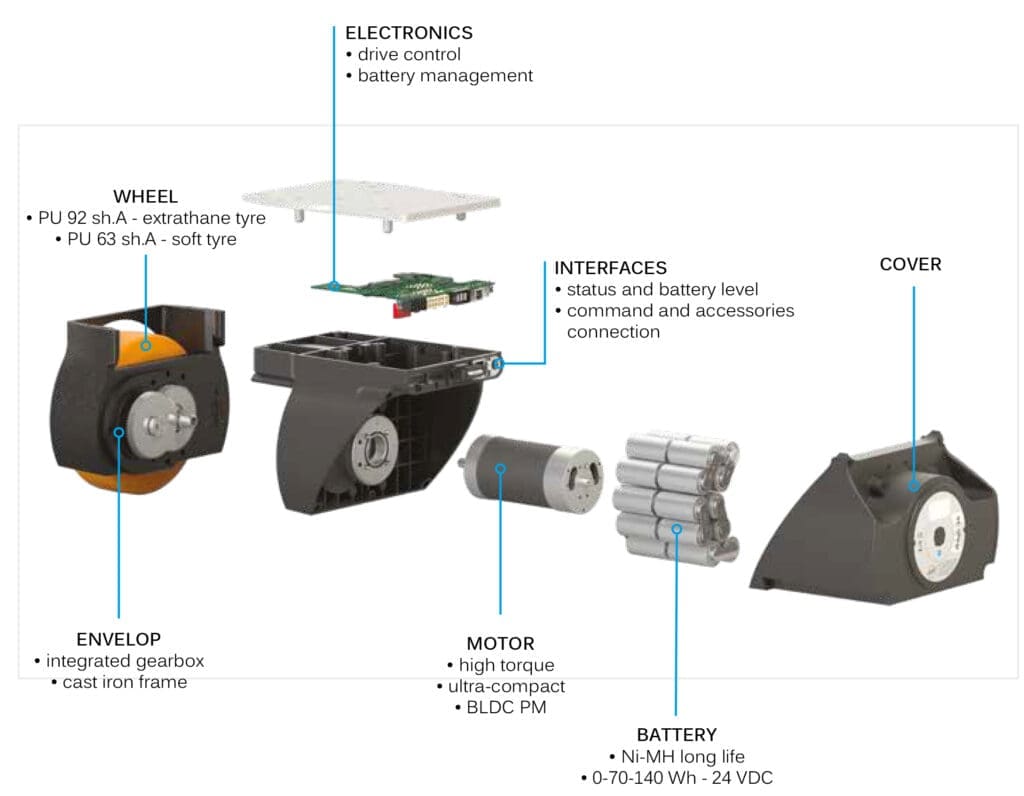

EZ Wheel Series 150 device integrates the drive motor and battery in a compact enclosure. The 150mm diameter drive wheel is designed with reduced height to assist in fitting into the trolley chassis. The robust hub protects all components from impact and debris. The torque of the electric motor provides reduced operator effort for any rolling item.
Additional Information
The ezW300 industrial wireless kit allows you to get started with the EZ Wheel. It provides electric drive assistance to any type of industrial rolling material dedicated to handling and transportation. This kit can be fitted immediately on any vehicle chassis or mobile equipment. No electrical connection is needed.

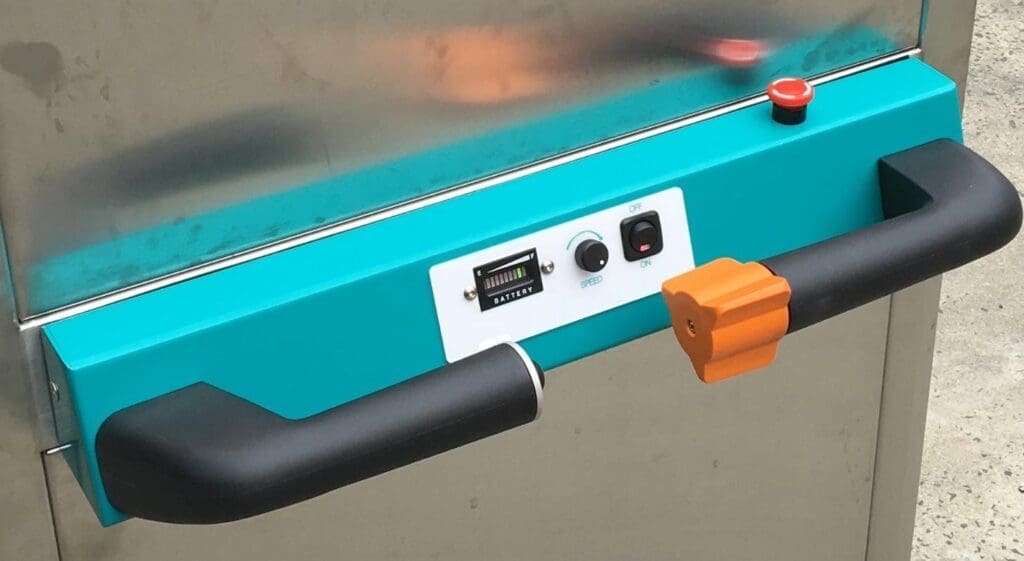

The tiller head ezRTH/W ensures safe handling of equipment because of the well-organised push buttons. The wireless interface allows simple and quick integration into rolling material. The interface also displays the battery level and the system status.

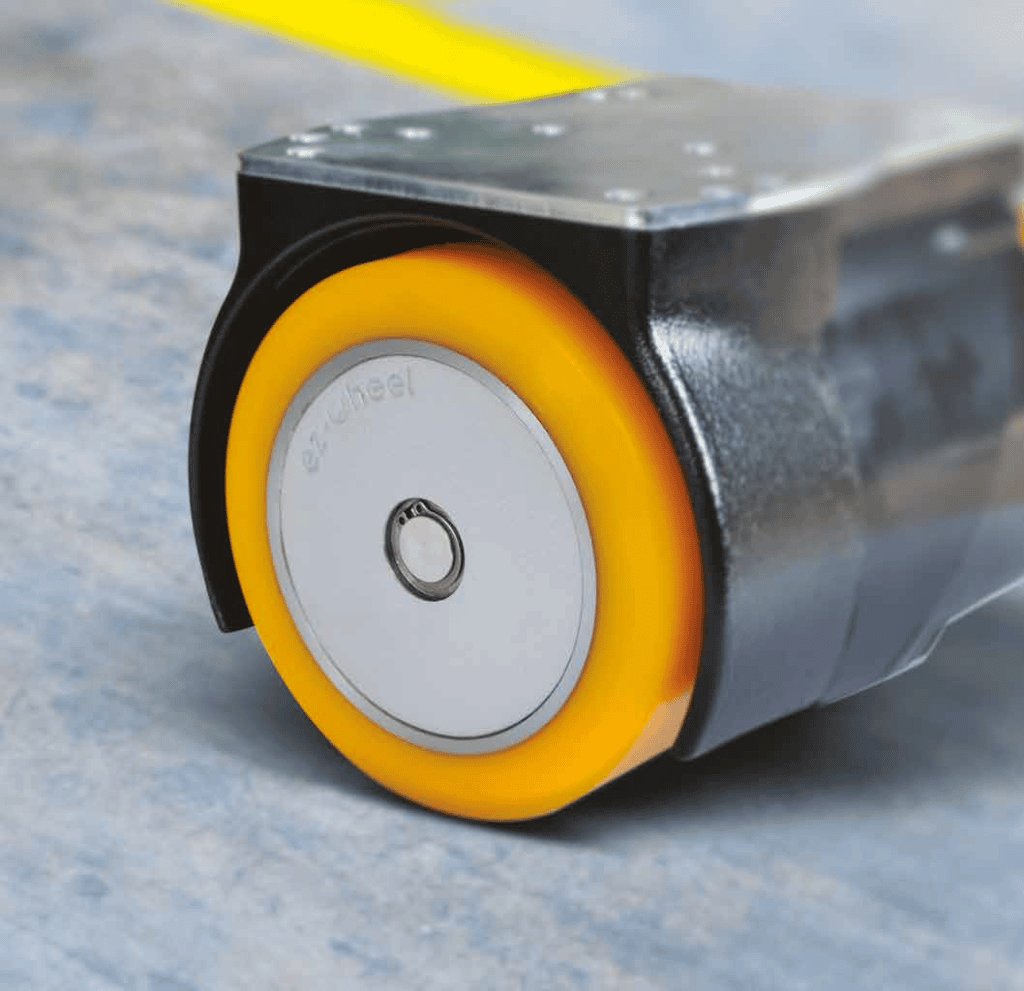

The ezMCS is a mounting bracket featuring a suspension for height compensation. The ground contact is optimal and the traction with the ground remains stable, ensuring a good grip for the torque transmission.
The wheel can be used inside or outside, over a wide range of temperatures. The components (other than the battery) do not need complex adjustment or maintenance over the lifespan of the product. The heavy-duty casing enables the ezW300 wheel to bear a load of up to 300 kg and move a load of up to 1000 kg. The robust assembly can withstand the stress of impact and vibration.
The standardised dimensions and mechanical interface make it simple and quick to fit the product. The axle of the wheel is mounted on a 16 mm shaft just like a free wheel and the rotation stop consists of a locking collar at the end of the axle. The wheel hub is fitted with a solid, 25 mm thick polyurethane tyre 80 shore A for drive wheels. The solid tyre does not require any maintenance or servicing and does not need to be replaced.
Click the PDF button to learn more.
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
 |
EZ Wheel 300 suspension bracket |
EZMCS-H-CC | ||
|
EZ Wheel control interface wired |
EZR44IN-U | ||
|

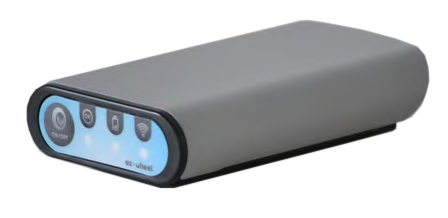

EZ Wheel control interface wireless |
EZR44IN-W | ||
|
EZ Wheel industrial |
MEZ150 | ||
|
EZ Wheel industrial wireless |
MEZ300 | ||
|
EZ Wheel industrial wired |
MEZ300C | ||
 |
EZ Wheel 300 suspension bracket |
EZMCS-H | ||
 |

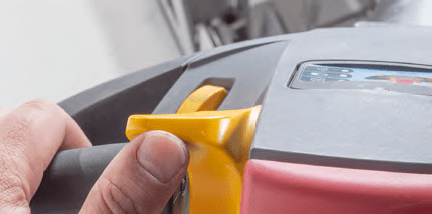

Control console with thumb wheel |
EZARH | ||
 |

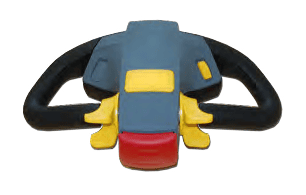

Tiller Head control console (wired connection) |
EZATH | ||
|
Tiller Head control console wireless |
EZRTH |
