Winch Electric DC – Pulling
+ Add to Quote Request
Experience performance with our range of DC electric winches, best suited for pulling applications.
Available as a 12V or 24V power supply.
Engineered for durability and reliability, these winches are perfect for a range of applications and come in three different styles.
A wireless remote control option is available for each model.
Additional Information

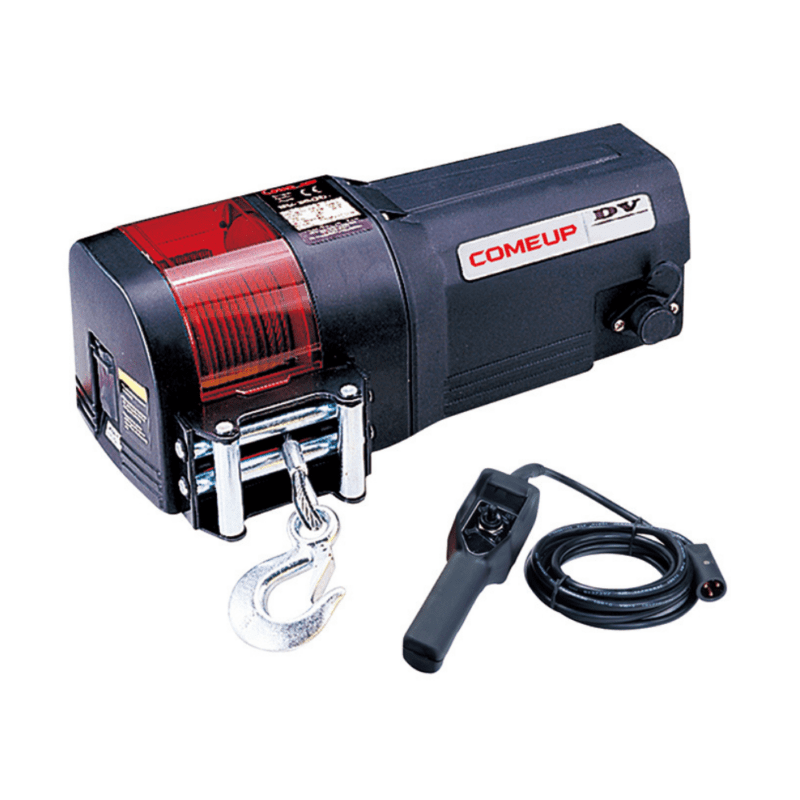

Model LPDV250
The Utility Duty Winches are designed for use as a trailer winch, providing a line pull of up to 1134kg. They are easy to install, and the high-torque permanent magnet motor delivers high line pull at lower amp draw. Automatic load-holding mechanical failsafe brake ensures strength and reliability.
- Not suitable for lifting!
- 12 or 24 Volt reversible motor
- Speed without load: 5.0 m/min
- Wire rope: Ø4.8mm x 15m long
- Unit weight: 13.5kg
- Control with 3m long cable
- Compact and lightweight
- Wireless remote control available separately
Model LPDV350
The Utility Duty Winches are designed for use as a trailer winch, providing a line pull of up to 1588kg. They are easy to install, and the high-torque permanent magnet motor delivers high line pull at lower amp draw. Automatic load-holding mechanical failsafe brake ensures strength and reliability.
- Not suitable for lifting!
- 12 or 24 Volt reversible motor (choose at time of order)
- Speed without load: 6.5 m/min
- Wire rope: Ø5.5mm x 15m long
- Unit weight: 14kg
- Control with 3m long cable
- Compact and lightweight
- Wireless remote control available separately
Model LPDV450
The Utility Duty Winches are designed for use as a trailer winch, providing a line pull of up to 2041kg. They are easy to install, and the high-torque permanent magnet motor delivers high line pull at lower amp draw. Automatic load-holding mechanical failsafe brake ensures strength and reliability.
- Not suitable for lifting!
- 12 or 24 Volt reversible motor
- Speed without load: 6.5 m/min
- Wire rope: Ø6.3mm x 15m long
- Unit weight: 14kg
- Control with 3m long cable
- Compact and lightweight
- Wireless remote control available separately

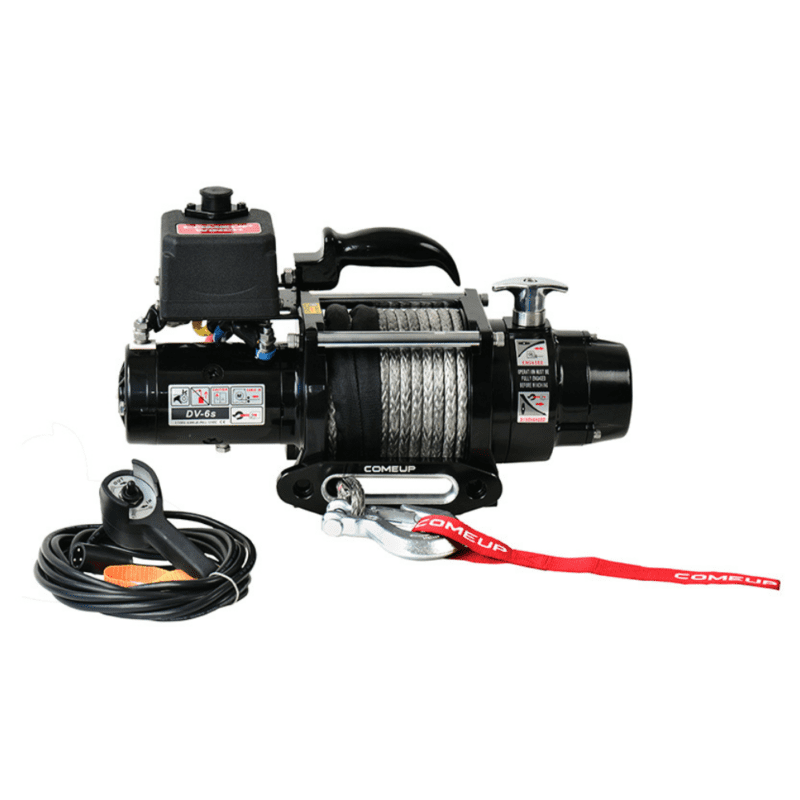

Model LPDV600
This recovery winch has 2722kg pulling power with rugged IP68 waterproofing and a patented Cone Brake Structure for secure load holding. Designed for 4WD recovery, trailers, and utility use across Australia and New Zealand. Each winch features a smooth three-stage planetary gearbox and a 3.7m wired remote for easy operation.
- Not suitable for lifting!
- Speed without load: 8.0 m/min
- Wire rope: Ø7.1mm x 24m long
- Unit weight: 18kg
- Turn the clutch by ergonomic T-handle for rapid rope payout
- Equally positioned pin holes make it easy to rotate by 36° or 40° increments
- Protective thermal sensor LED
- Specific design of brake (CBS) outside drum is suited to heat-sensitive synthetic rope
- Wireless remote control available separately

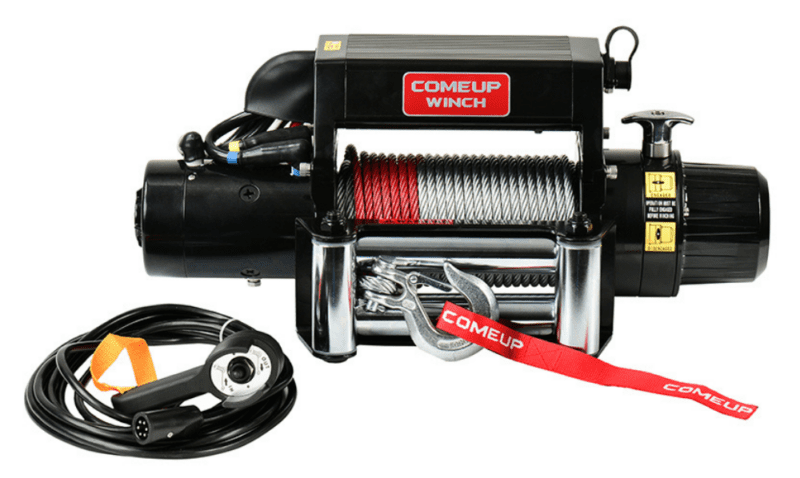

Model LPDV900
This recovery winch has 4082kg pulling power with rugged IP68 waterproofing and a patented Cone Brake Structure for secure load holding. Designed for 4WD recovery, trailers, and utility use across Australia and New Zealand. Each winch features a smooth three-stage planetary gearbox and a 3.7m wired remote for easy operation.
- Not suitable for lifting!
- Speed without load: 13.4 m/min
- Wire rope: Ø8.3mm x 30m long
- Unit weight: 36kg
- Turn the clutch by ergonomic T-handle for rapid rope payout
- Equally positioned pin holes make it easy to rotate by 36° or 40° increments
- Protective thermal sensor LED
- Specific design of brake (CBS) outside drum is suited to heat-sensitive synthetic rope
- Wireless remote control available separately
Model LPDV920
This recovery winch has 5443kg pulling power with rugged IP68 waterproofing and a patented Cone Brake Structure for secure load holding. Designed for 4WD recovery, trailers, and utility use across Australia and New Zealand. Each winch features a smooth three-stage planetary gearbox and a 3.7m wired remote for easy operation.
- Not suitable for lifting!
- Speed without load: 8.3 m/min
- Wire rope: Ø9.5mm x 38m long
- Unit weight: 40kg
- Turn the clutch by ergonomic T-handle for rapid rope payout
- Equally positioned pin holes make it easy to rotate by 36° or 40° increments
- Protective thermal sensor LED
- Specific design of brake (CBS) outside drum is suited to heat-sensitive synthetic rope
- Wireless remote control available separately

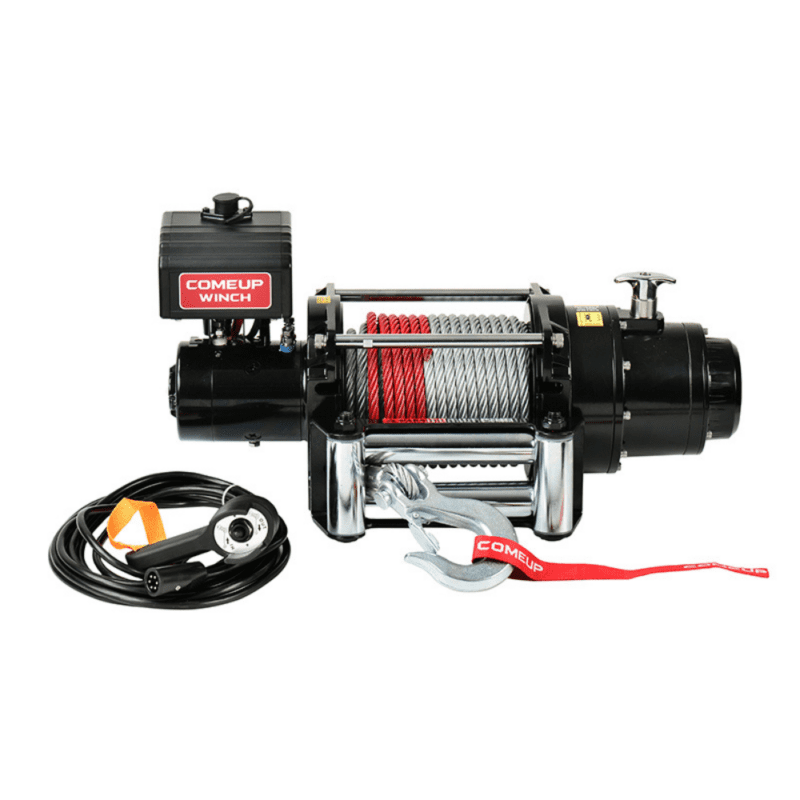

Model LPDV950
This recovery winch has 6804kg pulling power with rugged IP68 waterproofing and a patented Cone Brake Structure for secure load holding. Designed for 4WD recovery, trailers, and utility use across Australia and New Zealand. Each winch features a smooth three-stage planetary gearbox and a 3.7m wired remote for easy operation.
- Not suitable for lifting!
- Speed without load: 6.9 m/min
- Wire rope: Ø11mm x 27m long
- Unit weight: 42kg
- Turn the clutch by ergonomic T-handle for rapid rope payout
- Equally positioned pin holes make it easy to rotate by 36° or 40° increments
- Protective thermal sensor LED
- Specific design of brake (CBS) outside drum is suited to heat-sensitive synthetic rope
- Wireless remote control available separately
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
 |
12V DC winch 1134kg |
LPDV250 | ||
 |
12V DC winch 1588kg |
LPDV350 | ||
 |
12V DC winch 2041kg |
LPDV450 | ||
 |
12V DC winch 2722kg |
LPDV600 | ||
 |
12V DC winch 4082kg |
LPDV900 | ||
 |
12V DC winch 5443kg |
LPDV920 | ||
 |
12V DC winch 6804kg |
LPDV950 |
