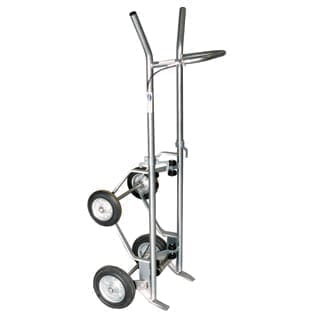

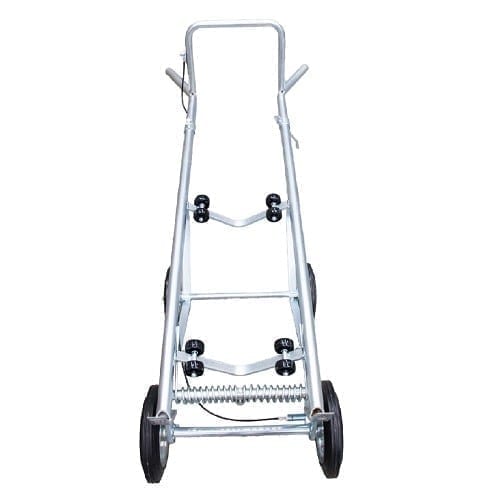

Multi-Purpose Drum Trolley

+ Add to Quote Request

The Multi-Purpose Drum Trolley easily loads and unloads drums on/off pallets. The robust design and innovative spring axle allows it to transport drums around on two or four wheels. It can shift drums into a horizontal standing position and is ideal for moving heavy drums around a warehouse or distribution centre.

This Drum Trolley allows drums to be rotated while horizontal to position the bung correctly to decant from the vessel.

An operator uses minimal effort to simply push the device. The floating axle reduces further strain, as the trolley transitions into a drum strand to remove (decant) contents. The Multi-Purpose Drum Trolley is a simple tool that increases productivity as it has multiple uses.

    Clear

    Additional Information

    A Multi-Purpose Drum Trolley that’s easy to load and move around!

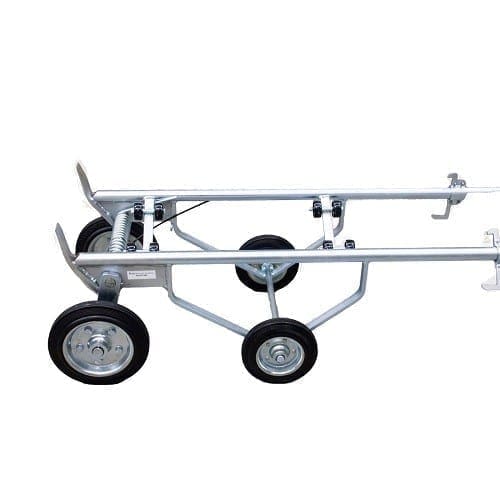

    This device has a heavy duty construction with a heavy duty zinc-plated finish. Completely Australian made, this trolley is unlike any other on the market. Similar products are mostly fitted with a fixed axle, however our Drum Trolley features an innovative swing-back axle with torsion spring. This absorbs any loading/unloading forces and ensures the device is simple to use. When the axle is pushed forward, past vertical, the trolley acts as a horizontal drum stand – the drum can be rotated on its inner wheels.

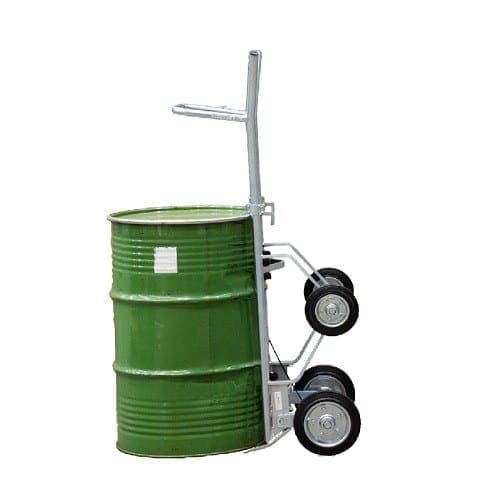

    The Multi-Purpose Drum Trolley has amazing ergonomic capabilities. It has been specially designed to be used by a person of average size to load 200 L steel drums. When being used, the sliding clips are fitted over the drum rim. The trolley toes are placed so the leading edges are under the lower drum rim. The operator then pulls back on the extended handles (as shown in the video). The Multi-Purpose Drum Trolley is fitted with solid rubber, robust tyres that have zinc-plated hubs with roller bearings.

    Multi-Purpose Drum Trolley Specifications:

    • Australian Made
    • Heavy duty construction with zinc-plated finish (for maximum lifetime)
    • Wheels have zinc-plated hubs with roller bearings
    • Solid rubber tyres
    • Unique double tension spring design
    • Small rotation wheels (so the drum can be rotated when horizontal)
    • Dimensions – 800 (L) x 620 (W) x 1540 (H) mm
    • Weight – 45 kg
    • Colour – Silver (zinc)

    DDMPDT Multi-Purpose Drum Trolley 2

    Find a great handling solution!

    We have an extensive range of Drum Handling Equipment to ensure you operate safely and efficiently.

      Click the PDF button to learn more.

      Product Variations

      Image Description Product Code Price (excl. GST)

      Multi-Purpose Drum Trolley

      DDMPDT
