Load Arrest – Cargo

Guard Against Gravity!

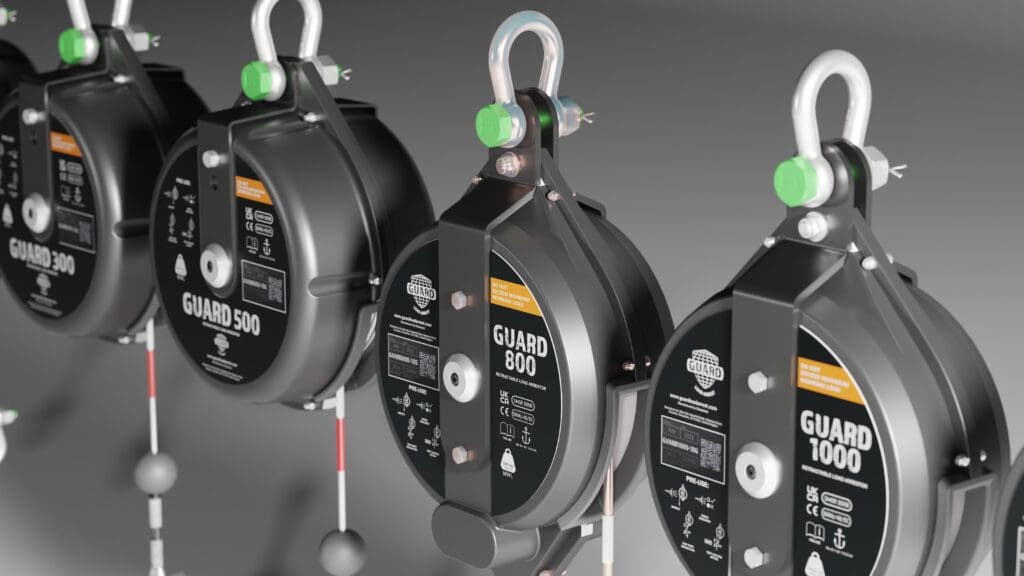

An overhead load arrestor is a secondary safety device used in tandem with primary lifting gear (such as a hoist) to automatically stop a suspended load from falling in the event the main support should fail.

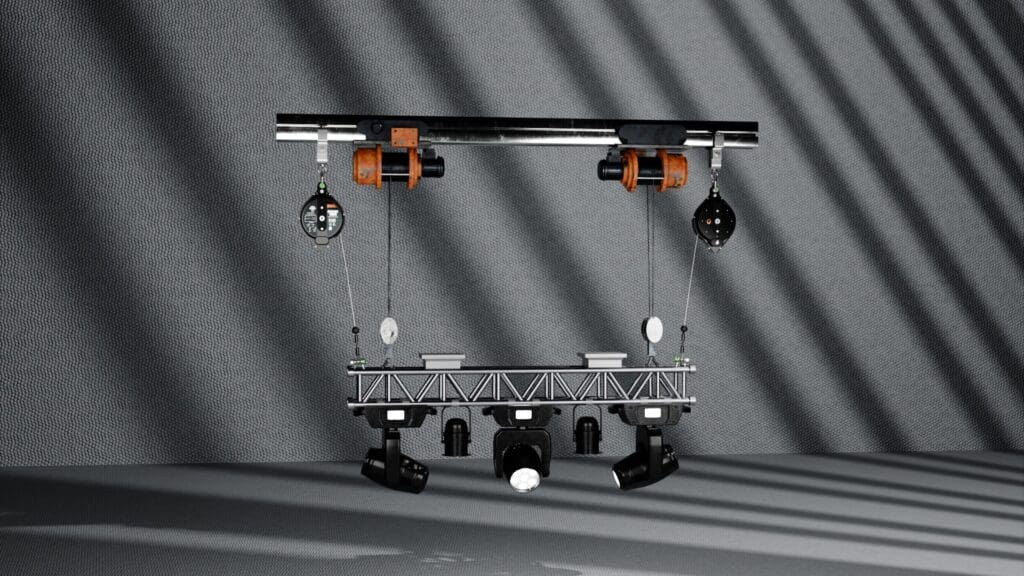

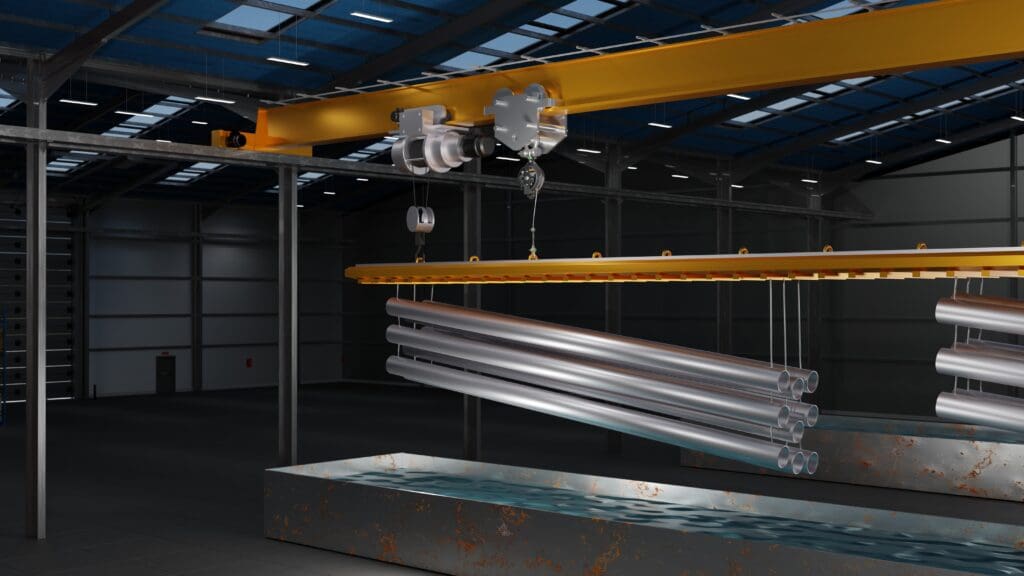

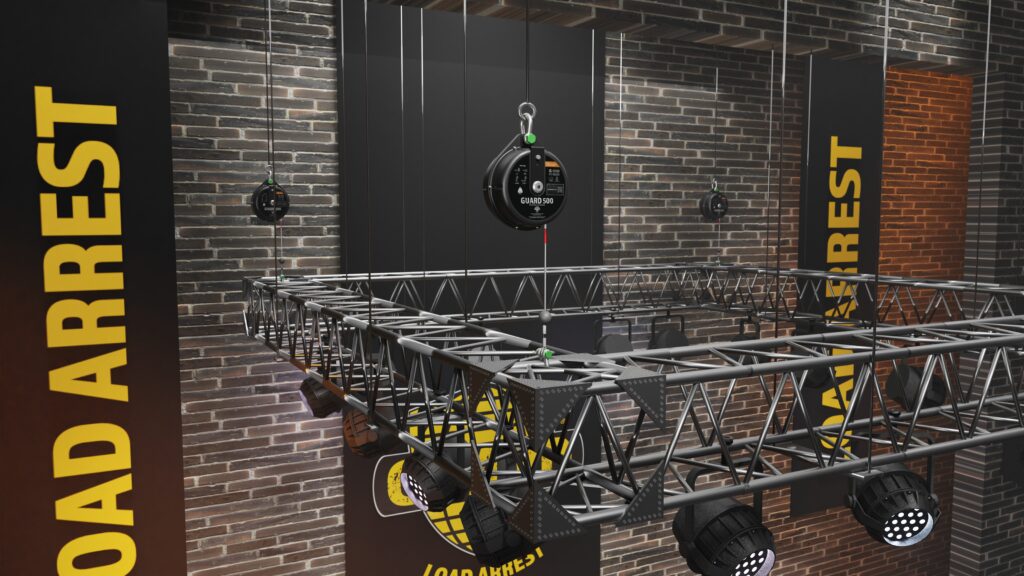

The load arrest protects people and equipment below with a retractable cable that is attached to dynamic loads in industrial, construction, and entertainment settings.

Guard load arrestors have a high-strength retractable rope that follows the movement of the load. They can be attached to equipment that needs to be moved, but also attached to static (non-moving) loads.

Product Variation

Clear

Additional Information

For loads from 150 kg to 1500 kg
Rope lengths up to 25 m
Shock absorption minimises damage

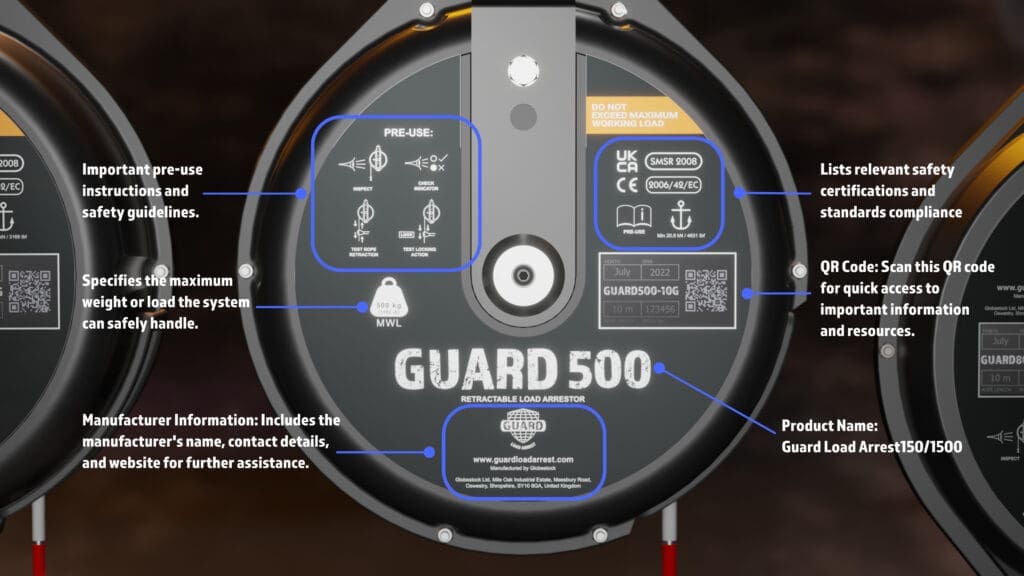

Fall indicator lens for easy monitoring
Galvanised or stainless steel rope options
Rope automatically extends/retracts

What is a load arrestor?

Load arrestors provide a safety backup for overhead loads. They are used in conjunction with a primary lifting device or support, such as a hoist or fixed anchorage point.

If the primary support fails, the load arrestor will automatically stop the load from falling, preventing damage to the load and protecting people below.

Product Variations

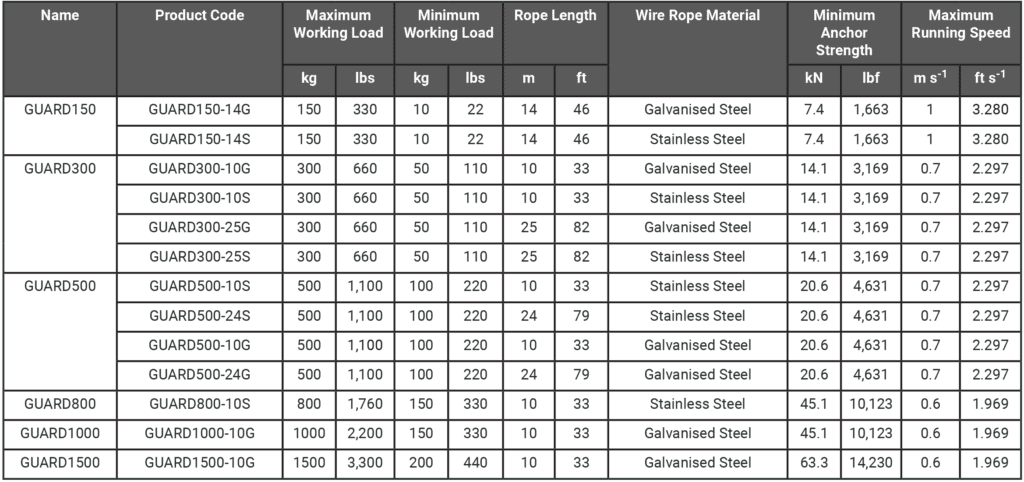

Description	Product Code	Price (excl. GST)
GUARD load arrest 150 kg MWL 14 m Galvanised Steel Rope Galvanised Steel Shackles	GUARD150-14G	$1,475.00	Add to Quote Request
GUARD load arrest 150 kg MWL 14 m Stainless Steel Rope Stainless Steel Shackles	GUARD150-14S	$3,540.00	Add to Quote Request

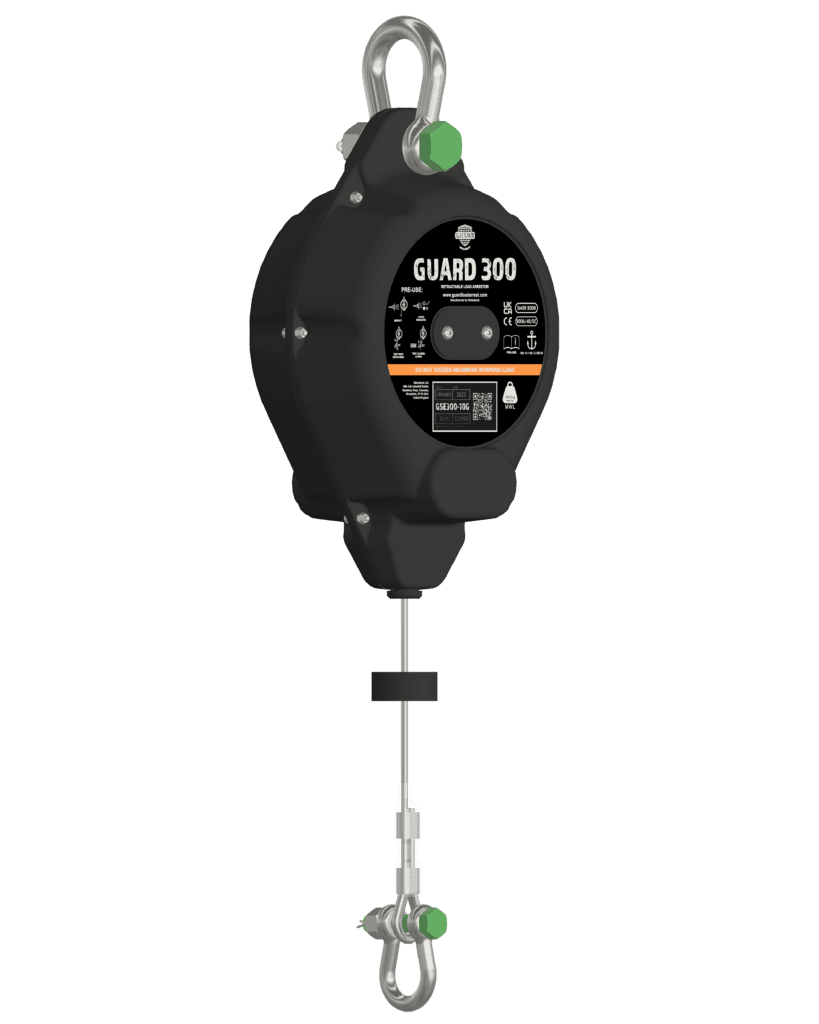

GUARD load arrest 300 kg MWL 10 m Galvanised Steel Rope Galvanised Steel Shackles	GUARD300-10G	$2,086.00	Add to Quote Request
GUARD load arrest 300 kg MWL 10 m Stainless Steel Rope Stainless Steel Shackles	GUARD300-10S	$5,479.00	Add to Quote Request
GUARD load arrest 300 kg MWL 25 m Galvanised Steel Rope Galvanised Steel Shackles	GUARD300-25G	$3,443.00	Add to Quote Request
GUARD load arrest 300 kg MWL 25 m (82 ft) Stainless Steel Rope Stainless Steel Shackles	GUARD300-25S	$5,718.00	Add to Quote Request
GUARD load arrest 500 kg MWL 10 m Stainless Steel Rope Stainless Steel Shackles	GUARD500-10S	$6,244.00	Add to Quote Request

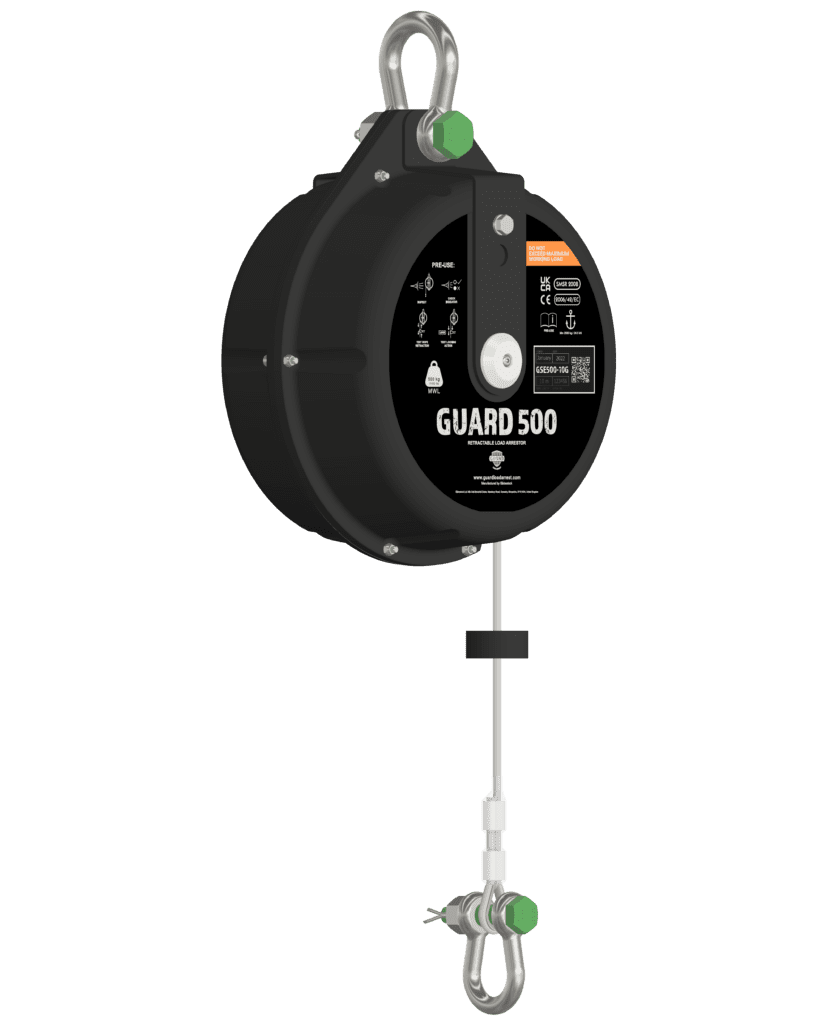

GUARD load arrest 500 kg MWL 10 m Galvanised Steel Rope Galvanised Steel Shackles	GUARD500-10G	$3,673.00	Add to Quote Request
GUARD load arrest 500 kg MWL 24 m Stainless Steel Rope Stainless Steel Shackles	GUARD500-24S	$6,244.00	Add to Quote Request
GUARD load arrest 500 kg MWL 24 m Galvanised Steel Rope Galvanised Steel Shackles	GUARD500-24G	$5,405.00	Add to Quote Request
GUARD load arrest 800 kg MWL 10 m Stainless Steel Rope Stainless Steel Shackles	GUARD800-10S	$6,956.00	Add to Quote Request
GUARD load arrest 1000 kg MWL 10 m Galvanised Steel Rope Galvanised Steel Shackles	GUARD1000-10G	$6,513.00	Add to Quote Request

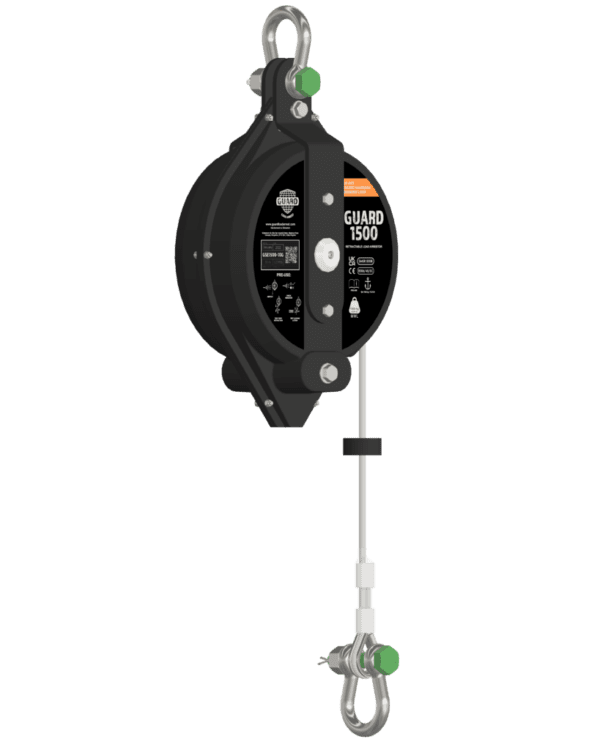

GUARD load arrest 1500 kg MWL 10 m Galvanised Steel Rope Galvanised Steel Shackles	GUARD1500-10G	$2,358.00	Add to Quote Request
