Winch Electric DC
+ Add to Quote Request
LPDH300- LPDV950
- LPDV
Experience powerful pulling with our range of DC electric winches. Available as a 12V or 24V power supply.
Engineered for durability and reliability, these winches are perfect for a range of applications and come in three different styles:
The LPDV is a powerful 12V winch and compact and corrosion-resistant unit (best suited for pulling or small truck-mounted jibs).
The LPDH is available in either 12V or 24V operation (this unit is best suited for lifting and is excellent for small trucks, and utilities for council and rural use).
Additional Information
LPDH series winch:
(Models LPDH_)
The 12 and 24 Volt DC Winches are heavy-duty winches that are ideal for installation in small trucks and utilities to eliminate the need for manual lifting and pulling. They are constructed from heavy-duty material which creates a high-performance product with low maintenance; suited for a wide range of applications.
• Compact, powerful and robust
• Corrosion resistant
• Strong robust mechanical brake
• Over-current protection
• Strong base for horizontal mounting
• Remote pendant control – 4.4m length
• Weighted hook on DH500 models
• Galvanised wire rope
• Duty cycle is 25% ED and maximum frequency of 60 times per hour
• Circuit breakers are supplied with all models

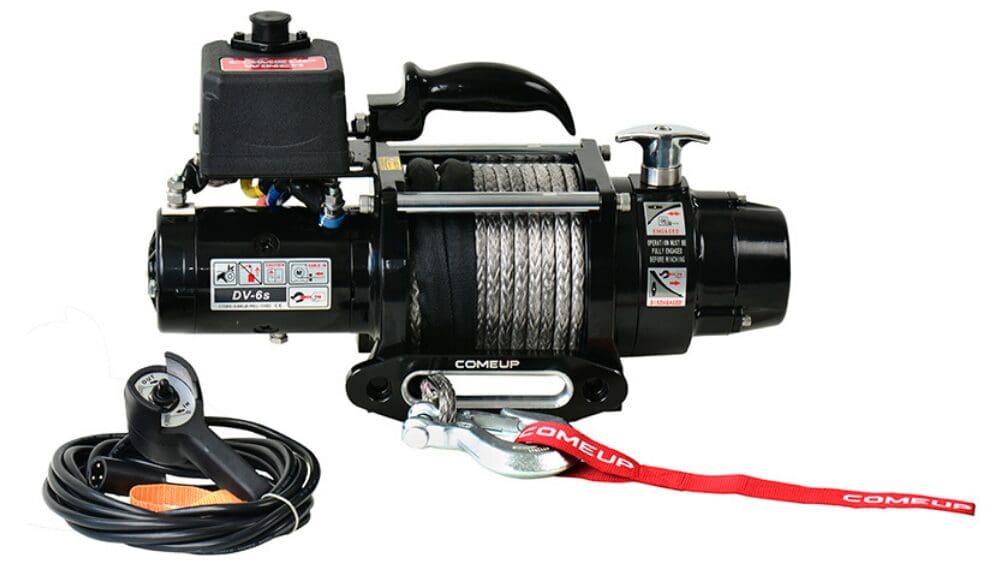

LPDV series winch:
(Models LPDV6_ and LPDV9_)
The Recovery winches are equipped with a heavy-duty motor that delivers superior torque output for self-recovery or utility duty automotive applications. The Self-Recovery range provides the maximum line pull capacity from 2722kg to 6804kg and features the strongest power for working in off-road environments.
• A sealed motor supplies superior torque output and faster line speed
• Three-stage planetary gearbox with reliable and durable performance
• Heavy-duty sealed contactor ensures sound waterproof protection
• Turn the clutch by ergonomic T-handle for rapid rope payout
• Equally positioned pin holes make it easy to rotate by 36° or 40° increments
• Protective thermal sensor LED
• Specific design of brake (CBS) outside drum is suited to heat-sensitive synthetic rope
• Wireless remote control available separately
LPDV series winch:
(Models LPDV2_, LPDV3_ and LPDV4_)
The Utility Duty Winches are designed for use as a trailer winch, providing a line pull of up to 2041 kg. They are easy to install, and the high-torque permanent magnet motor delivers high line pull at lower amp draw. Automatic load-holding mechanical failsafe brake ensures strength and reliability.
• 12 & 24 Volt reversible motor
• Power in and power out
• Tough weather-resistant housing with integrated solenoid pack
• Built-in mechanical safety braking device
• Sliding pin and ring gear clutch for rapid wire rope payout
• Remote control with 3m cable
• Compact and lightweight
• Wireless remote control available separately

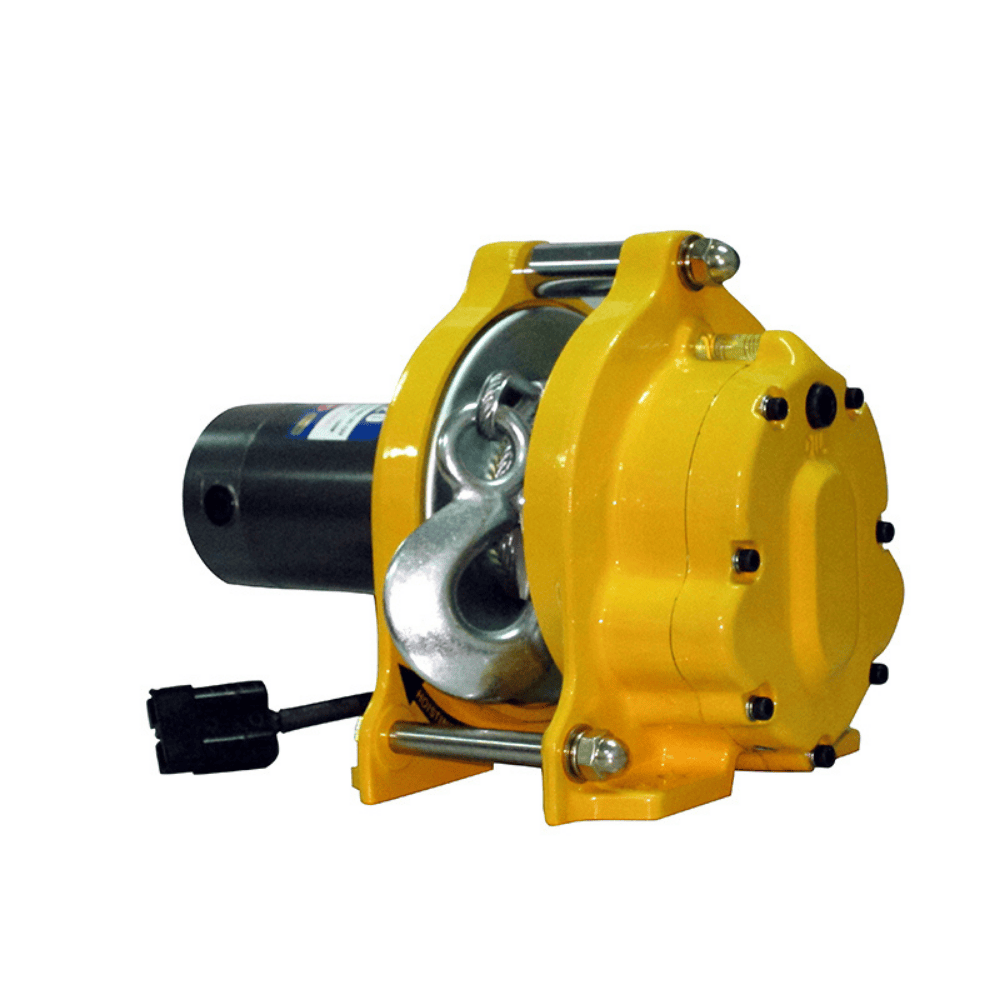

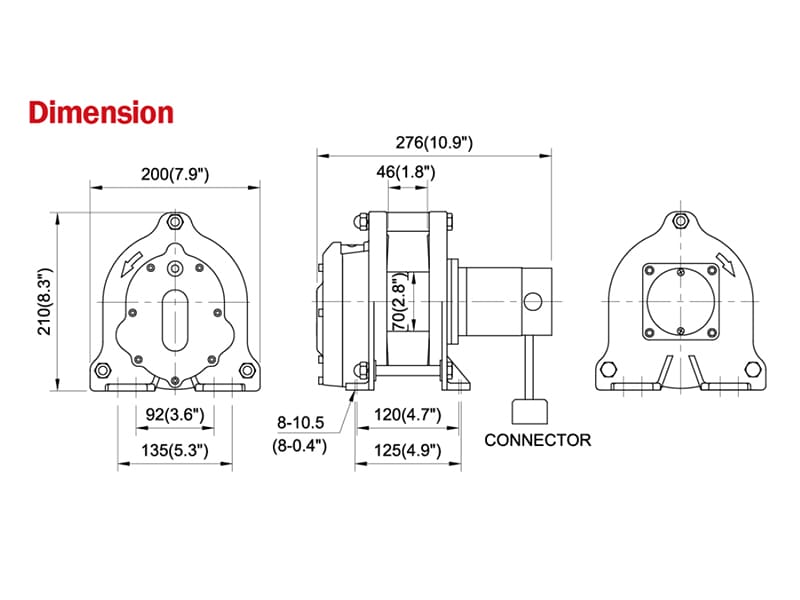

LPHD120 specifications:
- Capacity 120 kg
- Lifting speed: 5 m/min
- Power supply: 12 VDC
- Gear ratio: 56:1
- Wire rope: 4mm x 5m
- Weight: 17 kg
LPDH125 specifications:
- Capacity 120 kg
- Lifting speed: 5 m/min
- Power supply: 24 VDC
- Gear ratio: 56:1
- Wire rope: 4mm x 5m
- Weight: 17 kg

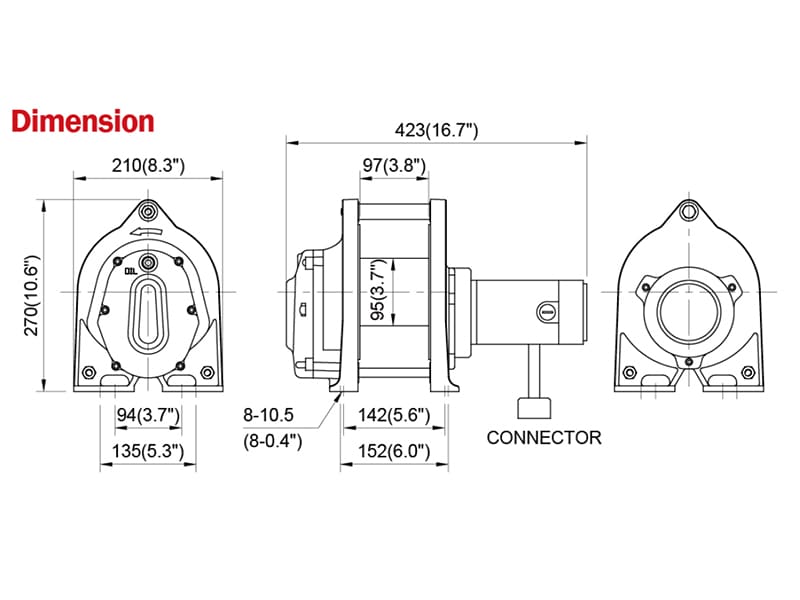

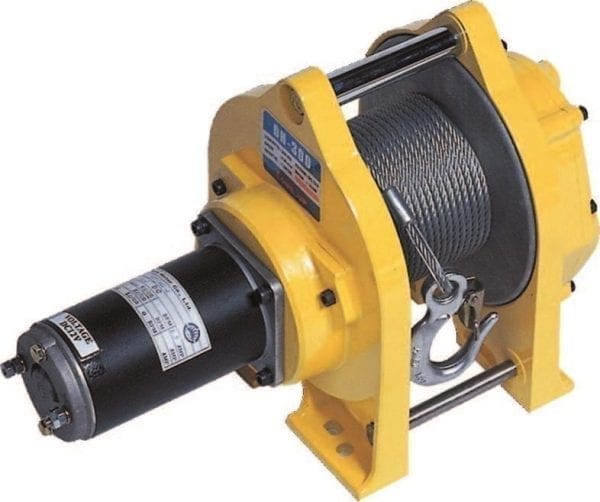

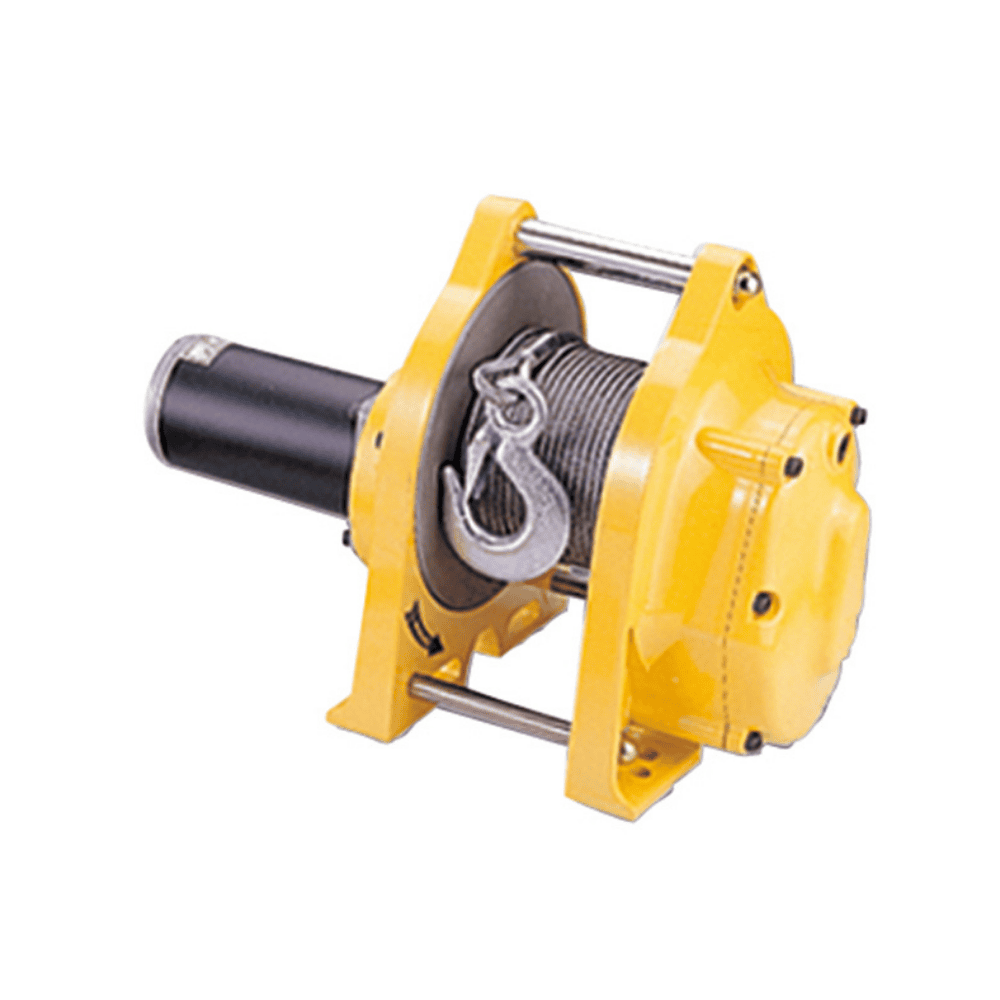

LPDH300 specifications:
- Capacity 300 kg
- Lifting speed: 5 m/min
- Power supply: 12 VDC
- Gear ratio: 240:1
- Wire rope: 4.8mm x 12m
- Weight: 27 kg

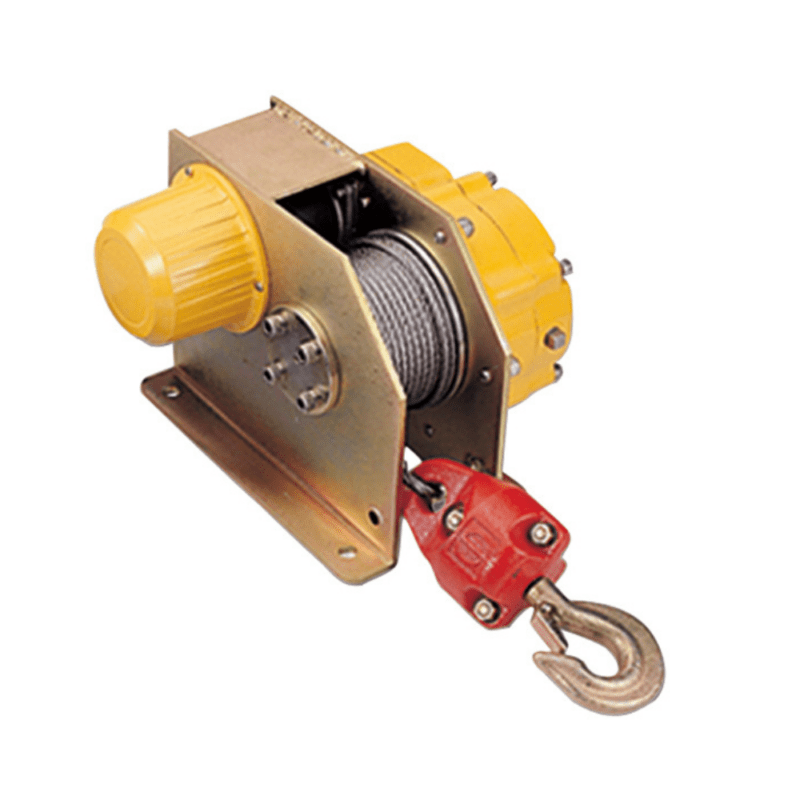

LPDH305 specifications:
- Capacity 300 kg
- Lifting speed: 5 m/min
- Power supply: 24 VDC
- Gear ratio: 240:1
- Wire rope: 4.8mm x 12m
- Weight: 27 kg

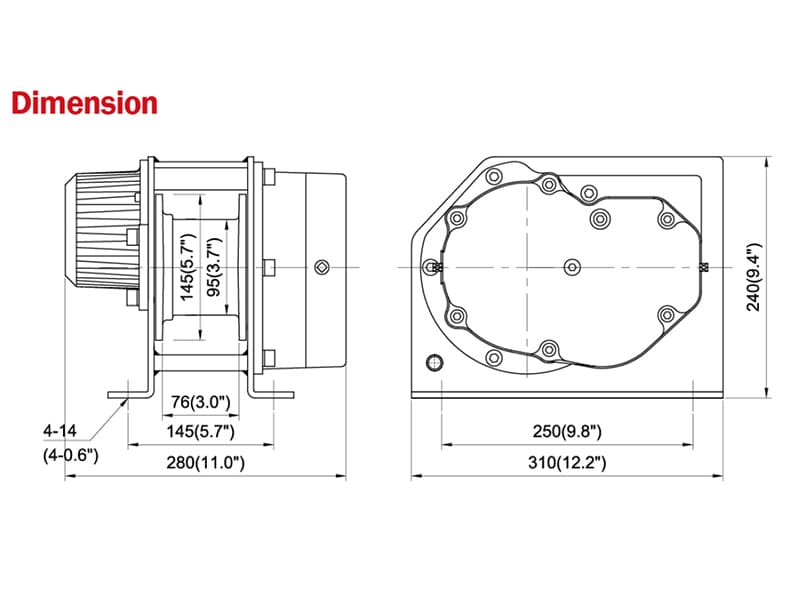

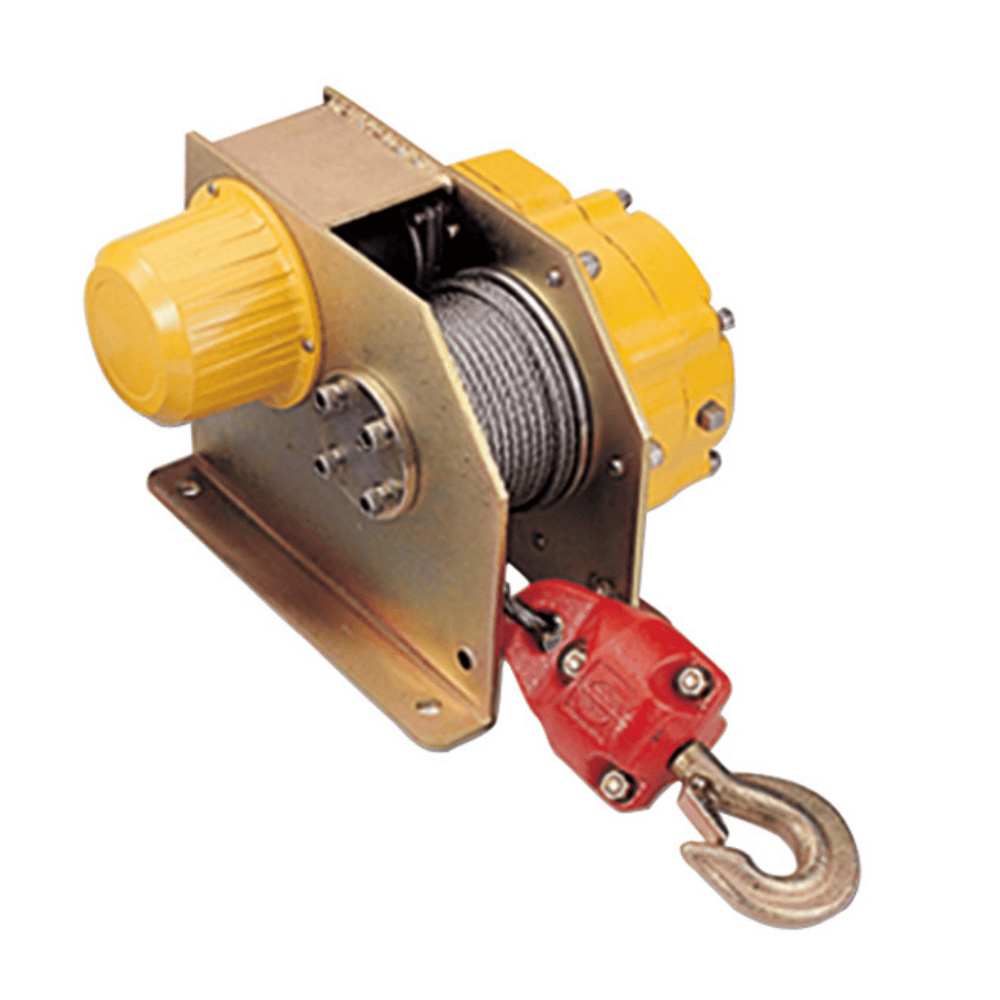

LPDH500 specifications:
- Capacity 500 kg
- Lifting speed: 4 m/min
- Power supply: 12 VDC
- Gear ratio: 276:1
- Wire rope: 6.2mm x 12m
- Weight: 27 kg
LPDH505 specifications:
- Capacity 500 kg
- Lifting speed: 4 m/min
- Power supply: 24 VDC
- Gear ratio: 276:1
- Wire rope: 6.2mm x 12m
- Weight: 27 kg
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
 |
12V DC winch 120kg |
LPDH120 | ||
 |
24V DC winch 120kg |
LPDH125 | ||
 |
12V DC winch 300kg |
LPDH300 | ||
 |
24V DC winch 300kg |
LPDH305 | ||
 |
12V DC winch 500kg |
LPDH500 | ||
 |
24V DC winch 500kg |
LPDH505 | ||
 |
12V DC winch 1134kg |
LPDV250 | ||
 |
12V DC winch 1588kg |
LPDV350 | ||
 |
12V DC winch 2041kg |
LPDV450 | ||
 |
12V DC winch 2722kg |
LPDV600 | ||
 |
12V DC winch 4082kg |
LPDV900 | ||
 |
12V DC winch 5443kg |
LPDV920 | ||
 |
12V DC winch 6804kg |
LPDV950 |
