Fuel Pump Manual Rotary Rapid Flow
+ Add to Quote Request
- Fuel Pump with Filter
- Fuel Pump with Filter and Meter
A manual, rotary action pump suitable for transferring diesel, ULP, aviation fuels, kerosene & light oils (up to SAE30).
Capable of transfer rates of 800ml per revolution (up to 100L/min depending on viscosity) from 60 – 205L drums and tanks.
The pump is easy to prime and capable of delivering fluid in both directions.
Supplied with a 3-piece suction tube, pump handle, 2″ bung adaptor and 2.4m anti-static delivery hose.
Suitable for users who cannot use an electric fuel pump for safety reasons or in remote locations.
It can be used to transfer AV-Gas* and Jet A1, although users of aviation fuels must check material compatibility with the fuel product they are using.
Additional Information
- Suitable for 60L – 205L drums
- Delivers 800ml per revolution (Up to 100L/min)
- 2.4m anti-static rubber delivery hose
- 3/4″ BSP threaded pump outlet
- Suitable for use with diesel, ULP, kerosene and oils (up to SAE30)
- Wetted components: aluminium, steel, zinc, nitrile rubber and viton

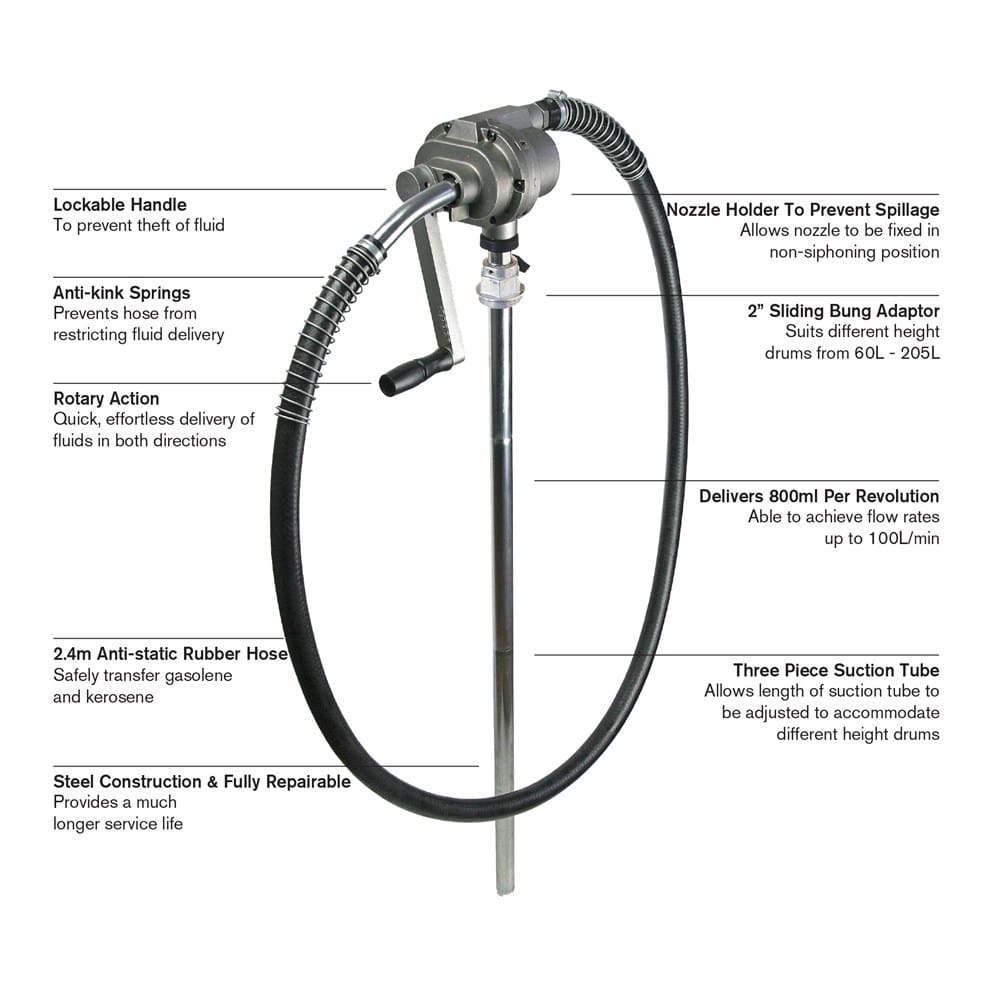

- Rotary action pump incorporating a gearbox for high output and easy operation – Ideal for high volume fuel transfer
- Delivers 800ml per revolution – Able to achieve flow rates up to 100L/min (in both directions)
- 2.4m anti-static rubber hose – Suitable for pumping petrol, diesel and kerosene
- Built-in 193 micron strainer – Protects your fleet from fuel contamination
- Built-in nozzle holder – Allows nozzle to be fixed in non-siphoning position
- Lockable handle – For added security when pump is unattended
- Three piece suction tube – Allows length of suction tube to be adjusted to accommodate different height drums
- Built-in 2″ sliding bung adaptor – Suits different height drums from 60L – 205L
- Robust aluminium housing screwed together – For ease of service and maintenance
- Anti-kink springs – Prevents hose from restricting fluid delivery
- Fully repairable – Provides longer service life
- Optional (HA-01) 10 micron fuel filter available – For extra protection in fuel deliveries
- Optional (HNU) Fuel Nozzle – Suitable for transferring ULP and diesel
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
 |

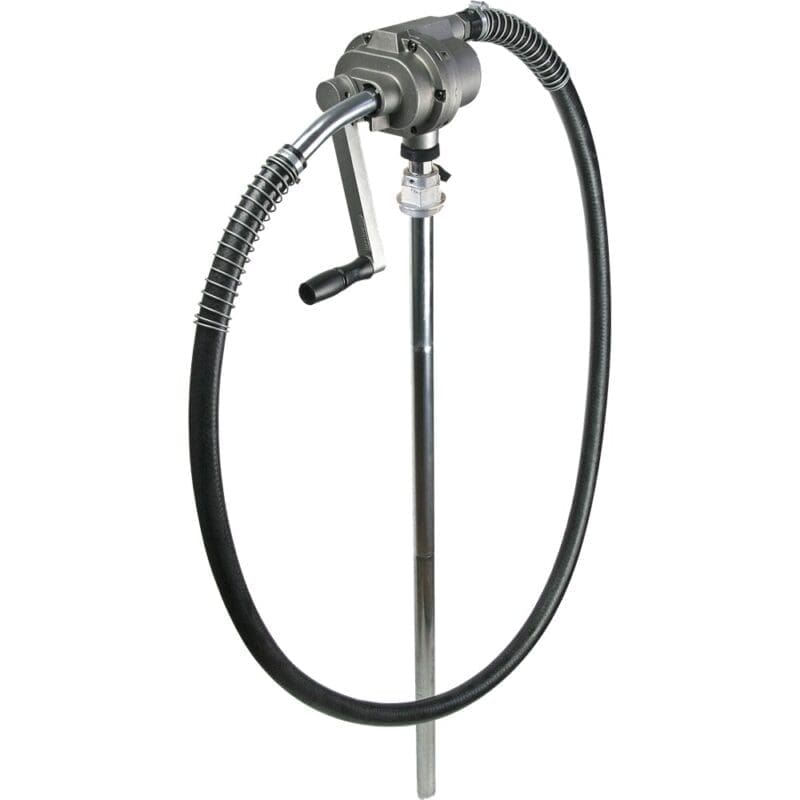

Rapid Flow fuel pump manual rotary |
DGT | $701.00 | |
 |

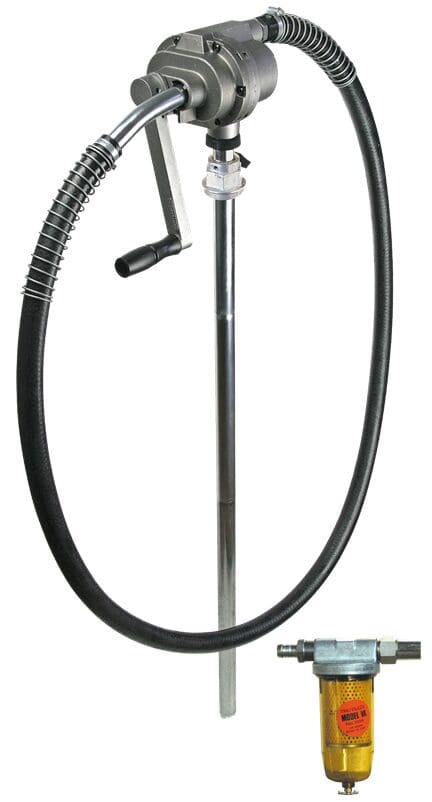

Rapid Flow fuel pump manual rotary with filter |
DGTF | $1,010.00 | |
 |

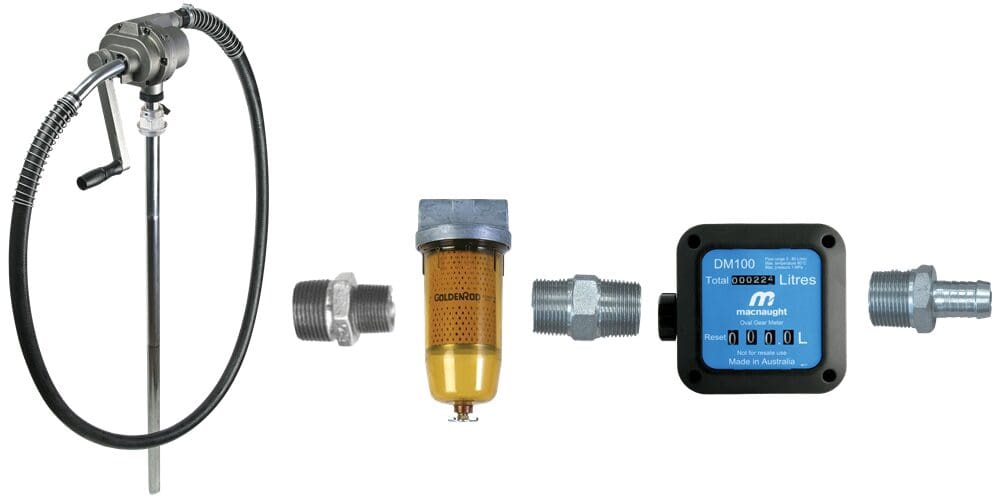

Rapid Flow fuel pump manual rotary with filter and meter |
DGTFM | $1,700.00 |
