+ Add to Quote RequestZallys Battery Electric Tugs offer a great range of ergonomic benefits and are incredibly versatile devices. They are an excellent choice for improving safety, increasing productivity and working efficiency as they help staff easily handle and transport heavy materials.
These innovative devices can push, pull and steer loads up to 10,000 kg with ease. Their high-quality battery-powered operation makes them practical and powerful units. Each tug reduces manual effort and can be adopted for a number of industrial applications. Available with a range of different towing capacities, they can be equipped with many different accessories and clamping hitches.
Pedestrian operated tugs are electrically powered devices that make light work of heavy materials handling requirements. They feature compact and robust designs to make them incredibly reliable and suitable for use indoors and outdoors.
- MH - Pedestrian operated tug M1
- MH - Pedestrian operated tug M12
- MH - Pedestrian operated tug M3
- MH - Pedestrian operated tug M4
- MH - Pedestrian operated tug M5
- MH - Pedestrian operated tug M6.5
- MH - Pedestrian operated tug M8
- MH - Pedestrian operated tug M9
- MH - Pedestrian operated tug M10
- MH - Pedestrian operated tug M11
- MH - Pedestrian operated tug M16
Additional Information
We offer a wide range of Zallys Powered Tugs that have been utilised in a variety of industries, including airports, hospitals, retail distribution, food processing, tourism, construction and production companies. They’re an ideal unit used for simplifying processes and improving Workplace Health and Safety in working environments. The versatility and ergonomics of these tugs ensure they solve any handling and transport problem. We boast an incredible range of Zallys Powered Tugs with varying towing and load capacities.
Choose the right model!

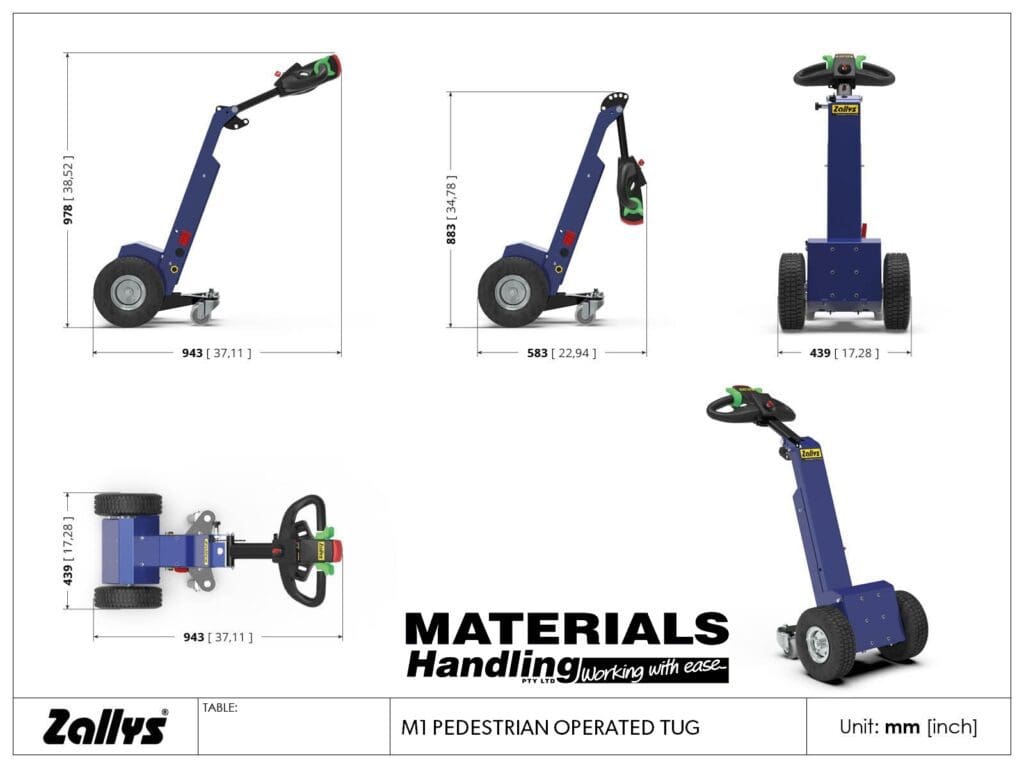

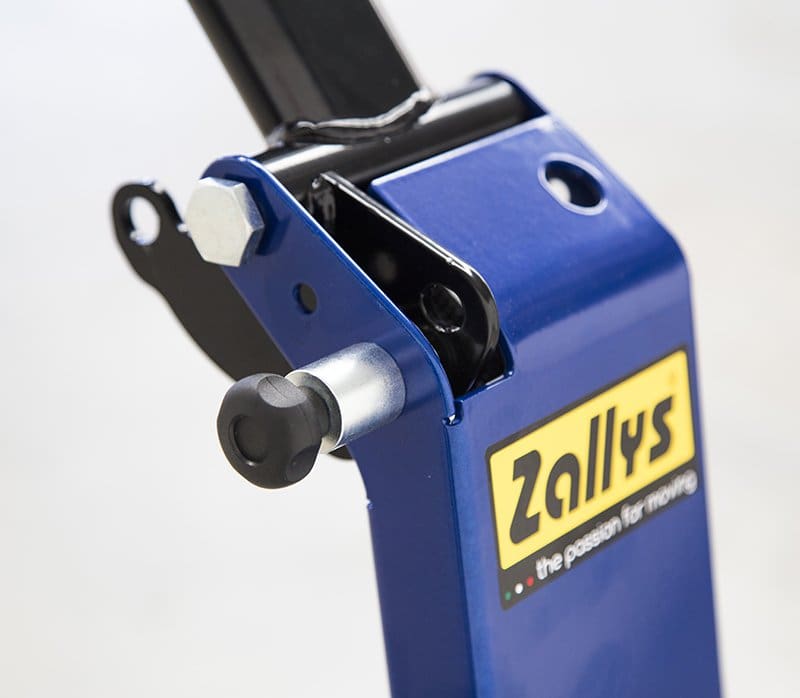

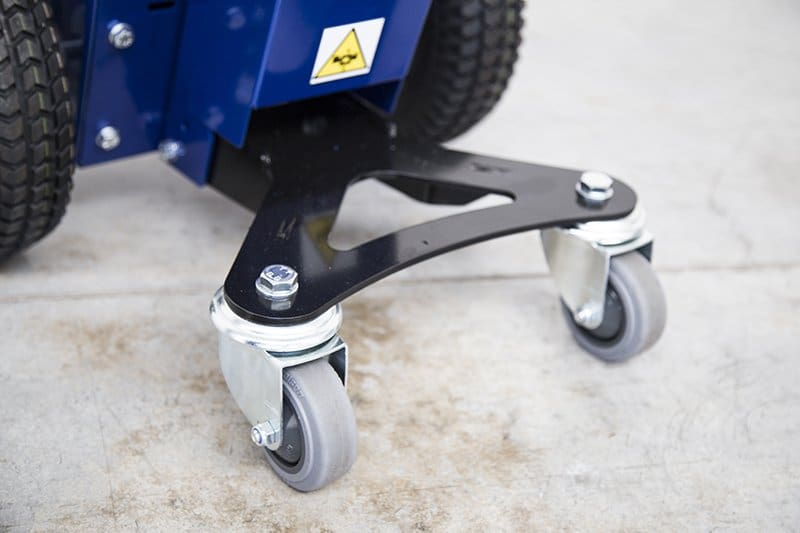

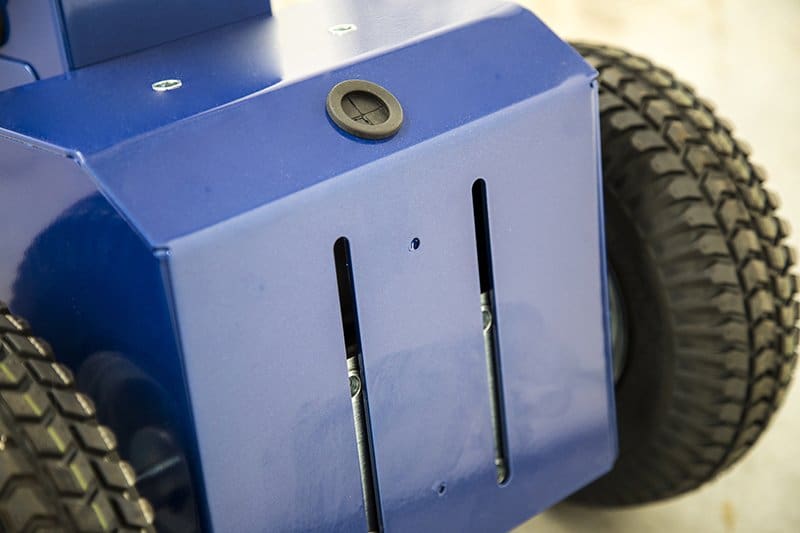

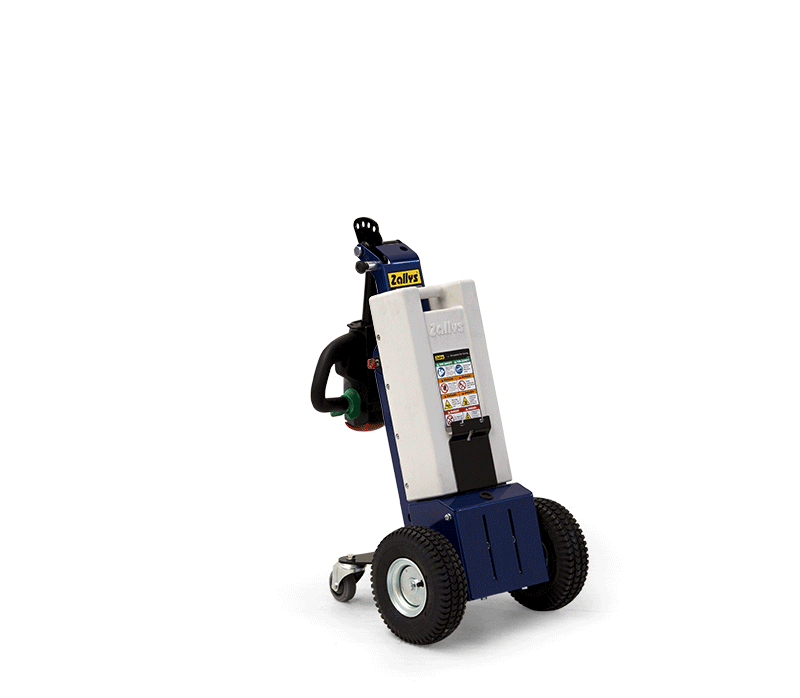

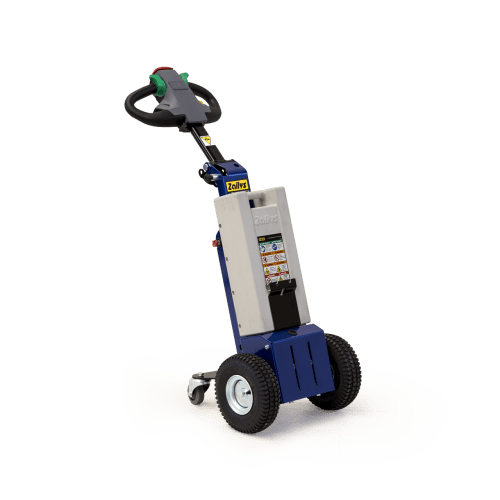

M1 Pedestrian operated tug
The most compact model in the range. Thanks to its small size and lightweight design, the M1 can be loaded on trucks and vans and used to handle cages in supermarkets, hospitals, laundries and hotels. The device also moves a variety of industrial containers in production facilities and warehouses. The M1 navigates tight spaces and has been built to ergonomically support operators. The tug is equipped with an interchangeable battery pack, slow/fast switch and electric brake.
- Towing Capacity – 800 kg (without ballast); 1000 kg (with ballast)
- Maximum Forward / Backward Speed – 4 km/h

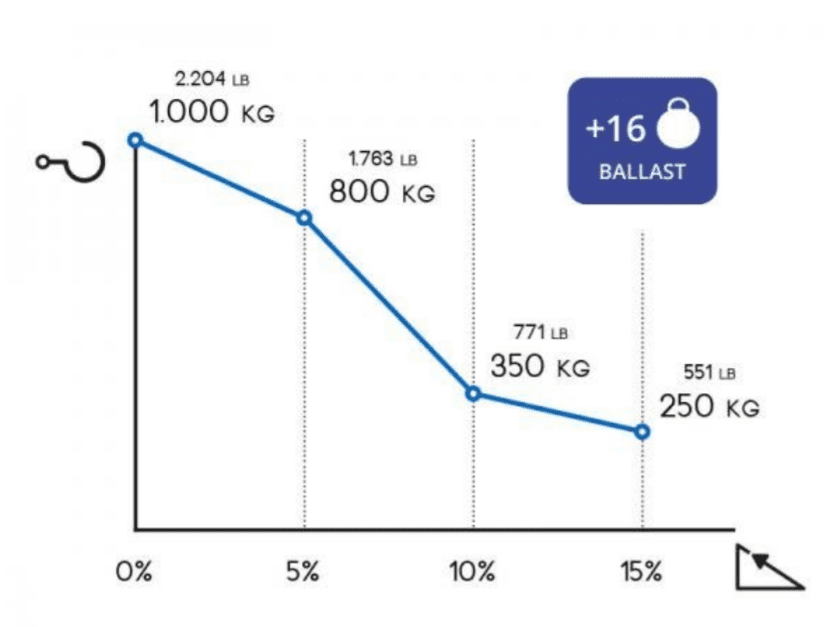

- Maximum Slope with Load – 15% (please see load chart)
- Unit Weight (without batteries) – 40 kg
- Unit Weight (with batteries) – 57 kg
- Electric Motor – 24V
- Length – 933Â mm
- Width – 439 mm
- Height – 978 mm
- Turning Circle – 900 mm
- Wheelbase – 308 mm
Safety Data:
- Emergency Reverse Button on tiller head
- Power supply disconnection device / Emergency Stop – Detachable Power Connector
- Acoustic Beeper Signalling
- Drive Controls – Maintained Action Switch
Accessories include battery packs, ballasts, ballast fitting kits, LED strobe light, a keypad on/off, wheel upgrades, tow ball couplings and pin hitches.

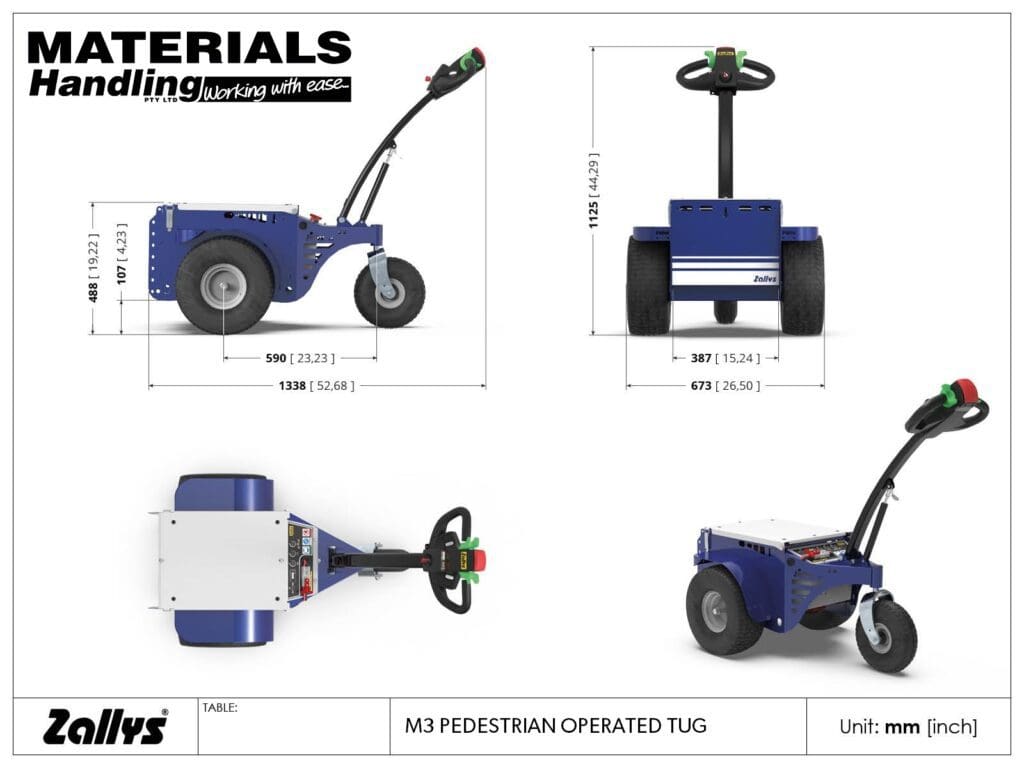

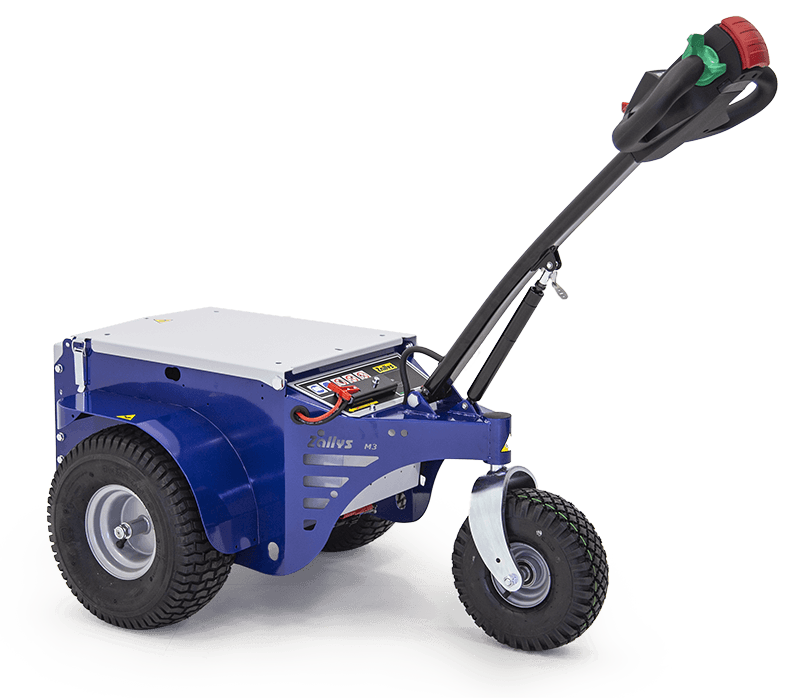

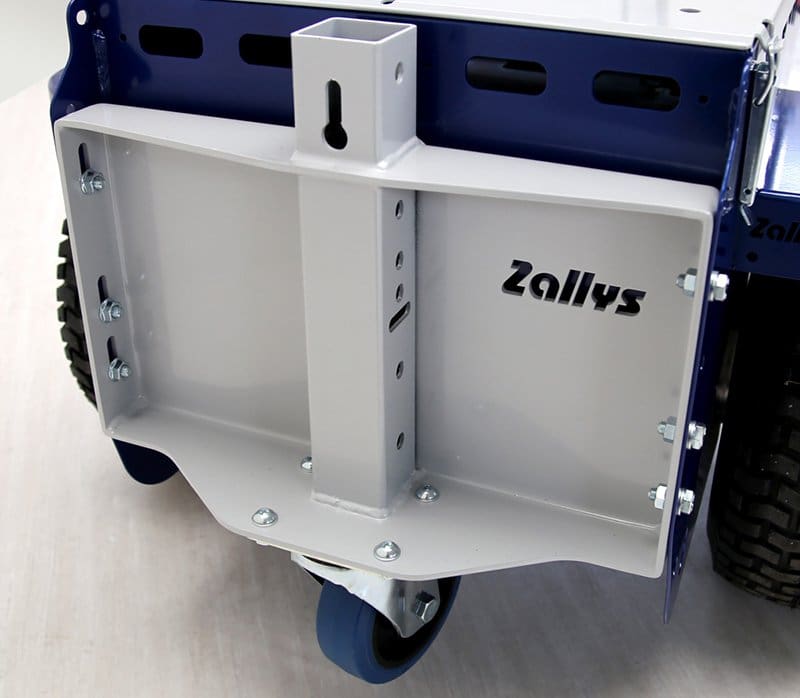

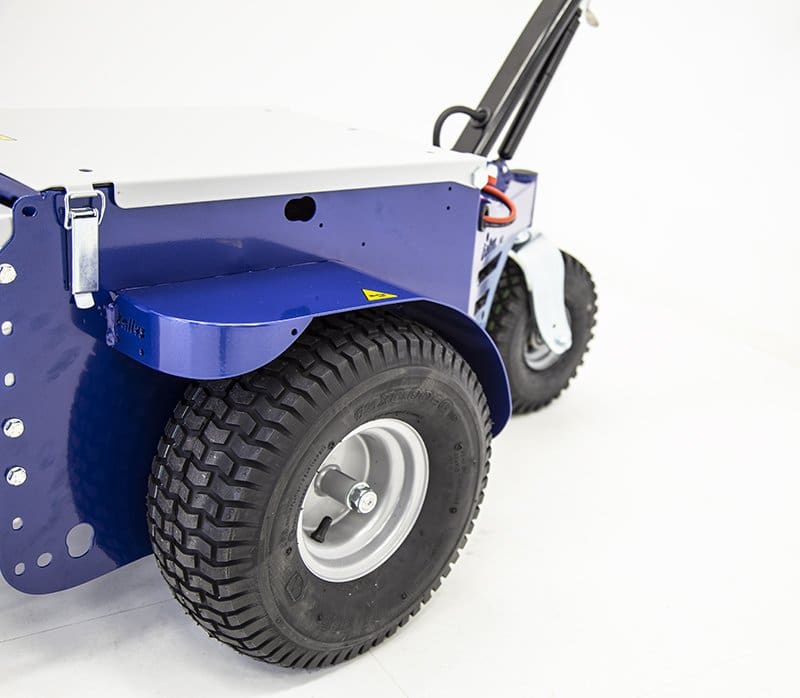

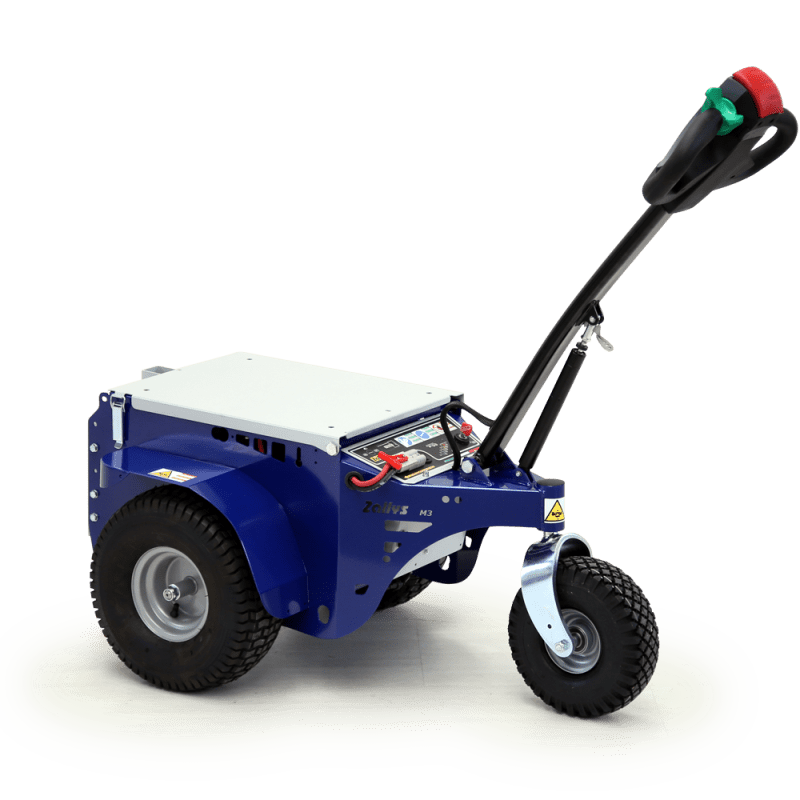

M3 Pedestrian operated tug
A small and compact unit, this model is suitable for both indoor and outdoor use. The unit can easily tow up to 1500 kg and has a load capacity of 200 kg. The M3 pedestrian tug is ideal for warehouse applications, garden centres and agricultural requirements, schools, colleges, hospitals, councils and other similar facilities. This device is perfect for small lifts and storage. Available with a load-cage for transporting parcels and boxes.
- Towing Capacity – 1500 kg
- Maximum Load Capacity on Flat Ground – 200 kg
- Maximum Forward / Backward Speed – 4.5 km/h

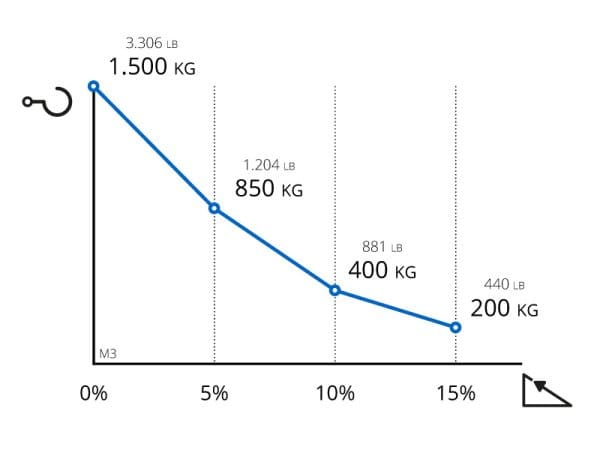

- Maximum Slope with Load – 15% (please see load chart)
- Unit Weight (without batteries) – 66 kg
- Unit Weight (with batteries) – 104 kg
- Electric Motor – 24V
- Length – 1338 Â mm
- Width – 673 mm
- Height – 1125 mm
- Turning Circle – 1300 mm
- Wheelbase – 590 mm
Safety Data:
- Deadman safety system with a sensor on tiller head
- Emergency Reverse Button on tiller head
- Power supply disconnection device / Emergency Stop – Detachable Power Connector
- Acoustic Beeper Signalling
- Drive Controls – Maintained Action Switch

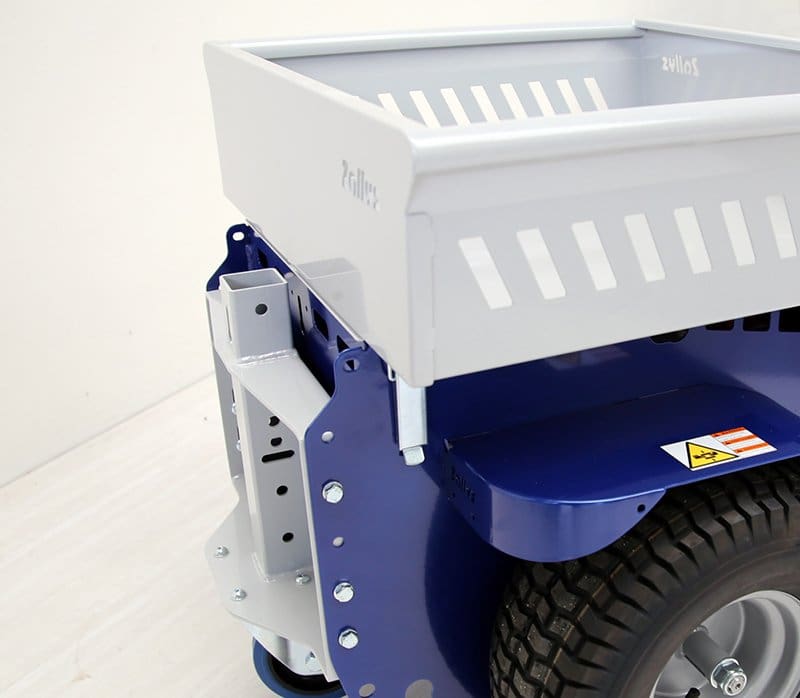

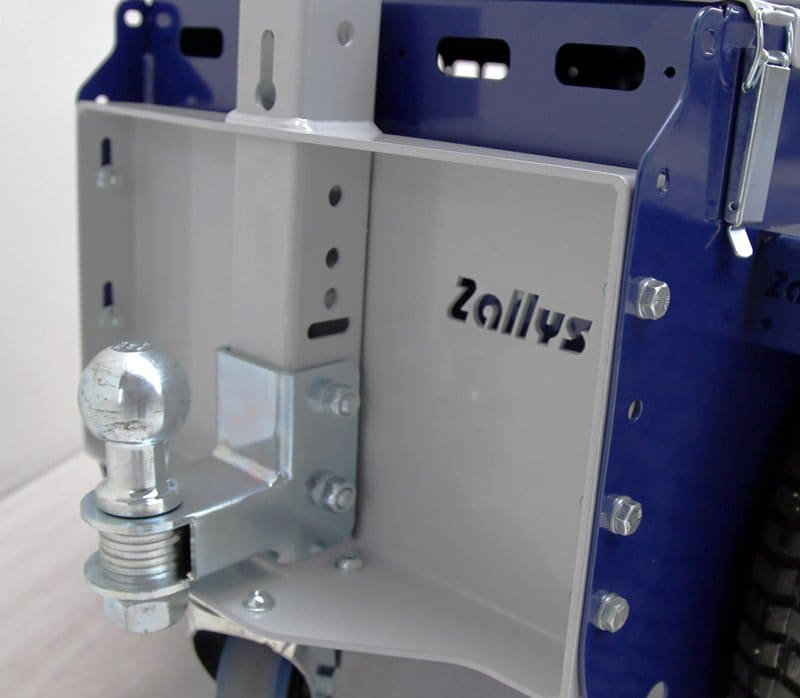

Accessories are available including drop pins, pivoting connections, mounting kit, hitches and other alternatives.
M4 Pedestrian operated tug
A small and reliable unit that can be used both indoors and outdoors. The M4 tows up to 3000 kg and has a load capacity of 300 kg. This unit is similar to the M3, however, it boasts a larger capacity. It can be used for similar applications in warehouses, schools, councils, universities, garden and agricultural centres and much more. The M4 is perfect for small lifts and is low maintenance, silent-running and easy to use. Available with a load-cage for transporting parcels and boxes.
- Towing Capacity – 3000 kg
- Maximum Load Capacity on Flat Ground – 300 kg
- Maximum Forward / Backward Speed – 4.5 km/h
- Maximum Slope with Load – 15% (please see load chart)
- Unit Weight (without batteries) – 63 kg
- Unit Weight (with batteries) – 113 kg [lead acid]; 107 kg [AGM]
- Electric Motor – 24V
- Length – 1338 Â mm
- Width – 690 mm
- Height – 1125 mm
- Turning Circle – 1300 mm
- Wheelbase – 590 mm
Safety Data:
- Deadman safety system with a sensor on tiller head
- Emergency Reverse Button on tiller head
- Power supply disconnection device / Emergency Stop – Detachable Power Connector
- Acoustic Beeper Signalling
- Drive Controls – Maintained Action Switch
Accessories available: baskets, ballasts, drop bin, adjustable connections, additional battery packs, mounting kits, hitches and other alternatives.

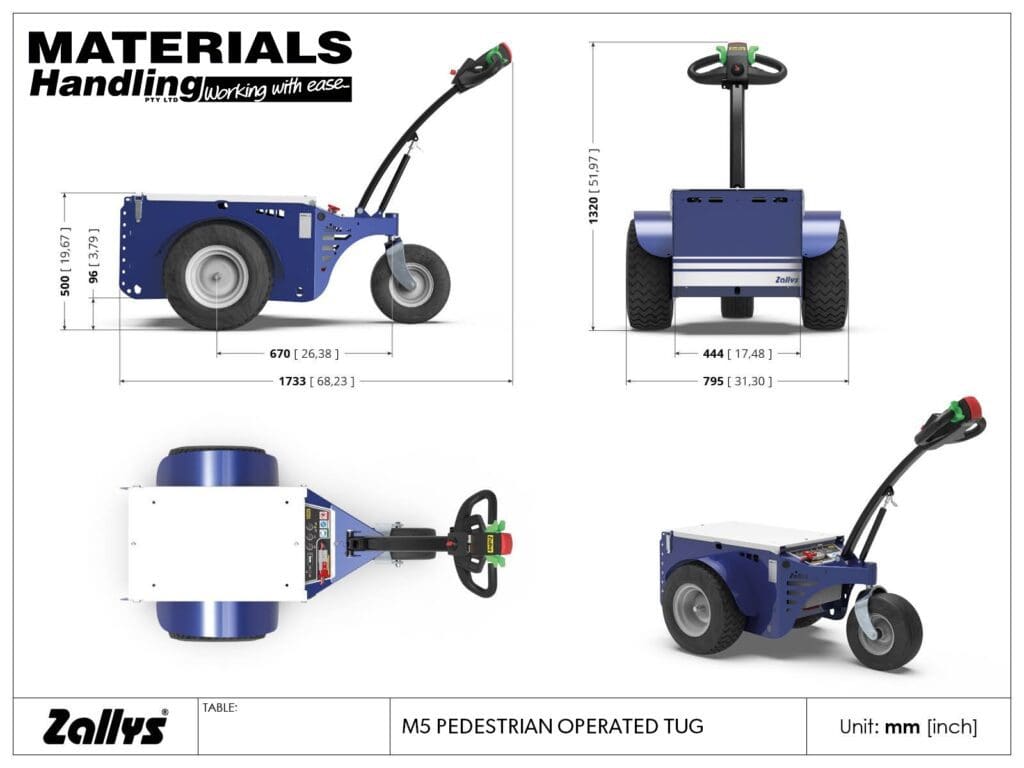

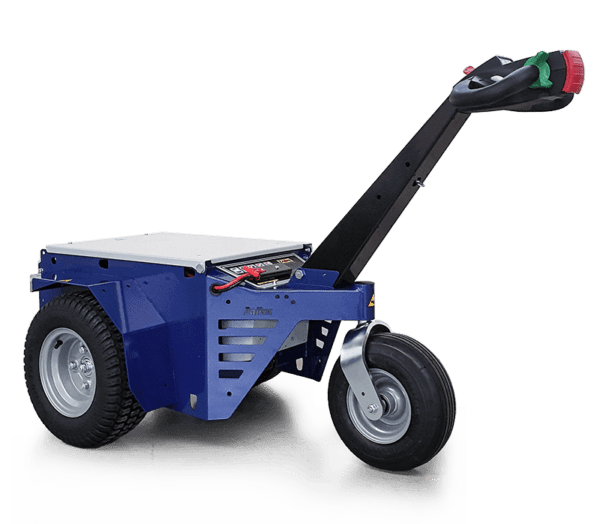

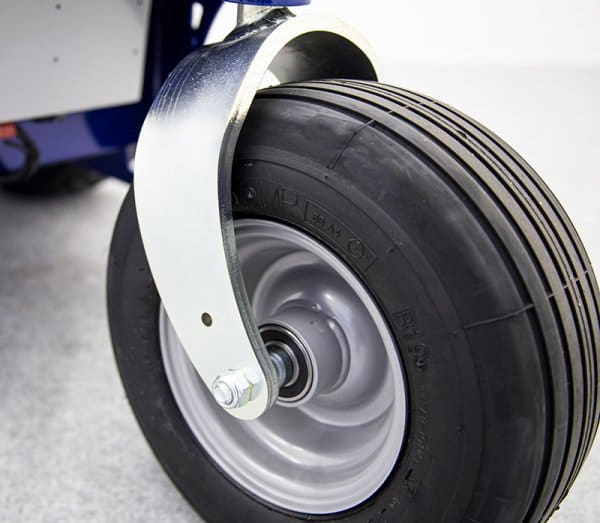

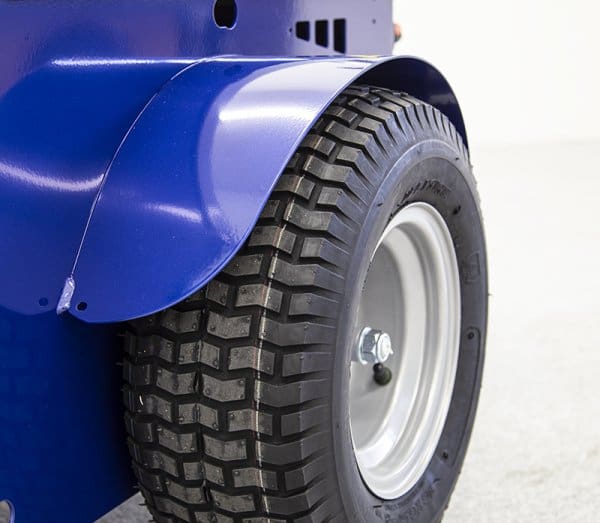

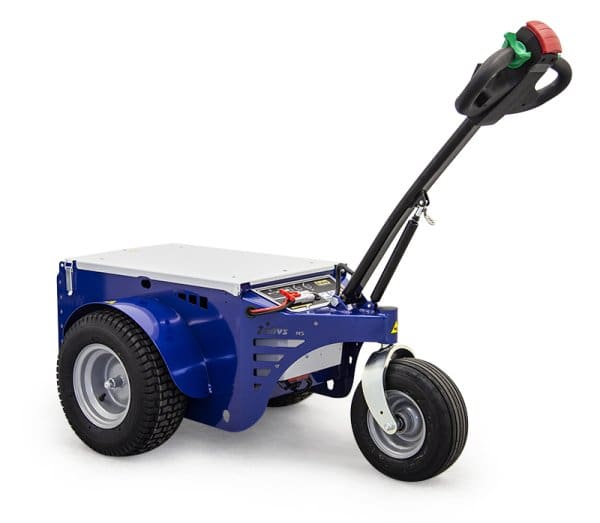

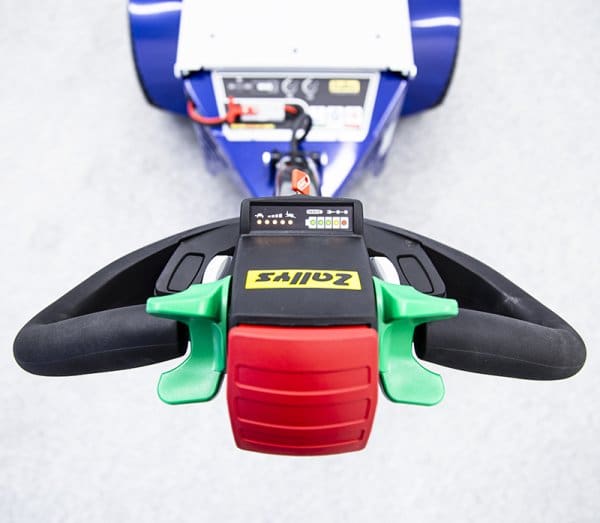

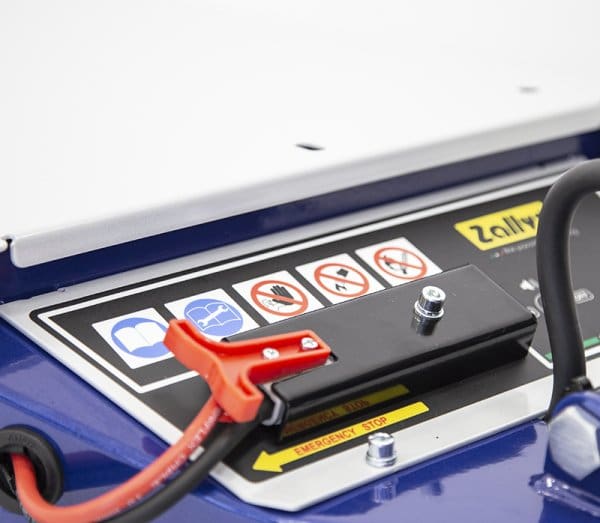

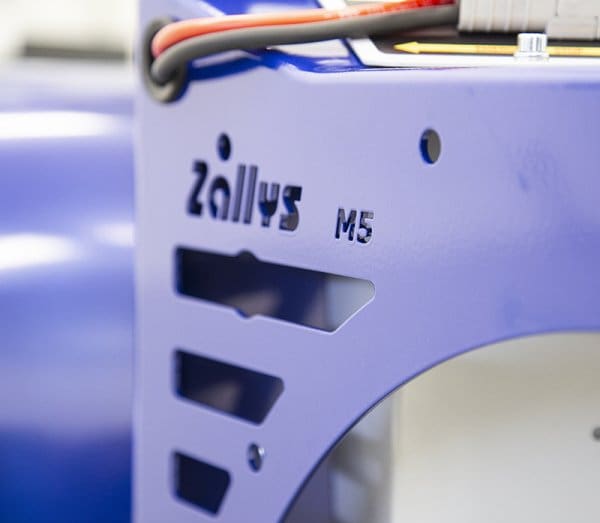

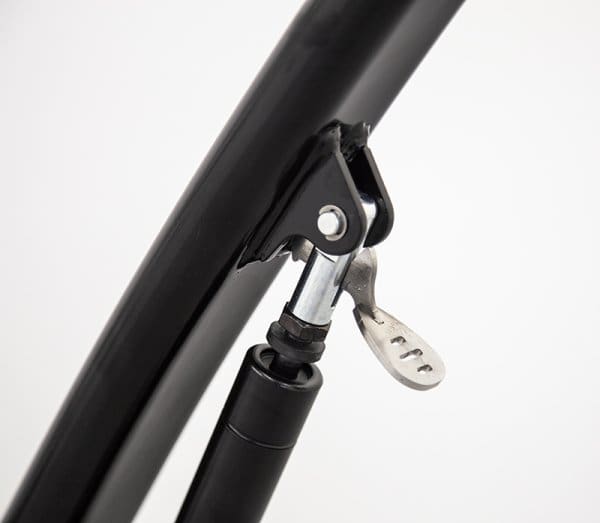

M5 Pedestrian operated tug
Another reliable unit that is suitable for indoors and outdoors, the M5 has a towing capacity of 4000 kg and has a load capacity of 500 kg. This unit is an electric power pusher that is low maintenance, easy to use and reduces manual handling risks. The M5 is ideal for small lifts and storage and is a pedestrian tug that’s ideal for warehouses, hospitals, schools, councils, garden and agricultural centres and similar industries. Available with a load-cage for transporting parcels and boxes.
- Towing Capacity – 4000 kg
- Maximum Load Capacity on Flat Ground – 500 kg
- Maximum Forward / Backward Speed – 5.5 km/h

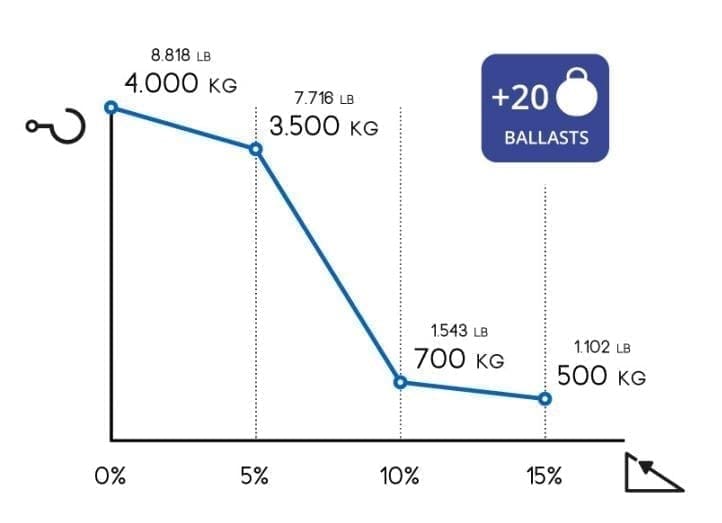

- Maximum Slope with Load – 15% (please see load chart)
- Unit Weight (without batteries) – 90 kg
- Unit Weight (with batteries) – between 140 kg and 222 kg depending on battery type
- Electric Motor – 24V
- Length – 1733 Â mm
- Width – 795 mm
- Height – 1320 mm
- Turning Circle – 1500 mm
- Wheelbase – 670 mm
Safety Data:
- Deadman safety system with a sensor on tiller head
- Emergency Reverse Button on tiller head
- Power supply disconnection device / Emergency Stop – Detachable Power Connector
- Acoustic Beeper Signalling
- Drive Controls – Maintained Action Switch
Accessories available: baskets, ballasts, drop bin, adjustable connections, hitches and other alternatives.

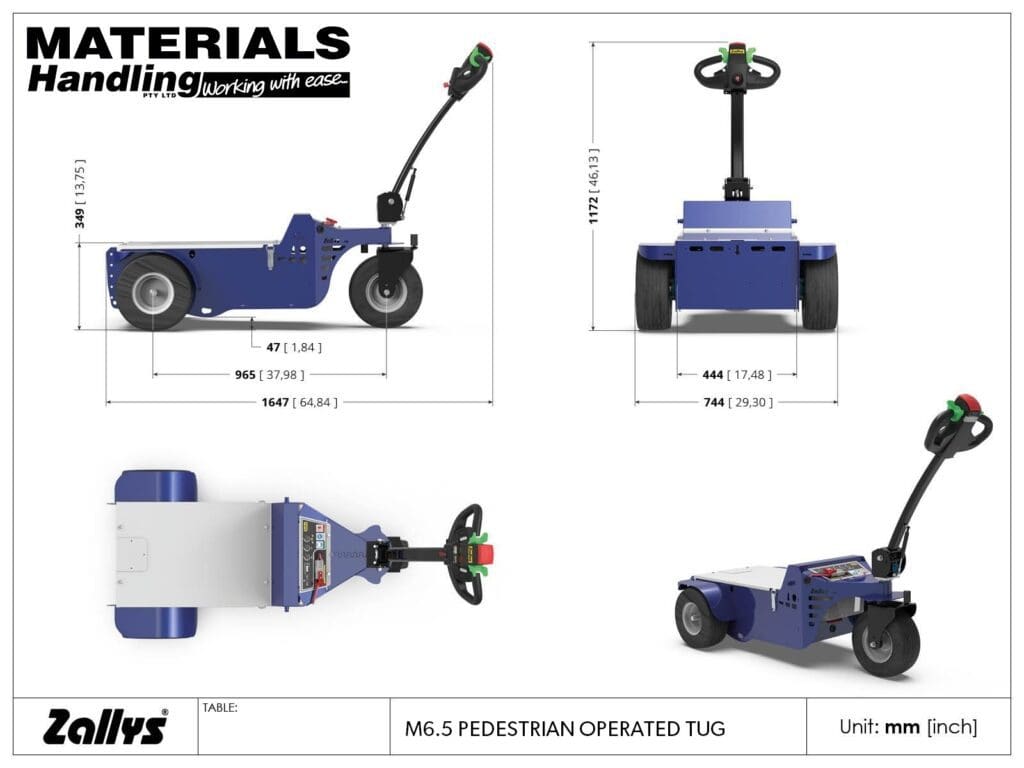

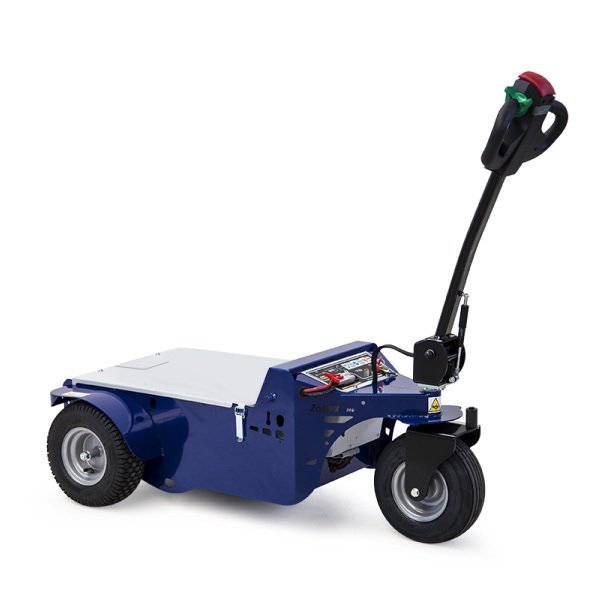

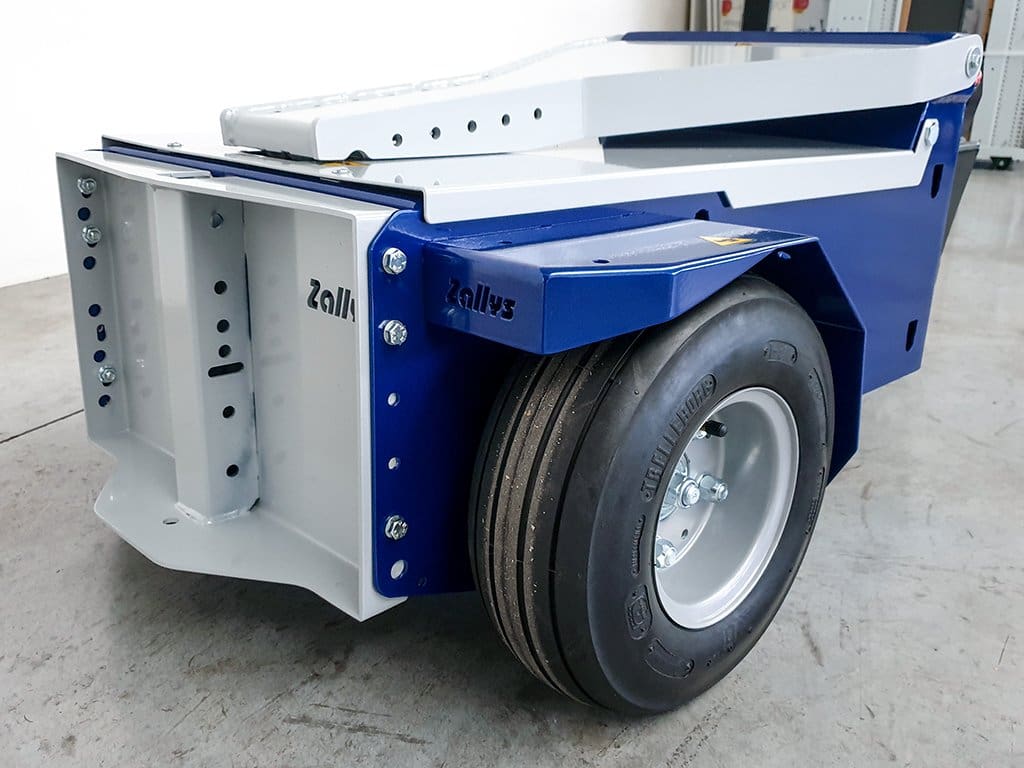

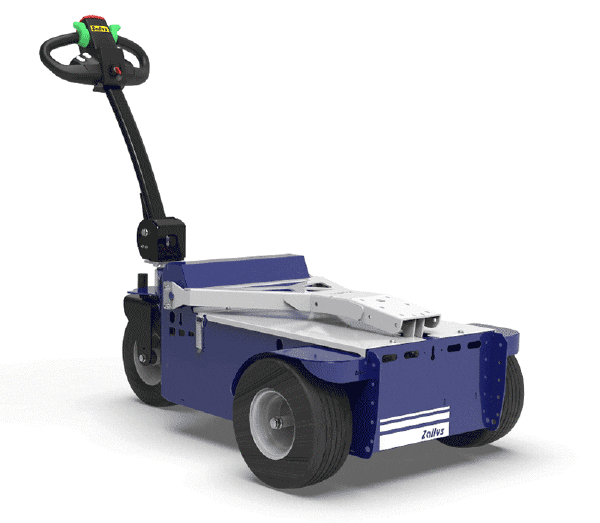

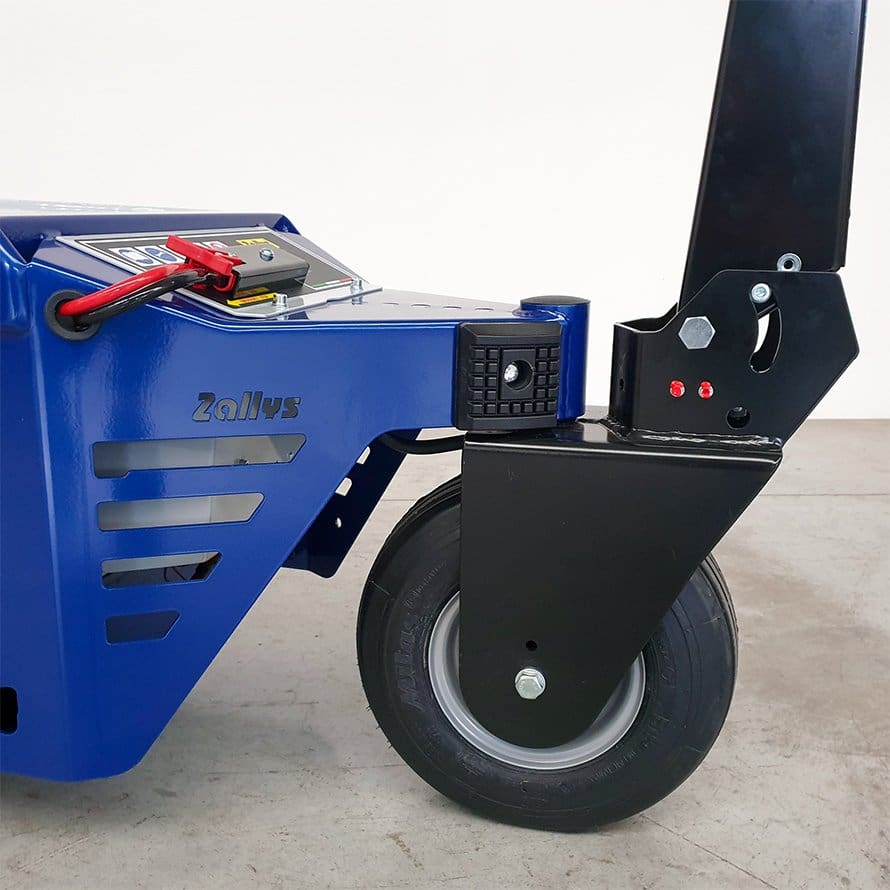

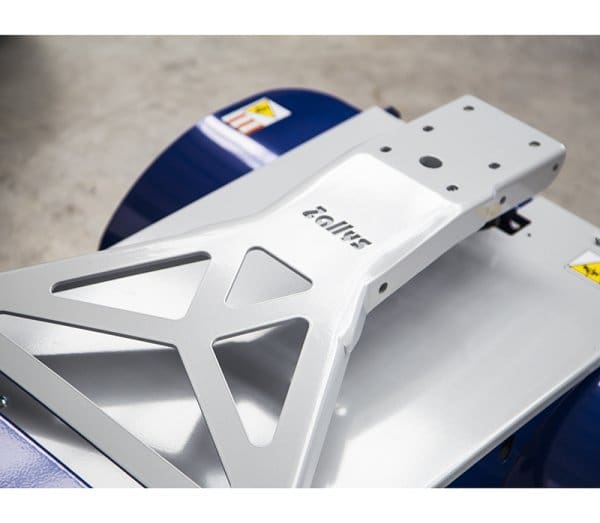

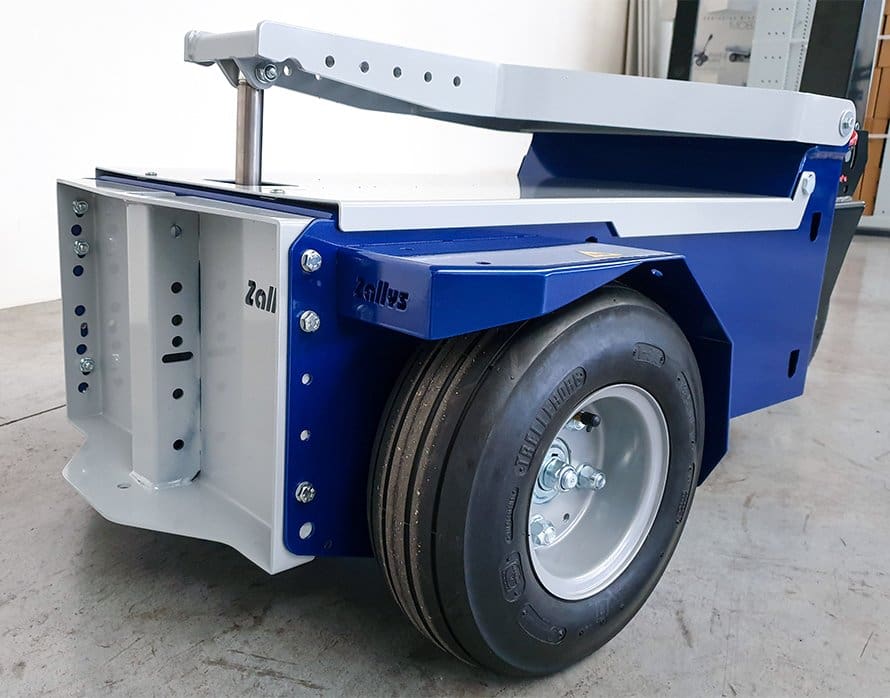

M6.5 Pedestrian operated tug
The M6.5 Tug is a pedestrian-operated electric tug that is suitable for moving trailers and heavy loads. The unit is incredibly powerful but easy to handle. The M6.5 can tow up to 6000 kg on flat ground, with a load capacity of 300 kg. It’s ideal for industrial logistics, hospitals, airports, warehouses and retail chain facilities. Not only can the tug be partnered with a range of accessories, but it is already equipped with a swivel tiller head and safety sensor. The motor features an electromagnetic brake.
- Towing Capacity – 6000 kg
- Maximum Load Capacity on Flat Ground – 300 kg
- Maximum Forward / Backward Speed – 4.5 km/h

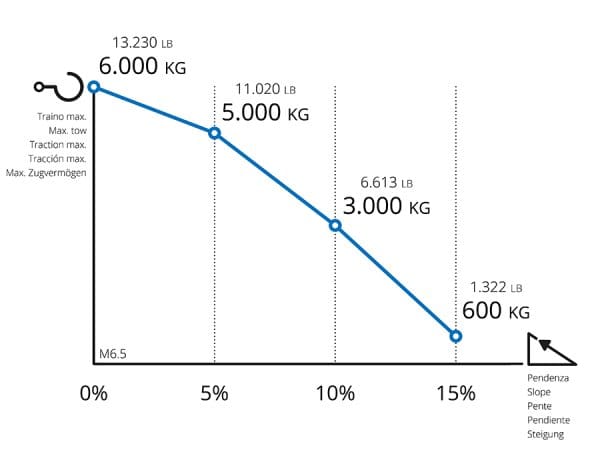

- Maximum Slope with Load – 15% (please see load chart)
- Unit Weight (without batteries) – 94 kg
- Unit Weight (with batteries) – 144 kg [lead acid[; 138 kg [AGM]
- Electric Motor – 24V
- Length – 1647 Â mm
- Width – 744 mm
- Height – 1172 mm
- Turning Circle – 2500 mm
- Wheelbase – 965 mm
Safety Data:
- Deadman safety system with a sensor on tiller head
- Emergency Reverse Button on tiller head
- Creep speed device (button on tiller head)
- Power supply disconnection device / Emergency Stop – Detachable Power Connector
- Acoustic Beeper Signalling
- Drive Controls – Maintained Action Switch

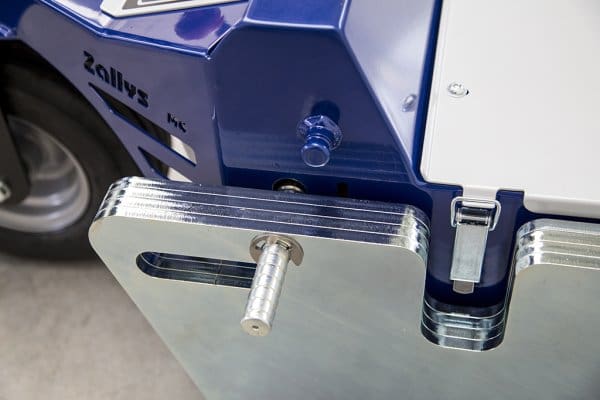

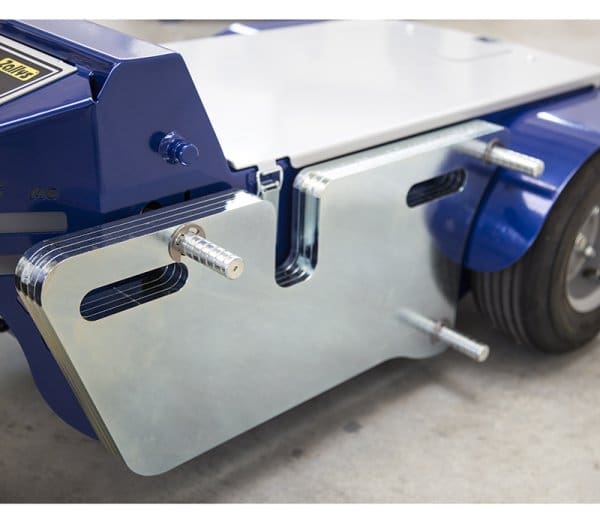

Accessories available: ballasts, adjustable connections, tow-ball trailer hitch, non-marking wheels, mounting kits, hitches and other accessories.

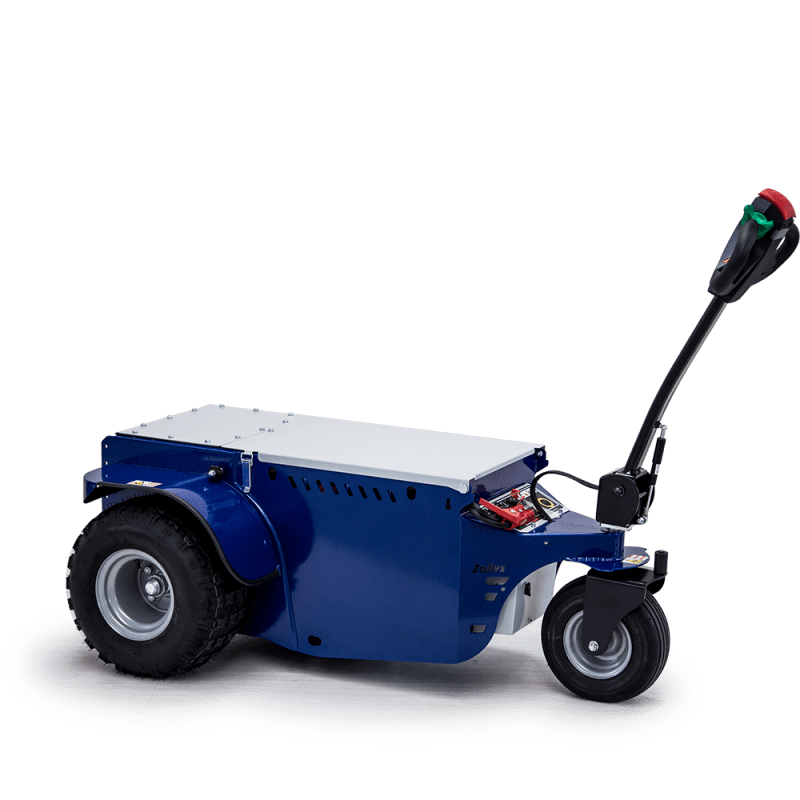

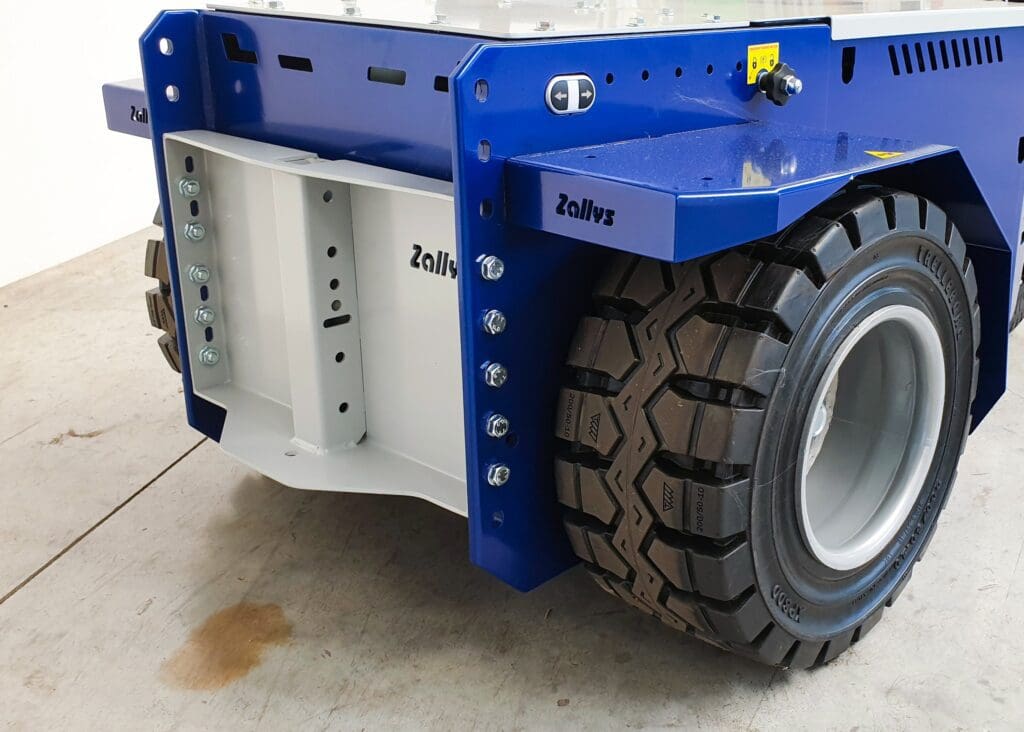

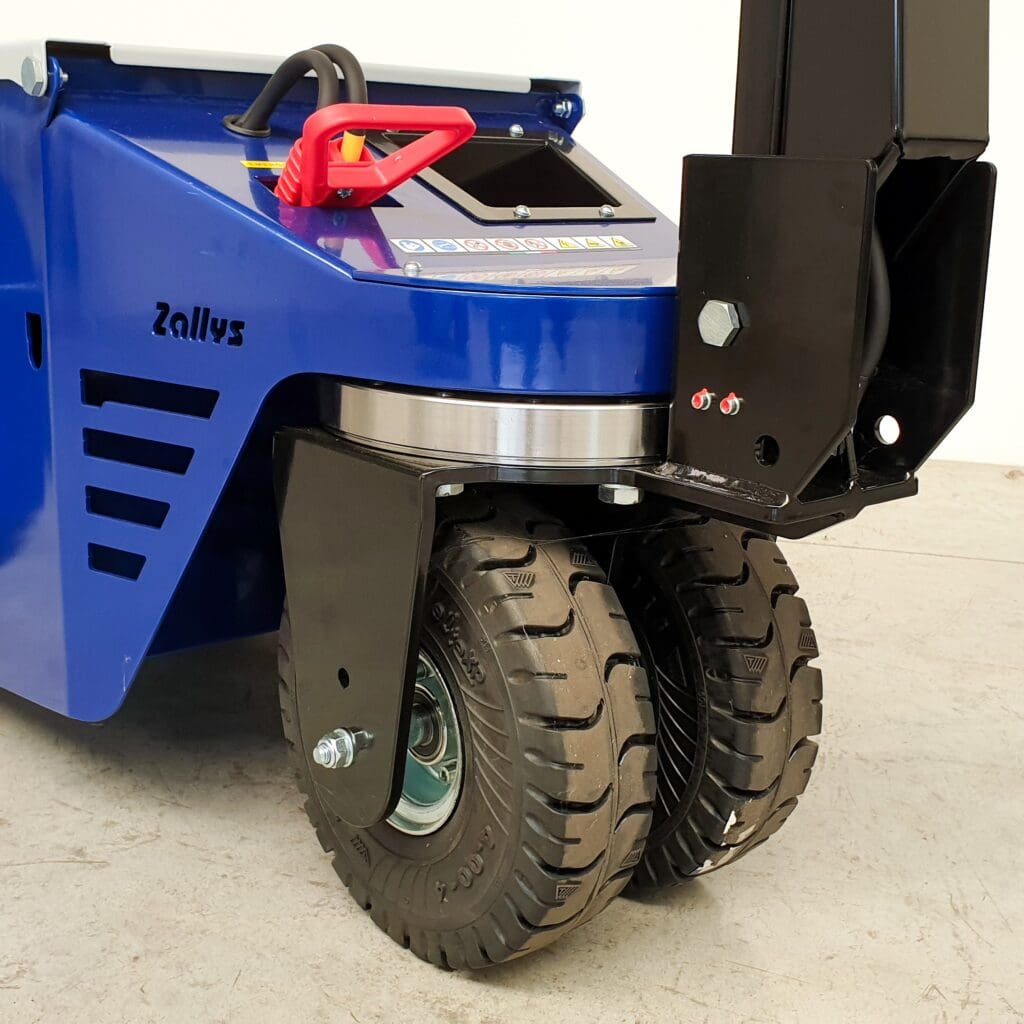

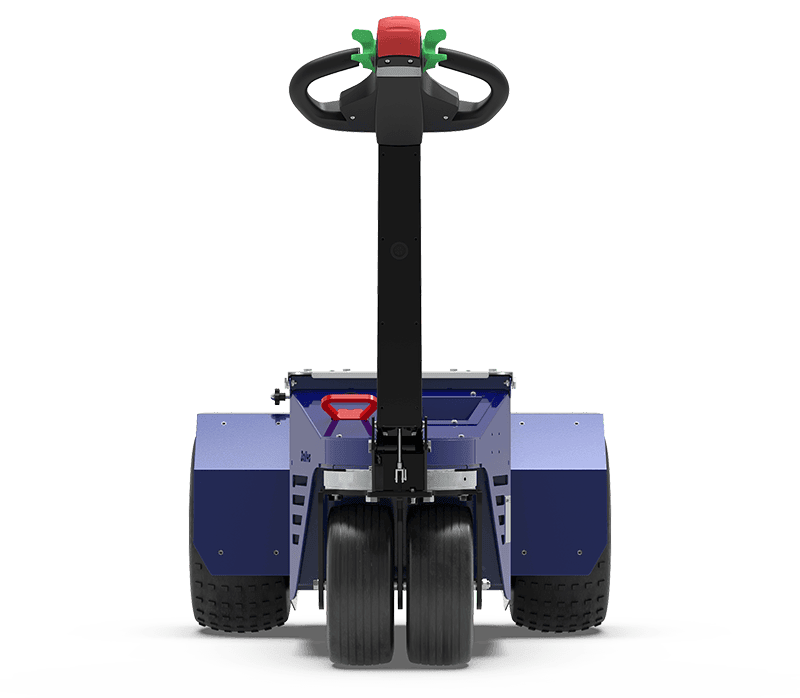

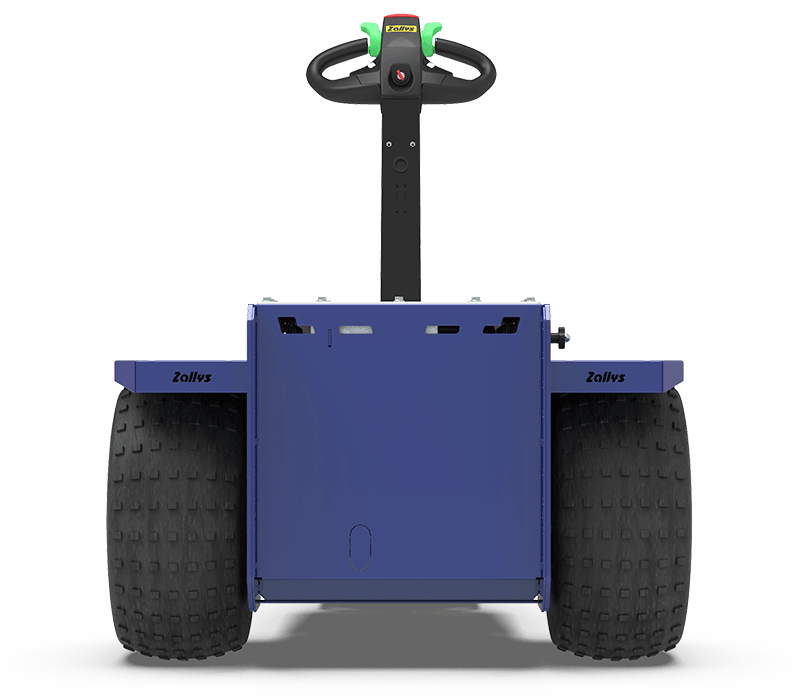

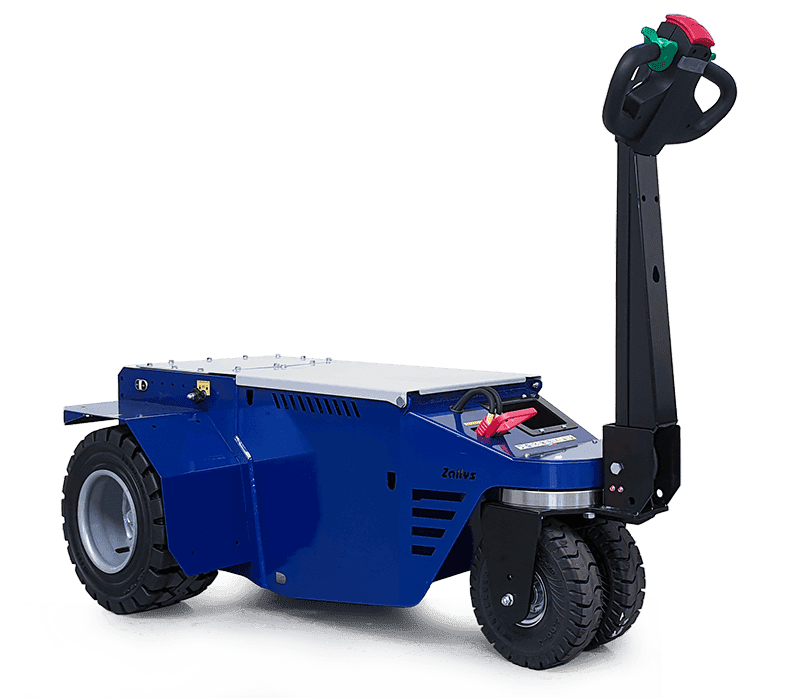

M10 Pedestrian operated tug
A pedestrian operated electric tug, the M10 can tow loads up to 10,000 kg and has a load capacity of 500 kg (on flat grounds). It features a swivel tiller head that steers the device 80-degrees. The M10 is also equipped with a safety sensor and electromagnetic brake, which increases the safety components of the device. It is a compact-sized tug for modern production processes and can be used in a range of industries, including airports, logistics, retail, warehouses, production facilities and much more.
- Towing Capacity – 10,000 kg
- Maximum Load Capacity on Flat Ground – 500 kg
- Maximum Forward / Backward Speed – 5.0 km/h

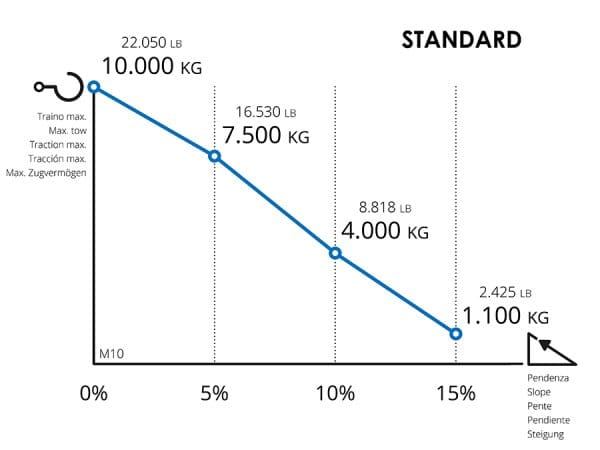

- Maximum Slope with Load – 15% (please see load chart)
- Unit Weight (without batteries) – 202 kg
- Unit Weight (with batteries) – 402 kg
- Electric Motor – 24V
- Length – 1829 Â mm
- Width – 920 mm
- Height – 1212 mm
- Turning Circle – 2510 mm
- Wheelbase – 1091 mm
Safety Data:
- Deadman safety system with a sensor on tiller head
- Emergency Reverse Button on tiller head
- Creep speed device (button on tiller head)
- Power supply disconnection device / Emergency Stop – Detachable Power Connector
- Audible Reverse Beeper
- Acoustic Beeper Signalling
- Drive Controls – Maintained Action Switch
Accessories are available including side and back ballasts, pushing block, a drop pin, additional ballasts, montage kit, hitches, load baskets and other options.

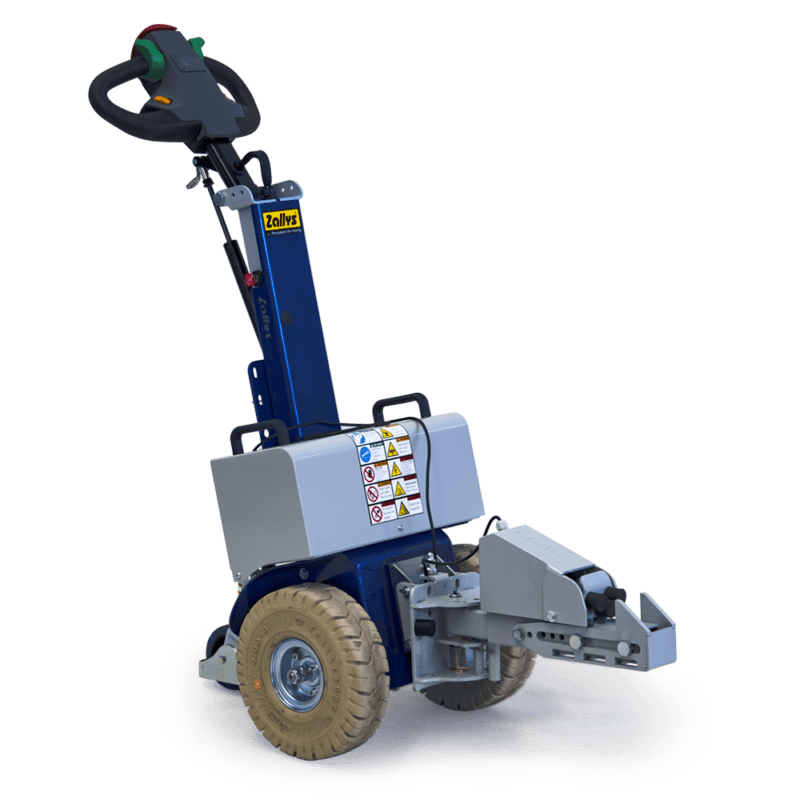

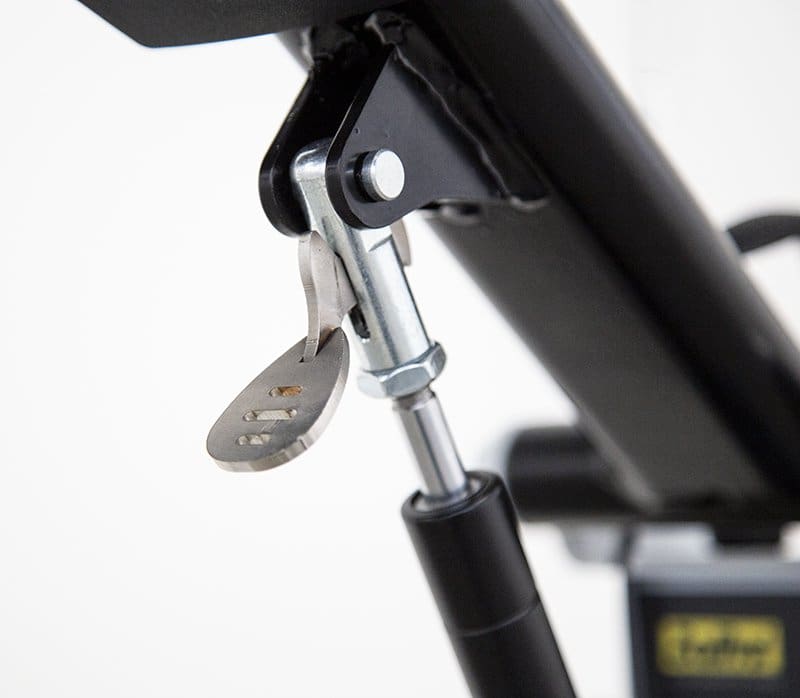

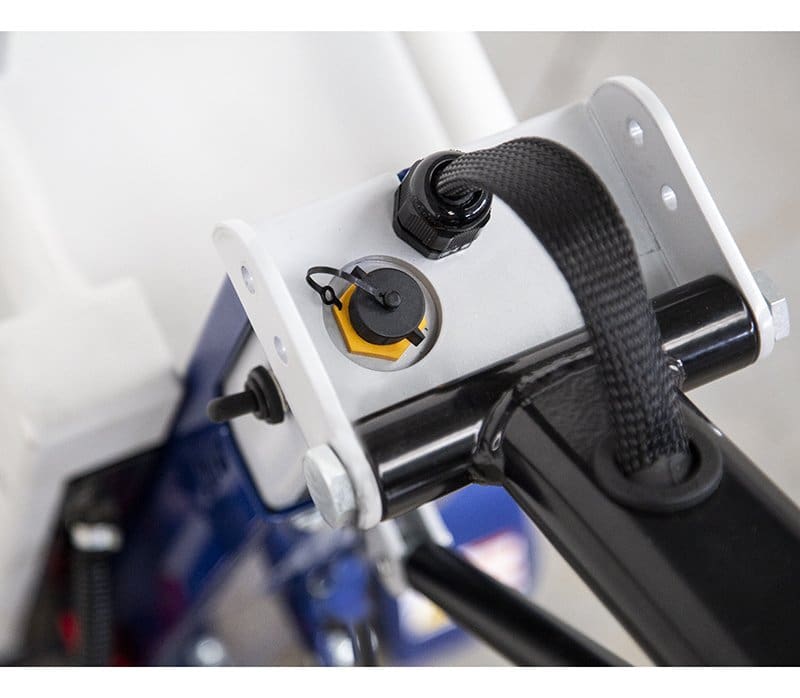

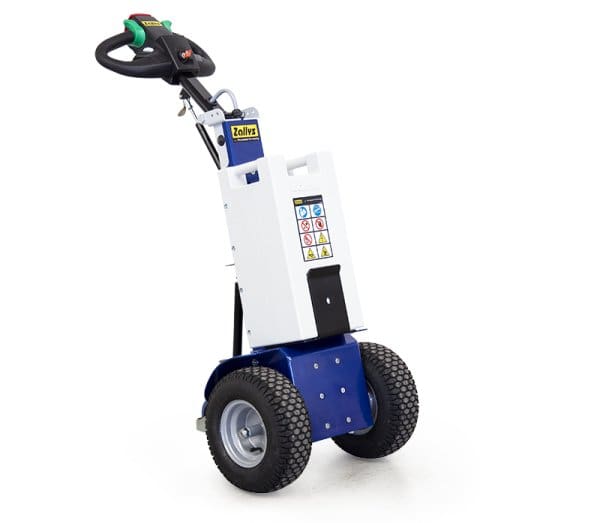

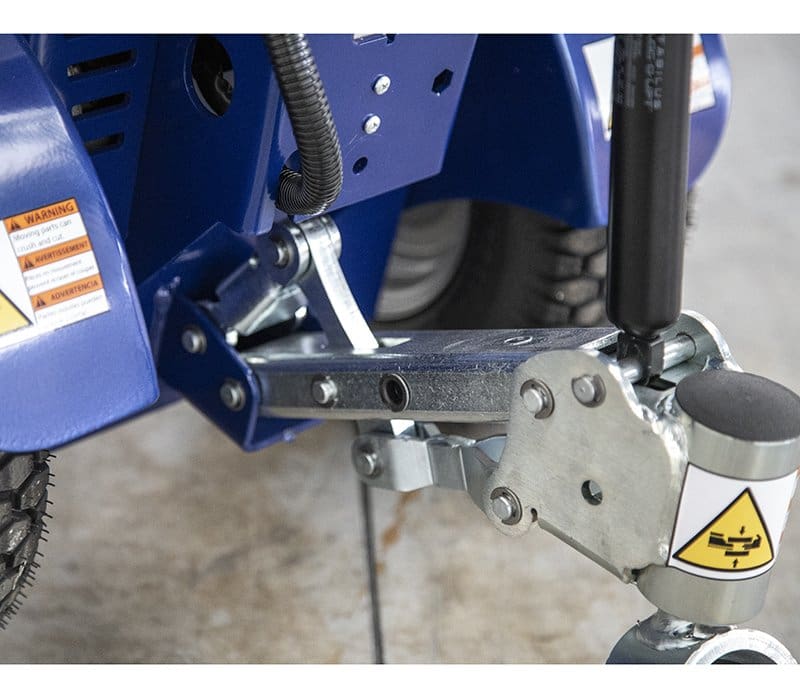

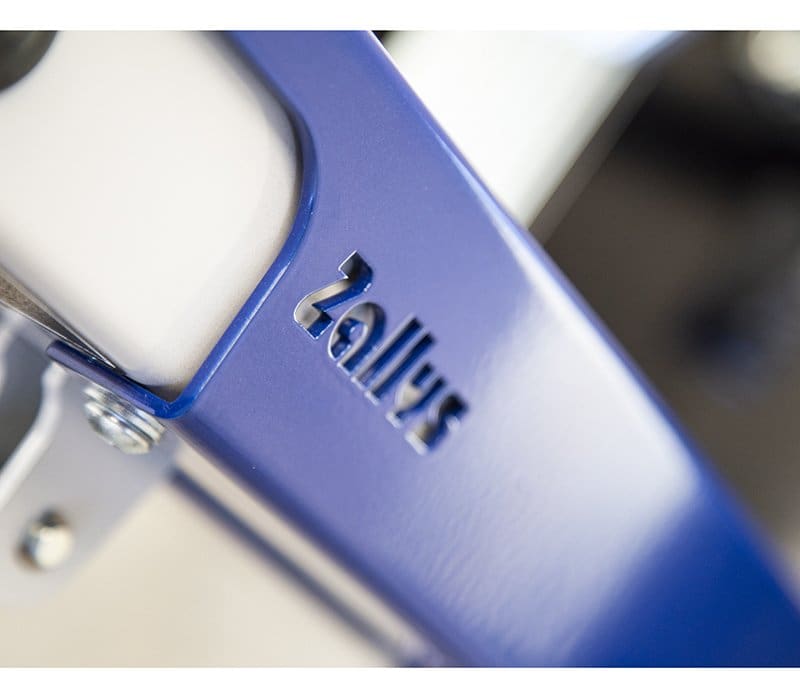

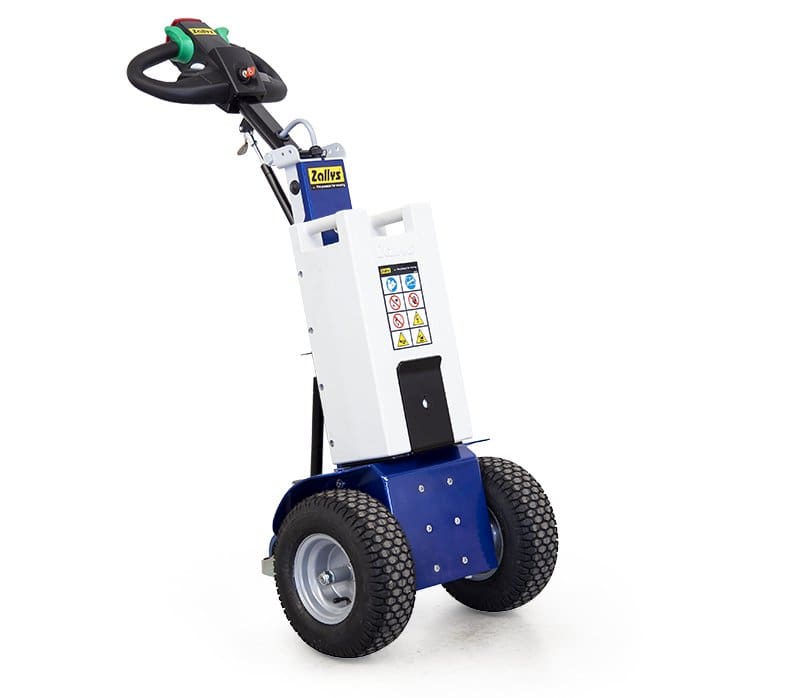

M12 Pedestrian operated tug
A pedestrian operated and battery-powered tug, the M12 is essentially a cart mover. It can tow, push, pull and steer heavy wheeled loads with a capacity of 1200 kg. Â It is suitable for a wide range of applications – including in hospitals, airports, pharmaceutical companies and warehouses – and easily transports roll containers, trolleys and various wheeled equipment. The M12 reduces manual handling risks and improves safety as it bears the heavy load for an operator.
- Towing Capacity – 1200 kg
- Maximum Forward / Backward Speed – 5.8 km/h

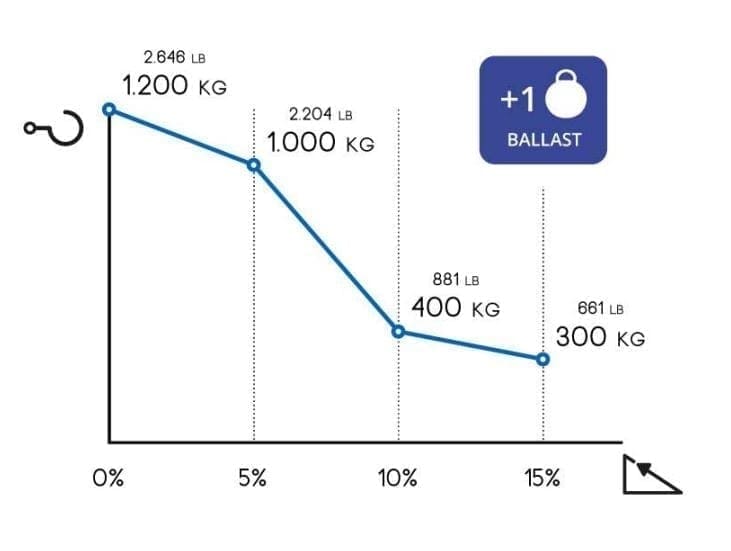

- Maximum Slope with Load – 15% (please see load chart)
- Unit Weight (without batteries) – 50 kg
- Unit Weight (with batteries) – between 80 kg and 115 kg (depending on AGM battery selected)
- Electric Motor – 24V
- Length – 700 Â mm
- Width – 535 mm
- Height – 1256 mm
- Turning Circle – 900 mm
- Wheelbase – 341 mm
Safety Data:
- Emergency Reverse Button on tiller head
- Power supply disconnection device / Emergency Stop – Detachable Power Connector
- Acoustic Beeper Signalling
- Drive Controls – Maintained Action Switch
- Tiller-head drive controls with butterfly lever
Accessories are available including battery packs, ballasts, pivoting connections, non-marking wheels, hitches and other additions.
These top of the range battery-operated, industrial tow tugs, are practical and powerful units that reduce all manual effort. Usually, a pintle hitch is supplied as standard but other hitches are available as per specific requirements. Towing capacities can be increased with the addition of extra ballast. The Zallys Pedestrian operated tugs are incredibly powerful and simple for any employee to use. They are ideal for multiple applications and overall, Zallys improves productivity, reduces strain and physical effort, increases the speed of moving loads, and reduces manual handling risks.
