Vacuum Lifter – VacuBoy Mini
+ Add to Quote Request
Vacuum safety tank for short suction times and safety in case of power failure
Battery Pack: power-independant operation via 24V pump and batteries
Main switch surveillance by vacuum switch in distribution line
Audible warning unit goes off in case of vacuum decrease or power failure
Vacuum gauge for visual supervision of the vacuum
Non-return valve to prevent release in case of failure
Vacuum control via hand slide valve with push-button
Digital vacuum switch to save energy and reduce the noise level

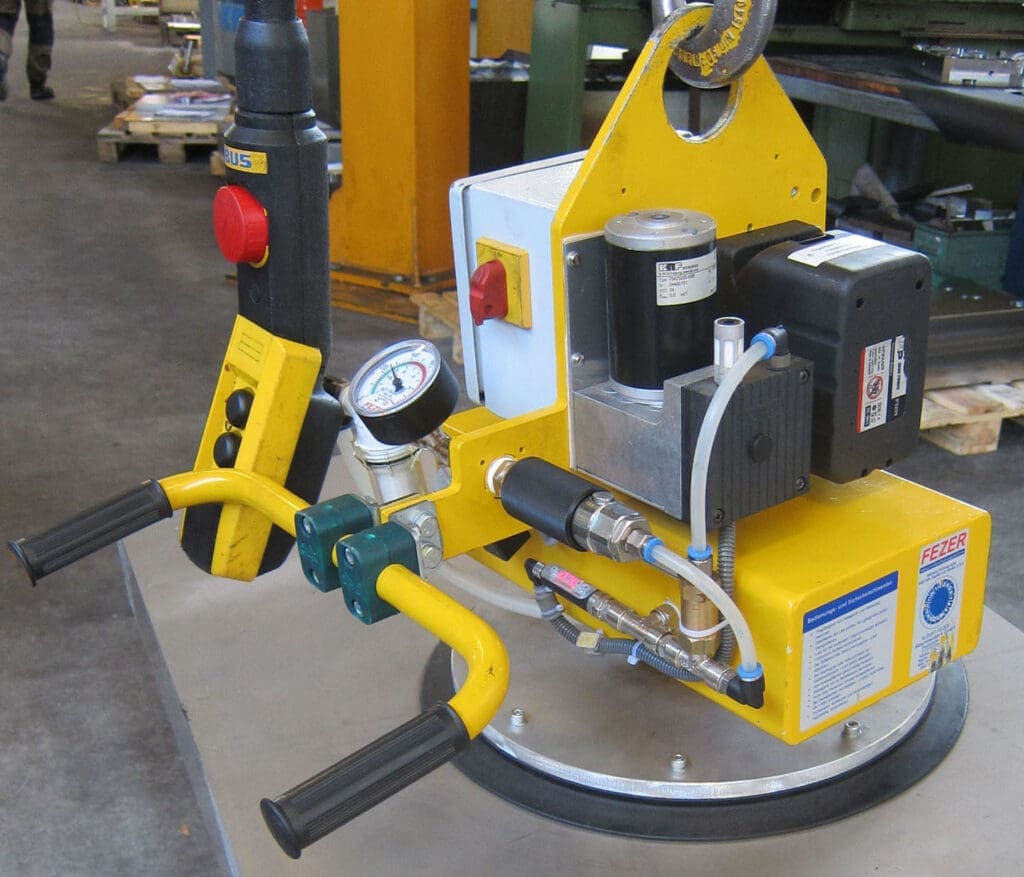

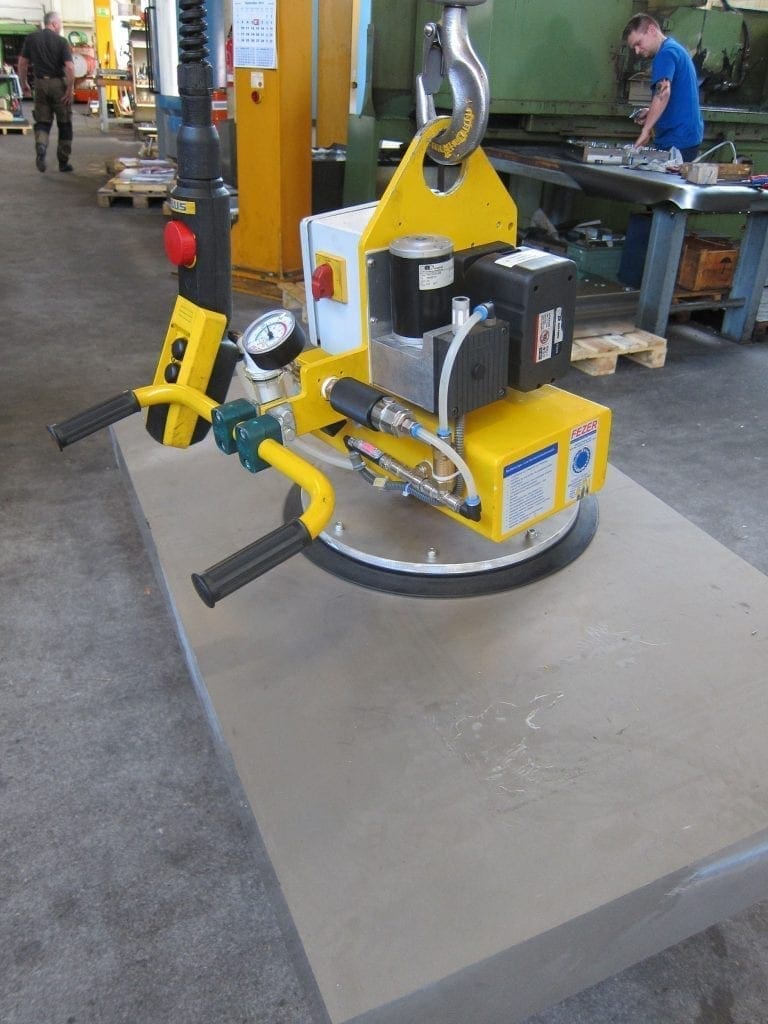

Our VacuBoy Mini is a self-contained vacuum lifting device that includes a vacuum tank and an audible safety system.

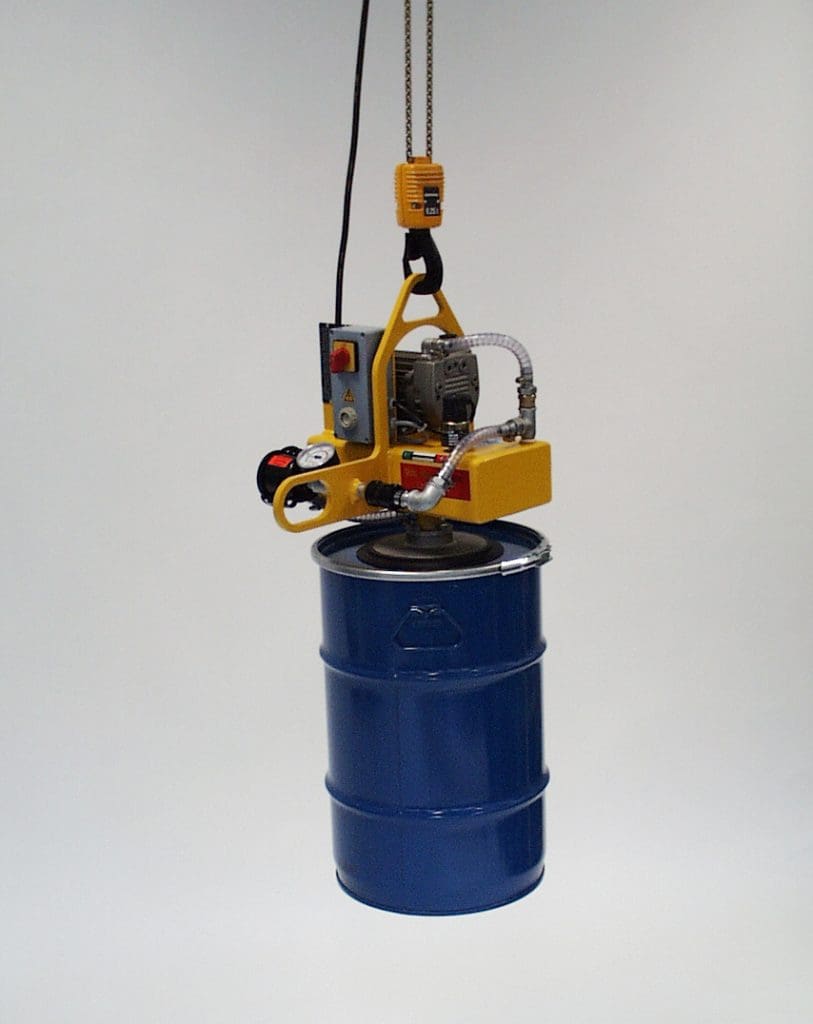

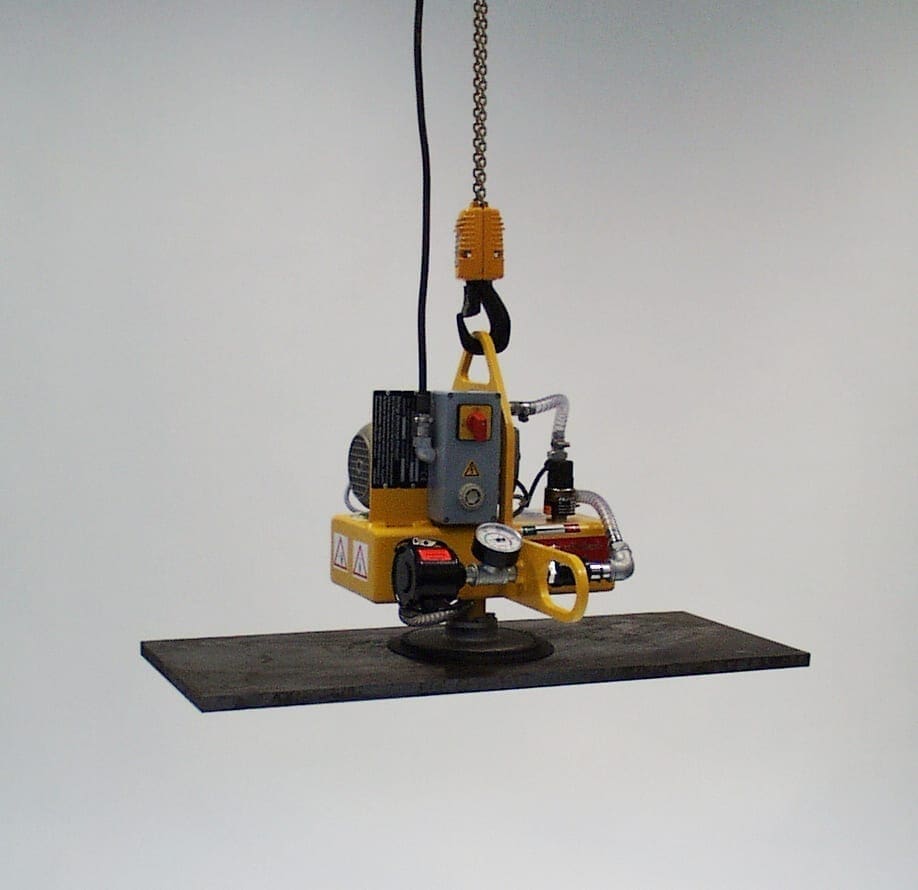

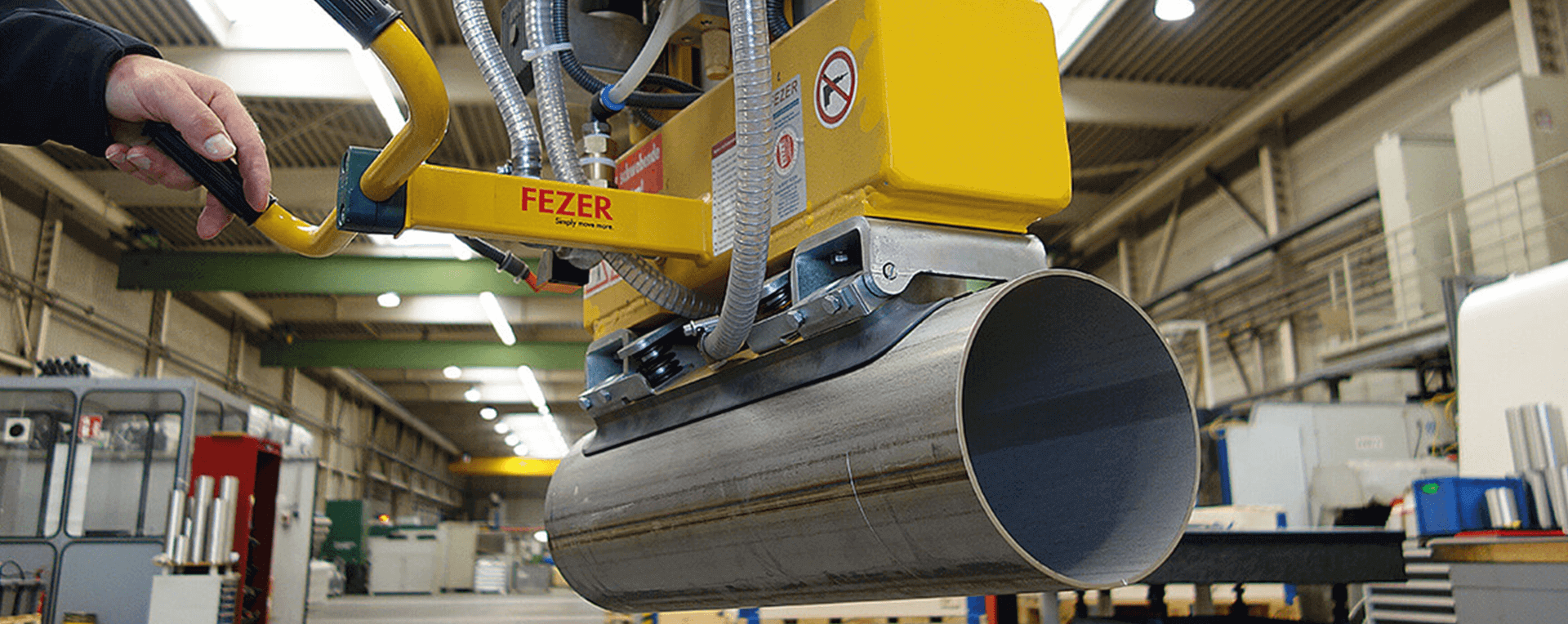

It is ideal for lifting aluminium and steel sheets, as well as containers, barrels, sheet metal, glass panes, stone slabs etc.
The VacuBoy Mini is easy to maintain as it has a battery-powered vacuum pump.
The clever design includes a removable battery pack, which means the vacuum device does not require connection to electrcial power supply. The vacuum lifter can simply be suspended from an overhead crane hook and used when needed.
This system also complies with relevant safety codes, including requirements set by AS4991-2004 Lifting Devices.
- Battery pack
- Optical warning system
- Quick-change coupling for various suction plates
Additional Information
- VacuBoy Mini basic unit VBM
- Vacuum pump (battery powered)
- Hand-slide valve with safety release button to control the vacuum on and off (grip and release the part)
- Vacuum filter
- ECO-Module vacuum controlled switch to save battery consumption
- Suction plate with rubber suction cup 360mm diameter
- Dimensions (LxWxH): 400 x 365 x 430 mm
- Own weight: 25 kg
- Operation vacuum level: 60%
- Carrying capacity: 250kg
- Operating voltage: 24 VDC
- Working cycles: ~50 on one battery charge
- Battery charger 240V
- Battery pack 3.3 Ah lead-acid
- Electrical cabinet with battery gauge
Safety concept:
- Integrated vacuum reservoir tank
- Non-return valve between the vacuum pump and the reservoir tank
- Audible warning signal in case of accidental suction using only residual vacuum in the tank
- Vacuum gauge with red/green zone for visual vacuum surveillance
- Audible warning unit – in case of a power failure or if the vacuum drops below the required operational vacuum level
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
 |
VacuBoy Mini basic unit VBM |
3.21.1.1221 | $7,000.00 | |
 |

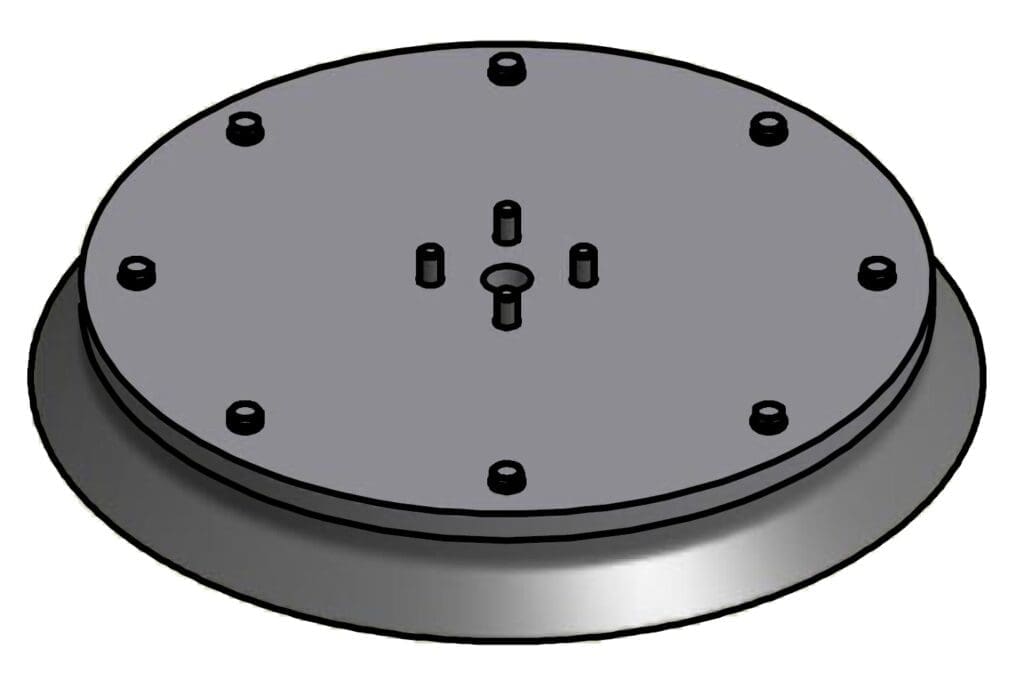

Exchangeable suction plate SPW-FSL360 |
1.13.1.0289 | $800.00 |
