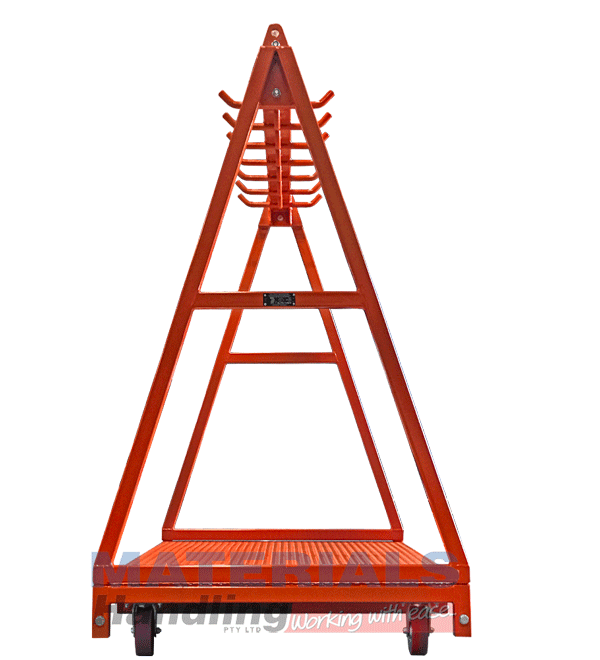

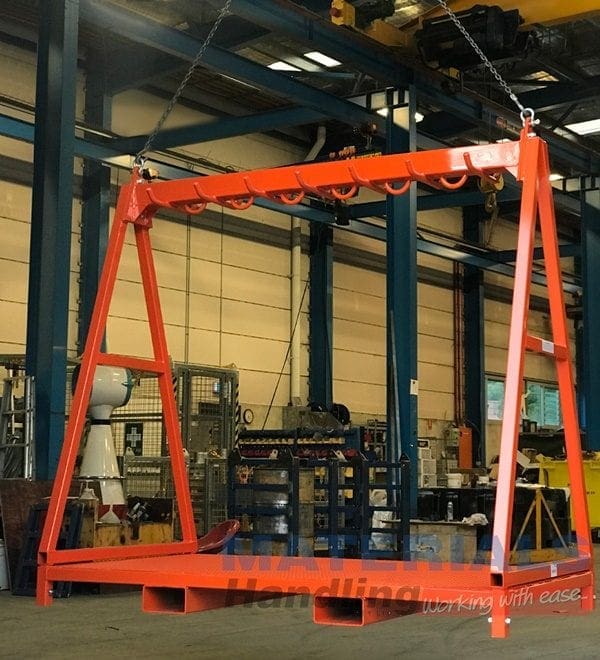

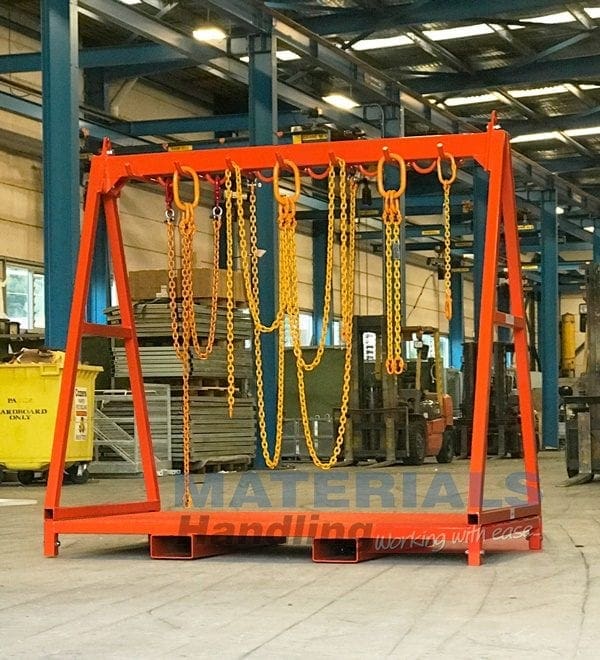

Rigging Storage Rack

+ Add to Quote Request

The Rigging Storage Rack is a great storage solution that manages rigging equipment when not in use. It hangs chains, slings, shackles, hooks and clamps, and keeps equipment nicely organised. The rack is designed to prevent damage or loss to any lifting equipment. With 14 hooks, items can be protected against hazards that may compromise their quality.

Constructed with an ‘A’ frame build for additional stability, the Rigging Storage Rack neatly arranged. The base is solid and keeps equipment off the floor, which prevents further damage. It also has fork pockets and crane lugs, which allows the unit to be transported around a workplace. Its total Working Load Limit (WLL) is a staggering 1000 kg.

Clear

Additional Information

The Rigging Storage Rack is perfect for managing equipment!

Our rigging storage racks suit a range of industries including building and construction, warehousing and industrial facilities. The hanging hooks allow users to sort, store and organise rigging equipment for protection, safety and accessibility. They can also be easily transported around a workplace thanks to their forklift and crane lugs, and the removable fitted wheels. The solid design provides extra stability and the superior base keeps tools off the floor and out of harm’s way. With these Rigging Racks, you can maintain the integrity of your lifting equipment.

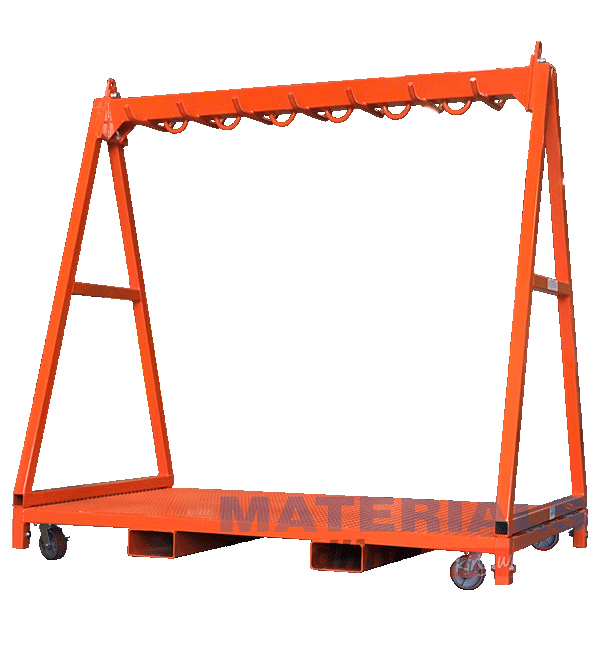

MCNG100 Specifications:

  • 14 hanging hooks

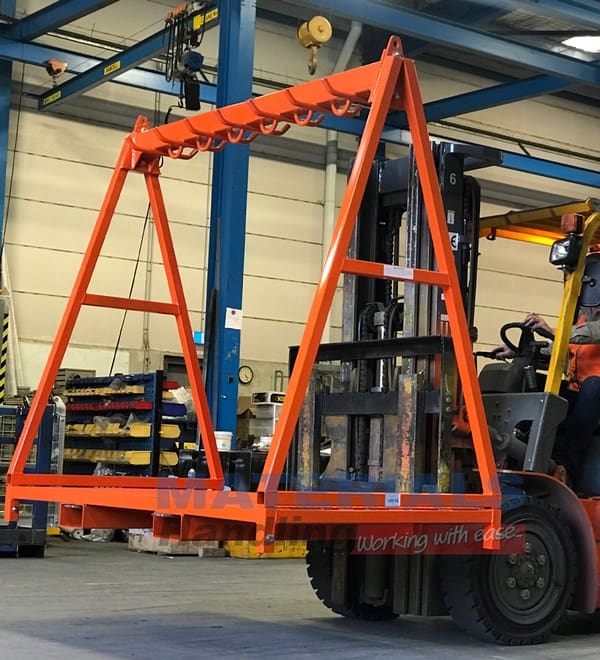

  • Fork pockets and crane lugs
  • Fitted wheels (removable)
  • Working Load Limit (WLL) – 1000 kg (evenly distributed)
  • Overall Dimensions (mm) – 2000 x 1150 x 2045mm (LxWxH)
  • Unit Weight – 240 kg
  • Fork Pockets (mm) – 140 x 90
  • Fork Pocket Centres (mm) – 750 mm
  • Finish – Enamel Paint

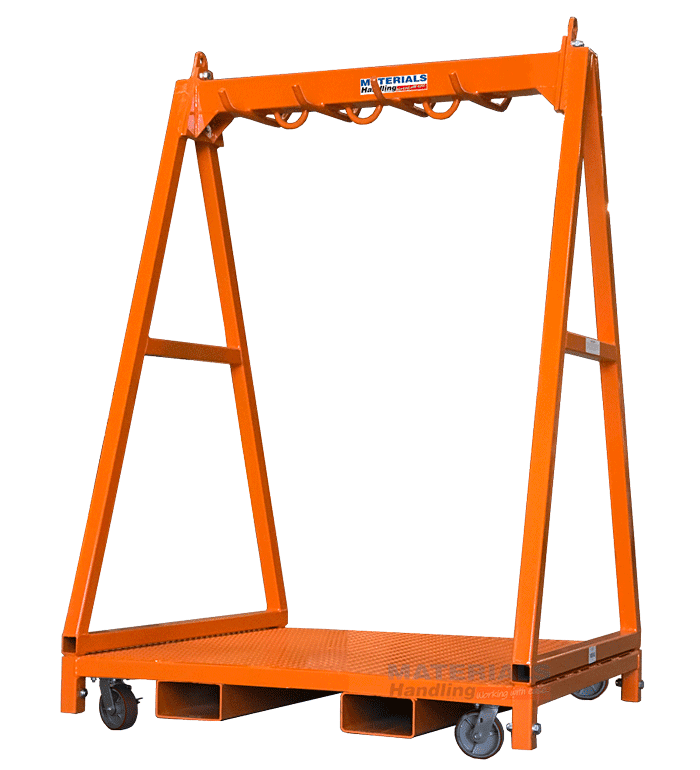

MCNG50 Specifications:

  • 5 hanging hooks
  • Fork pockets and crane lugs
  • Fitted wheels (removable)
  • Working Load Limit (WLL) – 1000 kg (evenly distributed)
  • Overall Dimensions (mm) – 1250 x 1150 x 2045mm (LxWxH)
  • Unit Weight – 190kg
  • Fork Pockets (mm) – 140 x 90
  • Fork Pocket Centres (mm) – 450mm
  • Finish – Enamel Paint



Not what you’re after?

Check out some of our other great Rigging Equipment for all your materials handling needs.

Click the PDF button to learn more.

Product Variations

Image Description Product Code Price (excl. GST)

5 hanging hooks 1250mm long

MCNG50

14 hanging hooks 2000mm long

MCNG100
