Mobile Gantry Crane | Materials Handling

Mobile Gantry Crane (in stock)

OUR LOSS IS YOUR GAIN! We have a gantry crane available for immediate sale.

This crane was designed and built for a specific customer application. Due to a careless oversight, the crane is unsuitable for the task. The crane is looking for a new home. It is currently packed and ready for shipping.

Never used. Australian-made crane with Kito electric hoist. Supplied with all certificates and relevant paperwork.

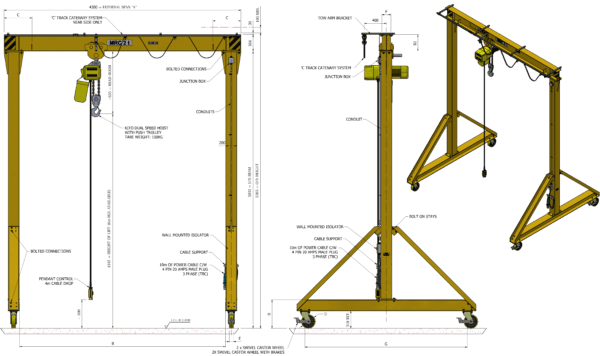

Please take a look at the drawing using the PDF download link.

Photos and other details available on request!

Product Variation

Clear

Additional Information

Mobile Gantry Crane

Capacity: 2000 kg

Internal Span: 3810 mm

External Span: 4300 mm

Height U/S Beam: 5032 mm

Overall Height: 5336 mm

Hoist/Trolley: Kito Dual Speed Electric Chain Hoist with Push Trolley

Hoist Speed: 4.3-0.7 m/min

Power Supply: 415VAC 3Phase

Height of Lift: 4397 mm (max. hook height)

Electrics: Isolator, catenary and 10m power lead with 3Phase plug

Painted: Y14 Golden Yellow

Mobility: 4 x 250 mm Polyurethane Swivel Castors 2 braked

Note: Crane is delivered flat-packed

Product Variations

Image	Description	Product Code	Price (excl. GST)
	Mobile Gantry Crane Capacity: 2000 KG Internal Span: 3810 mm External Span: 4300 mm Height U/S Beam: 5032 mm Overall Height: 5336 mm Hoist/Trolley: Kito Dual Speed Electric Chain Hoist with Push Trolley Hoist Speed: 4.3-0.7 mt/min Power Supply: 415V 3Phase Height of Lift: 4397 mm (max. hook hoist height) Electrics: Isolator catenary and 10mt power lead with 3Phase plug Painted: Y14 Golden Yellow Mobility: 4 x 250 mm Polyurethane Swivel Castors 2 braked Note: Unit will be delivered flat packed assembly will be required	PROJV0136	$28,248.00	Add to Quote Request


Description

Product Code

Price (excl. GST)

Mobile Gantry Crane
Capacity: 2000 KG
Internal Span: 3810 mm
External Span: 4300 mm
Height U/S Beam: 5032 mm
Overall Height: 5336 mm
Hoist/Trolley: Kito Dual Speed Electric Chain Hoist with Push Trolley
Hoist Speed: 4.3-0.7 mt/min
Power Supply: 415V 3Phase
Height of Lift: 4397 mm (max. hook hoist height)
Electrics: Isolator catenary and 10mt power lead with 3Phase plug
Painted: Y14 Golden Yellow
Mobility: 4 x 250 mm Polyurethane Swivel Castors 2 braked

Note: Unit will be delivered flat packed assembly will be required

PROJV0136

$28,248.00

Add to Quote Request
