MatHand Solar & Construction Ladder Lifters

+ Add to Quote Request

Don’t put your installer’s safety on the line!  Make the job easier with our MatHand Solar and Construction Ladder Lifters.

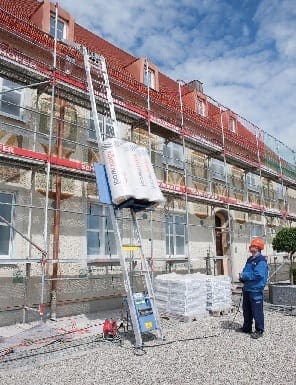

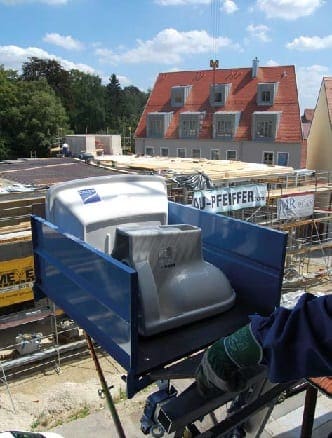

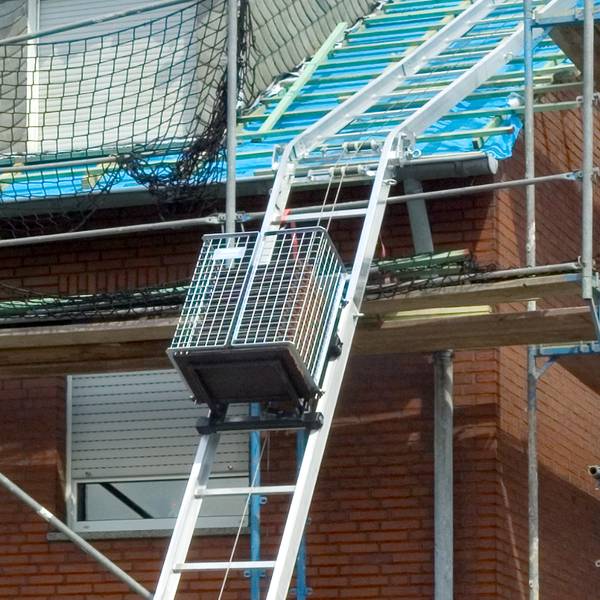

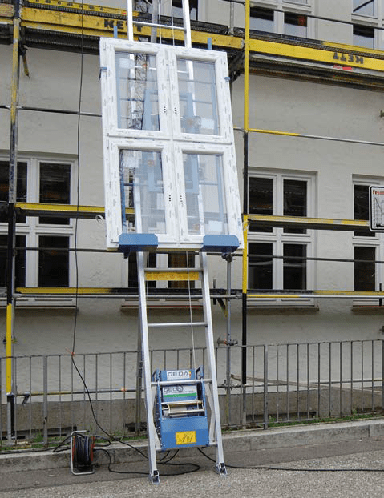

With an innovative design, our Ladder Lifters are ideal for various safe lifting functions in the building, construction, roofing and solar technology industries.  They are sophisticated lifting systems with versatile load-bearing ladder style lifting rails.  Various platforms can be fixed to the load carriage.  This then transports building products, scaffolding platforms, windows, etc., onto the roof safely.  Rubber rests protect panels from being damaged while the clamping device fastens them safely to the platform.

MatHand Ladder Lifters are European designed, safe, top quality, with first class components.  They are an extremely lightweight, safe and versatile lifting solution to meet virtually all demands on any building or construction site.  They are available in three models with easy to maintain and the unit can be quickly assembled/dissembled.

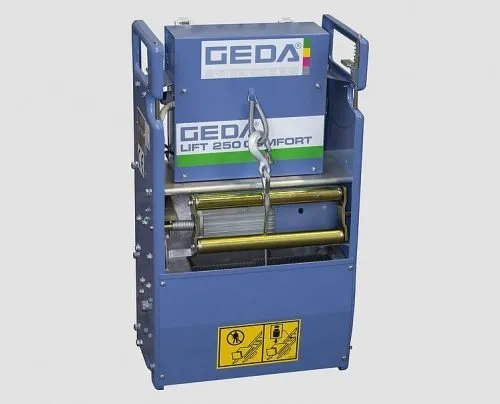

There is a 150kg capacity unit, a 250kg capacity unit and a two speed (20m/min and 40m/min) 230kg capacity model available to special order.  The power supply is 240volt single phase with safe 24volt control pendant and 5 metres of cable. All electric cables are plug-in joins.

Safety plays an extremely important factor whilst using the compact MatHand Ladder Lifters.  All carriages are equipped with a parachute device as standard feature in order to avoid a crash of the load in the unlikely event that a cable should break and large foot plates ensure safe standing support of all MatHand Ladder Lifters.

The standard lifting height is 12 metres but a maximum lift height of 20.30 metres is available with the addition of 1 or 2 metre extensions. There is also available a lifter specifically for solar panels.

Ladder lifters are not suitable for transporting personnel.

Don’t compromise installer’s safety!

Act safe – Don’t follow these Cowboys’ example!

See the MatHand Ladder Lifter in action – view the video!

Clear

Product Variations

Image Description Product Code Price (excl. GST)

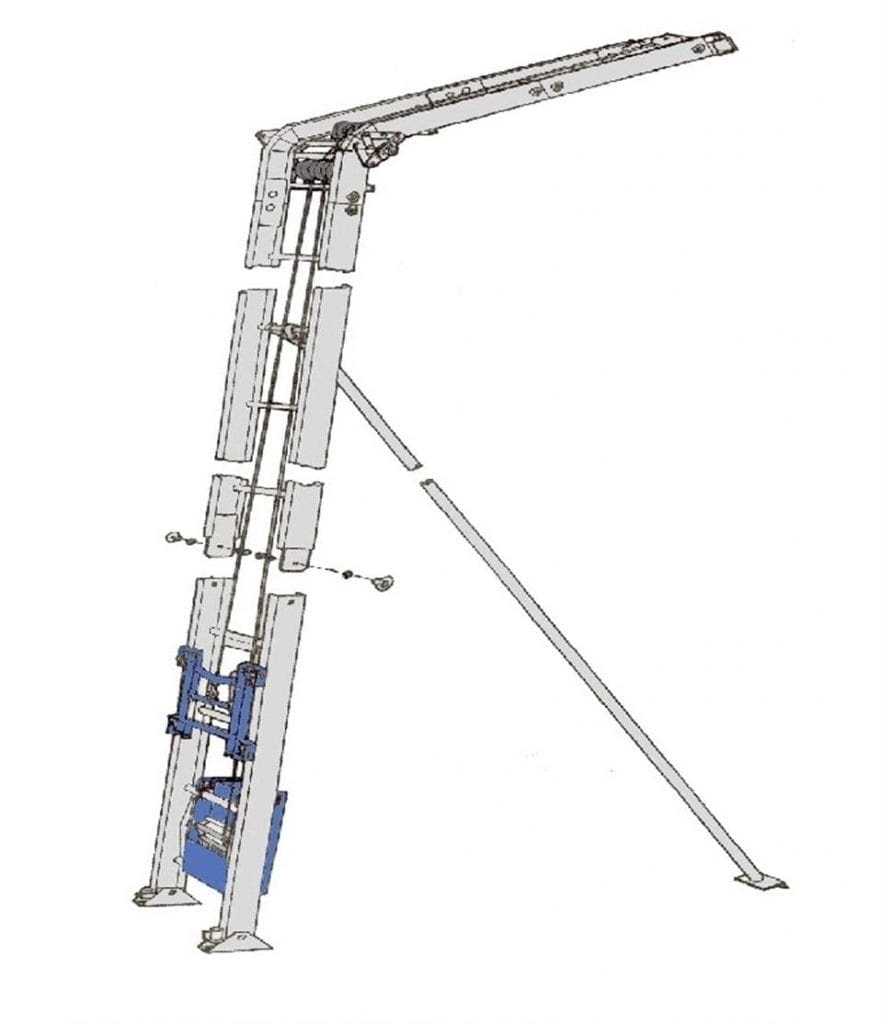

Construction Lift Capacity 250kg–Lifting speed 34m/min

L20226

Construction Lift Capacity 230kg–Lifting speed 20 & 40m/min

L20227

Construction Lift Capacity 150kg–Lifting speed 25m/min

L20233

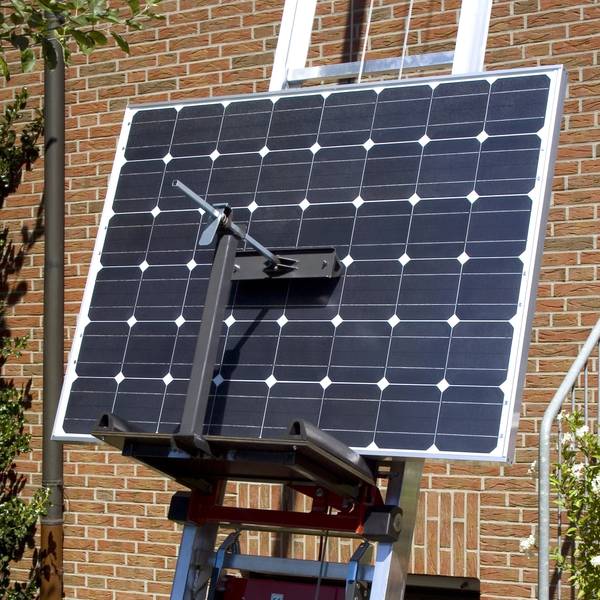

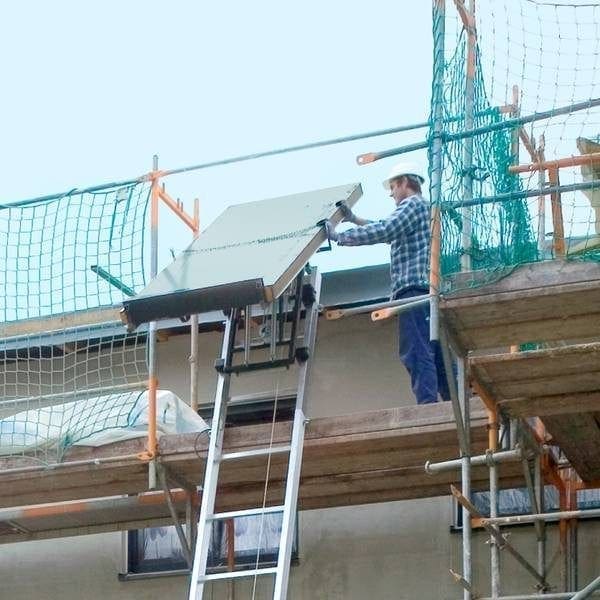

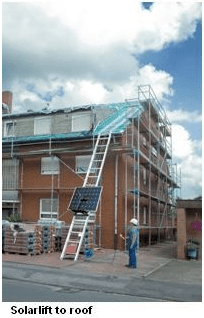

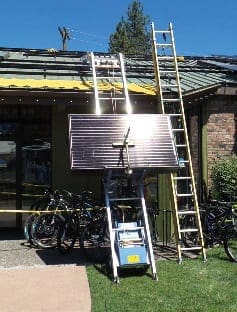

Solar Panel Ladder Lifter
Capacity 250kg Lifting speed 30m/min
Includes sections to handle up to 11.5M

L20238
