Crane Spreader Beams

+ Add to Quote Request

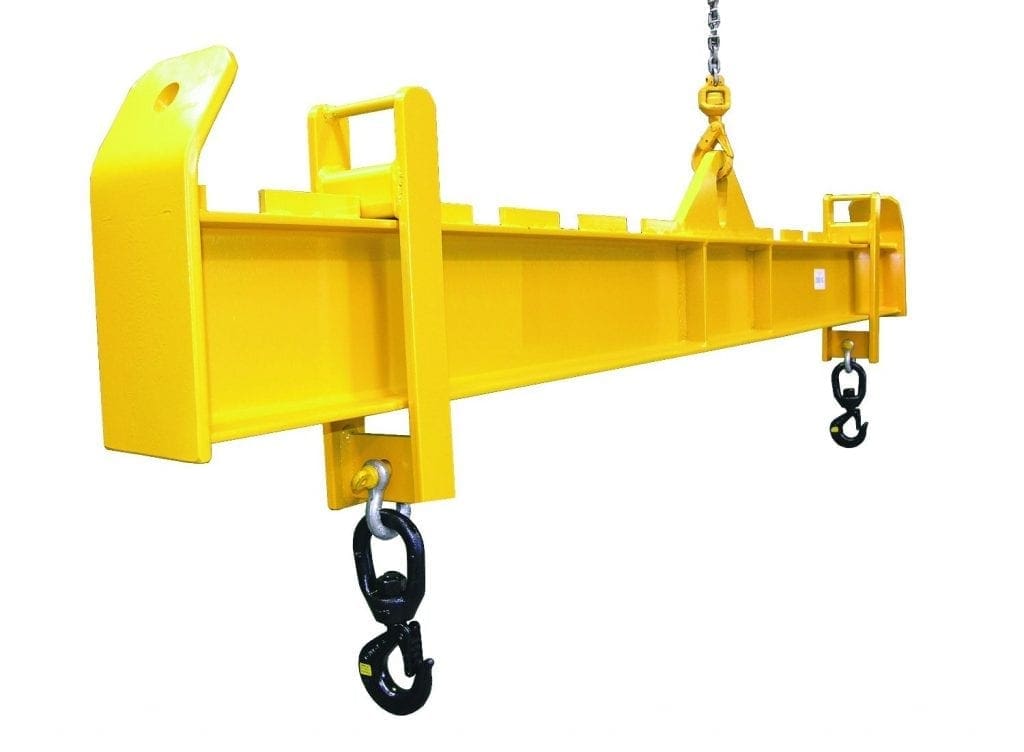

Our range of Crane Spreader Beams are available with various lifting capacities and strengths. These devices are used to assist operators in picking up large and heavy loads. Their low profile means the beam is well-suited to areas that have a small headroom requirement – such as manufacturing shops or storage facilities.

Designed to meet Australian Standards, Crane Spreader Beams are supplied with a serial plate, user manual and signage. They can be mounted to assist in a range of crane and overhead lifting applications. They are supplied with several lift positions and 2 swivel hooks. All Crane Spreader Beams are painted in a visible safety yellow enamel.

Clear

Additional Information

Range of Crane Spreader Beams available!

The graph below indicates the options available for each beam. Choose the Safe Working Load rating and Beam Length (defined as ‘A’ Metres) relevant to your application. This will help identify the beam required.

Type SWL (Tonne) Weight (kg) “A” (Metres)
LCSB 2×2 2.0 70 2.0
LCSB 3×3 3.0 110 3.0
LCSB 5×4 5.0 300 4.0
LCSB 10×4 10.0 480 4.0
LCSB 10×7 10.0 1350 7.0

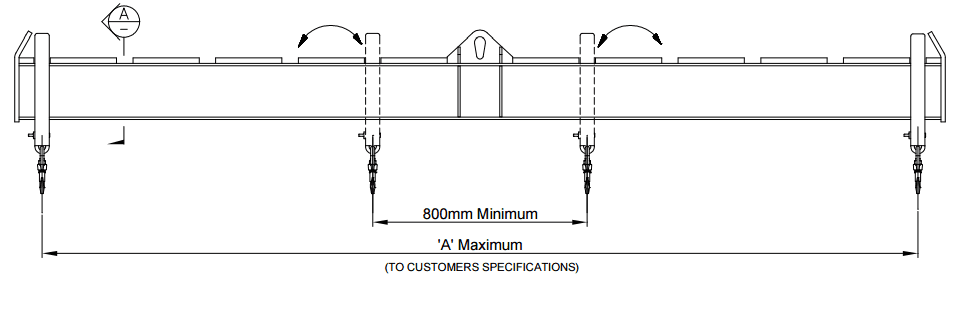

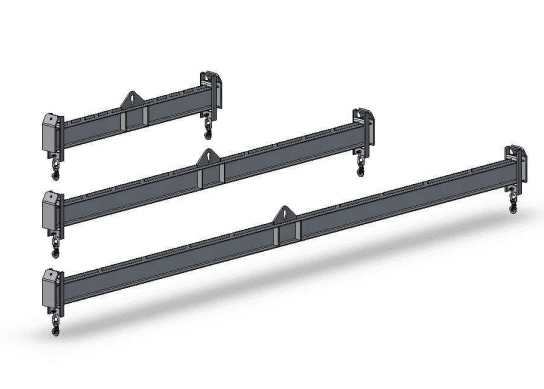

LCSB Crane Spreader Beam Drawing

Need a great lifting solution?

Continue browsing our wide range of lifting attachments to find a great solution for your needs.

Product Variations

Image Description Product Code Price (excl. GST)

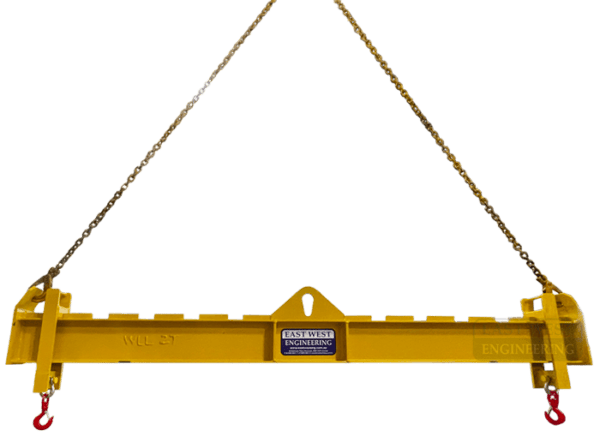

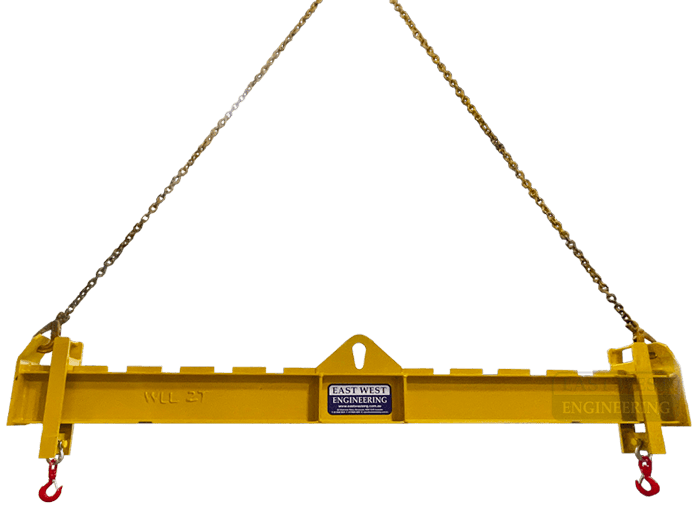

Crane Spreader Beam 2tonne x 2m long Weight: 70kg

LCSB2X2

Crane Spreader Beam 3tonne x 3m long Weight: 110kg

LCSB3X3

Crane Spreader Beam 5tonne x 4m long Weight: 300kg

LCSB5X4

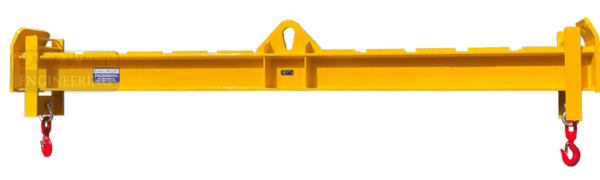

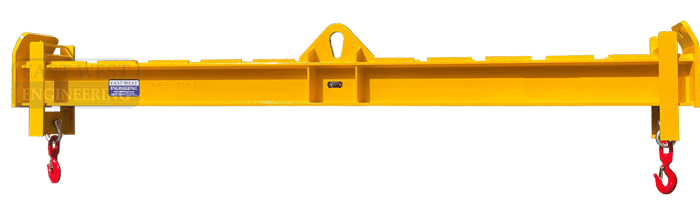

Crane Spreader Beam 10tonne x 4m long Weight: 480kg

LCSB10X4

Crane Spreader Beam 10tonne x 7m long Weight: 1350kg

LCSB10X7
