Compact Electric Chain Hoist (LEDL Series)

+ Add to Quote Request

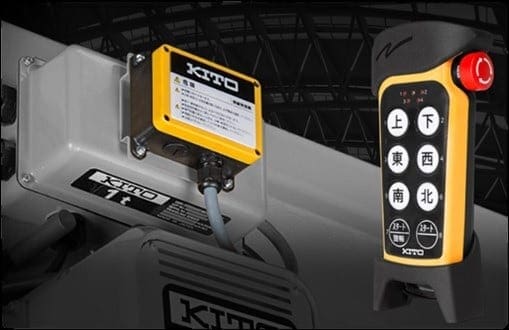

The Compact Electric Chain Hoist series is perfect for lifting smaller loads that are too heavy to be manually lifted. The LEDL series features a range of single-phase Kito Electric Hoists in either single-speed (pendant) or dual-speed (cylinder). They are built with heavy-duty motors, automatic load brakes and an overload clutch, with an IP54 rated lightweight aluminium body. Battery operated radio remote controls are available for the Kito hoists and trolleys. Ask our sales facilitators for details.

These devices deliver high speed and improve operational efficiencies. They are high-strength, wear and rust-resistant, with a nickel-plated load chain. Compact Electric Chain Hoists are used across a variety of industries including mining, construction and engineering. They are designed in accordance with relevant Australian Standards.

Clear

Additional Information

The Compact Electric Chain Hoist is a lightweight lifting solution.

Completely adaptable and portable, the LEDL series incorporates quality and advanced technologies to deliver a high-performing hoist. This powerful device is available in either single or dual-speed configurations, with a range of user benefits. It not only improves operational efficiencies in any organisation but offers a range of safety features that prevent overwinding and overloading.

Kito Compact Electric Chain Hoists are easy to instal, move, service and store. Their die-cast aluminium body is lightweight and the unit comes with dual-braking, a heavy-duty motor, high-performance friction clutch and other great features. Its low headroom functionality allows it to be fitted into confined spaces.

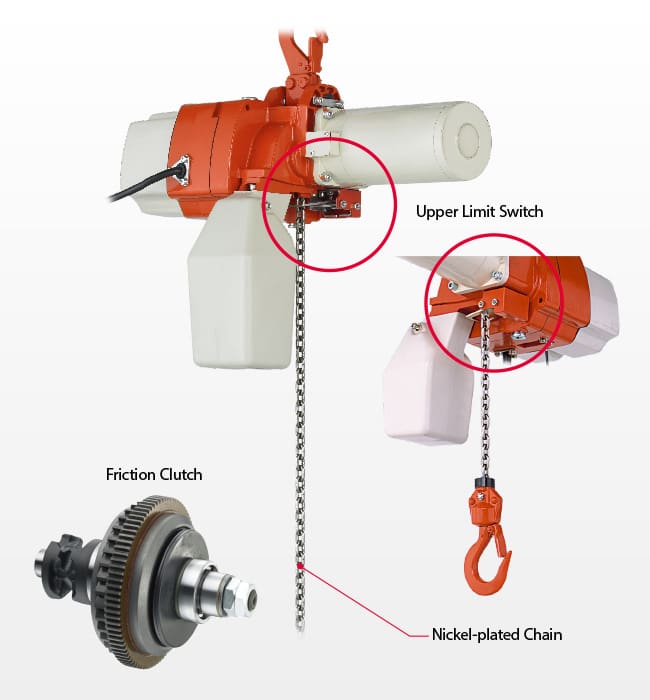

Compact Electric Chain Hoist Features

Standard Features:

  • High-speed lowering and lifting capabilities.
  • A compact design with a die-cast aluminium lightweight body.
  • Dual-braking system, which includes both mechanical and regenerative brakes for additional safety.
  • A heavy-duty motor that offers above-average motor output for industrial applications.
  • High-performance friction clutch, which is built into the load brake and designed to stop overloading.
  • Upper limit switch that sets a standard upper limit, preventing overwinding.
  • A plated-chain made from heat-treated alloy steel for high-strength performance. It is also corrosion and abrasion-resistant, and case-hardened.
  • Heat-treated gearing with a deep-groove ball and needle bearings, which results in smooth, quiet operation.
  • On dual-speed models, speed flexibility is available and can be adjusted from 0 to 100% if the maximum speed.

Standard Specifications:

  • Rated Capacity – 100 kg to 480 kg
  • Voltage – Single Phase, 240 V
  • Control Voltage – low voltage control is standards
  • Operation Method – Push-button control pendant (floor operation)
  • Motor Insulation – Class F
  • Operating Temperature – -20 to 40℃
  • Enclosure – Single speed/dual speed: IP54; Pendant with emergency stop: IP65
  • Operating Humidity – 85%RH or Less
  • Suspension Varieties – Hook, Universal Trolley, Manual Trolley
Also, select the LTMH25 trolley to partner with your hoist as a compact, lightweight and smart solution. It allows a hoist to traverse along a structural steel beam.
Kito Compact Electric Chain Hoist Specifications:

Single-Speed Model:

Model Capacity Standard Lift (m) Lift Speed – (m/min) Headroom (mm) Load Chain dia (mm) x falls Weight Load Chain dia (mm) x pitch
LEDL10S 100 kg 3.0 13.0 315 4.0 x 1 12 kg 4.0 x 12.0
LEDL16S 160 kg 3.0 20.0 330 4.0 x 1 16 kg
LEDL18S 180 kg 3.0 8.0 315 4.0 x 1 12 kg
LEDL24S 240 kg 3.0 13.5 330 4.0 x 1 16 kg
LEDL48S 480 kg 3.0 6.7 520 4.0 x 2 21.5 kg
Dual-Speed Model:
Model Capacity Standard Lift (m) Lift Speed (m/min) Headroom (mm) Load Chain dia (mm) x falls Weight Load Chain dia (mm) x pitch
LEDL10ST 100 kg 3.0 13.0/3.0 315 4.0 x 1 12.5 kg 4.0 x 12.0
LEDL16ST 160 kg 3.0 20.0/5.0 330 4.0 x 1 16.5 kg
LEDL18ST 180 kg 3.0 8.0/3.0 315 4.0 x 1 12.5 kg
LEDL24ST 240 kg 3.0 13.5/3.0 330 4.1 x 1 16.5 kg
LEDL48ST 480 kg 3.0 6.7/2.0 520 4.0 x 2 21.5 kg
Dimensions (mm):
Capacity ‘c’ ‘d’ ‘e’ ‘f’ ‘k’
100 kg 315 187 184 (177)* 205 340
160 kg 315 187 184 (177)* 205 340
180 kg 315 187 184 (177)* 205 340
240 kg 330 205 223 219 362
480 kg 520
* Figures show the data for 240 V (max).

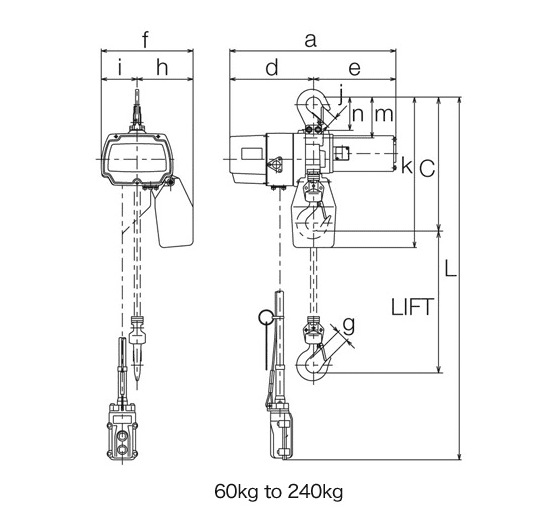

Compact Electric Chain Hoist Specs Single Speed with Hook Suspension

Find the right lifting solution today!

Continue browsing our great range of Electric Hoists and Trolleys.

Product Variations

Image Description Product Code Price (excl. GST)

Single Phase Chain Hoist
Single Speed
Capacity 100 kg
Lift Speed (m/min) 13.0

LEDL10S

Single Phase Chain Hoist
Dual Speed
Capacity 100 kg
Lift Speed (m/min) 13.0/3.0

LEDL10ST

Single Phase Chain Hoist
Single Speed
Capacity 160 kg
Lift Speed (m/min) 20.0

LEDL16S

Single Phase Chain Hoist
Dual Speed
Capacity 160 kg
Lift Speed (m/min) 20.0/5.0

LEDL16ST

Single Phase Chain Hoist
Single Speed
Capacity 180 kg
Lift Speed (m/min) 8.0

LEDL18S

Single Phase Chain Hoist
Dual Speed
Capacity 180 kg
Lift Speed (m/min) 8.0/3.0

LEDL18ST

Single Phase Chain Hoist
Single Speed
Capacity 240 kg
Lift Speed (m/min) 13.5

LEDL24S

Single Phase Chain Hoist
Dual Speed
Capacity 240 kg
Lift Speed (m/min) 13.5/3.0

LEDL24ST

Single Phase Chain Hoist
Single Speed
Capacity 480 kg
Lift Speed (m/min) 6.7

LEDL48S

Single Phase Chain Hoist
Dual Speed
Capacity 480 kg
Lift Speed (m/min) 6.7/2.0

LEDL48ST

Mini Push Trolley 250kg

LTMH25
