Bulk Self Dumping Bins (Forklift Bulk Waste Tipping)

+ Add to Quote Request

Our Bulk Self Dumping Bins are heavy duty and can easily handle bulk capacities for heavy waste. Available in three cubic metre capacities – MJSD18MJSD24 and MJSD30 – these bins can be optimised to suit larger loads if required.

Bulk Self Dumping Bins feature a “self dumping” mechanism underneath the unit, allowing an operator to empty the contents of the bin, whilst remaining seated in the forklift during the tipping cycle. Oversized pockets have been incorporated into the design of these bins to easily suit larger forklifts.

Their robust construction and reinforced design allows them to support an incredible Safe Working Load (SWL) of up to 3000 kg. This is thanks to its innovative design that features 5 mm plate construction. At the top of the bin lip, the unit is further supported with channel reinforcement. Each bin is constructed with steel and primed with enamel paint.

Clear

Additional Information

Our Bulk Self Dumping Bins handle bulk waste with ease!

Our Bulk Self Dumping Bins are easy-to-use and provide much support for heavy waste loads, especially during its operator friendly tipping cycle. Larger sizes are available on request if the standard volumes (3.2, 4.3 and 5.4 cubic metres) do not match your needs. Please enquire for more options.

Overall Features and Benefits of MJSD range:

  • Pocket size 180 x 80 mm
  • Pocket Centres – 950 mm
  • Safe Working Load 3000 kg
  • HCG 900 mm
  • VCG 500 mm

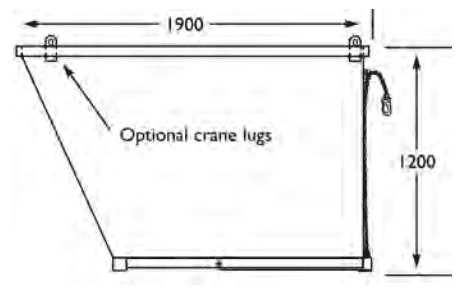

  • Crane Lugs Optional
  • Lid Optional
  • 5 mm plate with channel reinforcement (on bin top lip)
  • Self Dumping mechanism
  • Steel construction with enamel paint finish

Three Models are available with varying capacities:

MJSD18 MJSD24 MJSD30
Capacity (Cubic Metres) 3.2 4.3 5.4
SWL (kg) 3000 3000 3000
Length (mm) 1900 1900 1900
Width (mm) 1910 2510 3110
Height (mm)  1125 1125 1125
Unit Weight (kg) 850 950 1050



Continue browsing our range!

Find the perfect solution for your waste management requirement. Alternatively, download our brochures for more specifications of our Bulk Self Dumping Bins.

Product Variations

Image Description Product Code Price (excl. GST)

Forklift Bulk Waste Tipping Bin
3.2 cubic metres
W x H (mm) – 1910 x 1125

MJSD18

Forklift Bulk Waste Tipping Bin
4.3 cubic metres
W x H (mm) – 2510 x 1125

MJSD24

Forklift Bulk Waste Tipping Bin
5.4 cubic metres
W x H (mm) – 3110 x 1125

MJSD30
