Chain Hoists – Air Powered Toku

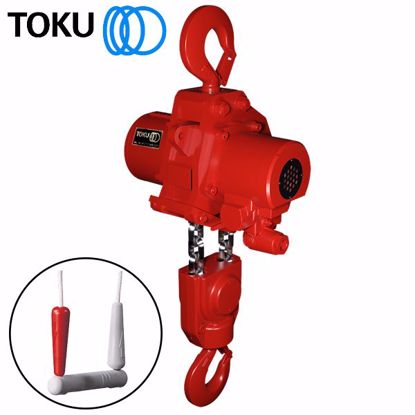

The Toku Air Hoists range features a number of standard models with lifting capacities up to 6000 kg. Other larger and robust 10, 25 and 30 tonne capacity units are also available on application.

All Air Hoists are compact, lightweight and robust. The are supplied with either a pull cord or pendant control. For excessive loads a built-in load limiter / overload protection supports the devices. Toku hoists come standard with, a silencer, totally enclosed disc brake, cast steel housings, upper & lower limit switches. All units, except the 250 kg capacity, are suitable for underground mining applications. Optional chain buckets are also available.

The 250 kg capacity version is only 7 kg in weight, which increases its functionality. Smooth operation is guaranteed with Toku Air Hoists and they are excellent for inching, both up/down in movement. The standard chain fall is 3 metres; however other lengths can be specially ordered.

Browse our range of Air Hoists and Trolleys for some alternative lifting products.

Product Variations

Description	Product Code
Control Pendant Capacity (kg) 2000 Speed (m/min) 3 Chain Falls 2 Own Weight (kg) 39.7	LTCR2000P2	Add to Quote Request
Control Cord Capacity (kg) 2000 Speed (m/min) 3 Chain Falls 2 Own Weight (kg) 38.7	LTCR2000C	Add to Quote Request
Control Cord Capacity (kg) 250 Speed (m/min) 9 Chain Falls 1 Own Weight (kg) 7	LTCR250C	Add to Quote Request

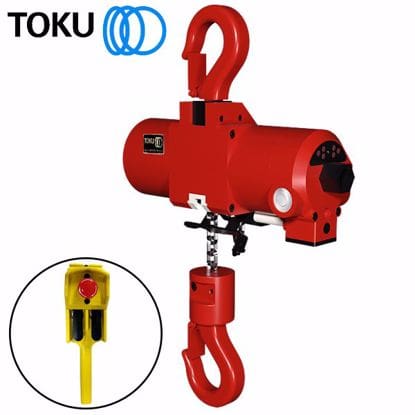

Control Pendant Capacity (kg) 250 Speed (m/min) 8.1 Chain Falls 1 Own Weight (kg) 8.4	LTCR250P	Add to Quote Request

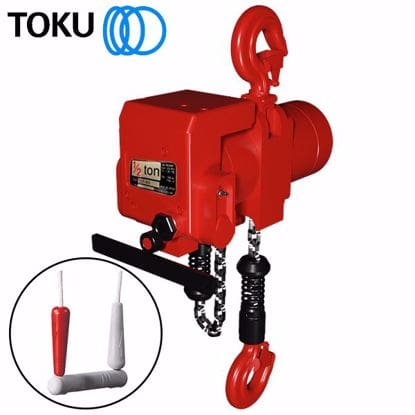

Control Cord Capacity (kg) 500 Speed (m/min) 500 Chain Falls 1 Own Weight (kg) 31	LTCR500C	Add to Quote Request
Control Pendant Capacity (kg) 500 Speed (m/min) 500 Chain Falls 1 Own Weight (kg) 31	LTCR500P	Add to Quote Request
Control Cord Capacity (kg) 1000 Speed (m/min) 5.3 Chain Falls 2 Own Weight (kg) 34.5	LTCR1000C	Add to Quote Request

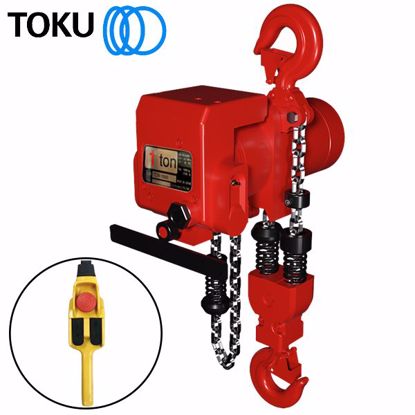

Control Pendant Capacity (kg) 1000 Speed (m/min) 5.3 Chain Falls 2 Own Weight (kg) 34.5	LTCR1000P	Add to Quote Request
Control Pendant & Emergency stop Capacity (kg) 1000 Speed (m/min) 5.3 Chain Falls 2 Own Weight (kg) 34.5	LTCR1000PE	Add to Quote Request

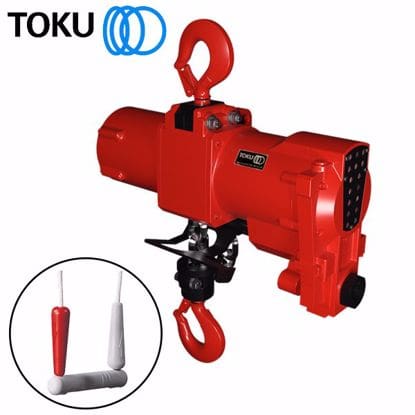

Control Cord Capacity (kg) 3000 Speed (m/min) 5.4 Chain Falls 1 Own Weight (kg) 86	LTCR3000C	Add to Quote Request
Control Pendant Capacity (kg) 3000 Speed (m/min) 5.4 Chain Falls 1 Own Weight (kg) 87	LTCR3000P	Add to Quote Request
Control Cord Capacity (kg) 6000 Speed (m/min) 1.4 Chain Falls 2 Own Weight (kg) 89	LTCR6000C	Add to Quote Request
Control Pendant Capacity (kg) 6000 Speed (m/min) 1.4 Chain Falls 2 Own Weight (kg) 90	LTCR6000P	Add to Quote Request
