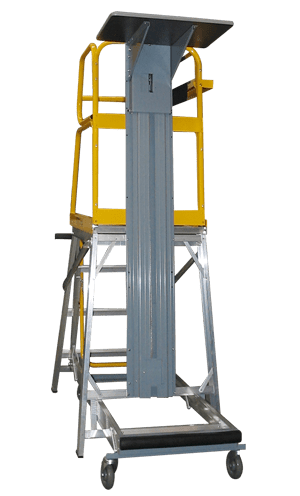

Order Picking and Access Platforms – LiftTruk

Additional Information

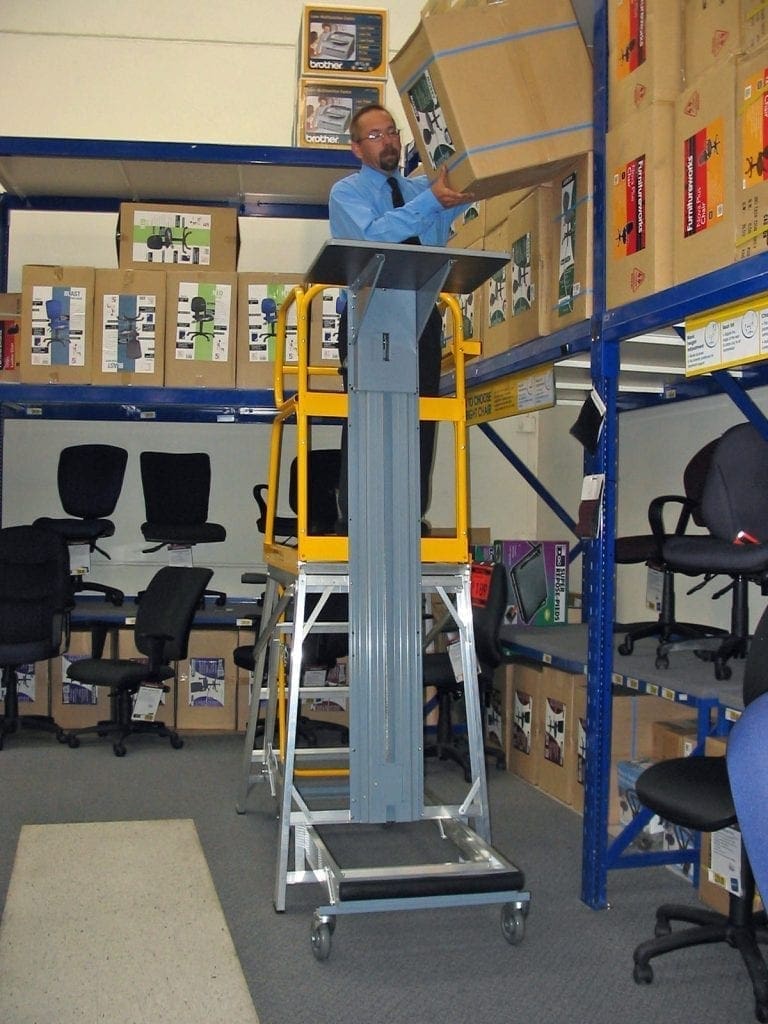

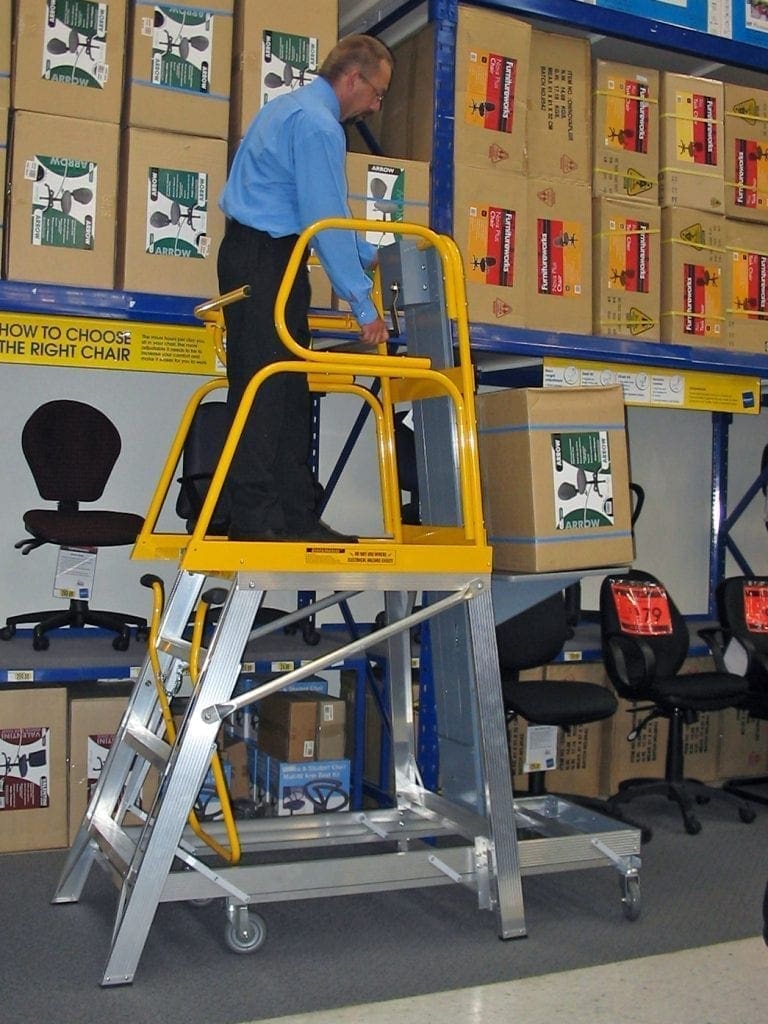

The Lift-Truk grants fast, low-risk stock picking!

Eliminate dangerous manual handling risks with this safe access solution. No longer will employees have to carry large items up or down a ladder. The Lift-Truk utilises a winding mechanism, similar to that of a forklift, and positions items at the exact shelf height. This allows users to simply transfer to their desired location. Additionally, the platform can be lowered as required. All in all, it saves time during the unloading and loading process and reduces the need for a trolley as the ladder can perform both duties.

The whole stock picking process can be handled by one person removing the need for a second person to pass items up or down. Featuring a reliable manually operated winch, maintenance costs are minimal, and there is no downtime for charging of batteries.

Standard Features:

Additional Extras:

Upgrade your model to a Lift-Truk PRO and protect employees from accidentally stepping off the front of the platform with additional yellow powder-coated rails.

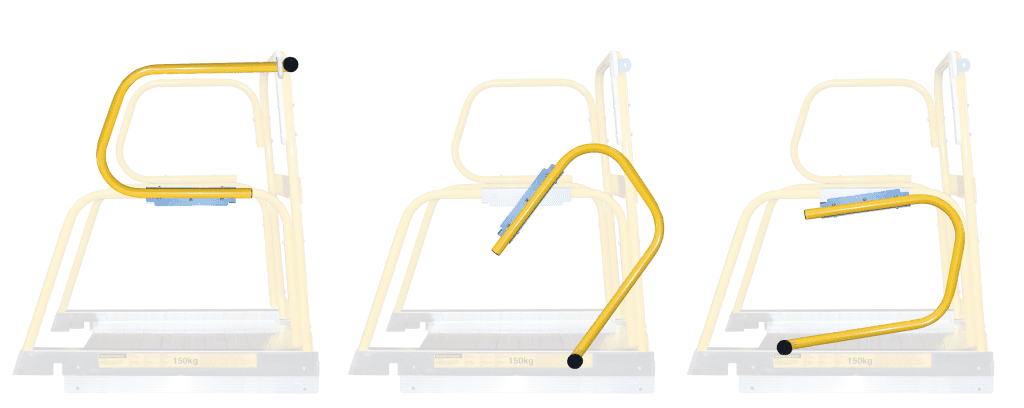

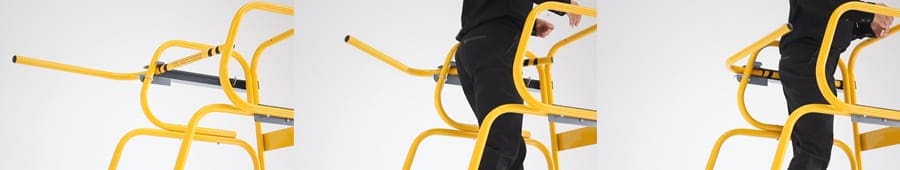

Also, the fully automatic Auto-Gate can be equipped to protect against the risk of falls. When personnel enters the platform area the gate automatically closes behind. Lastly, the Rota-Gate feature provides a side opening gate-way at the side of the platform creating easy access for stock-picking, inspection and many other tasks. To open or close, the gate is rotated into position.



Select the right Lift-Truk model!

The primary function of the Lift-Truk is for picking and shelf stocking. It can be moved in any direction to maximise the speed in delivery of these related applications. The maximum recommended storage height for an item is dependent on its weight and the working range of the selected product. The maximum load rating is 60 kg.

To operate most effectively, the Lift-Truk requires a smooth and level surface. When mobile, the feet of the device clear an operating surface by approximately 20 mm. Typically a concrete slab floor provides a suitable operating surface, however, areas around sumps, drains and other variations that exceed 20 mm will not permit safe use. This platform ladder features good movability and can be used in confined spaces. Before using, check for doorway height, overhead fixtures, space turning at the end of storage bays and space for movement in aisles or between machinery and furniture.

Lift-Truk Size Selection Chart:

Stock Code	Platform Height (mm)	Working Range up to 5 kg item From – To (m)	Working Range up to 20 kg item  From – To (m)
SSMN4LT	1145	1.4 – 2.8	1.4 – 2.3
SSMN5LT	1435	1.7 – 3.1	1.7 – 2.6
SSMN6LT	1720	2.0 – 3.4	2.0 – 2.9
SSMN7LT	2005	2.3 – 3.7	2.3 – 3.2
SSMN8LT	2295	2.5 – 3.9	2.5 – 3.4
SSMN9LT	2580	2.8 – 4.2	2.8 – 3.7
SSMN10LT	2865	3.1 – 4.5	3.1 – 4.0
SSMN11LT	3155	3.4 – 4.8	3.4 – 4.2
SSMN12LT	3440	3.7 – 5.1	3.7 – 4.6
SSMN13LT	3735	4.0 – 5.4	4.0 – 4.9
SSMN14LT	4015	4.3 – 5.7	4.3 – 5.2

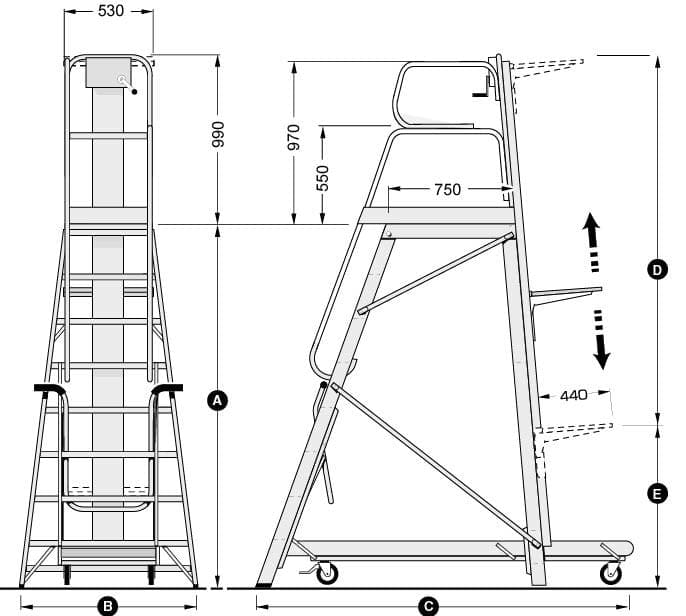

Lift-Truk Dimensions:

Require a Platform Ladder that handles all grounds?

For more versatile use, we recommend our All Terrain mobile work platform, known as the Tracker. Alternatively, view some of our other access and order picker platforms, like the Tracker Step-Through or the Navigator.
