Pallet Bin Stillage Tilter

+ Add to Quote Request

Designed to give the user an ergonomically correct position to reach loads easily without the necessity of bending down or stretching up. The handle can be turned and locked in a position away from the work area. The forks can be tilted up to 90 degrees. They are supplied as standard with parking brake and foot protectors.

Ideal for use with various stillages and containers like the Mega Bin. Not suitable for double-faced Australian style “Chep/Loscan” pallets. Optionally available in stainless construction to special order.

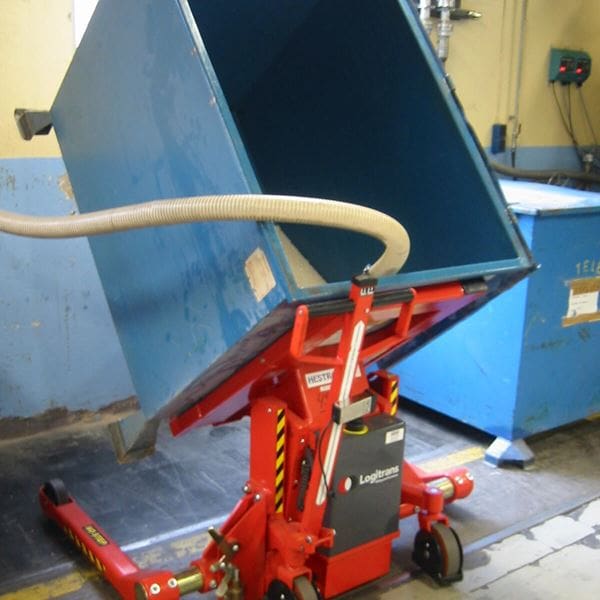

The electric Logitilt can transport, lift and tilt boxes and crates up to 90º so the working height can be adjusted.
The user does not have to bend or stretch to reach the components in the crate or cage. This applies to both standing and sitting work positions. The tilting degree can be set so that it stops automatically at the same tilting angle each time. The focus is on ergonomically correct working conditions for the user due to the ergonomic handle.

The product tilter can be provided with control on a pendant cable so that all functions can be controlled from the side, providing the user freedom of movement.

Additional Information

LT1001 Stillage Bin Tilter

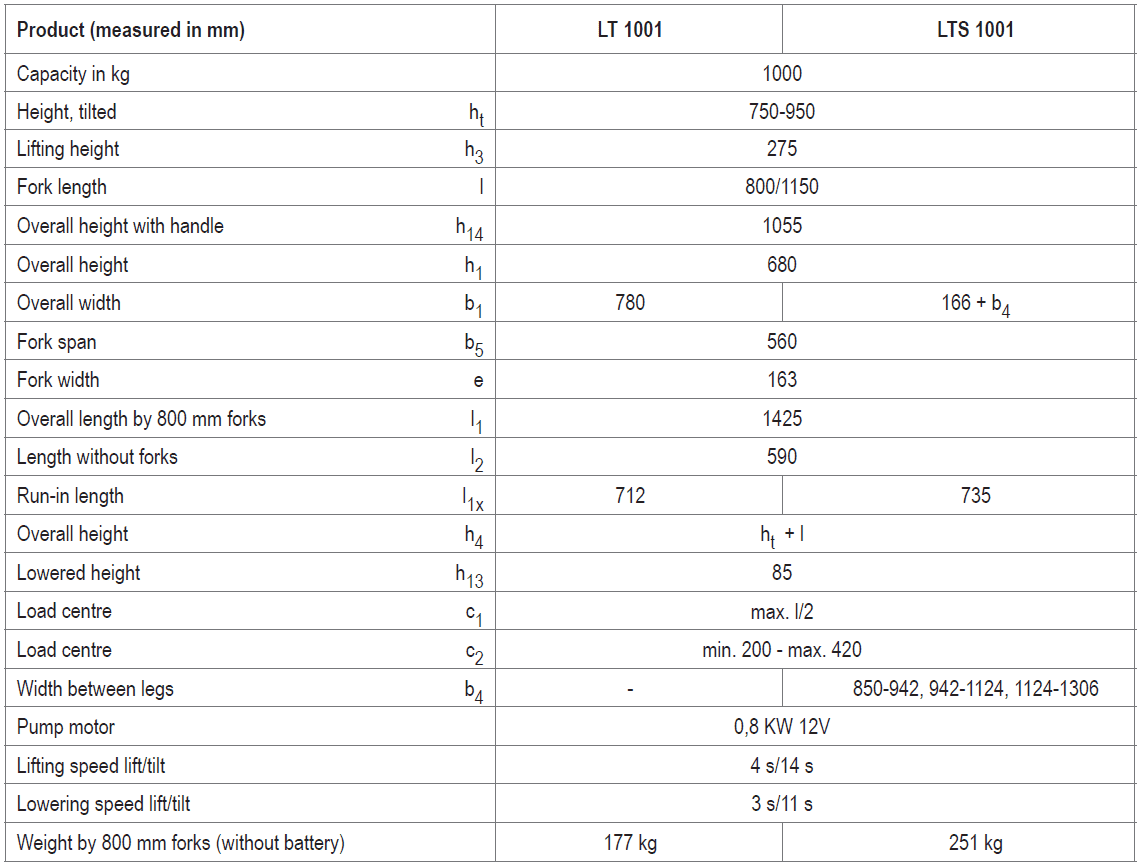

Stillage Bin Tilter dimensions 1Stillage Bin Tilter dimensions

Product Variations

Image Description Product Code Price (excl. GST)

Mobile lifting and tilting device

LT1001

Mobile lifting and tilting device with straddle legs

LTS1001
