Drum Lifting Rotators – Adjustable
+ Add to Quote Request
Our Adjustable Drum Rotators utilise a patented variable band to lift and rotate drums ranging in size, from 50 to 220 litres. Completing any drum handling system, this device can be used on steel, plastic or fibre drums. The universal band easily adjusts to fit a variety of drum sizes. Another layer of protection is also added through an intelligent rim-locking feature, which prevents the drum from slipping while it’s being decanted.Â
Overhead and Adjustable Drum Rotators feature a Working Load Limit capacity of up to 350 kg. The drum rotator attaches with a ratchet and polyester strap. Its unique functionality and adjustment system suits almost any drum, allowing it to lift and rotate as required. The device is compatible with both overhead cranes and forklifts. Additionally and for zoned locations, a stainless steel model can be ATEX certified.
Additional Information
A great range of rotators to suit various drums!

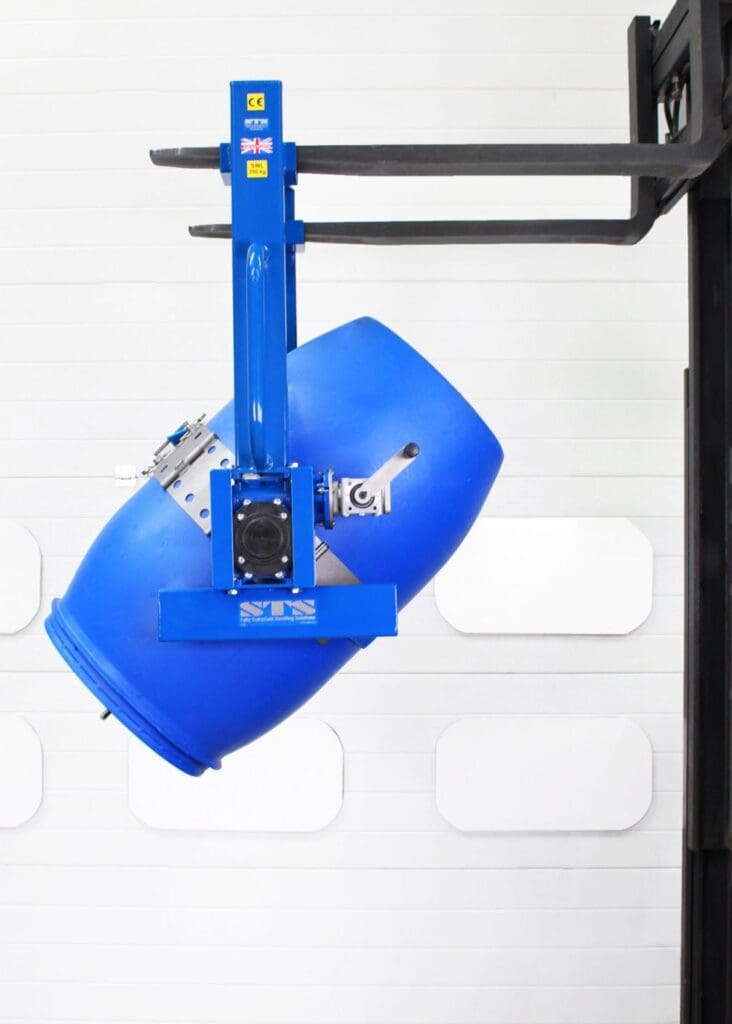

Our drum rotators can be mounted on a forklift or a crane to handle all types and sizes of drums. Additionally, they have been designed to adjust to a variety of drum materials (plastic, steel and fibreboard). They employ a patented variable band to rotate, lift and move drums. A rim-locking feature adds a second layer of security by preventing the drum from slipping while being decanted or moved.
There are two types of rotators available: Universal Band and Fixed Band. Models are also available with ATEX certification and weigh scales, as well as in stainless-steel models suitable for clean rooms and Good Manufacturing Practice (GMP).

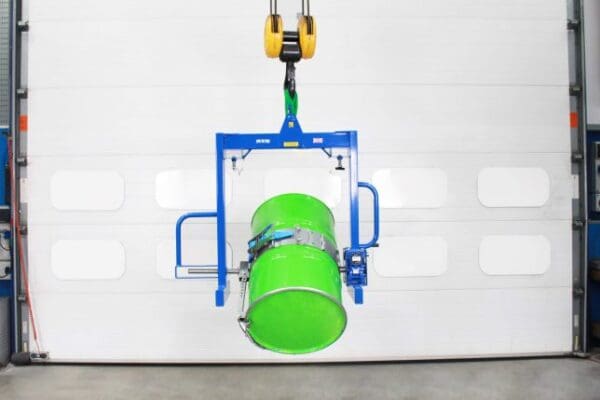

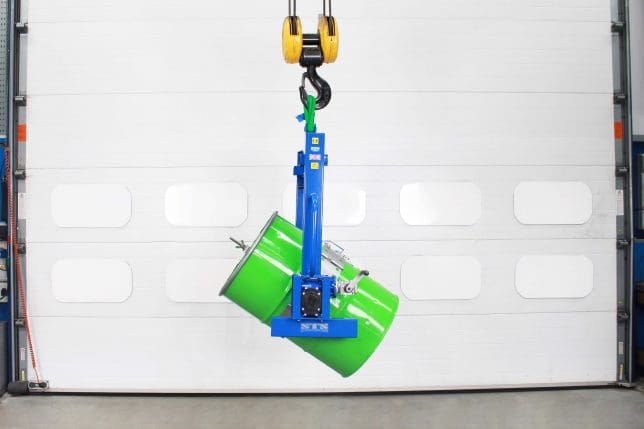

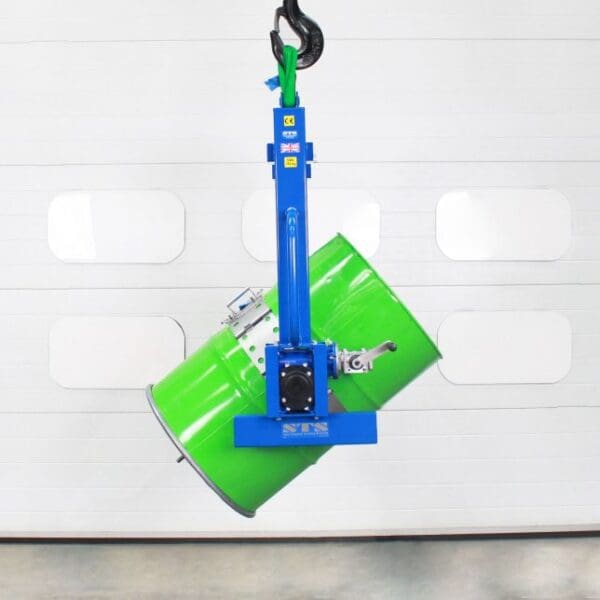

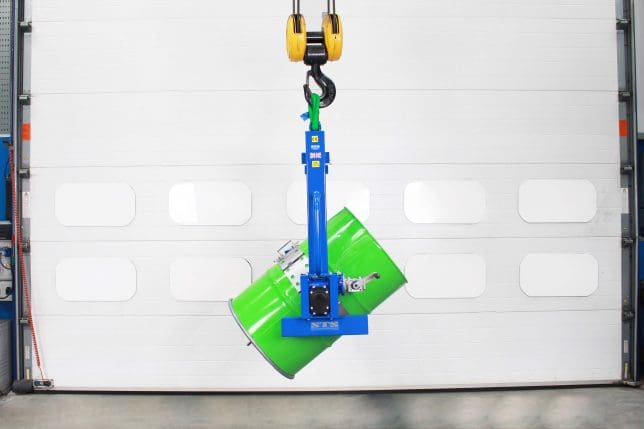

Universal Band Drum Rotator

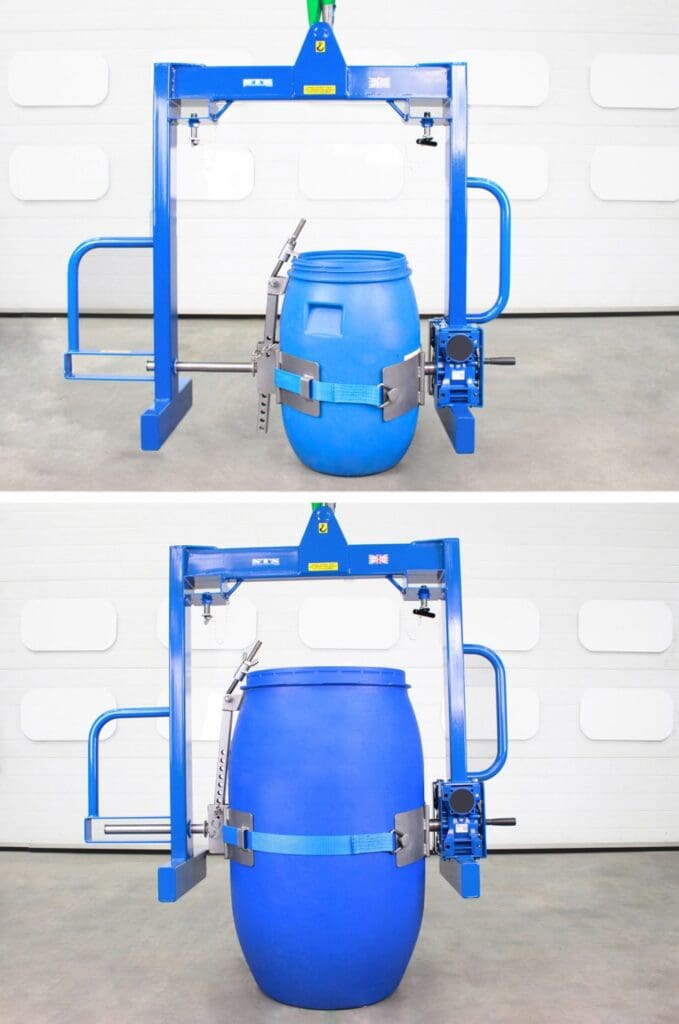

Our Universal Drum Band (code: DRU02) is one of a kind. It easily handles steel, plastic, or fibre drums ranging in sizes and capacities with a strong adjustable band. Simply adjust the variable band to fit the drum’s size, then attach it with a ratchet and polyester strap. An upper rim clamp is also included for extra drum stability.
Features:Â

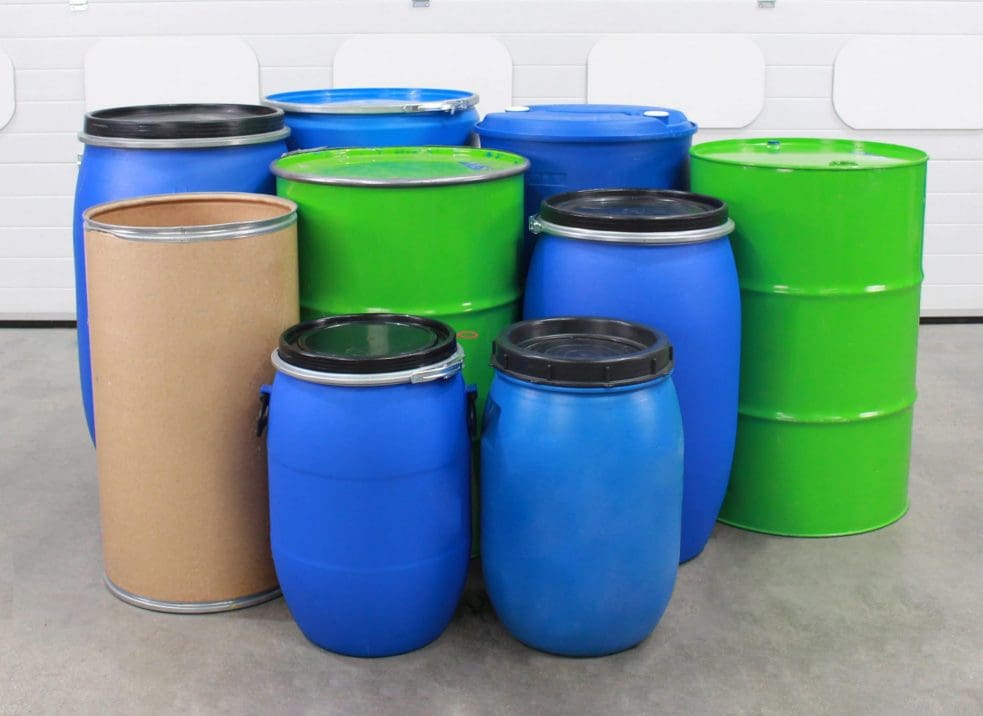

- Adjusts to drums as small as 50 litres to 220 litres.
- An innovative rim-clamp securing system provides drum handling security.

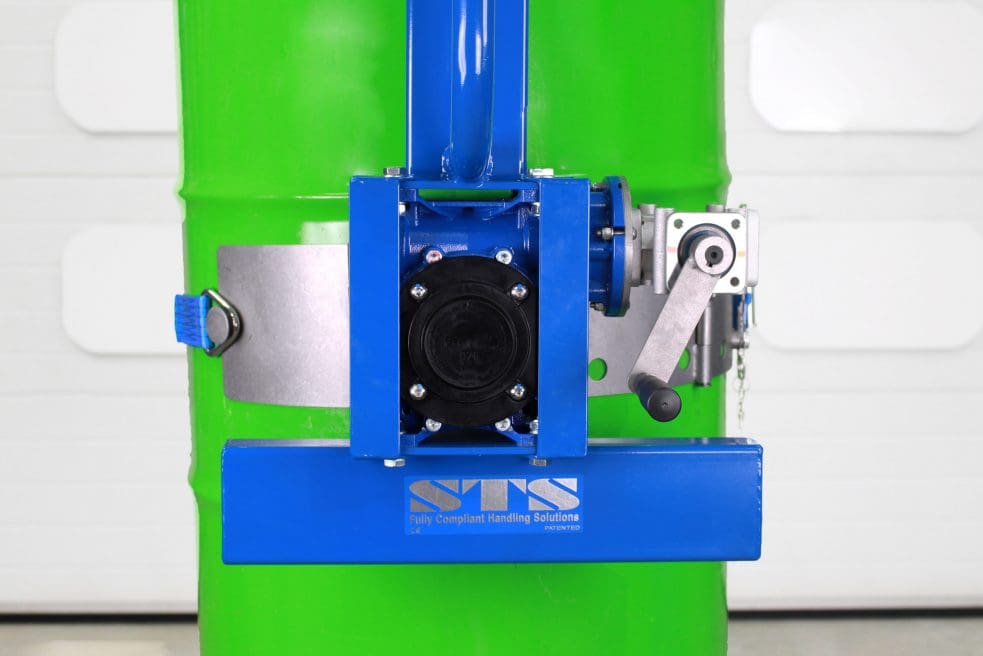

- A self-locking gearbox allows for complete user control during rotation.

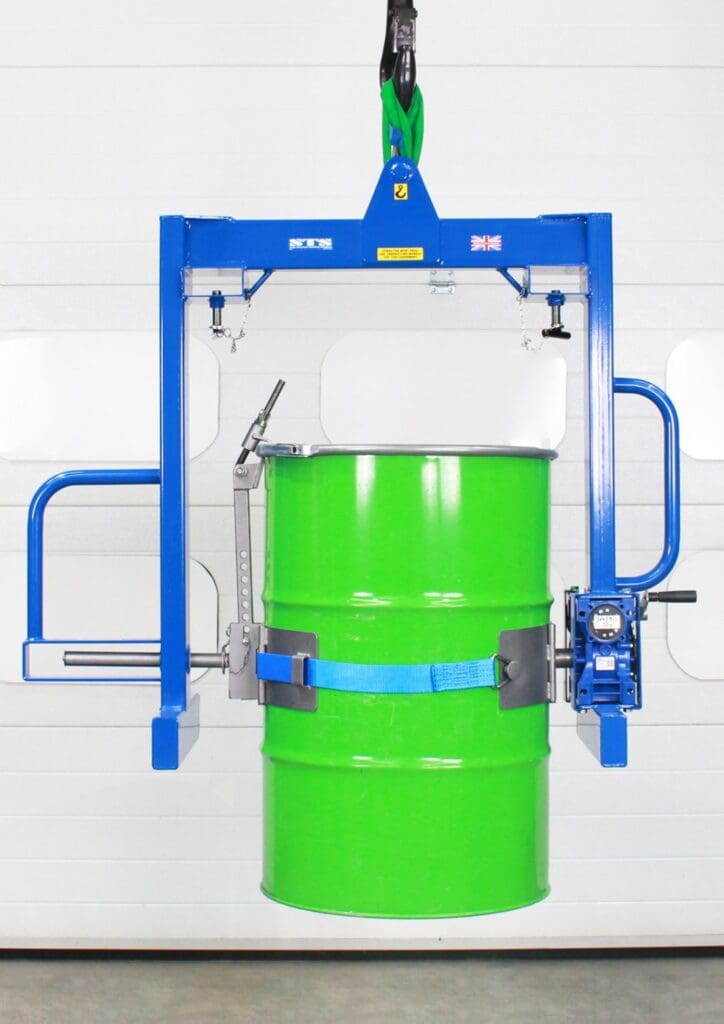

- Sliding-pivot allows quick adjustment of the band’s diameter.
- Compatible with overhead crane and forklift, with large lifting pins and fork pockets.
- ATEX Drum Tipper for hazardous zones is available.
DRU02 Specifications:Â
- Safe Working Load (SWL) – 350 kg
- Drum Compatibility – Steel and plastic drums, 50-220 litres (including MAUSER drums)
- Band Assembly – Segmented adjustable/universal band with 50 mm stainless steel ratchet and polyester strap

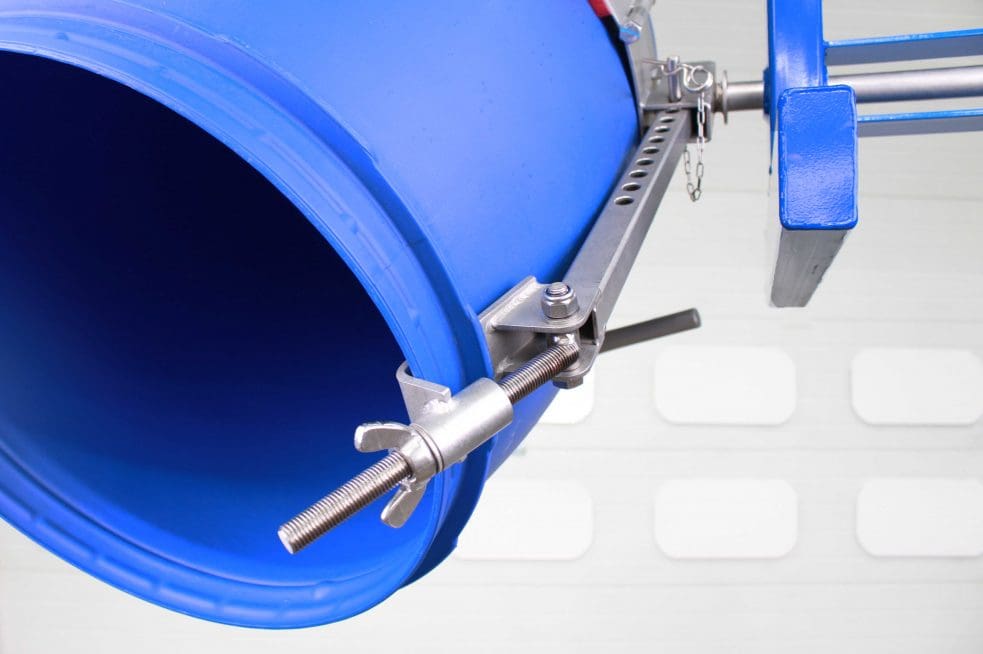

- Additional Drum Securing – Rim clamp included; grips the top edge of the drum preventing slippage
- Rotation Gearbox – Worm-wheel, self-locking with 120:1 ratio and manual handle
- Construction – Mild steel chassis, stainless steel rotator band assembly
- Surface Finish – Primer and polyester powder coated mild steel, stainless steel is smooth and clean / RAL 5010 (blue) powder coat colour
DRU02 Universal Drum Band
Fixed Band Drum Rotator

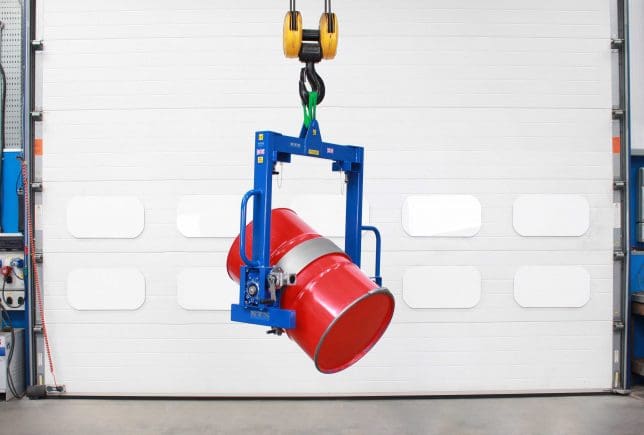

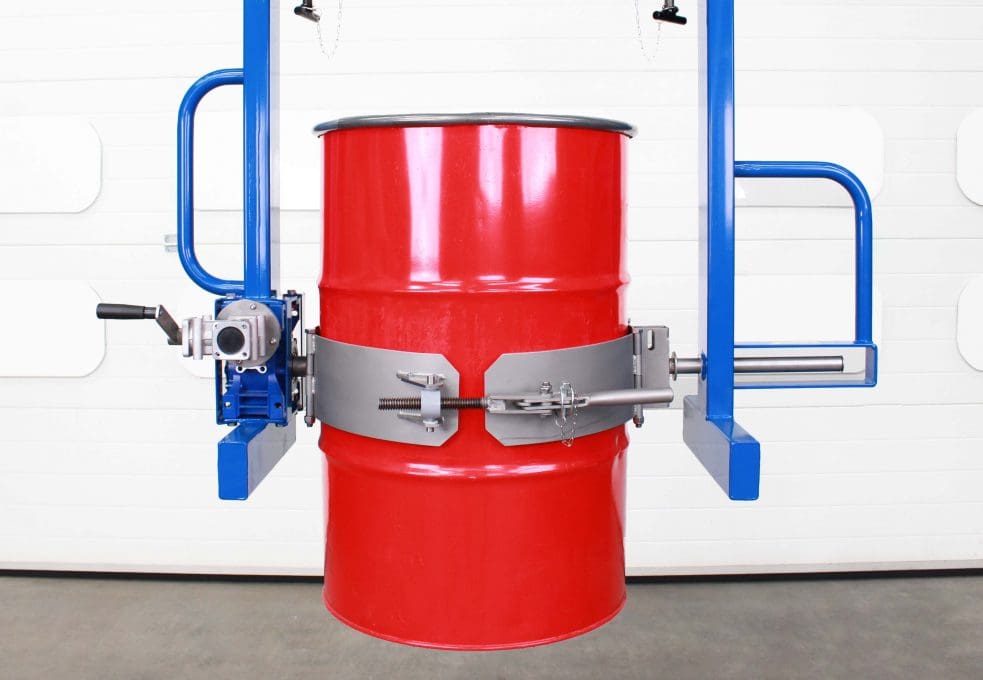

Using a crane or forklift truck, lift and pour drums from a height with our DRU02-FB Rotator. The over-centre clamp is quick, secure, and works well with large drums. The fast-acting over-centre clamp is adjustable to drums with diameters ranging from 580 to 600 mm (200- to 220-litre drums) and the mechanism is incredibly sturdy and robust.
Features:Â
- Adjusts to various drum sizes between 580-600 mm in diameter.
- An innovative rim-clamp securing system provides drum handling security.

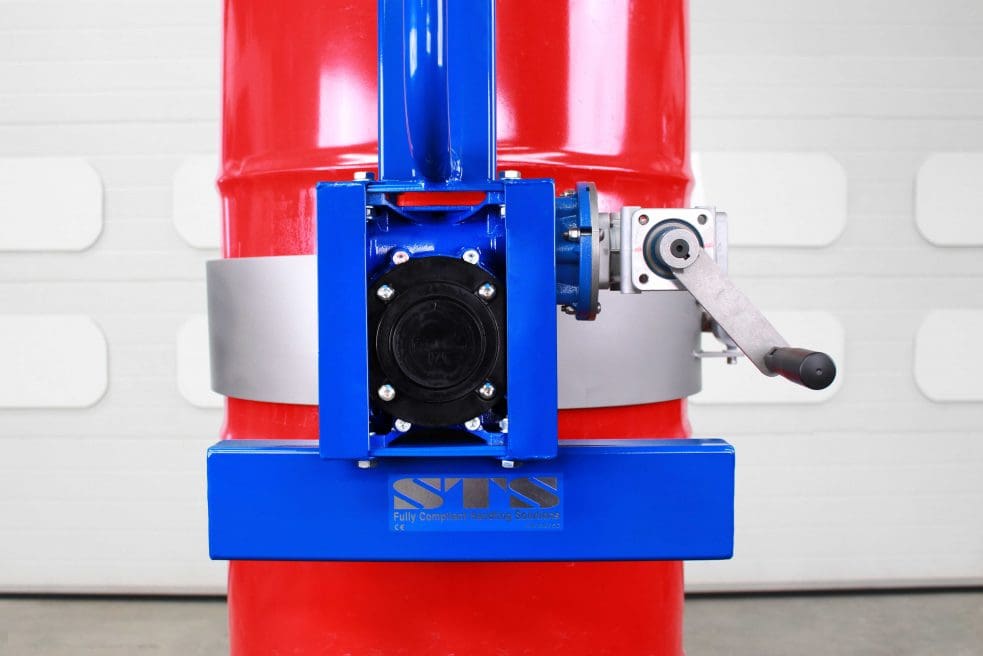

- A self-locking gearbox allows for complete user control during rotation.
- Compatible with overhead crane and forklift, with large lifting pins and fork pockets.
- Integrated stand for placing on the floor.
- ATEX Drum Tipper for hazardous zones is available.
DRU02-FB Specifications:Â
- Safe Working Load (SWL) – 350 kg
- Drum Compatibility – Steel and plastic drums, 200-220 litres (including MAUSER drums)
- Band Assembly – Fixed Band with over-centre locking clamp for 200-220 litre drums
- Additional Drum Securing – Height-adjustable rim-clamp
- Rotation Gearbox – Worm-wheel, self-locking with 120:1 ratio and manual handle
- Construction – Mild steel chassis, stainless steel rotator band assembly
- Surface Finish – Primer and polyester powder coated mild steel, stainless steel is smooth and clean / RAL 5010 (blue) powder coat colour
DRU02-FB Fixed Drum Band

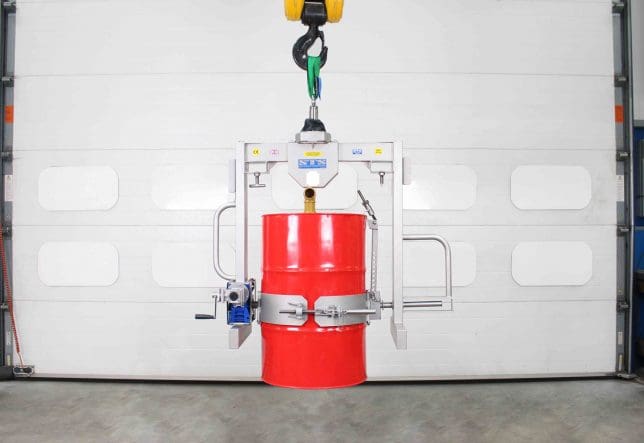

ATEX Drum Rotator (Weigh Scales)
The crane slung drum rotator with weigh scales lifts and tilts drums. Customers who need to measure material weight during decanting will benefit from this equipment. This model may be connected to a PC system to log weighing data in real-time, which is particularly useful in areas where quality control is crucial.
This system has an integrated weighing system for use when lifting. The load-cell function allows operators to accurately and confidently assess, manage and control material flow. The unit can log data into a computer, making it particularly helpful in modern factories and industrial facilities. The load cell is protected during usage and contained within the upper section of the DRU02 frame. If the load cell fails or is damaged, the load is kept secure thanks to the captive securing arrangement installed beneath the crane hook.

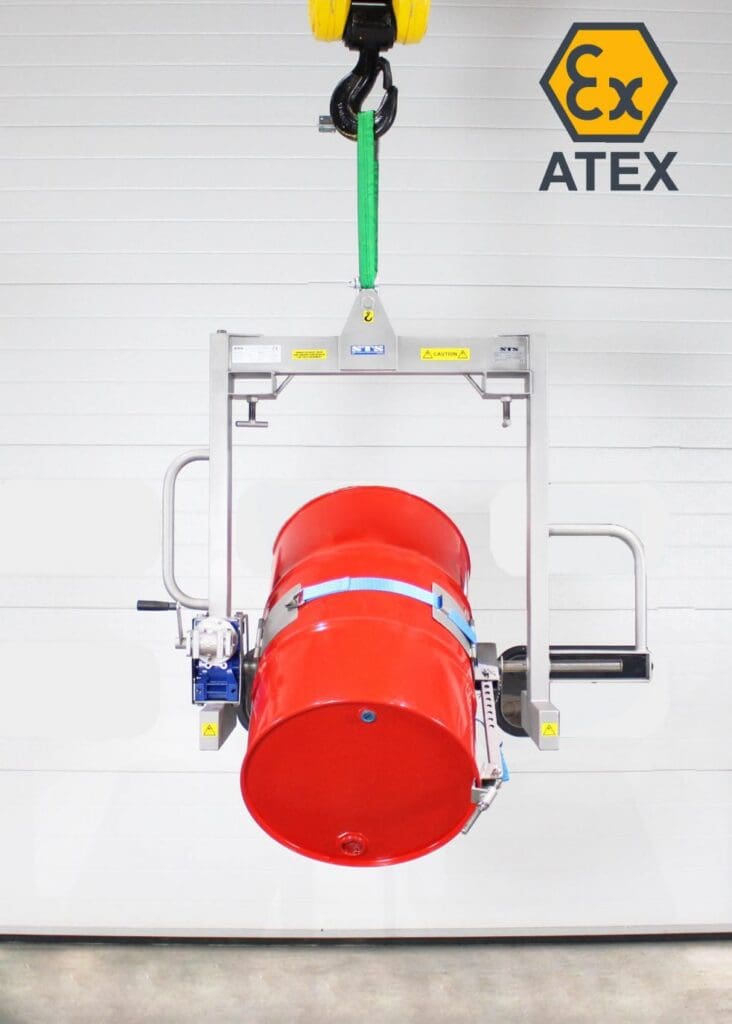

DRU02 with Stainless Steel design and ATEX Weigh Scales.
Optional Extras for Drum Rotators
Either select models of drum rotators with a fixed band or universal band. ATEX options are available with weighing scales, as well as stainless-steel options that provide a smooth finish suitable for clean rooms and other similar working environments.
Require another drum handling solution?
Browse our entire Overhead Drum Lifting catalogue.
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
 |
Overhead Drum Rotator (Universal Band) |
DRU02 | ||
 |
Overhead Drum Rotator (Fixed Band) |
DRU02-FB | ||
 |
Overhead Drum Rotator (Stainless Steel) |
DRU02-SS |
