Lifting Cages - Brick Safety - Materials Handling

Lifting Cages – Brick Safety

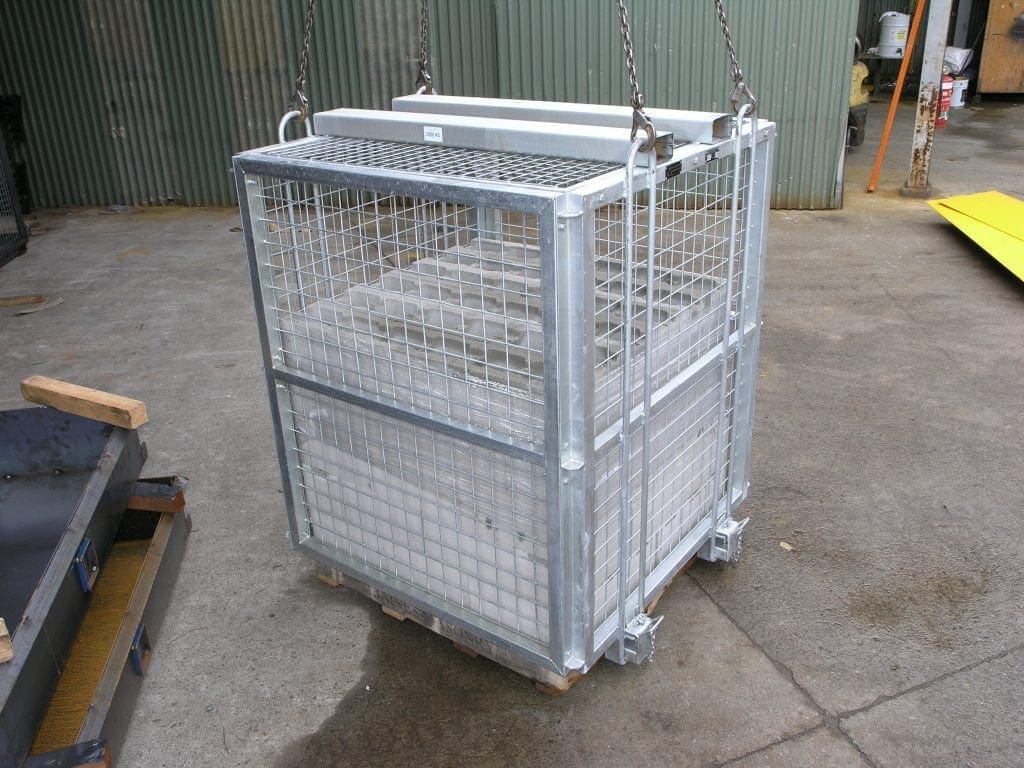

Our Safety Brick Cages are designed to safely lift, move and convey pallets of bricks or similar loose products to a work site or location via an overhead crane or forklift transportation. Suited particular for pallets of bricks or similar products, they feature a fully enclosed mesh panelling design made with a strong zinc finish. The cages are fitted with crane lugs for a 4-point lift or forklift pockets for easy relocation.

These cages make storing simple and organised. Signage panels are included on two opposite sides, as well as tine storage when not hoisting. Each unit can be supplied as a flat-pack or with on-site assembly as a fully welded construction.

Safety Brick Cages suit 1200 mm square pallets and up to 1500 mm or 1700 mm clear height.

Additional Information

An incredibly robust crane or forklift transported cage!

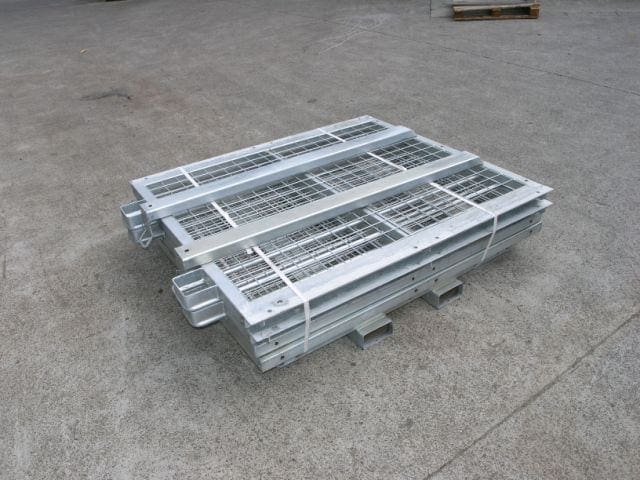

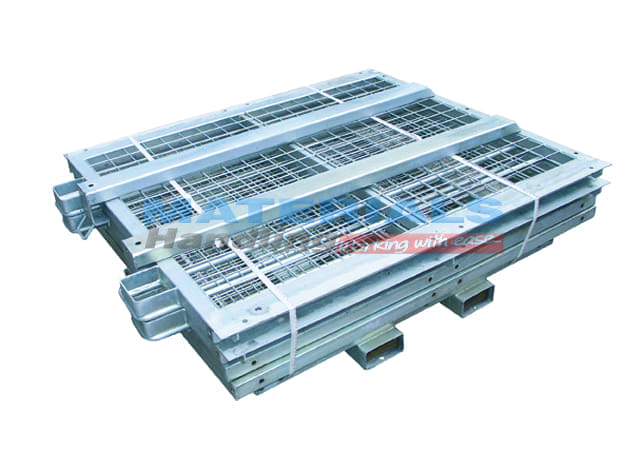

These solutions make light work when lifting bricks or similar loose materials. They feature a robust design, available with either on-site installation, as a flat-pack or as a fully welded unit. Both MBSN6 and MBSN6H can be fully assembled on-site at an additional cost. A fully welded unit is available (MBSN6W or MBSN6HW). A unit also providing an additional 200 mm in height is also available in a flat-pack design. The flat-pack option assists storage requirements and aids with easy transport.

Features:

Suited to bricks, loose products or similar materials.
Suitable for use with 1200 mm square pallets and up to 1500 mm (MSBN6) or 1700 mm high (MSBN6H).
Designed with fully enclosed mesh panelling.
Fitted with Crane Lugs (for a 4-point lift) or Forklift Pockets.
Working Load Limit (WLL) suits up to 2000 kg.
Unit Weight varies between models – 255 kg (MSBN6) or 280 kg (MBSN6H).
Signage Panels included on two opposite sides.
Tine storage when not hoisting.
Zinc Finish.

Please Note: Chains are not included.

Additional Lifting Frame available!

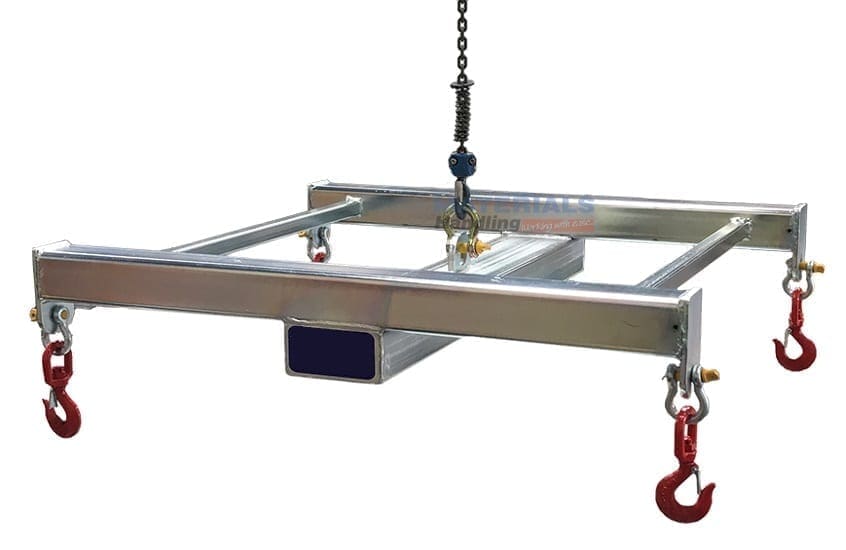

If overhead height becomes a problem, the MBSN6-CL Brick Cage Lifting Frame allows for single point lifting. This is ideal for when a four-leg sling height cannot be executed.

This optional attachment is suitable for use on the MBSN6 Safety Brick Cage and has a zinc finish.

MBSN6-CL Optional Lifting Frame

Require an alternative product?

We have a great variety of lifting solutions, including a diverse range of Goods Lifting Cages.

Click the PDF button to learn more.

Product Variations

Description	Product Code	Price (excl. GST)
Brick Cage (flatpack)	MBSN6	$2,540.00	Add to Quote Request
Brick Cage (welded assembled)	MBSN6W	$2,630.00	Add to Quote Request
Brick Cage – High Pallets (flatpack)	MBSN6H	$2,650.00	Add to Quote Request
Brick Cage – High Pallets (welded)	MBSN6HW	$2,760.00	Add to Quote Request
Brick Cage Lifting Frame	MBSN6-CL	$1,500.00	Add to Quote Request
