Pallet Inverter – Floor Level

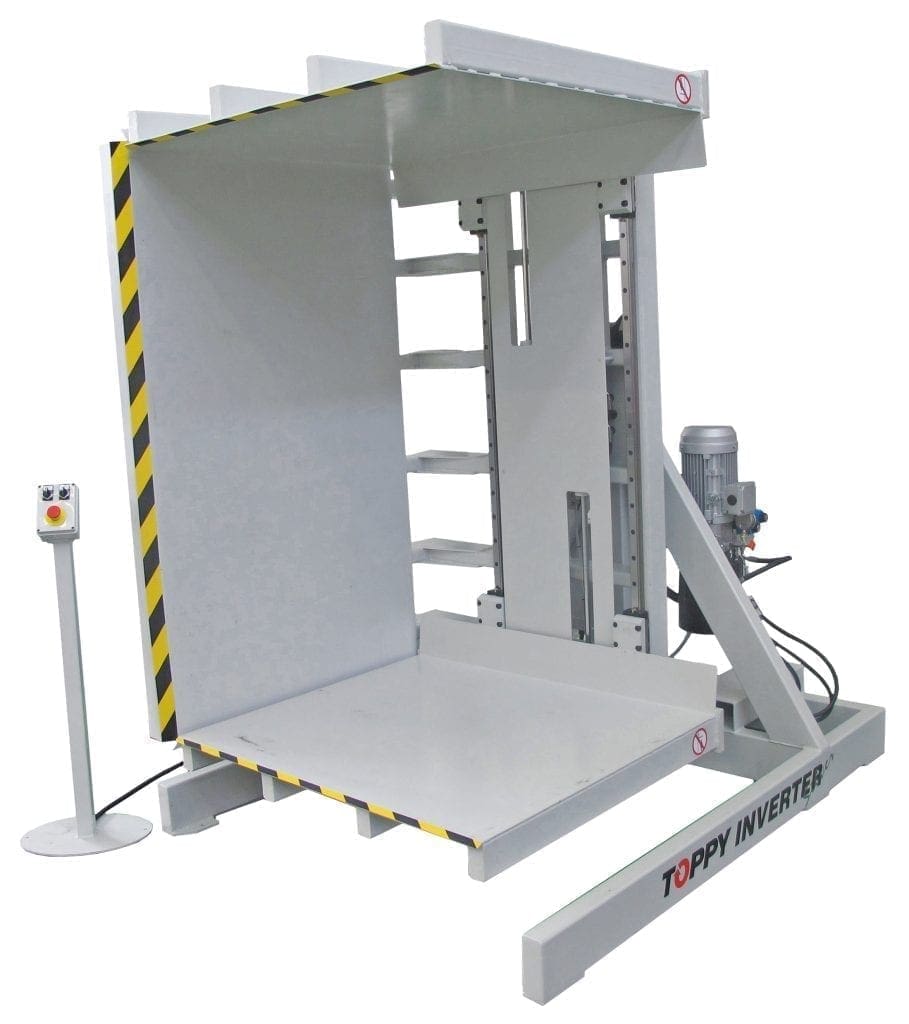

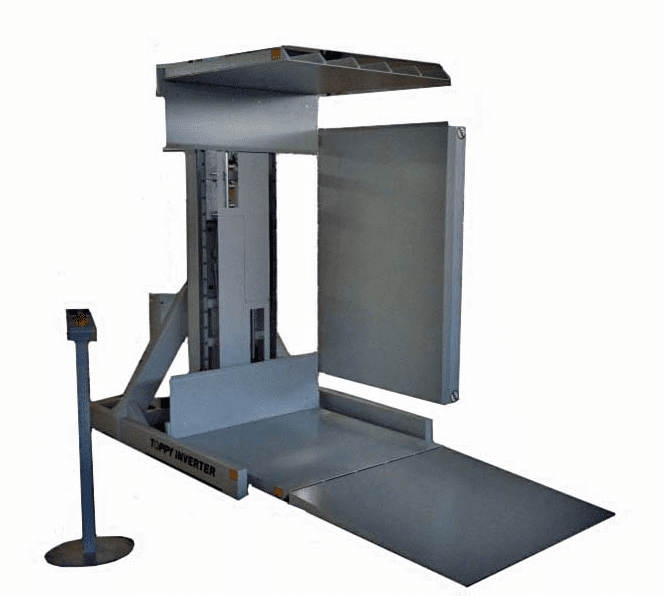

Our Floor Level Pallet Inverter is a hydraulically driven, stationary, pallet exchange device.

Goods can be loaded and unloaded onto the inverter using a manual or electric pallet jack. It’s incredibly fast, efficient and safe and makes manual handling tasks an absolute breeze.

Able to rotate heavy loaded pallets, the Floor Level Pallet Converter can complete tasks in approximately 25 seconds. Pallets can be exchanged with a weight of up to 1500kg (maximum). This device is optimised for pallet changing and is an ideal handling system, required in many workplaces.

Additional Information

Sturdy and supportive operation!

The Floor Level Pallet Inverter is an efficient performer, averaging and impressive throughput of approximately 20 pallets per hour. Driven by 3 Phase 415-volt, 6kW operation, it can rotate loaded pallets at approximately 25 seconds and exchange pallets with a capacity of up to 1500kg (min. opening 820mm, max. opening 2200mm).

Unique Technology!

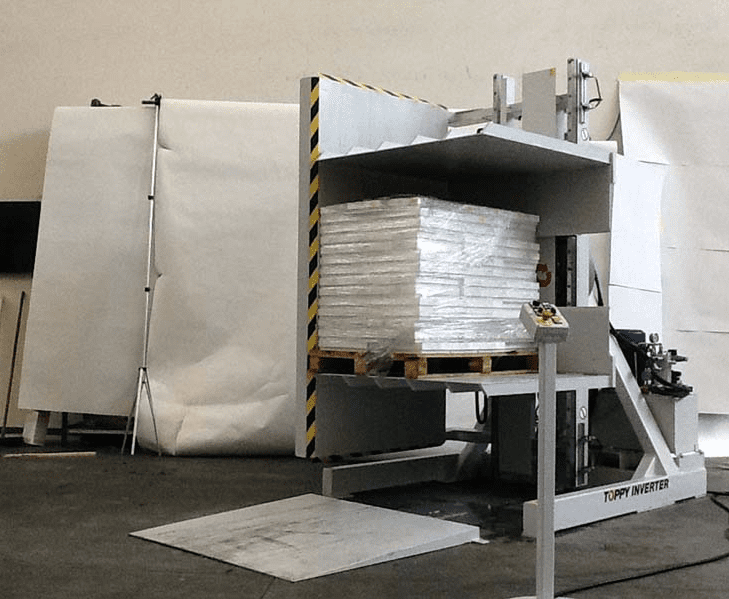

When loaded, the pallets are recognised by photocells, so there is no need for excessive pressure. They can be loaded by manual or electric jacks.

Sturdy and supportive operation!

How it works?

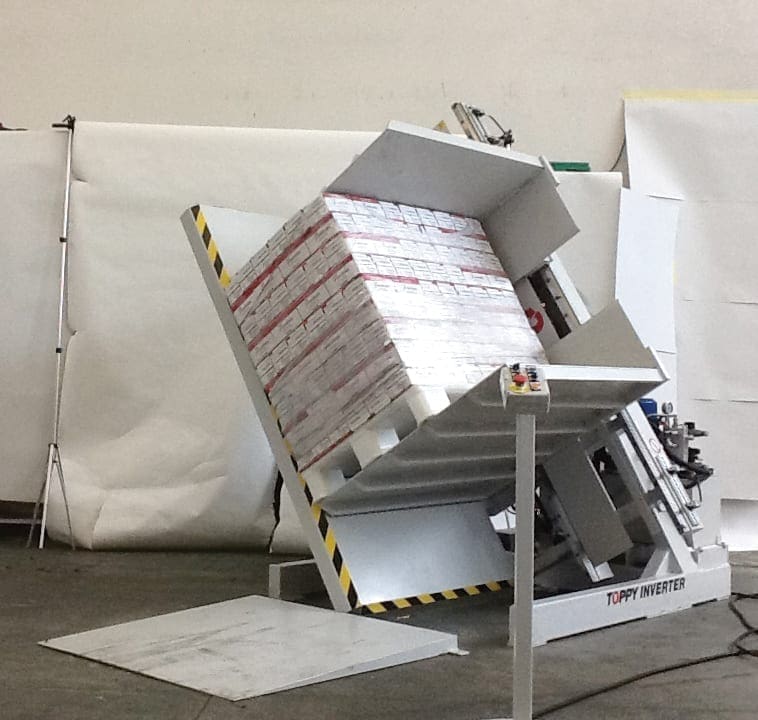

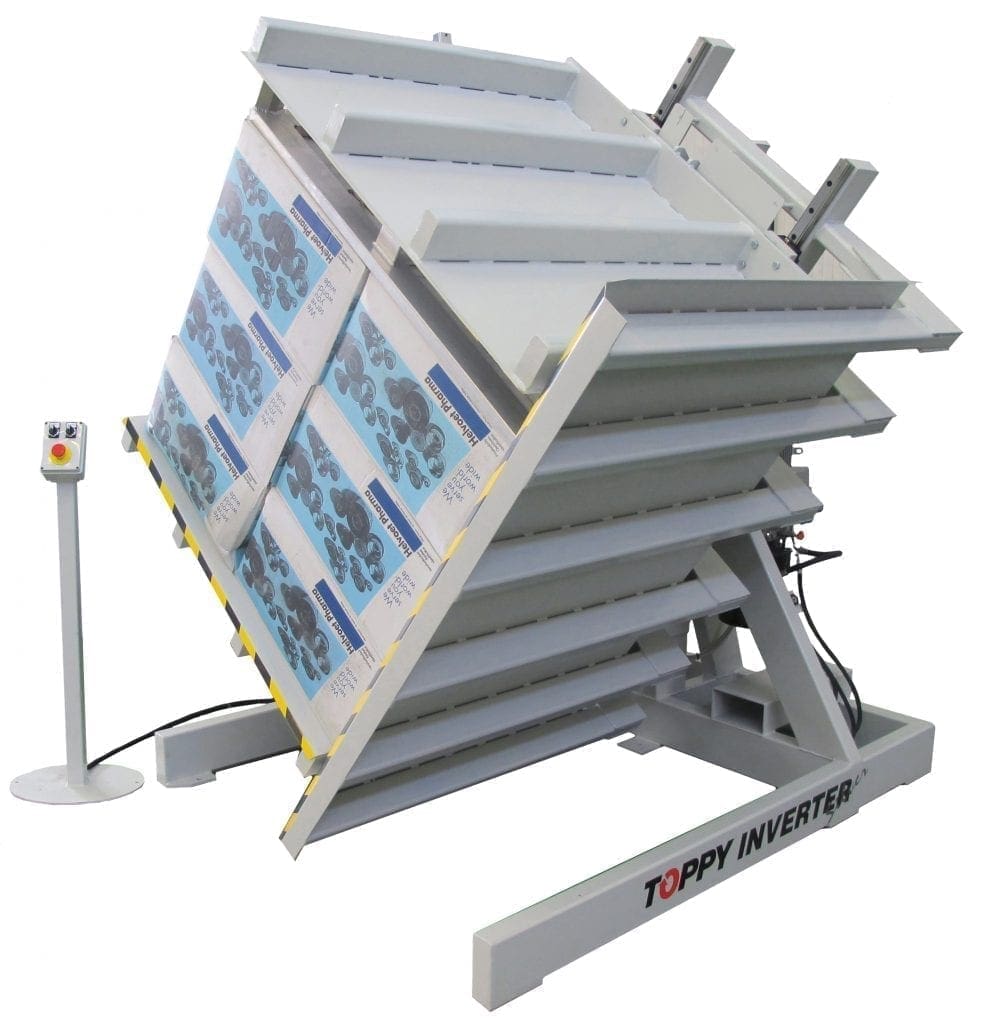

Depending on the stability of the load the pallets may be exchanged either at the 90° or the 180° rotation point. Pallet turning is accomplished with:

90° rotation for stable loads (i.e. boxes)
180° rotation for unstable and fragile loads (i.e. bottles)
180° rotation for unstable but not fragile loads (i.e. bags and drums)

The Floor Level Pallet Inverter is operated via a dedicated push button panel. The machine without safety fencing weighs 2000kg (Colour RAL 7035). Safety guards on either 1, 2 or 3 sides, as well as photo-eye light beam across opening, must be supplied with these inverters. An optional light curtain on the safety guards is an additional extra.

Technical Specifications

Pallet Capacity – 1500kg
Pallet Minimum Opening – 820mm
Pallet Maximum Opening – 2200mm
Pallet Minimum Opening – 820mm
Rotation – Hydraulic
Turning Time – 25 seconds
Performance – 20 pallets / per hour
Electrical Power Supply – 3 Phase 415V, 6kW
