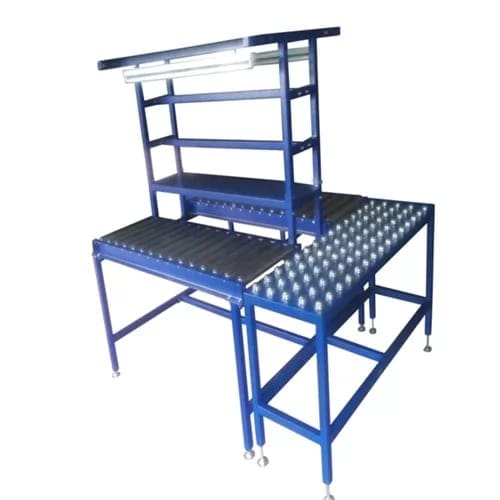

Ball Transfer Tables

Our Ball Transfer Tables help move goods in any direction, across a horizontal plane. They are primarily suited for moving steel plates, around guillotines and presses, multi-directional transfers of products between conveyors and handling components in tote boxes around machines.

Standard Ball Transfer Conveyor Decks:

Mild steel modular construction powder-coated
750, 1500 or 3000mm lengths with 35 x 90 x 3mm side channels
B/B widths 317, 417, 517, 617 or 817mm
CWC02 push in ball transfer with 75mm pitch centre to centre

These products are custom made to order. See 3 examples below in Product Variations. Please ask our facilitators for a proposal.

View our range of individual ball transfer units.

Product Variation

Clear

Product Variations

Description	Product Code
Ball Transfer Table 500 x 300mm wide FItted with 49 x 22mm diameter steel ball transfers	BTT300	Add to Quote Request
Ball Transfer Table 500 x 450mm wide FItted with 77 x 22mm diameter steel ball transfers	BTT450	Add to Quote Request
Ball Transfer Table 500 x 600mm wide FItted with 119 x 22mm diameter steel ball transfers	BTT600	Add to Quote Request
Ball transfer table 587 x 750mm (WxL)	C5075	Add to Quote Request
Ball transfer table 587 x 1500mm (WxL)	C5150	Add to Quote Request
Ball transfer table 587 x 3000mm (WxL)	C5300	Add to Quote Request
BALL TRANSFER ROLLER DIA: 22mm ROLLER MATERIAL: MILD STEEL LOAD: 50kg	CWC02	Add to Quote Request
